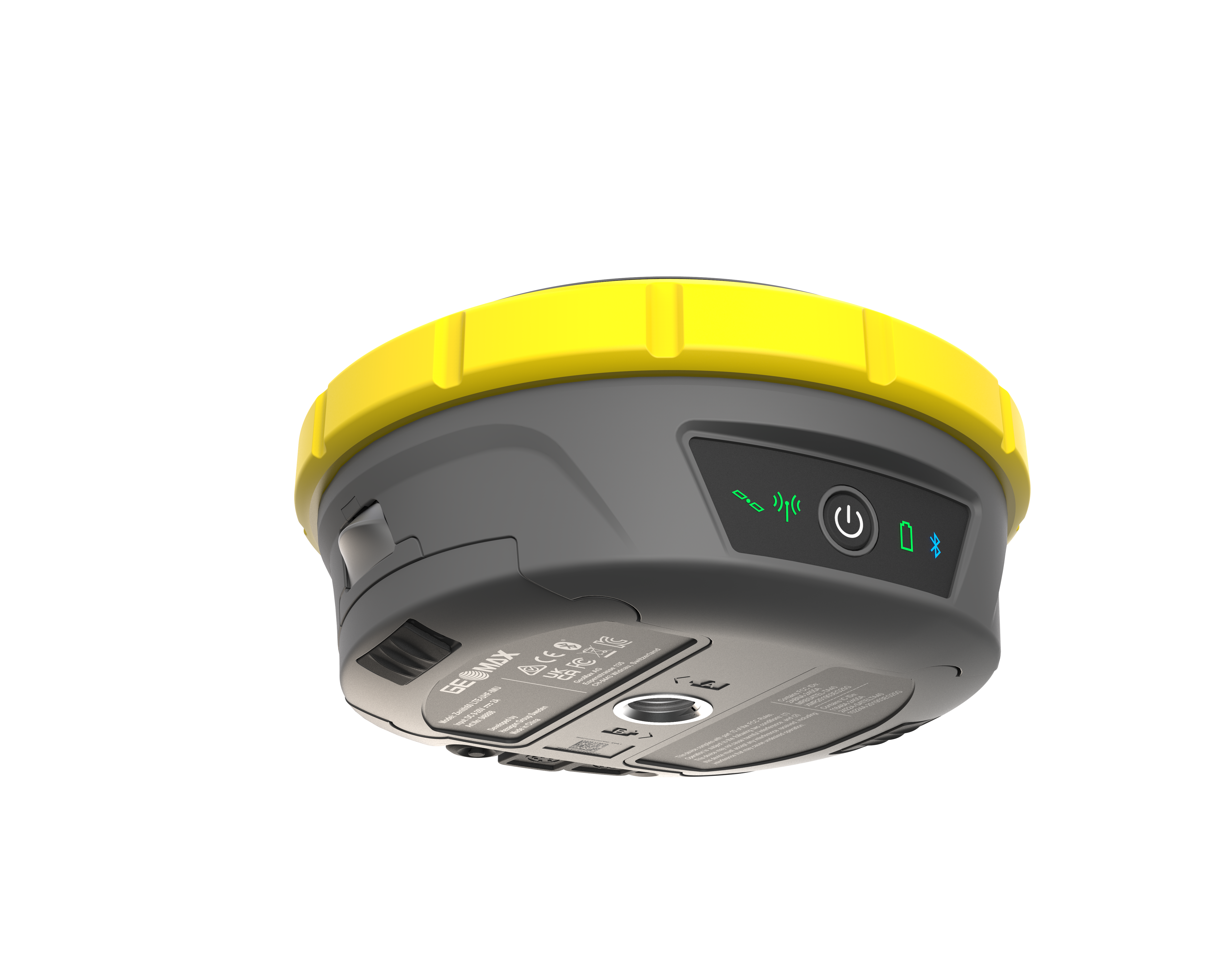

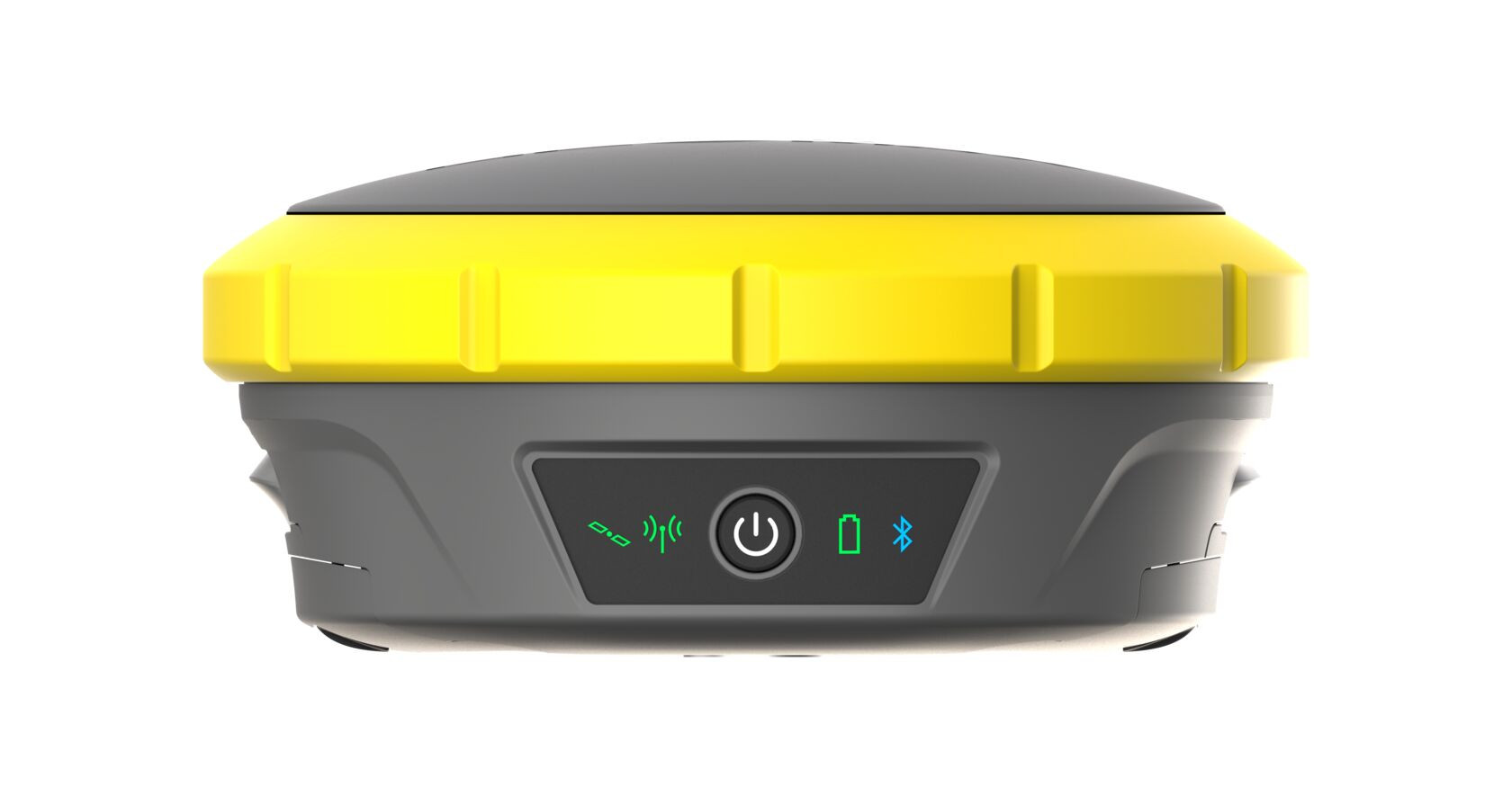

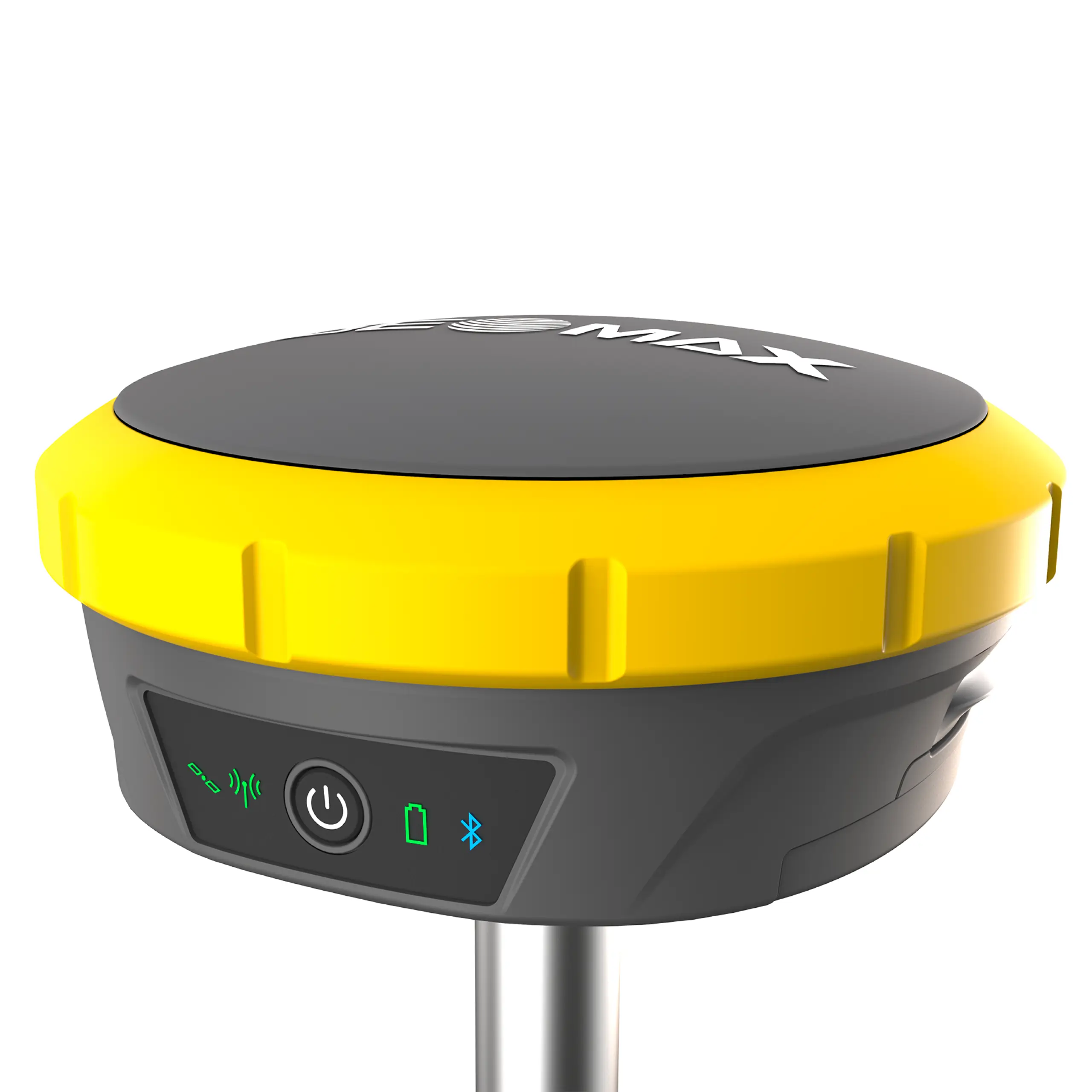

GEOMAX Zenith60 Pro LTE-IMU (UHF)

Master every challenge quickly and precisely

Top Features

  • Calibration-free tilt compensation
  • 800 channels, multi-constellation
  • fully integrated into the Geomax product environment
  • optional with UHF (Art-No. 29536000)

Variants

Variant

Technical Data

GNSS Tracking GPS, Glonass, Galileo, BeiDou, QZSS, SBAS, NavIC
Channels 800, multi-constellation
Tilt compensation Calibration-free, Resistant to magnetic interferences
Interfaces and connection Power button, LED status indicator, Bluetooth, USB Type C, WLAN
Working time 12.5 h Base / 11 h Rover
Working temperature -40°C bis +65°C
Accuracy RTK Hz 8mm + 1 ppm, V 15mm + 1 ppm
Accuracy RTK - tiltmode additional Hz uncertainty 2 cm up to 30° inclination
Protection class IP68
Dimensions Hight 75mm, Ø 167mm
Weight 1.14kg
Product Number (PID) 29535000

Highlights at a Glance

  • The calibration-free tilt compensator increases measurement speed and accuracy.
  • Benefit from the tools of the X-PAD field software, which simplify common GNSS positioning tasks.
  • Obtain precise data even under challenging conditions thanks to high RTK performance: Horizontal: 8 mm + 1 ppm; Vertical: 15 mm + 1 ppm
  • IP68 certified for protection against water and dust.
  • Positioning frequency of 20 Hz.
  • Optional: SATEL radio modem for use in Base-Rover mode with machine controllers from all manufacturers.
  • Intuitive workflows and easy data exchange options, especially via the integrated X-Pad 365 cloud solution.

Description

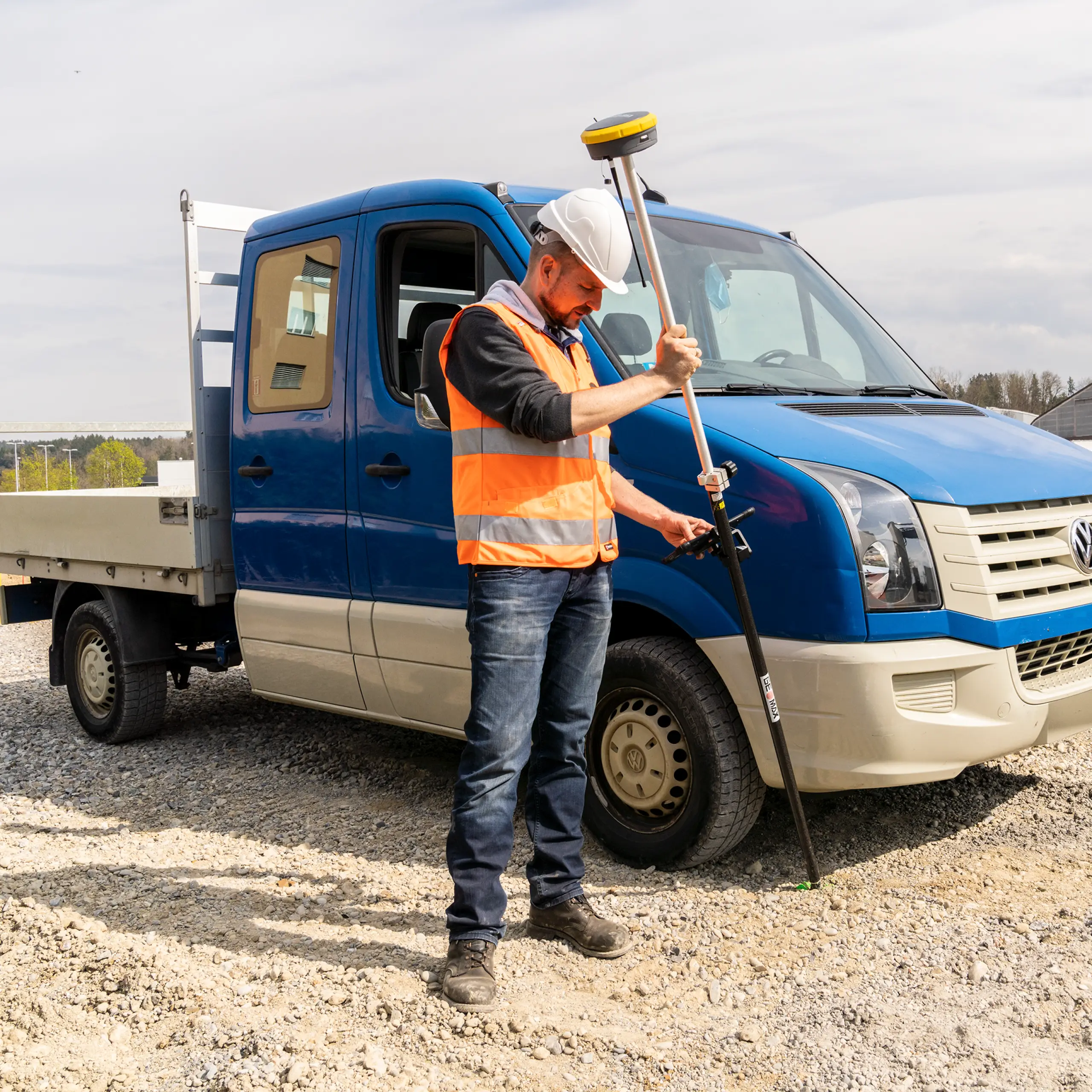

For surveyors and construction professionals who want to get the job done on time and with confidence, the advanced Zenith60 Pro GNSS smart antenna ensures precise, accurate, and hassle-free measurements. Whether working under dense canopy, in urban canyons, or on construction sites, this high-performing RTK rover provides reliable data in challenging conditions. Integrated into the world of GeoMax X-PAD software keeps you covered with intuitive workflows and easy data exchange from measuring to processing to help you get maximum results in minimum time.

Scope of Delivery

1x Zenith60 pro antenna with IMU
1x carrying case
1x charging cradle
2x batteries
1x microSD adapter
1x cable
1x 8GB USB flash drive
1x user manual
