NESTLE GNSS system GNPS-42

GPS surveying so easy - just like that

Top Features

  • On2go app offers simple calculations for lengths, distances, height differences, area and volume determinations directly in the field
  • Import and export of numerous formats (e.g. DXF, KML, CSV, SHP, )
  • Can be used without special knowledge in the field of surveying applications

Variants

Variant

Technical Data

Antenna / Weight Helix / 25 g
Working height 2 m
Battery life 6 Hours
Operating temperature -20°C to +50°C
Field computer 8" Tablet, Android, Pen, Outdoorcover, WLAN, Bluetooth, LTE
Accuracy (RTK Fixed) Hor = 10 mm + 1 ppm, Ver = 18 mm + 1 ppm
Weight (ready for work) 1760 g
GNSS tracking GPS, Glonass, Beidou, Galileo
IP protection class Antenna IP67, field computer IP68, sensor box IP54
Power supply via field computer
Product Number (PID) 26032001

Highlights at a Glance

  • Simultaneous use of 4 satellite systems (GPS, GLONASS, GALILEO, BEIDOU)
  • Satellite measuring system Made in Germany
  • Quick and easy to learn
  • System ready to measure particularly easy
  • GNPS-42 is the benchmark for entry-level satellite positioning systems

Description

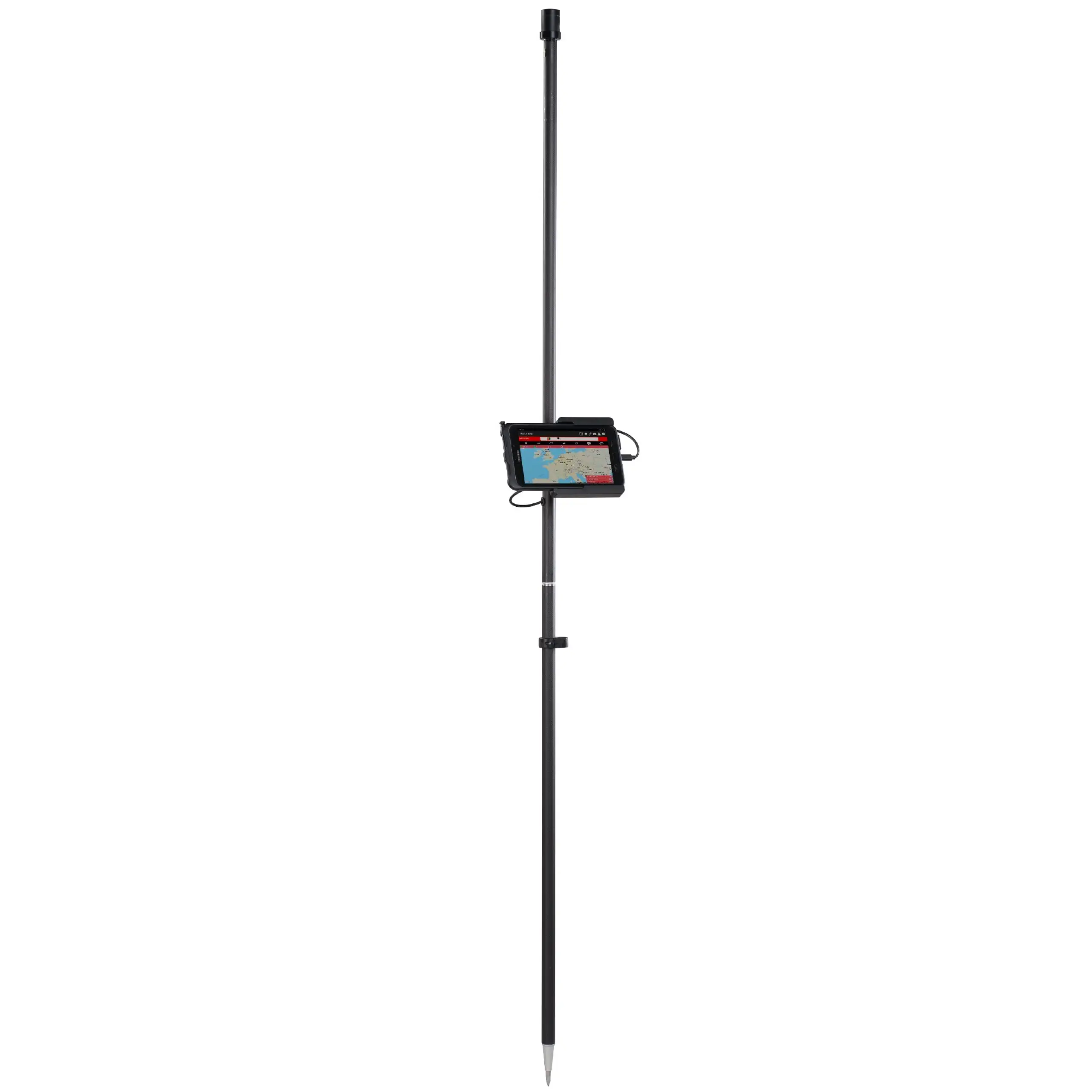

The NESTLE GNPS-42 is a precise, lightweight, mobile satellite positioning system for point recording and point staking in topography, documentation, construction and volume measurements. Surveying work can be conveniently carried out through the simultaneous use of 4 satellite systems (GPS, GLONASS, GALILEO, BEIDOU), setting a benchmark for entry-level satellite positioning systems. The proprietary and user-friendly app NESTLE on2go enables the user to carry out surveying tasks independently without having any special knowledge.

For more information, please visit the following page: www.gnps-42.com

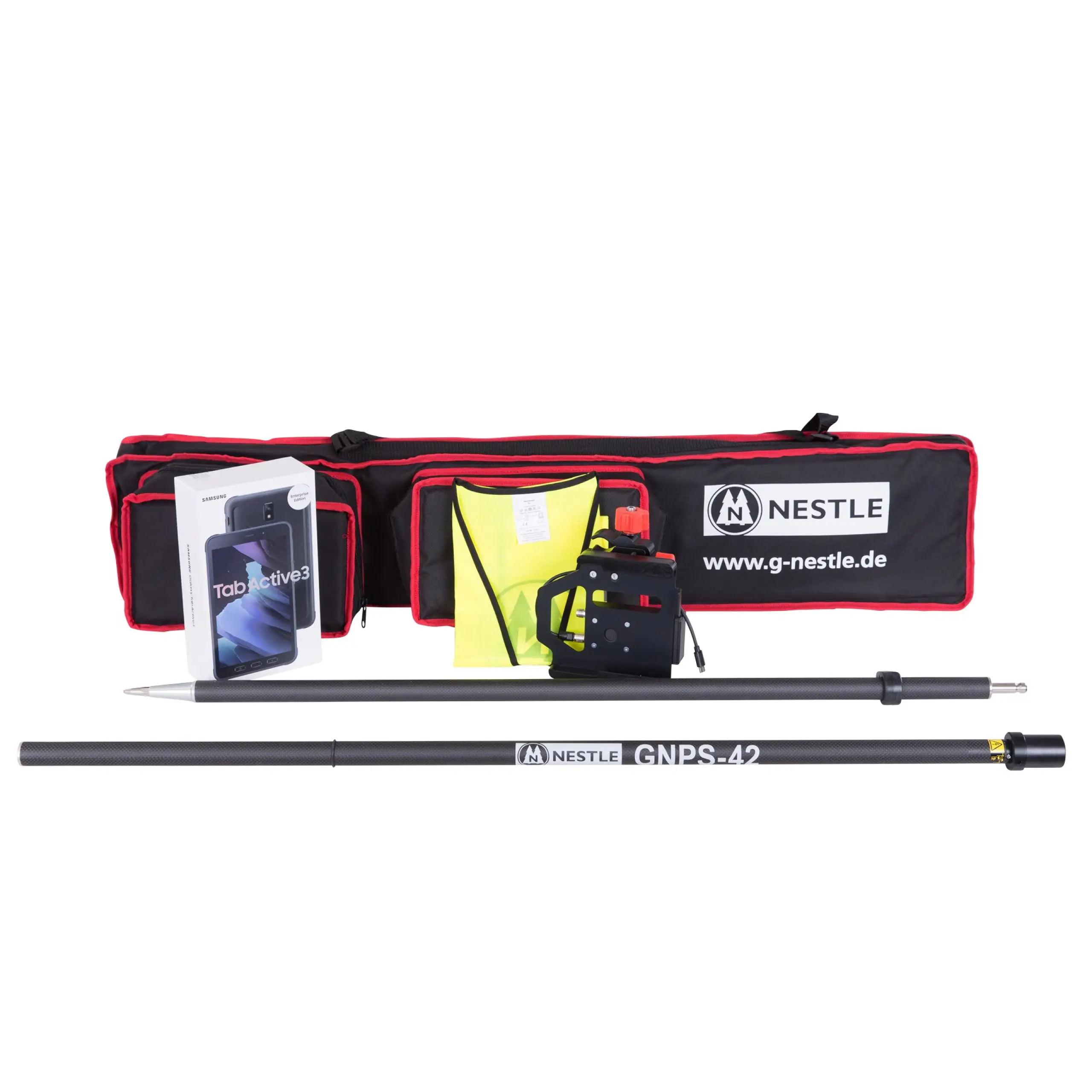

Scope of Delivery

Helix antenna
2-piece rod
Field calculator with Li-Ion battery, charging cable, pen and outdoor cover
GPS sensor box with connection cable
Mounting bracket for field computer and GNPS sensor box
Rod holder
Field software NESTLE on2go (1-year licence)
Manual
Bag
