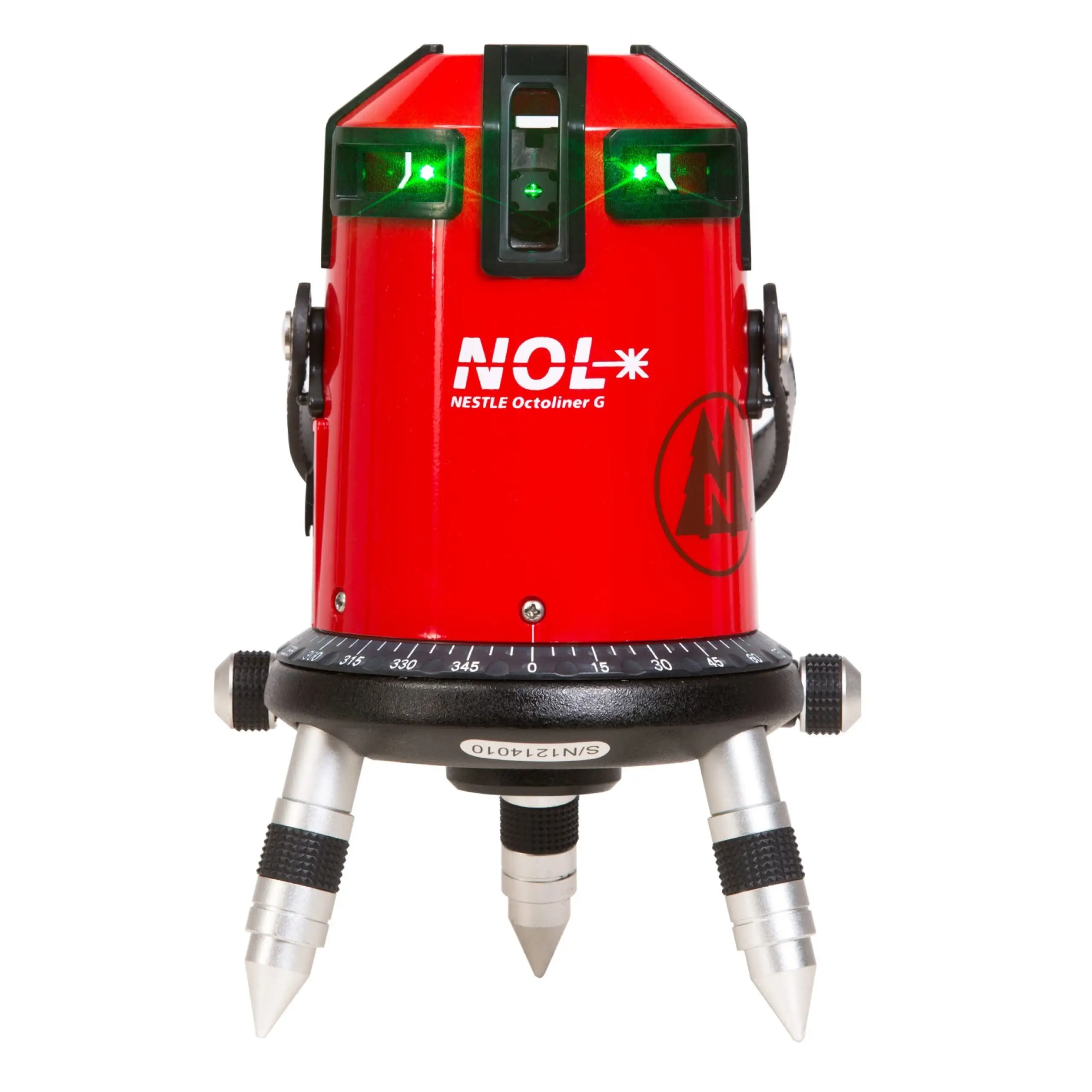

NESTLE Octoliner G with green laser beam

Multi-liner for fast work

Top Features

  • All lines with green laser beam, plumb point red laser beam
  • Operation temperature -10°C to +40°C
  • Motorised self-levelling
  • Versatility in use due to 360° horizontal line in combination with exactly perpendicular vertical planes.

Variants

Variant

Technical Data

Working range* without/with receiver approx. 50 m / approx. 120 m
Working time 4 lines = 6 hrs / 2 lines = 12 hrs.
Weight 1520 g
Threaded connection 5/8
Laser (lines) green, class 2
Laser plummet (dot) red, class 2
Dimensions 15 x 22 cm
Optical angle 360° horizontal / 4 x vertical
Pulse mode Yes
Protection class IP54
Self-levelling ± 4°
Power supply Li-Ion battery or 4 x AA
Tolerance ± 1.5 mm per 10 m
Product Number (PID) 16114001

Highlights at a Glance

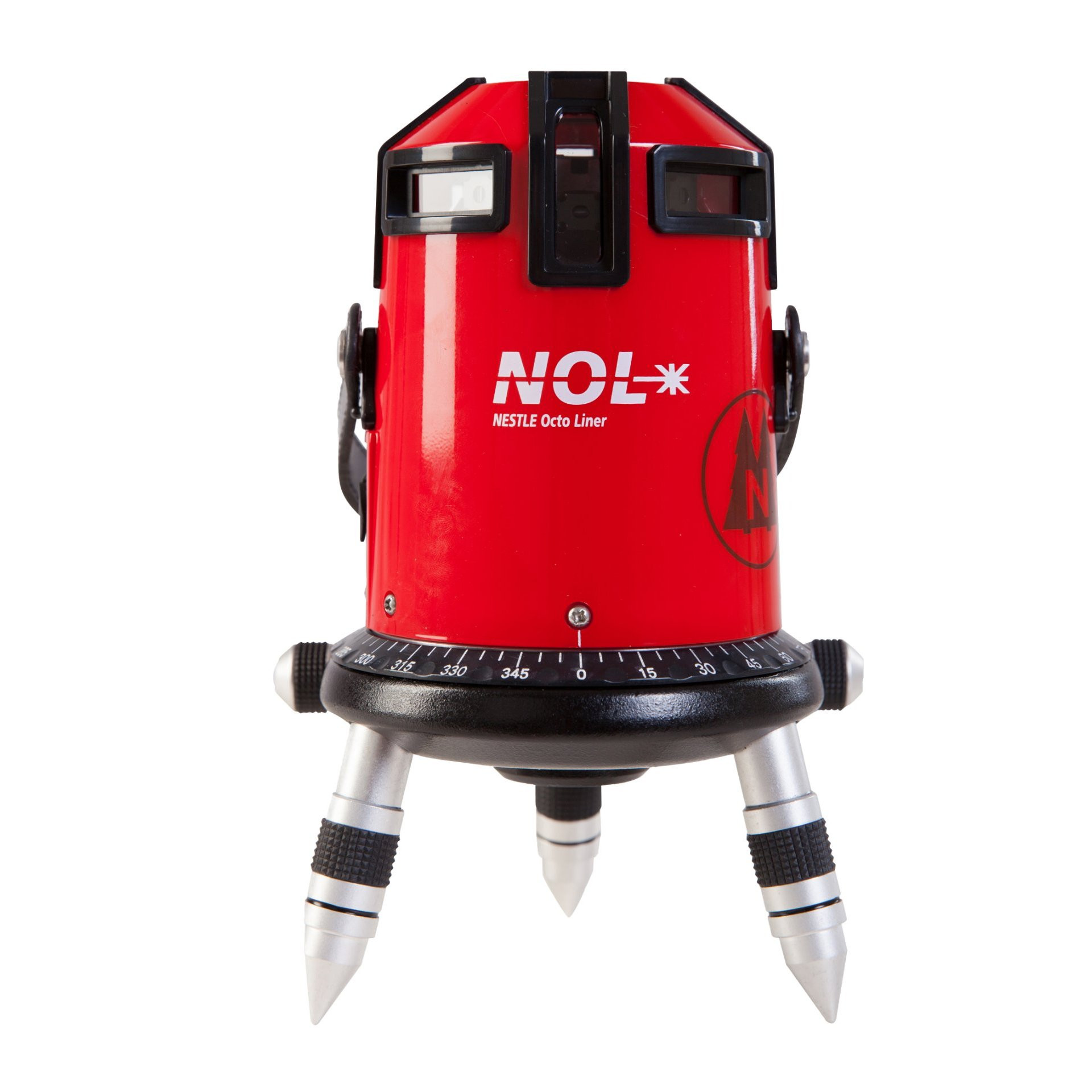

  • The Octoliner-G corresponds to the Nestle Octoliner in its application properties:
  • 360° horizontal line
  • 4 switchable vertical lines and plumb point
  • Motorised self-levelling (can be switched off)
  • 5/8 connection, side fine drive, adjustable leg screws
  • The Octoliner-G is also suitable for use with a receiver.

Description

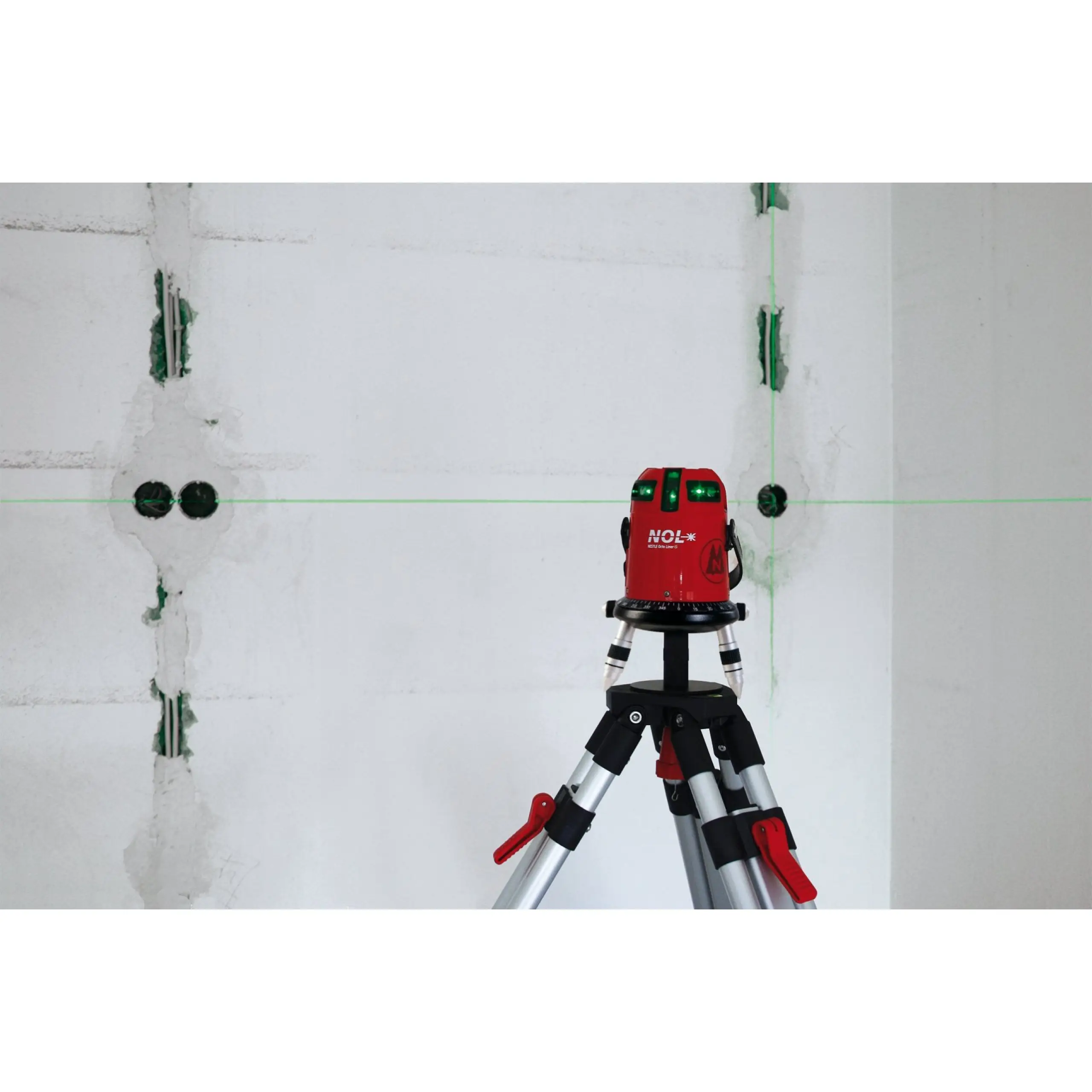

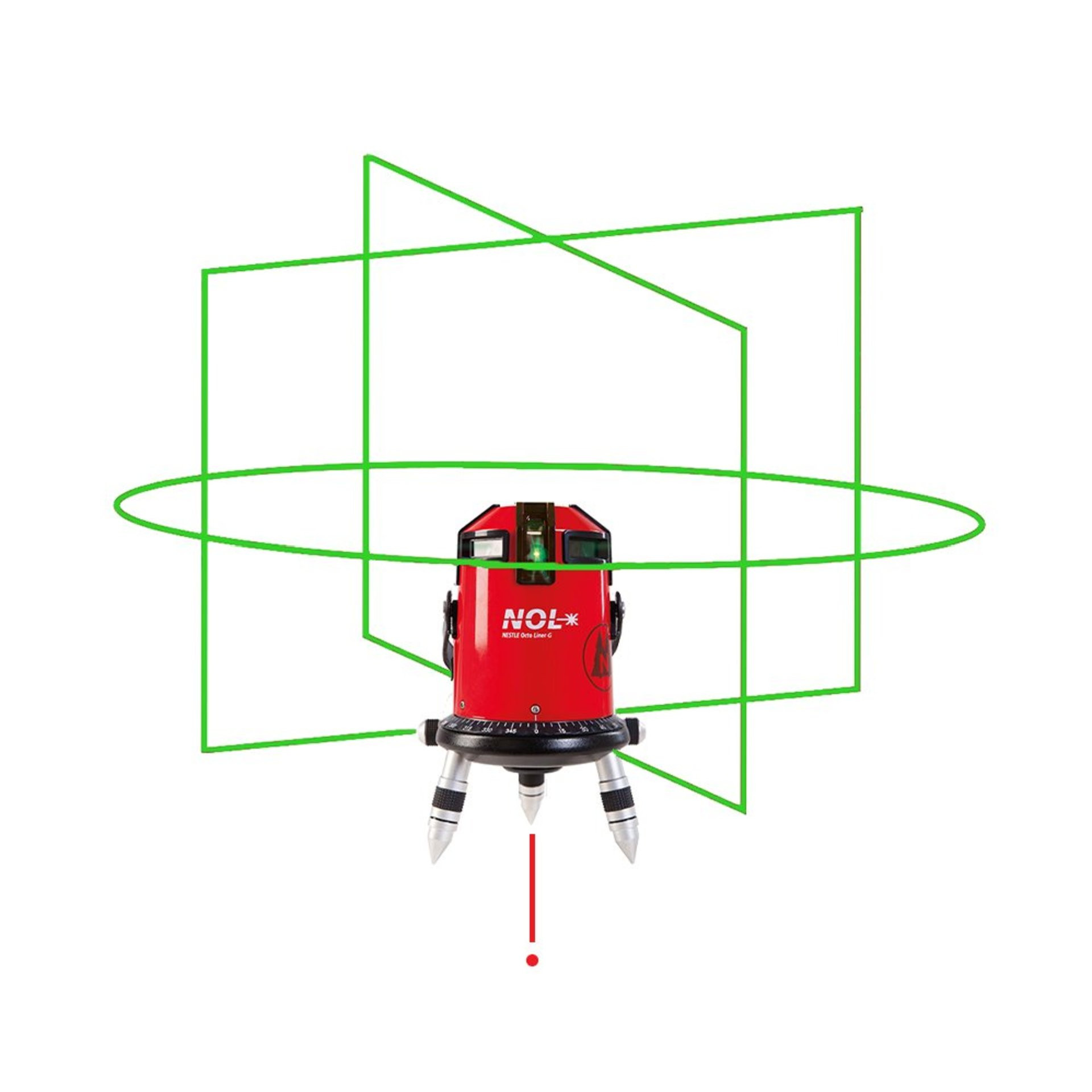

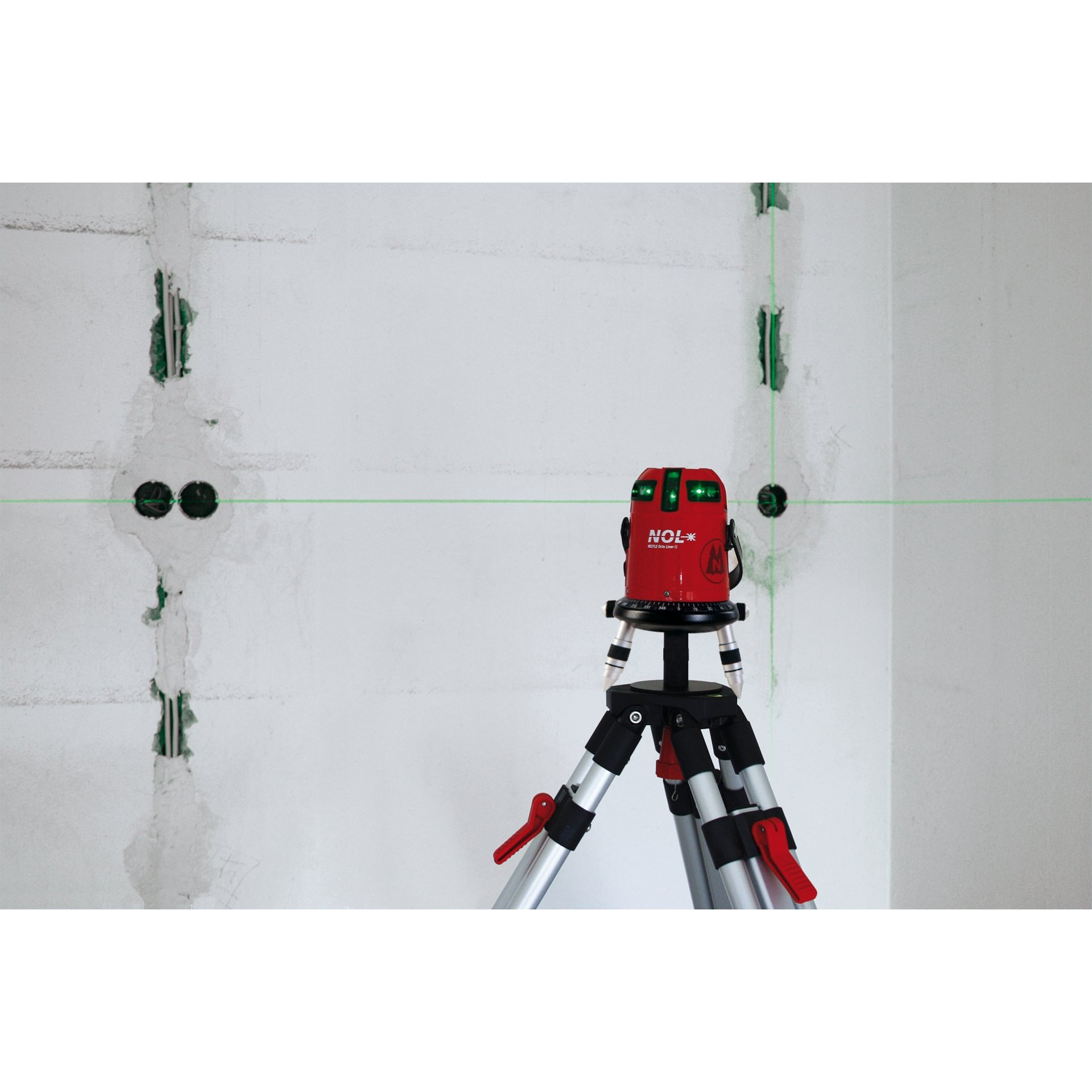

The NESTLE Octoliner G, with green laser beam, is an electronic self-levelling cross line laser with superior accuracy. It can generate four vertical lines at right angles to each other, a 360° horizontal line, a plumb point on the floor and a laser cross on the ceiling with an accuracy of ±1.5 mm/10 m. The green laser beam is perceived 4 times better by the human eye. The green laser beam is perceived by the human eye 4 times better than a red beam and is therefore particularly suitable for drywall construction. It levels itself quickly and stably in a range of 4°. Self-levelling can be switched off to project laser beams at an angle if required. Another advantage is its adjustable 360° pitch circle for easy angle measurements. The side fine drive supports the exact alignment of the vertical planes.

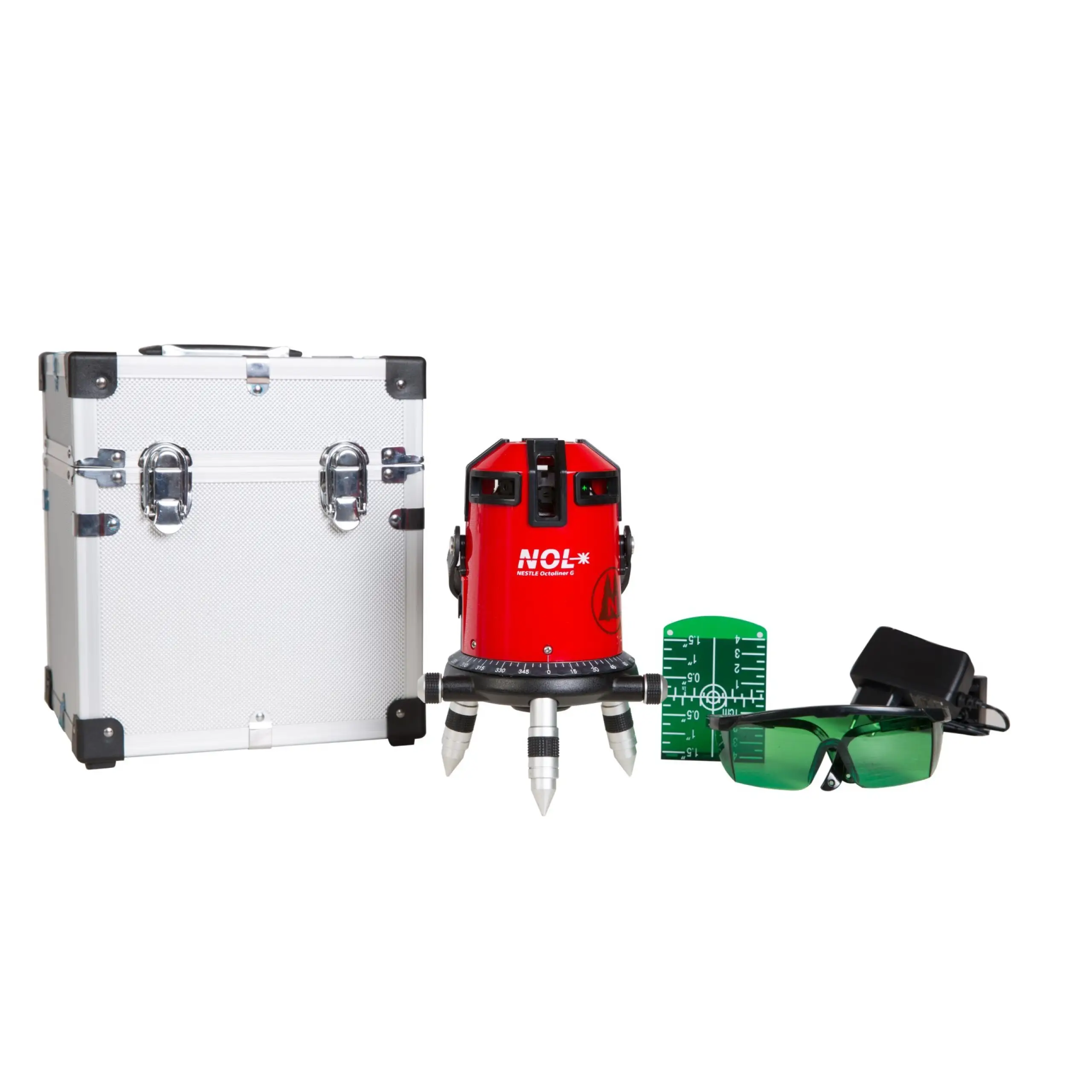

Scope of Delivery

Octoliner
Carrying case
Battery
Target board
Glasses
Charger
