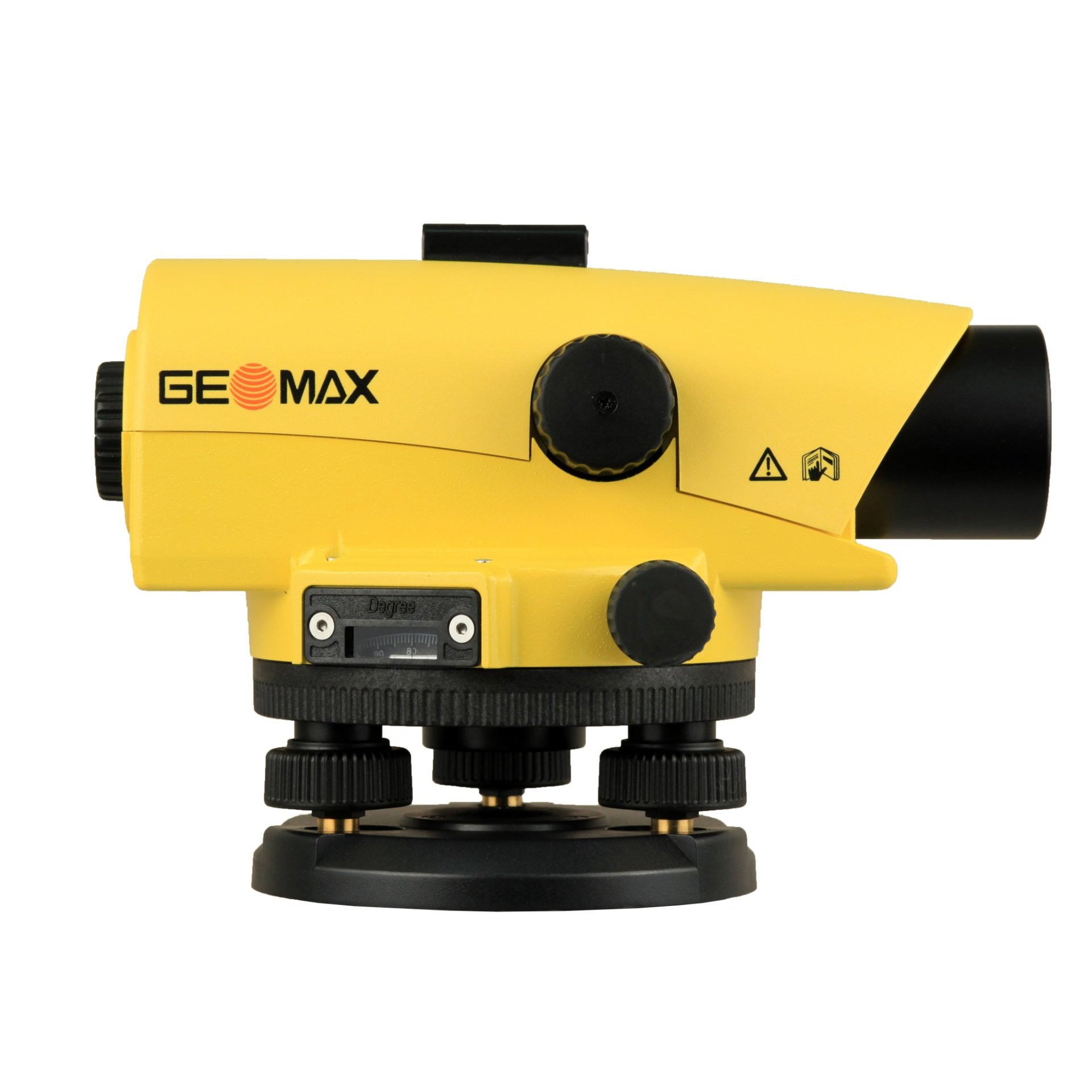

GEOMAX ZAL330 levelling set consisting of: Level, tripod + battenl

ZAL300 Series - Patented professional quality for the toughest conditions

Top Features

  • Robust and precise for your day-to-day construction and engineering tasks.
  • Housing according to protection class IP57 with gas-filled telescope.

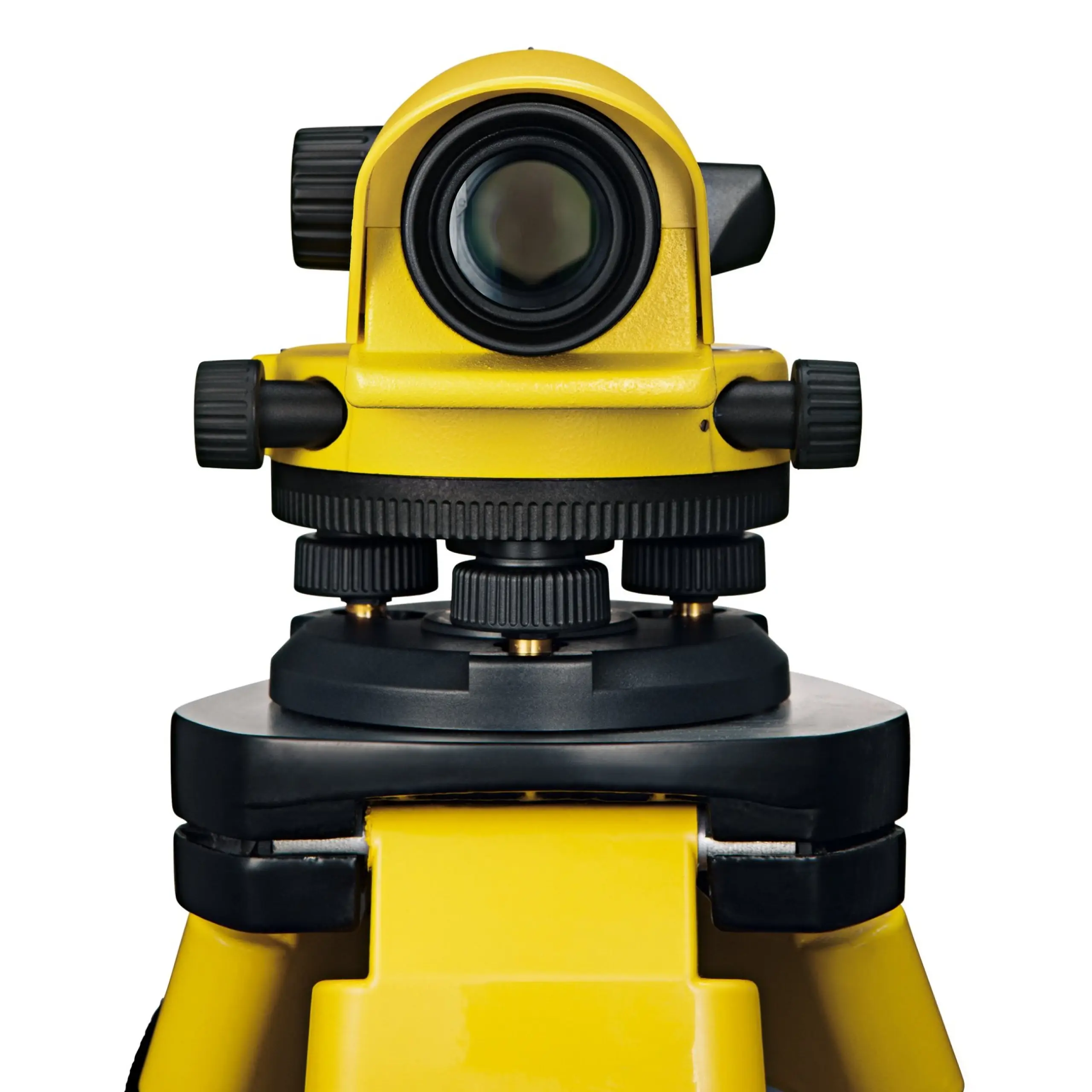

  • Ergonomic two-sided endless fine drive.

Variants

Serie

Execution

Magnification

Technical Data

Distance threads yes
Accuracy 1 km Doubleiv. ZAL330: 1.2 mm
Weight 1500 g
Compensator Automatic, magnet-damped, pat. magneX
Shortest target distance 0.8 m
Dragonfly 8'/ 2 mm
Multiplication/addition constant 100 / 0
Inclination range ±15°
Lens aperture 40 m
Protection class IP57
Pitch circle / division 360° and 400 gon / 1°, 1gon
Enlargement ZAL330: 30x
Product Number (PID) 27021000

Highlights at a Glance

  • From everyday tasks to high accuracy requirements, the ZAL300 series is your first choice for robustness, comfort and accuracy.
  • The best-in-class optics in the ZAL300 and the magneX compensator are housed in a sealed and shock-proof casing. This makes the instruments insensitive to vibrations and all weather conditions.
  • The graduated circle has a 360° graduation and a 400 gon graduation for horizontal angle measurements.
  • With distance threads for optical distance measurements and simple terrain surveys.
  • ZAL330 with 30x magnification.

Description

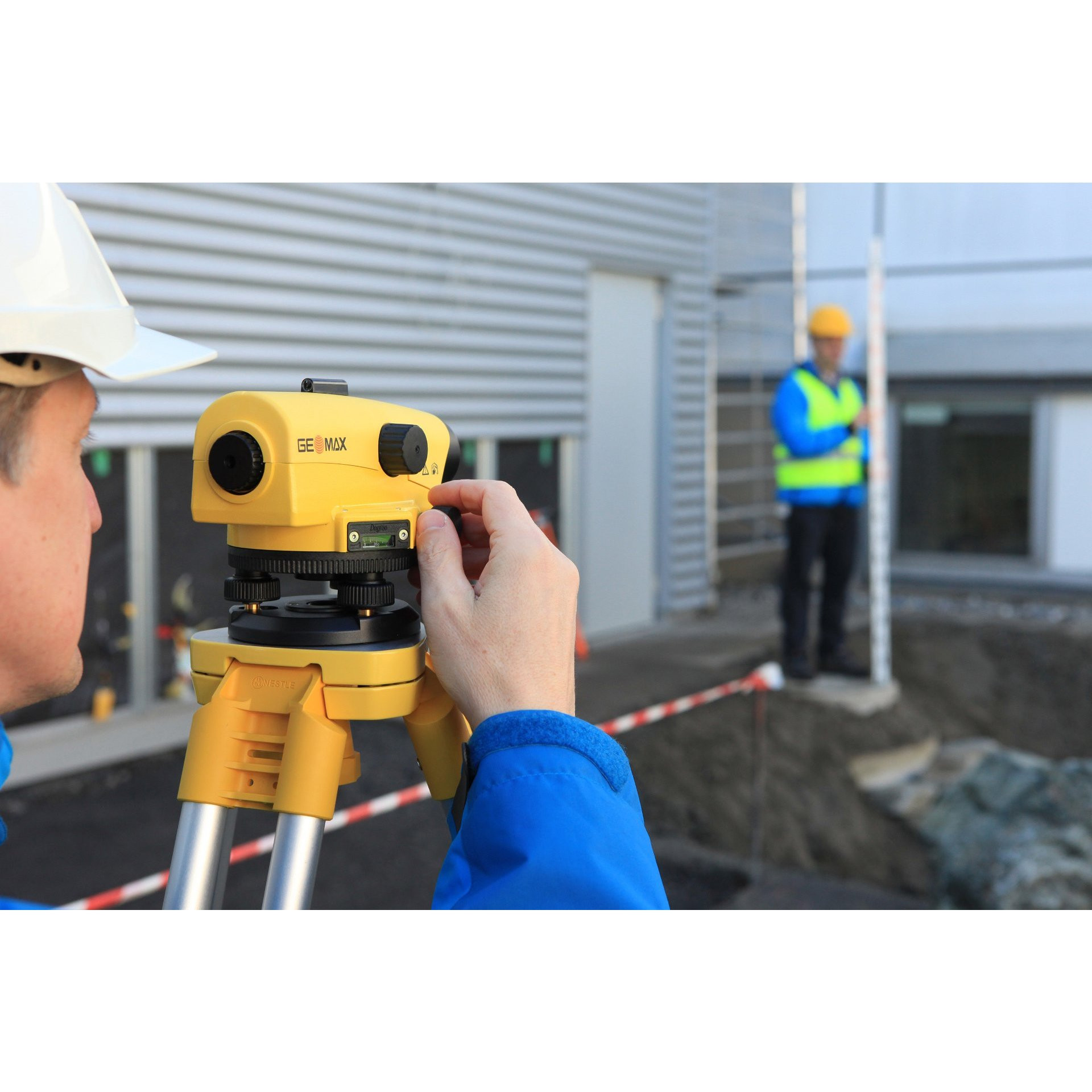

The levelling instrument is used in civil engineering to create horizontal surfaces, to set height differences or to set up machines and structures. Levels replace spirit levels where their accuracy is no longer sufficient or their use would be too costly. GeoMax's flagship level is the first choice when robustness, comfort and accuracy are important. The ZAL300 series features a patented compensator system and magnetic damping designed to withstand the toughest construction conditions. This practical levelling set includes a 5 m telescopic levelling staff in addition to a high-quality aluminium tripod. With this set, you can get started immediately.

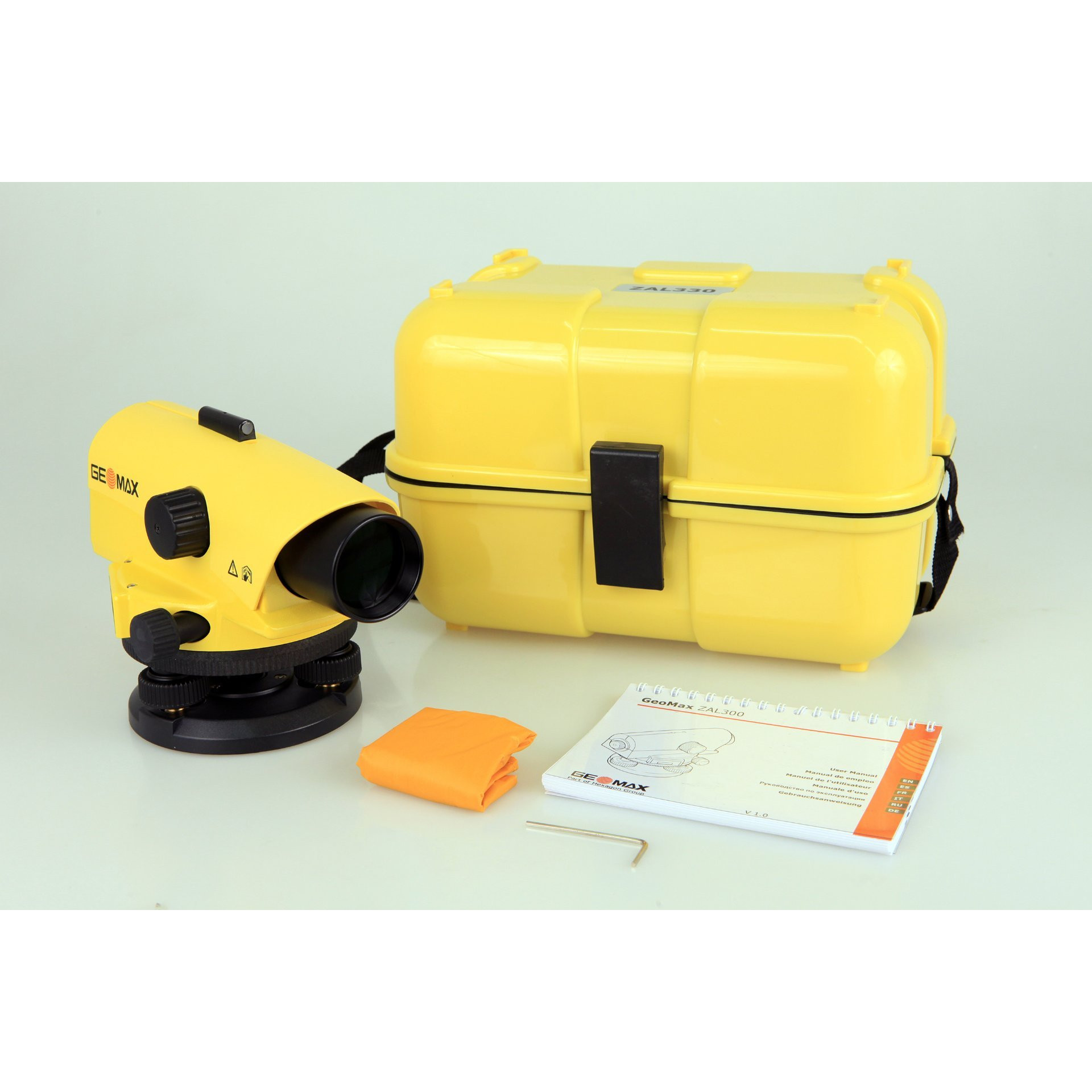

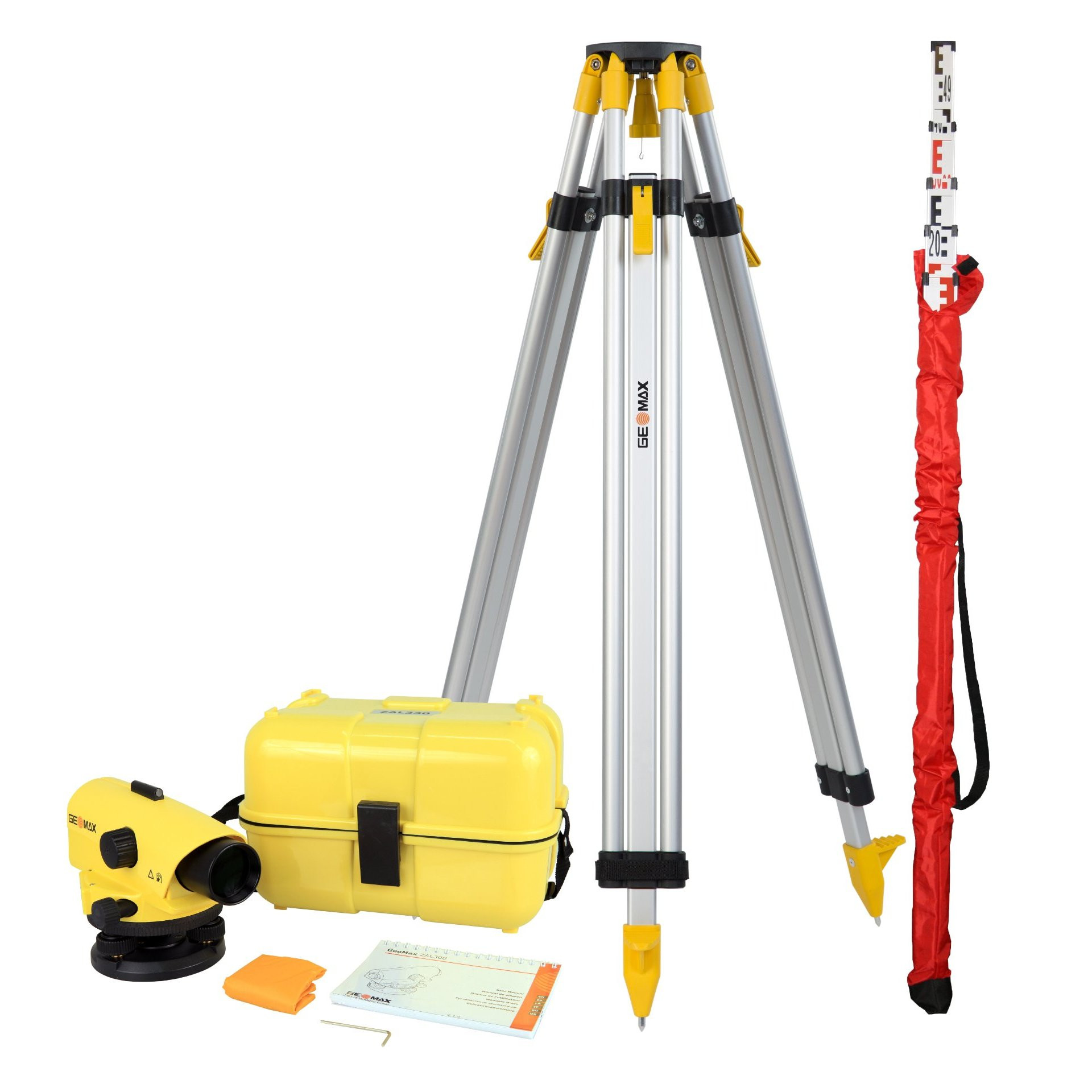

Scope of Delivery

GEOMAX ZAL330
Telescopic levelling staff
Aluminium tripod
