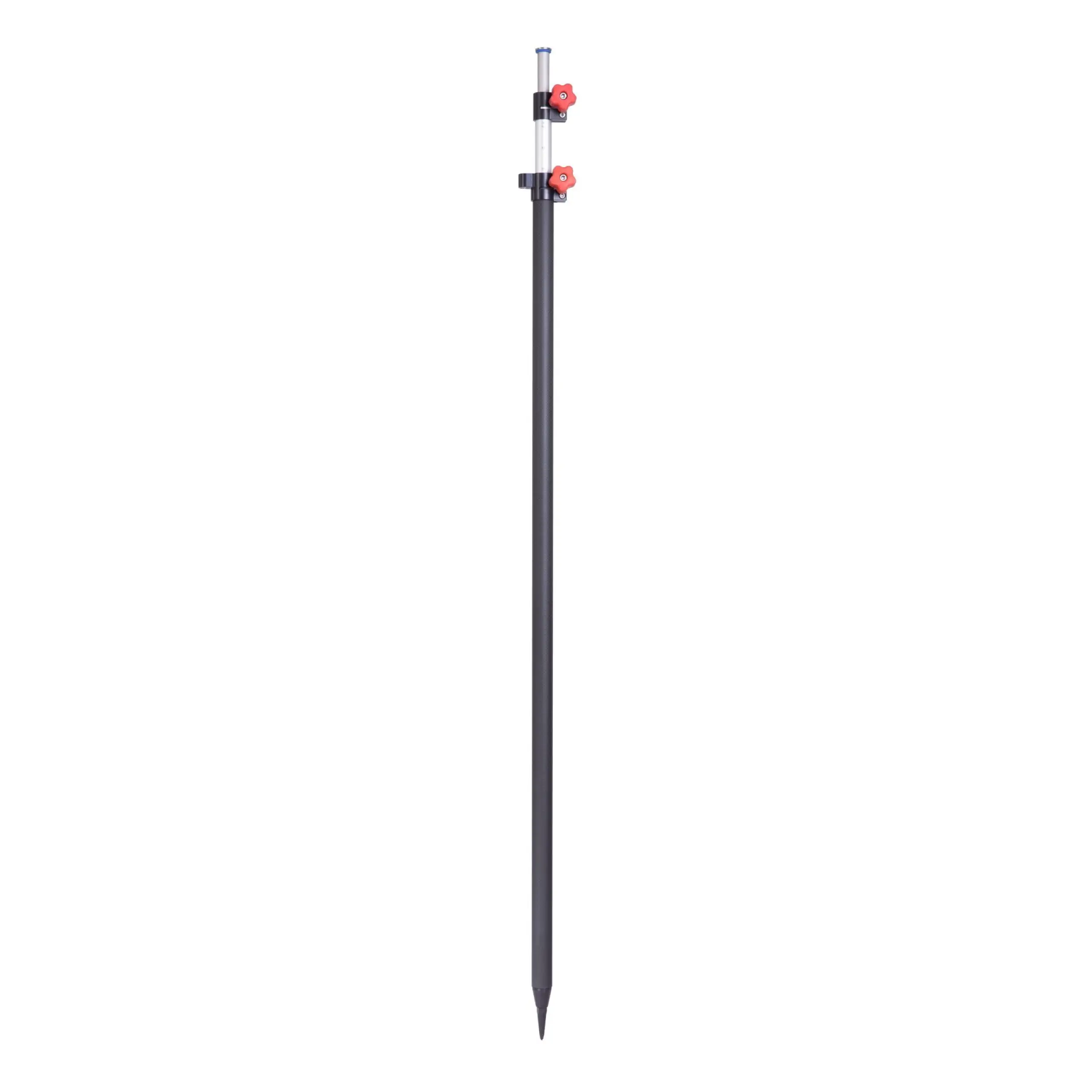

NESTLE combi pole 350 PK-1

Easy operation - double telescopic

Top Features

  • Maximum working height 3.65 m.

Technical Data

Connection Female M12 with adapter
Working range 151-365 cm
Special feature Double telescopic
Diameter Outer tube 32 mm ; Inner tube 25/18
Weight 1300 g
Clamping Screw clamp
Transport dimension 138 cm
Product Number (PID) 14031000

Highlights at a Glance

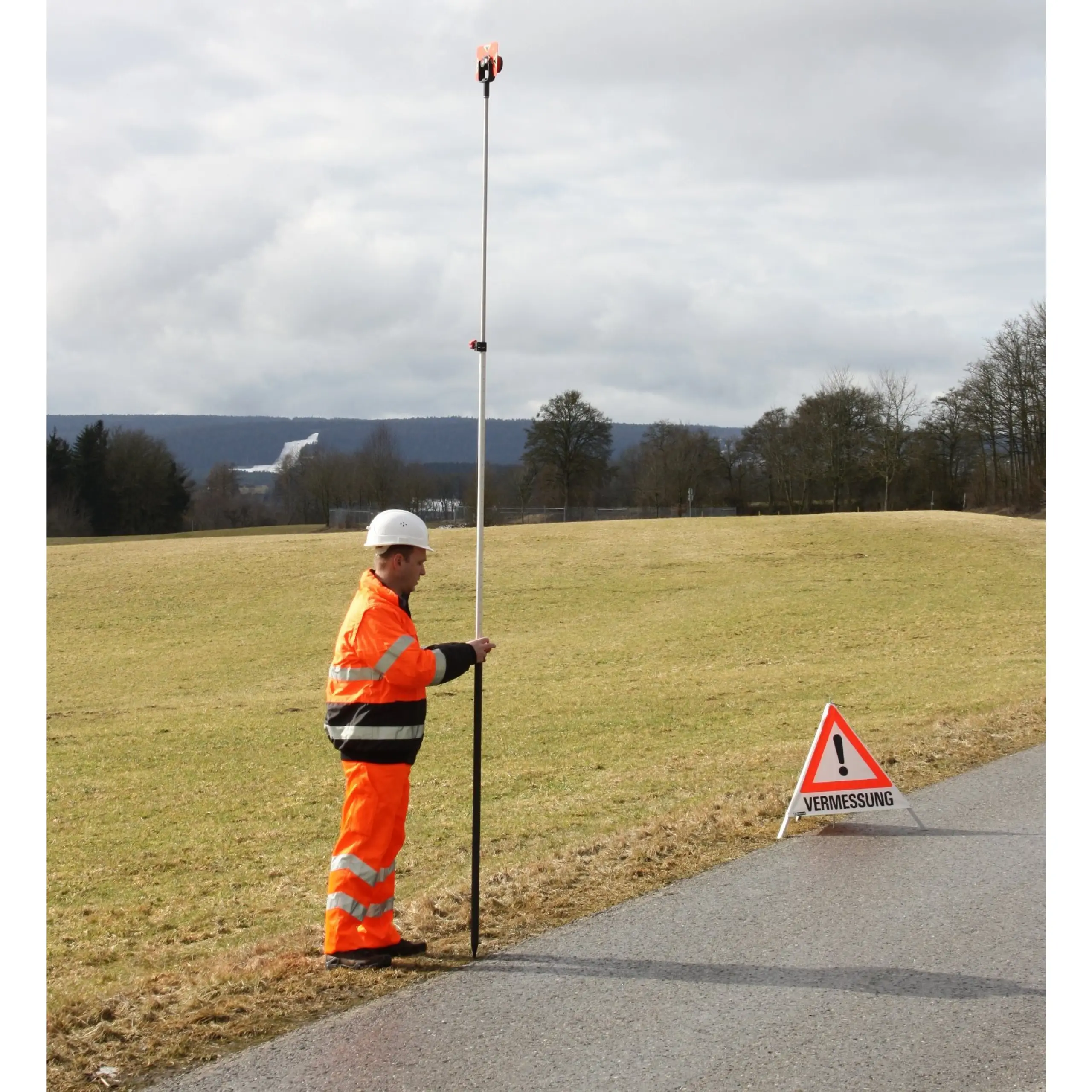

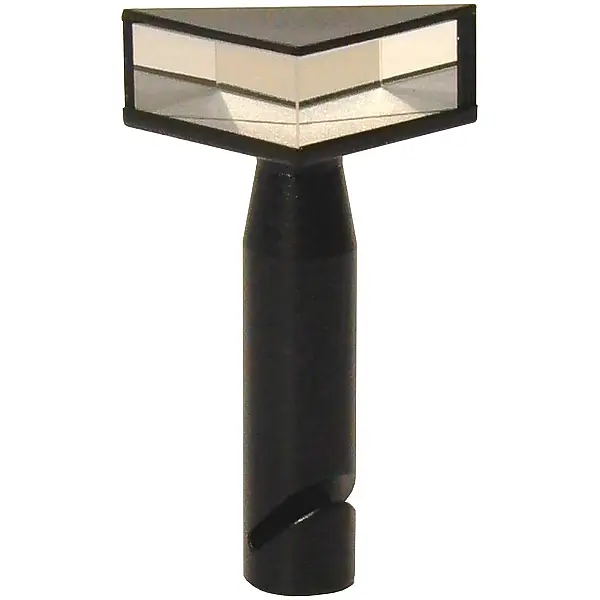

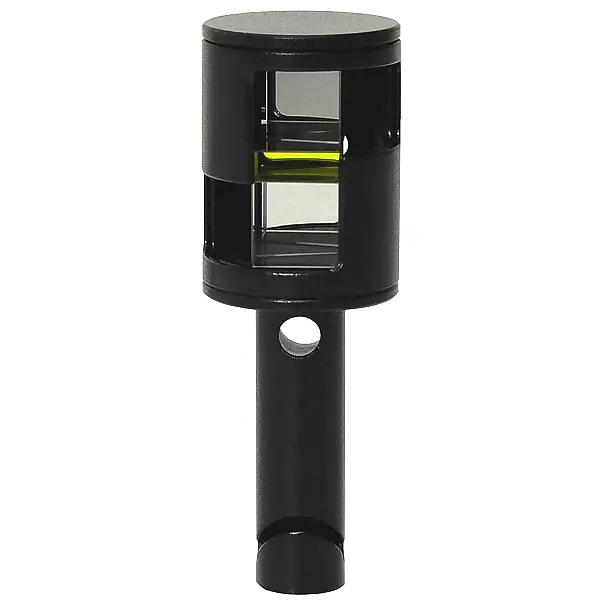

  • Prisms and antenna rod for surveys of all kinds in the building sector and cadastre.
  • Simplest operation: set the right height with one hand, clamp with the other.
  • shock-absorbing inner tube protects prism and rod.
  • an adapter is included in the scope of delivery. This allows the scale offset to be adapted to the tilt axis dimension of your prism.
  • For GNSS measurements, you can get the optional adapter 14934000. This brings the scale offset to zero, as is common with GNSS antennas. Please specify prism type when ordering.

Description

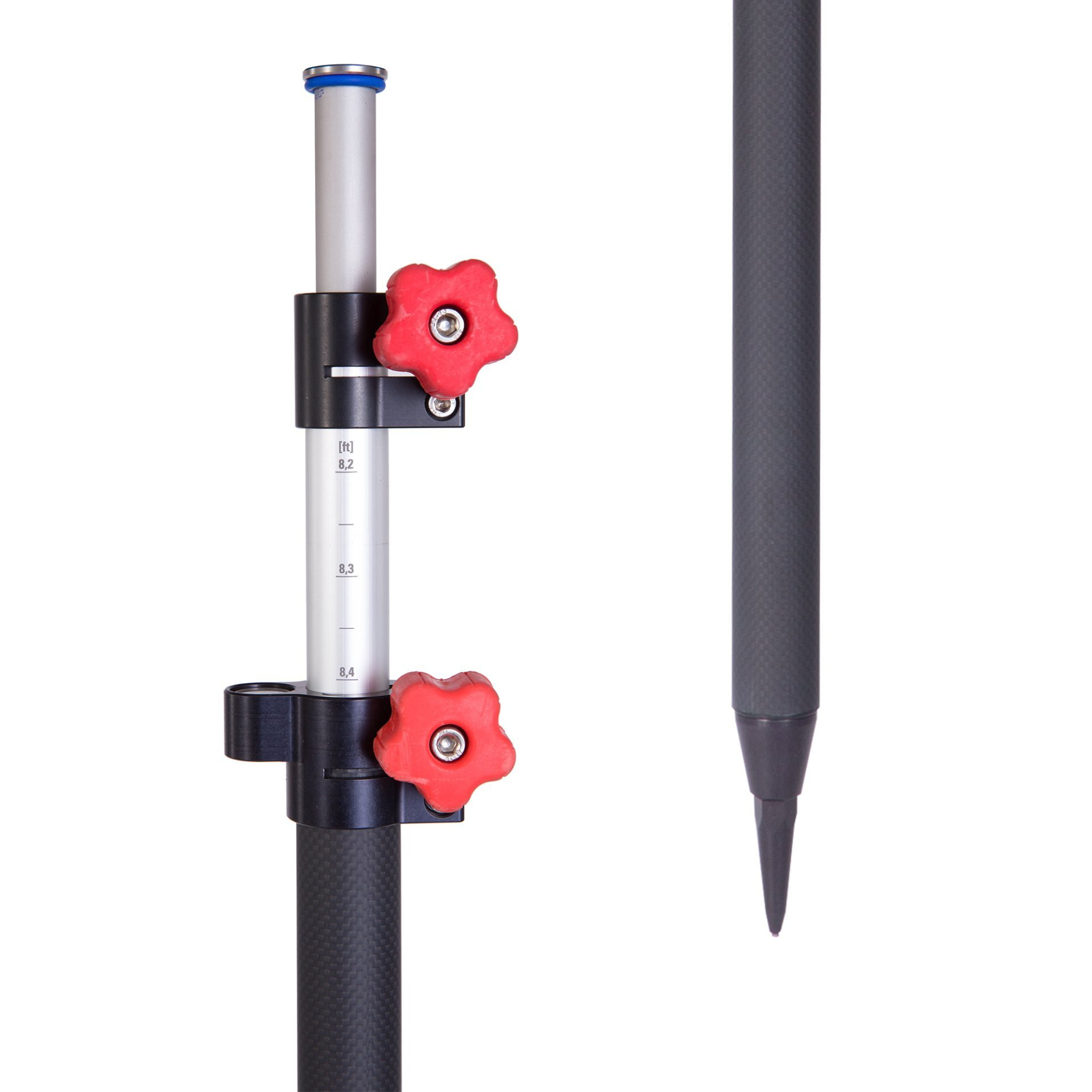

The double telescopic NESTLE combi pole made of carbon with screw clamp is easy to operate and predestined for tough outdoor use.

Scope of Delivery

NESTLE combi pole 350 (PK-1)

Request
