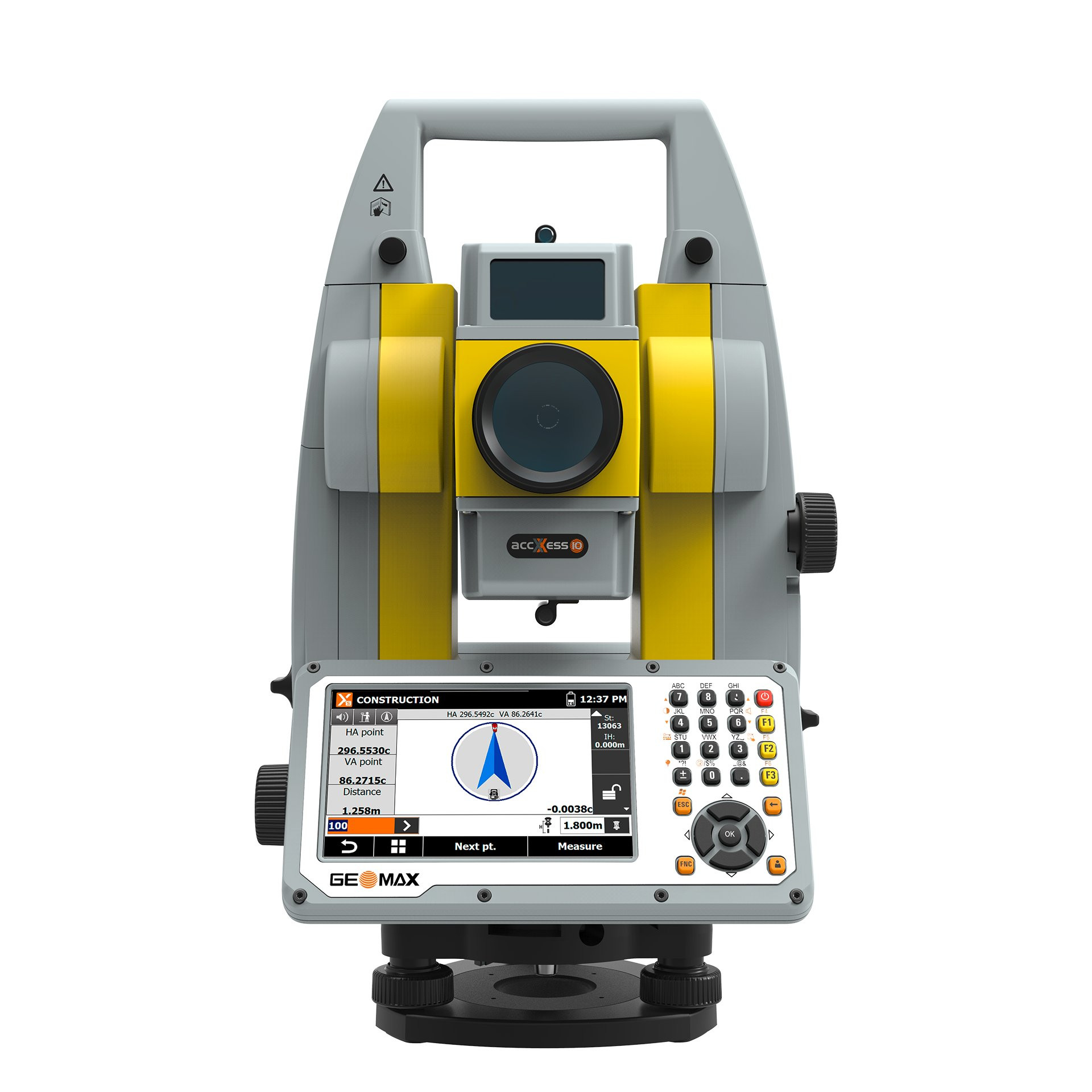

GeoMax Total Station Zoom75

The right solution for digitising your construction site

Top Features

  • Robust, dust and waterproof design
  • Backlit touch control panel with 25 keys
  • GeoTRAil GNSS-based prism search
  • TRack Automatic prism detection
  • AiM Automatic Prism Fine Aiming
  • optional field software X-Pad Ultimate on Android / X-Pad on board

Variants

Variant

Technical Data

Battery / runtime Li-Ion 4.4 Ah / 7.4V / up to 8 hrs.
Connections Serial, USB, internal Bluetooth, WLAN, long-range Bluetooth, external power connection
Accuracy prism measurement 1.0 mm + 1.5 ppm
Accuracy reflectorless 2 mm + 2 ppm
Accuracy angle measurement 5'' (1.5 mgon), optionally 1'' (0.3 mgon), 2'' (0.6 mgon), 3'' (1.0 mgon),
Weight 5.000 - 5.300 (without battery and tribrach) g
Range reflectorless / one prism up to 500 / up to 3,500 m
Protection class IP55, 95% non-condensing
Memory 2 GB internal, SD card, USB
Temperature range -20 to +50 °C
Product Number (PID) 29045000

Highlights at a Glance

  • Motorised total station with automatic fine aiming AiM for fast and precise work
  • For complex stakeouts
  • With optional field computer (e.g. Zenius 800) the ideal solution for your measuring tasks
  • 4 angular accuracy classes, reflectorless 500 m or 1,000 m, internal or long-range Bluetooth

Description

The Zoom75 is the smart, affordable choice for beginners and experienced surveyors alike. A reliable one-person total station, the Zoom75 has an optional Bluetooth handle and GeoTRAil function that finds your prism using the GNSS position transmitted by your field controller.
Ease of use and flexibility make it easy to start digitising your jobsite. Put an end to cumbersome paper documents. Process large files quickly and easily thanks to the instrument's powerful processor
For more information, please visit www.digitale-bauvermessung.de
This item number has an angular measurement accuracy of 5" (1.5 mgon), optional 1" (0.3 mgon), 2" (0.6 mgon) , 3" (1.0 mgon) instruments are also available.
Please note that price is only available on request

Scope of Delivery

Zoom75 5", accXess 500 m
Battery
Charger with power supply unit
Suitcase
Manual
Tripod
USB stick
