Leica DISTO D2G

Precise measurements in bright interiors – the green laser for visible, smart networked measurement

Top Features

  • Green laser for significantly better visibility in bright indoor environments
  • Bluetooth interface for fast transfer to the Leica DISTO Plan app
  • Illuminated display
  • Compact, robust housing with IP54 protection for use on construction sites
  • Memory for 30 measurements

Variants

Variant

Technical Data

Battery 2 x AAA 1.5V
Data interface Bluetooth® 6, NFC
Free app for iOS / Android
Laser class 2
Weight 116g
Range 0.05 up to 120m
Dimensions 127 x 50,5 x 24,5mm
Maßeinheiten m, ft, in
Protection class IP54
Tolerance ±1.5mm
Product Number (PID) 16739000

Highlights at a Glance

  • The Smart Room function automatically records distances and angles as you walk around the room.
  • Thanks to integrated NFC technology, measurements can be transferred directly to the DISTO Plan app simply by holding the device up to it, without the need for traditional Bluetooth pairing.
  • Smart Horizontal Mode: Measures horizontal distances even when the device is tilted (360° tilt sensor, tolerance ±0.2°).

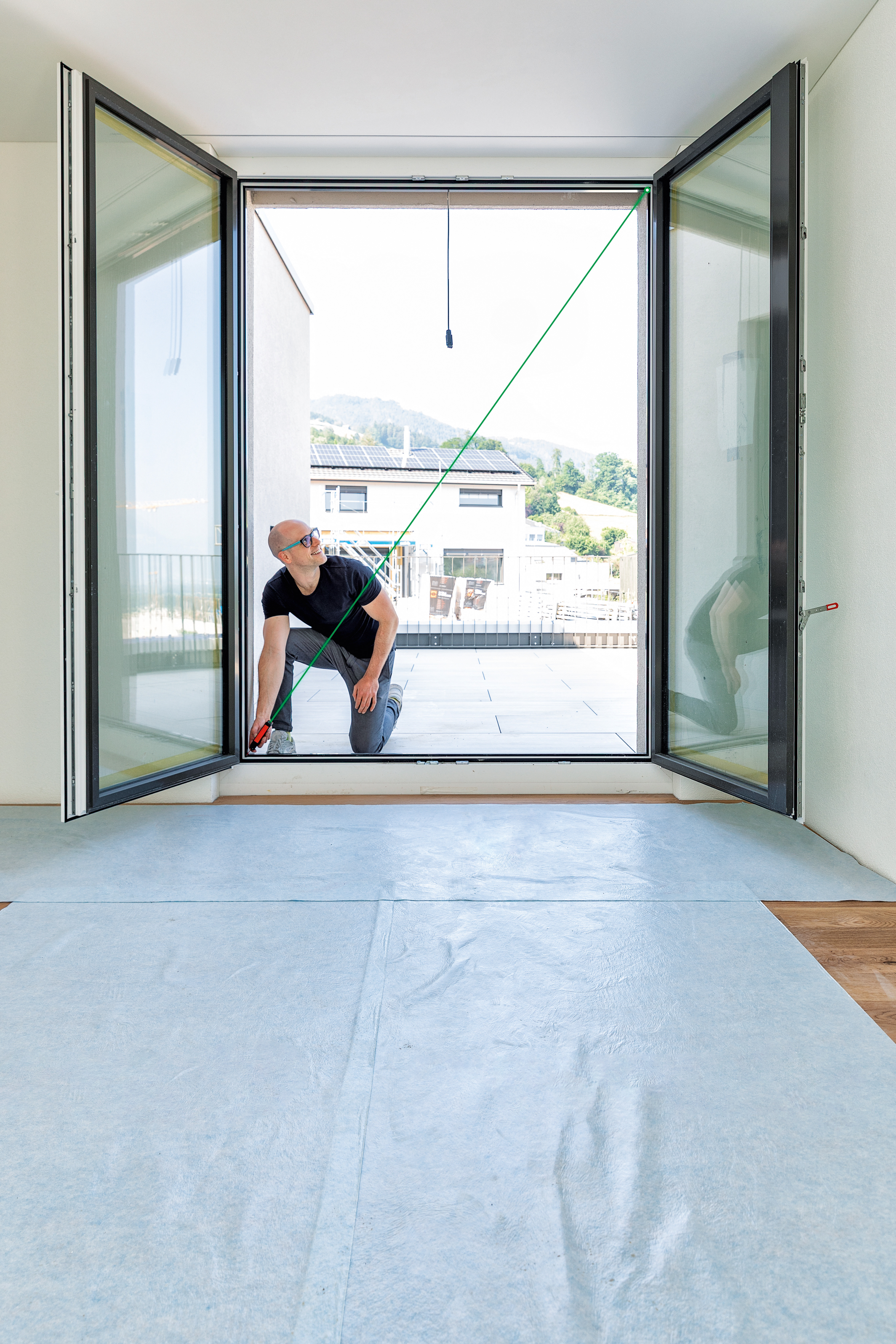

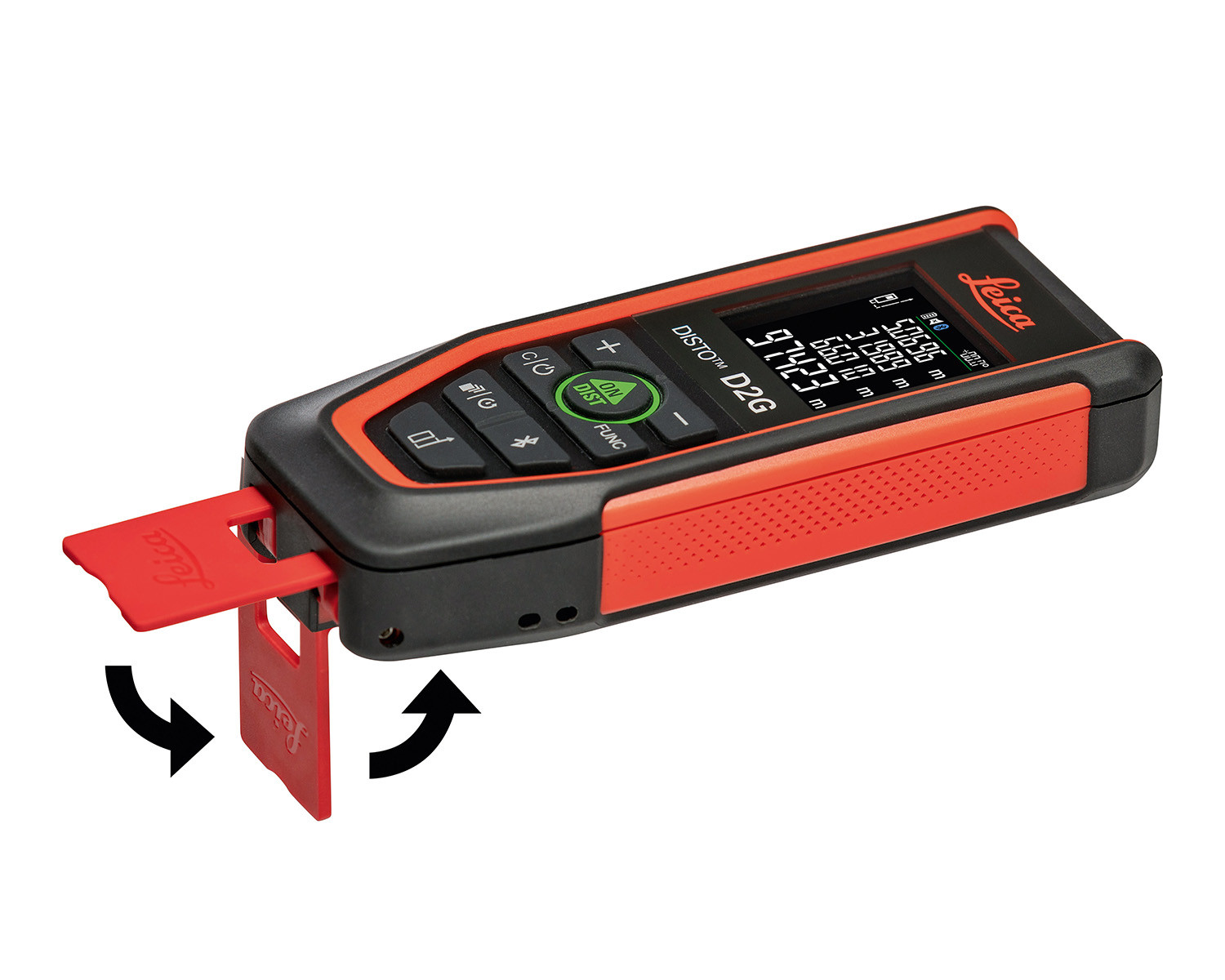

  • The fold-out end piece with automatic reference detection ensures error-free measurements from edges, corners and grooves, as the device automatically detects the correct reference length.
  • Up to 5,000 measurements per battery charge (2x AAA)
  • User-friendly: 4-line display

Description

The Leica DISTO D2G is a high-precision laser measuring device for distances up to 120 m – ideal for tradespeople, architects, engineers and DIY enthusiasts. Its green laser dot is four times more visible than conventional red dots, even in brightly lit rooms. The Smart Room function allows you to quickly create room plans, while NFC data transfer sends the measured values directly to the DISTO Plan app. The fold-out end piece with automatic position detection ensures precise measurements on edges, corners or in Smart Horizontal Mode. Numerous additional functions expand the possibilities and reduce errors.

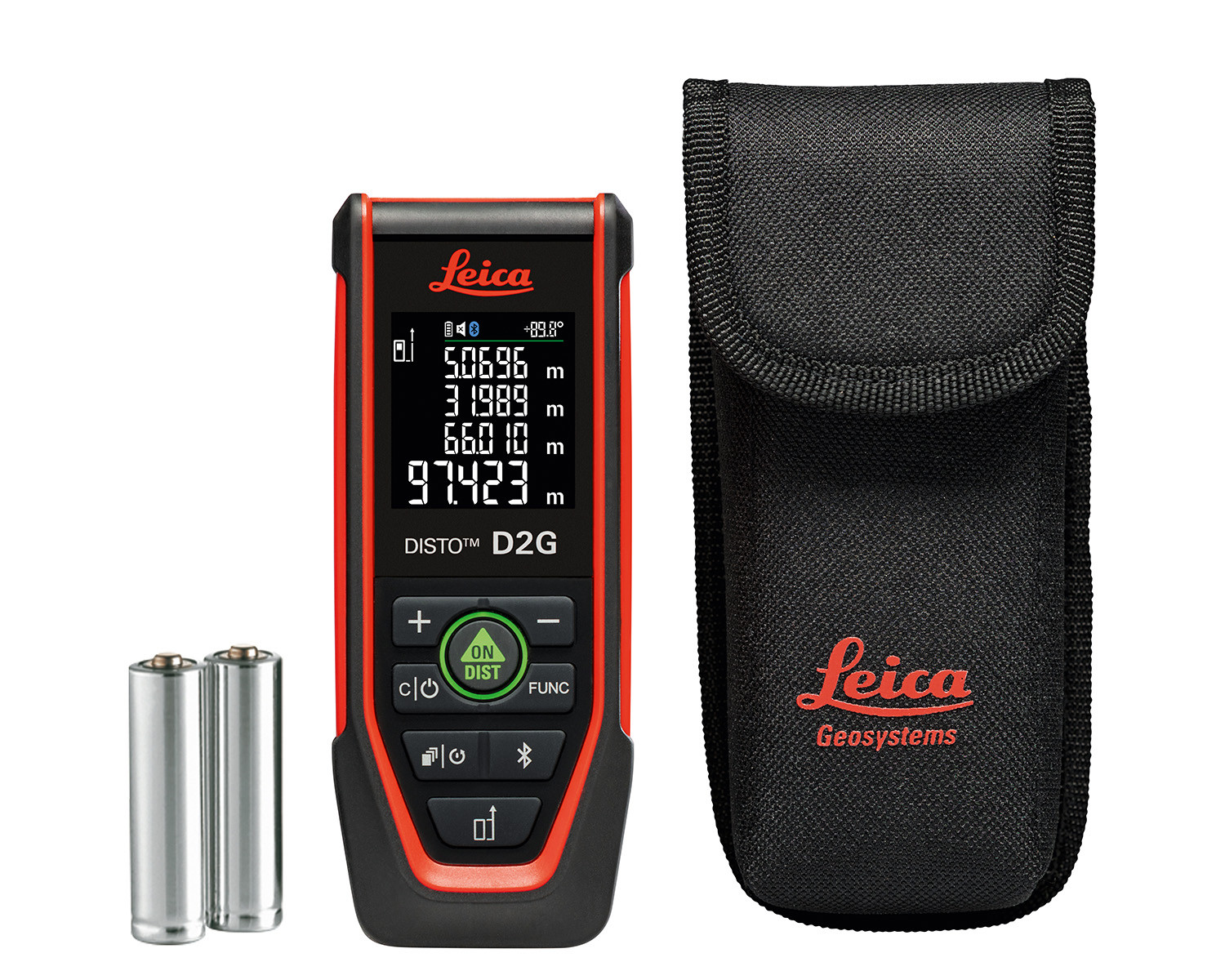

Scope of Delivery

Leica DISTO D2G laser distance meter
Hand strap
Belt pouch
Two batteries
