NESTLE Stachel-Staff SL-22
Adjusting slab formwork without ladder
Top Features
-
No stepping on the slab formwork
-
Easy assembly/disassembly
-
Suitable for all commercially available laser receivers with retaining screw
-

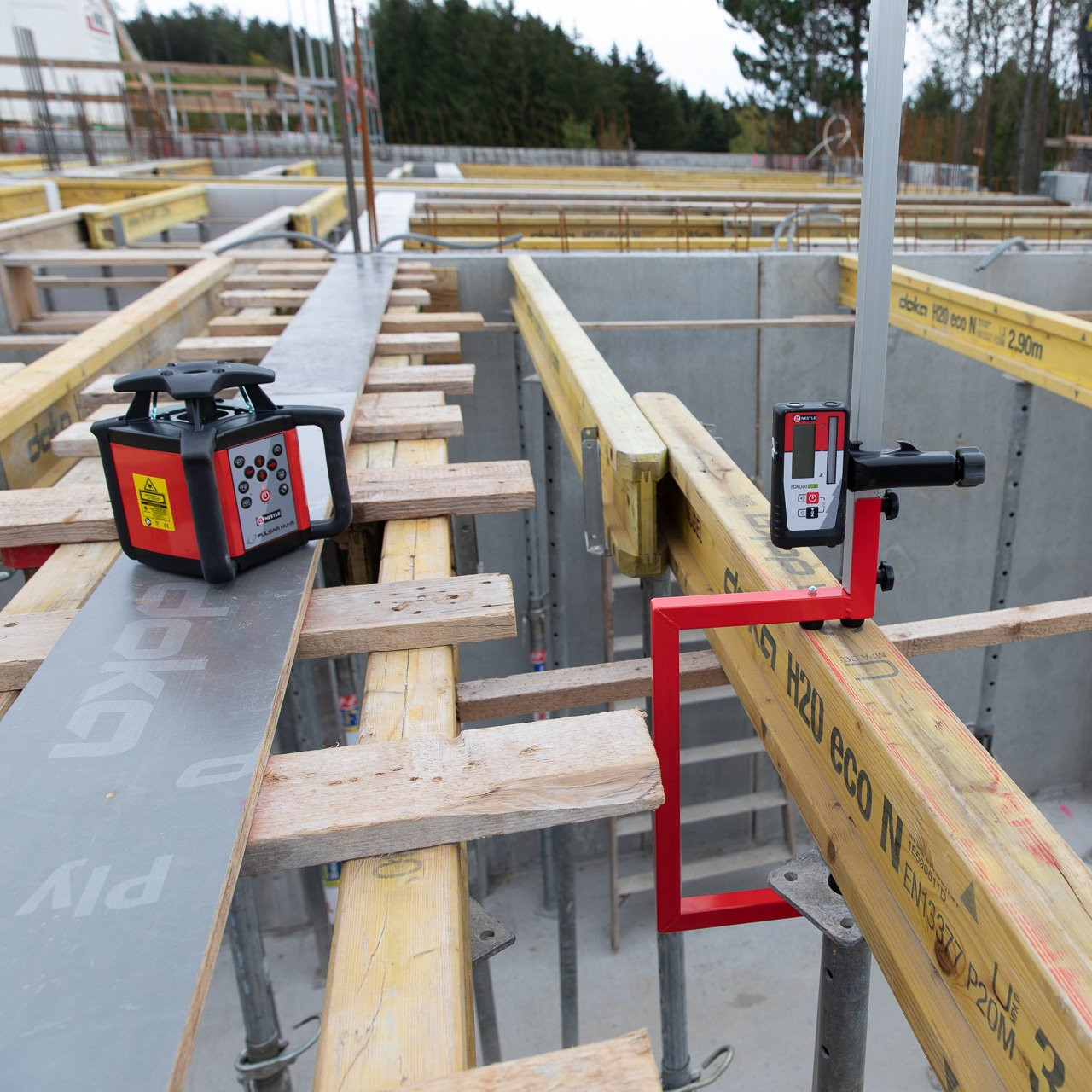

Set up slab formwork without ladder
Variants
Variant
Equipment
Technical Data
| Weight | 2400 g |
|---|---|
| Dimensions (mounted) | 216 x 24 x 3 cm |
| Angle element (internal dimensions) | Height 32 / Depth 19.4 cm |
| Transport dimensions | 86 x 29 x 5 cm |
| Product Number (PID) | 18705001 |
Highlights at a Glance
-
The upper beam can also be mounted to the lower beam for working on high slab formwork.
-
One spar is laser-inscribed with two measurements (100 cm and 77.3 cm).

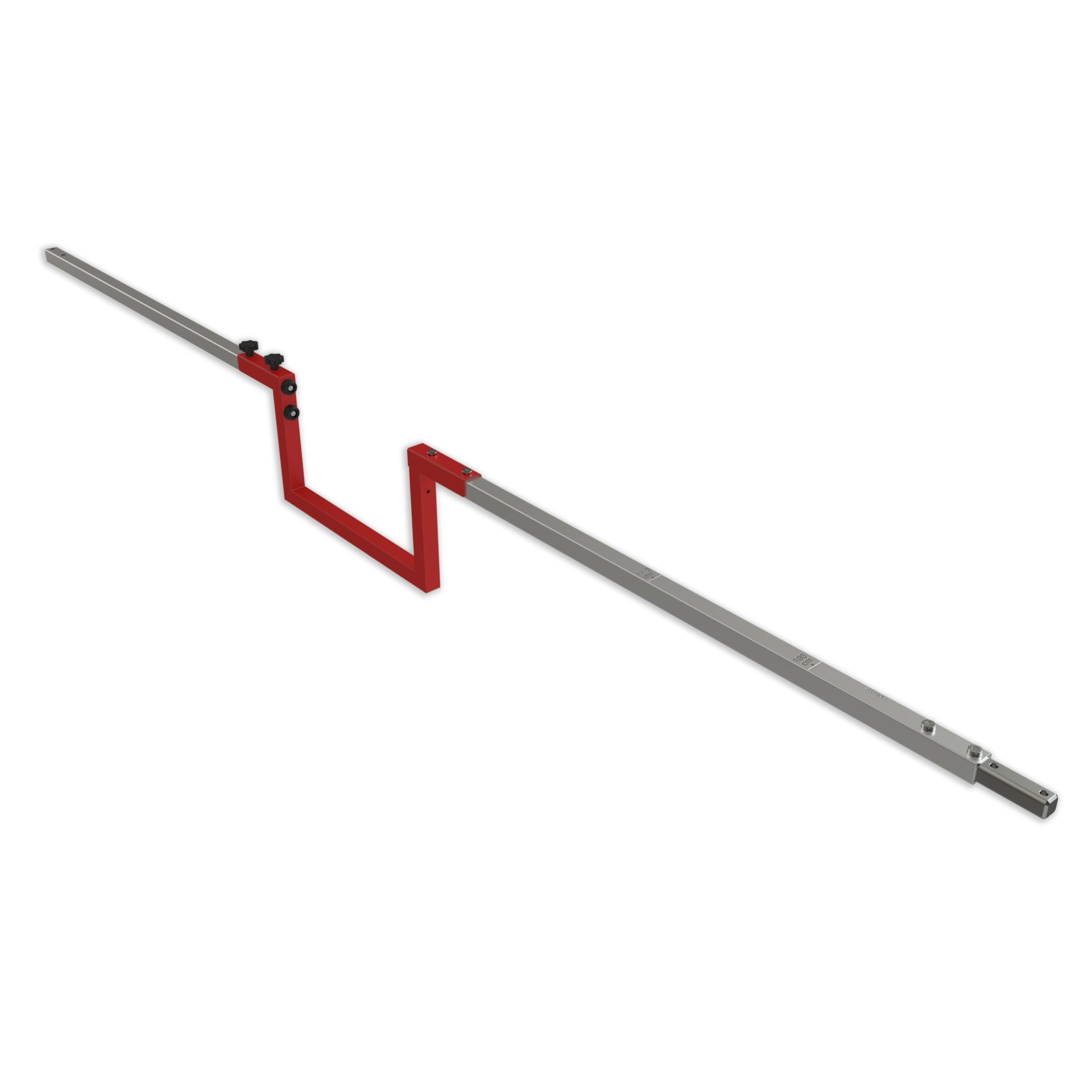

Description

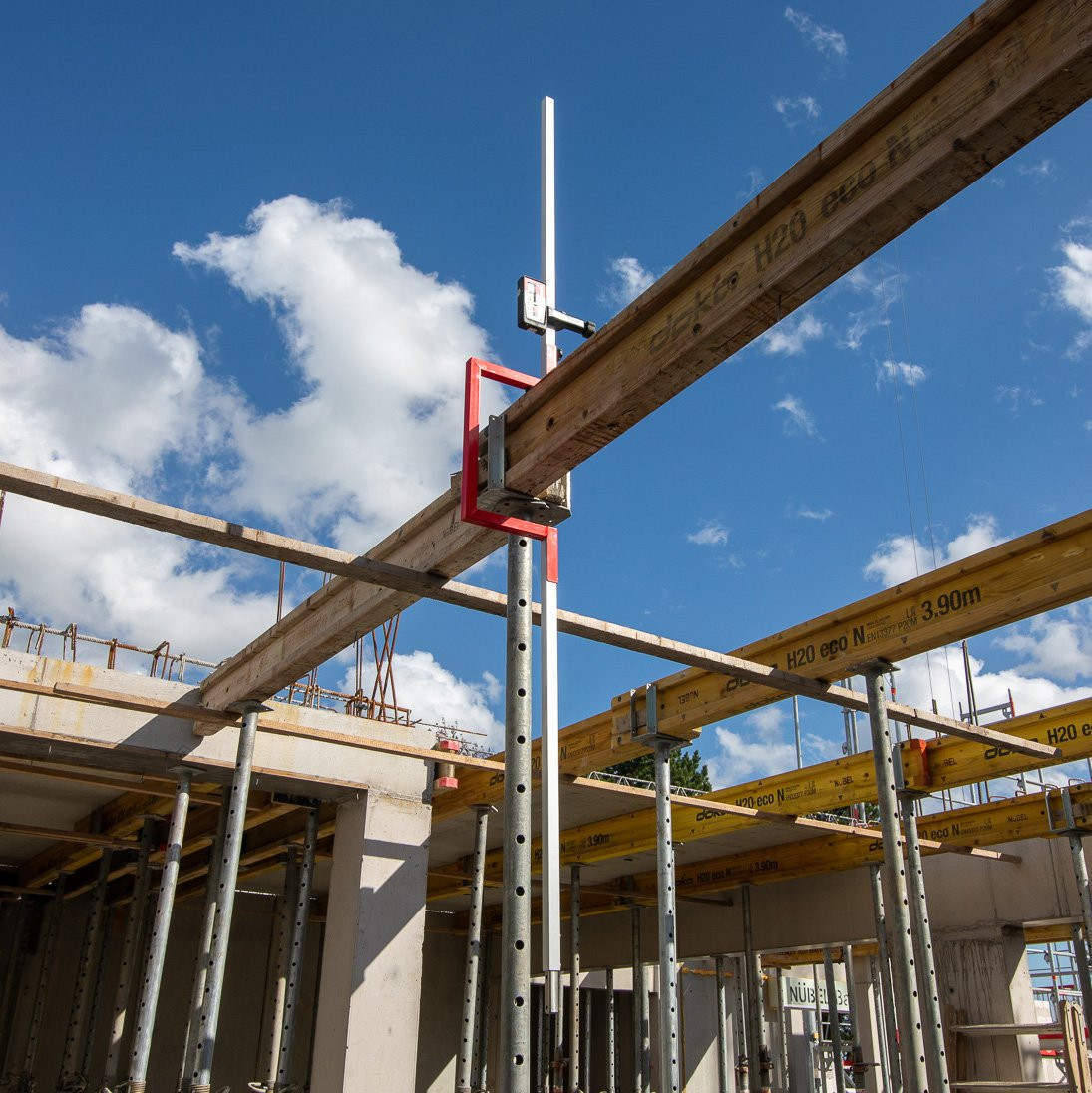

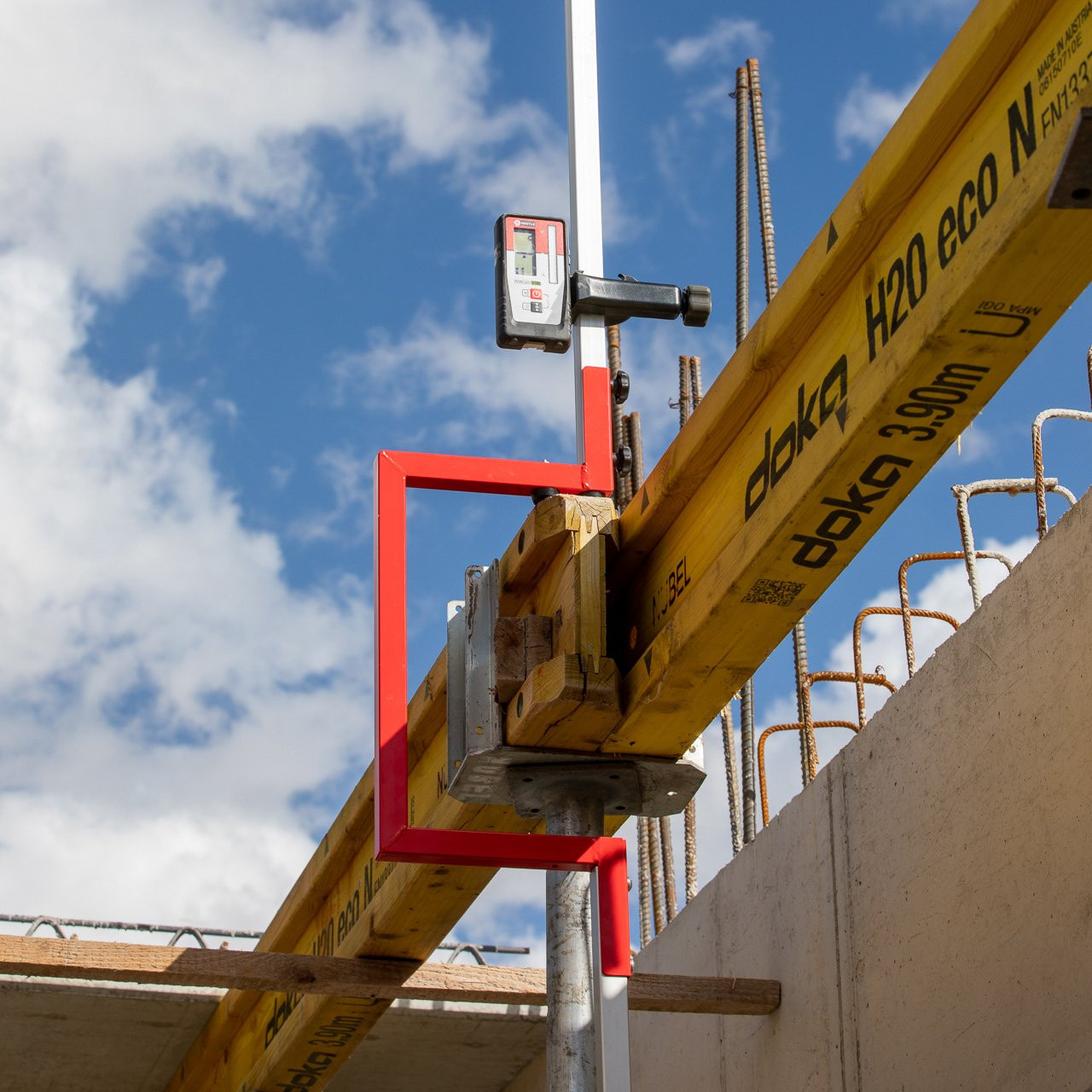

The Stachel-Staff is a flexible tool for easy, precise and above all safe alignment of conventional ceiling formwork. The Stachel-Staff works like a conventional laser staff. Due to its special shape, the Stachel-Staff, with height-adjustable laser receiver, simply attached to the shuttering beams, hangs and the pillars to the desired height set up. The rotating laser can be above or below the ceiling formwork to be positioned.
Scope of Delivery
1 angle element
2 spars
