NESTLE Facades & Columns Console with instrument carrier
Simple alignment work
Top Features
-
Fastening with strap or screws to square/round columns or walls
-
Facade construction adapter
-
Column console for measuring instruments (13939000)
-
40 cm sledge path
-
Sturdy aluminium profile
Variants
Variant
Execution
Technical Data
| Weight | 4400 g |
|---|---|
| Length / Max. Slide travel | 50 cm / 40 cm |
| Column attachment | with belt |
| Wall mounting | with screws |
| Product Number (PID) | 13939000 |
Description

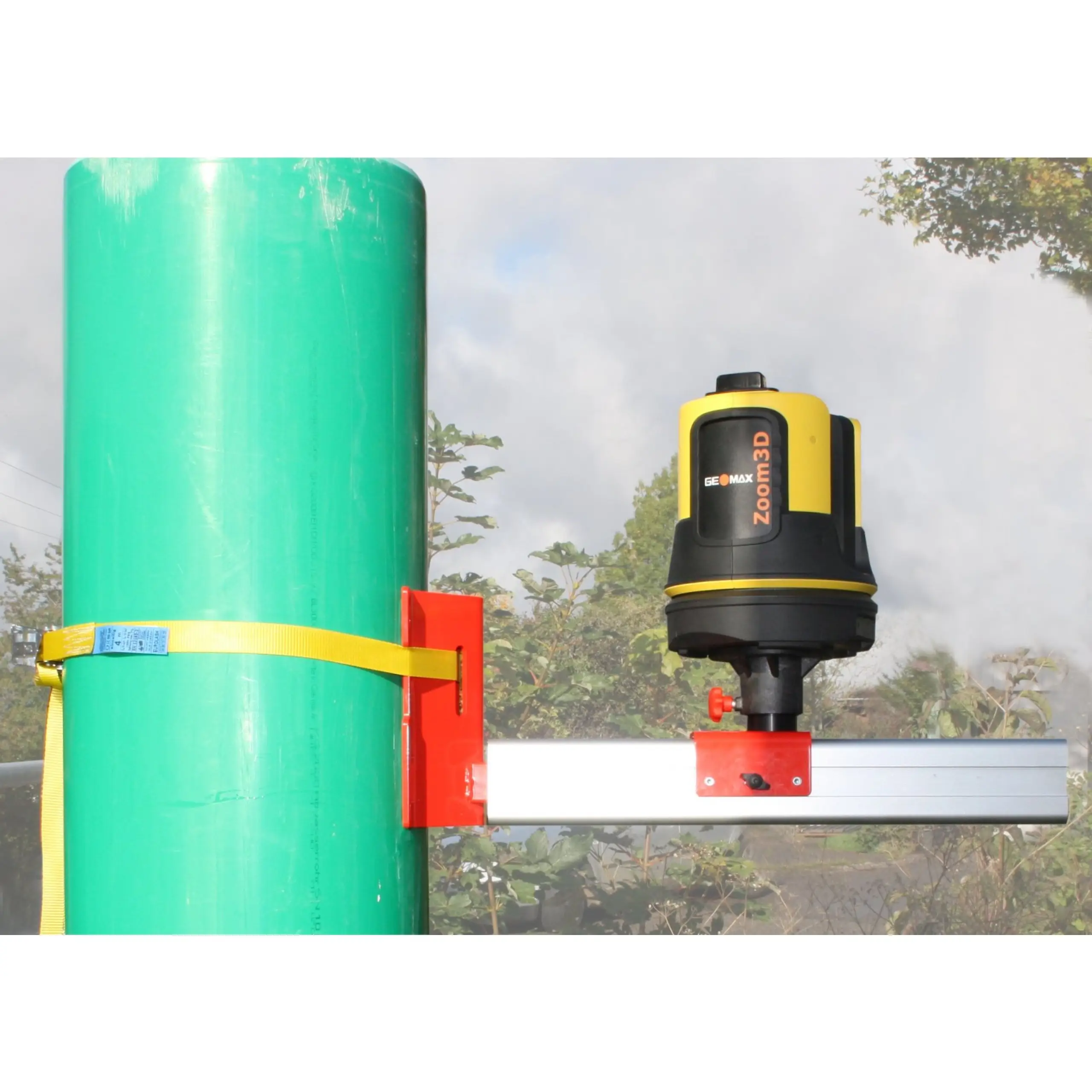

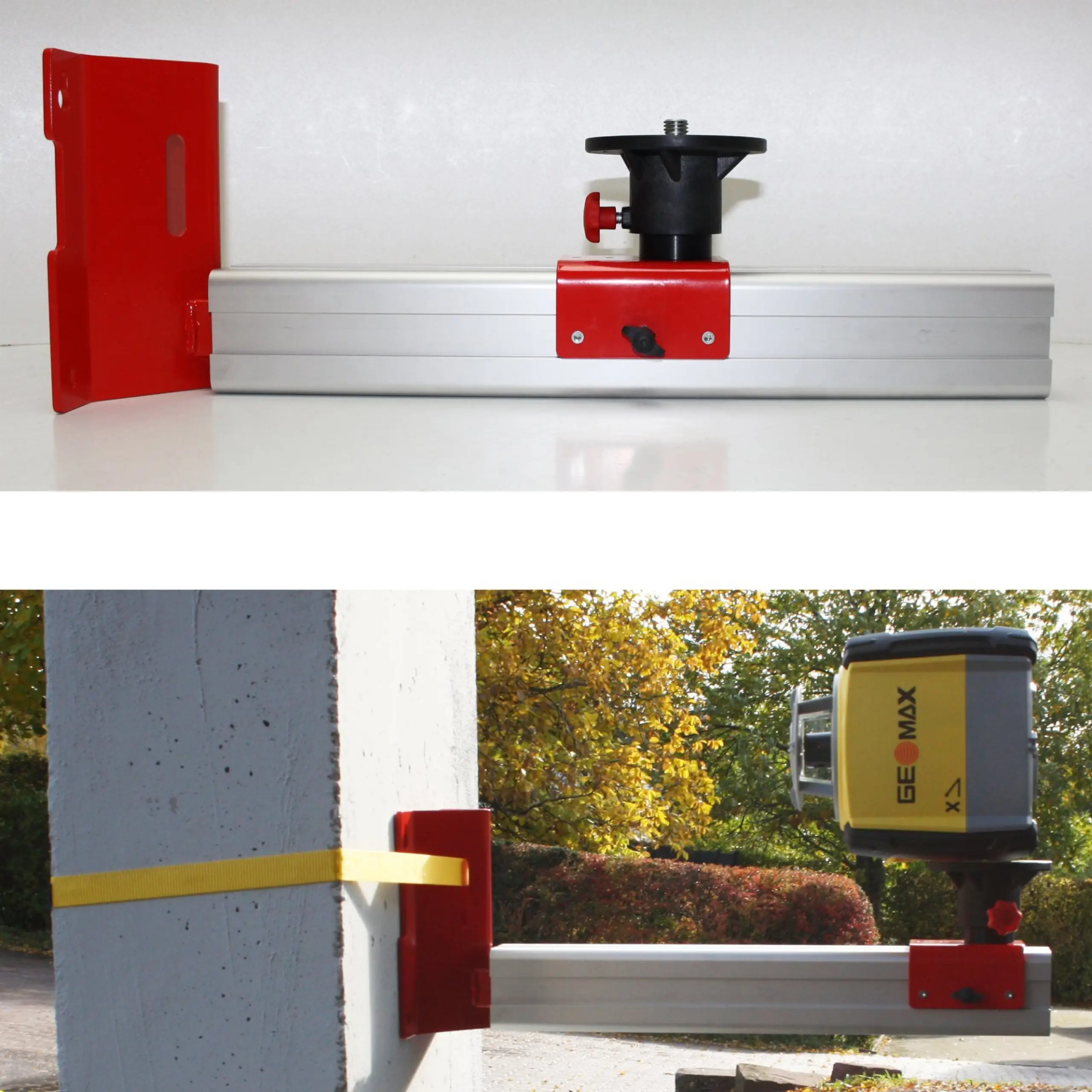

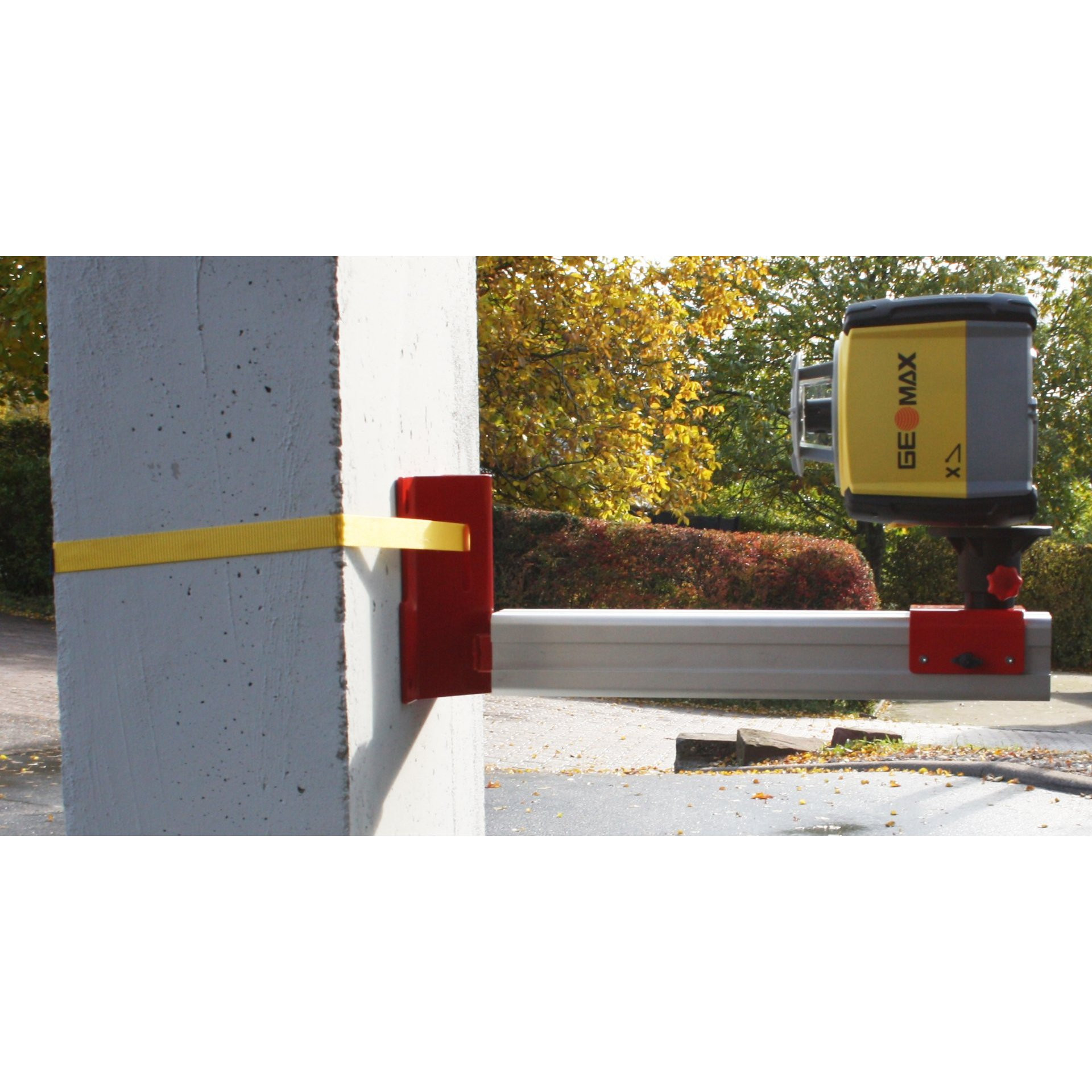

The NESTLE facade and column bracket with instrument carrier (5/8") is suitable for alignment work in facade construction. The console can be attached to facades, walls or columns. The desired wall distance is set with the movable slide on the consoles and a receiver for vertical alignment work is ready for use. This bracket can also be used as a support for theodolites, rotating lasers or total stations. The console can also be attached to round or square columns without screws using the enclosed strap.
Scope of Delivery
Instrument panel
