NESTLE Cross Line Laser NCL-2 SET

Robust cross line laser with red laser beam in SET

Top Features

  • Cross line laser NCL-2 in SET with wall holder and case

Variants

Variant

Technical Data

Working range / with detector 20 m / 50 m with receiver
Operating time < 8 Hours
Weight 480 g
Weight SET 3600 g
Threaded connection 1/4"
Storage temperature -20°C to +60°C
Laser 635 nm visible, class 2
Dimensions 119 x 62 x 95 mm
Self-levelling range 4 ° ± 0.5 °
Tolerance horizontal line ± 3 mm per 10 m
Tolerance vertical line ± 2.5 mm per 10 m
Product Number (PID) 16116001

Highlights at a Glance

  • Practical SET with wall holder and case

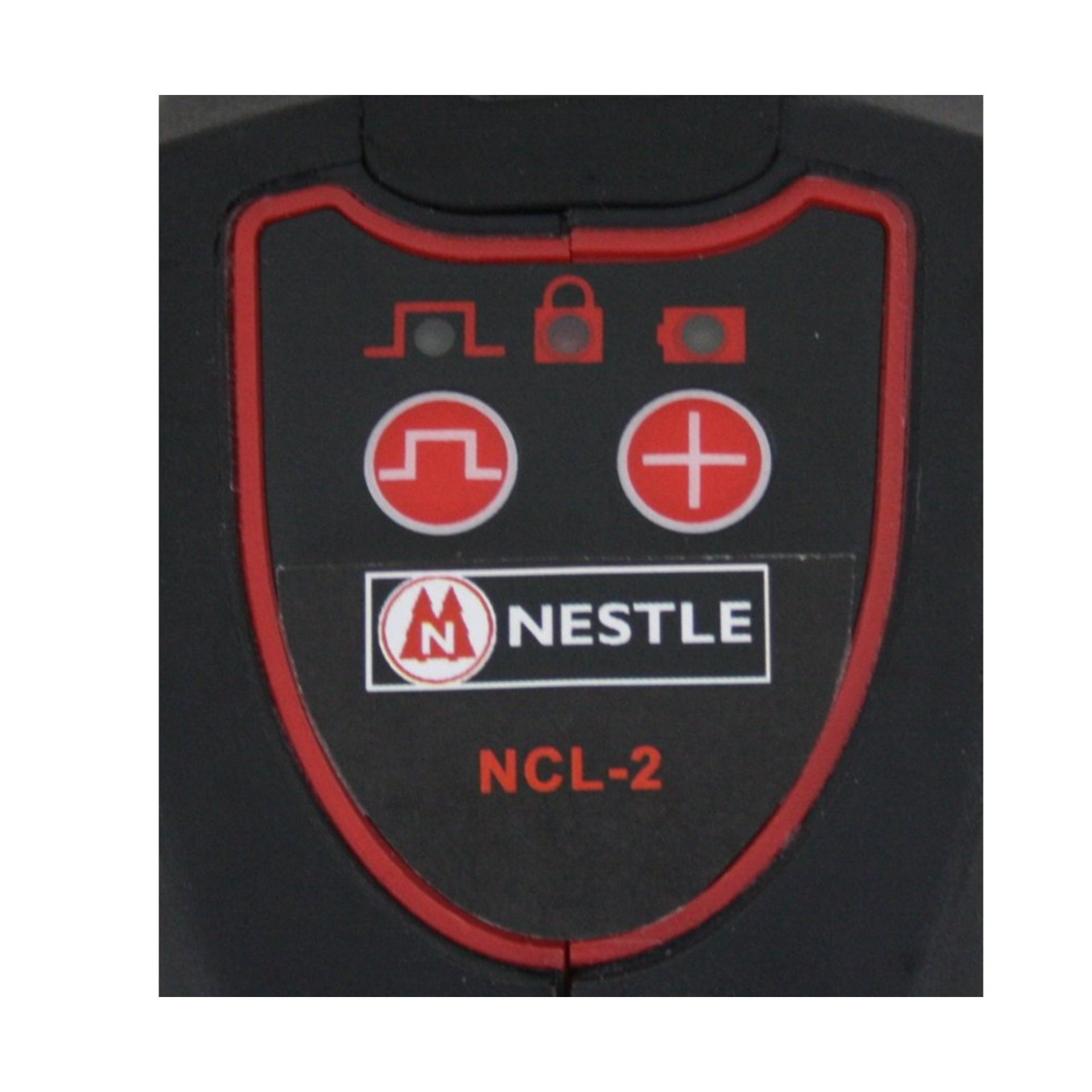

  • Thanks to the simple and clear control panel, operating errors are eliminated
  • Fixation of the horizontal and vertical laser line possible so that you can work in any position
  • Battery indicator flashes when battery voltage <3 volts
  • With a 1/4 thread connection, the laser can be mounted on tripods and wall brackets. This makes it even more flexible in use
  • Acoustic warning signal when the laser is no longer in the water
  • Horizontal and vertical line 120° beam angle

Description

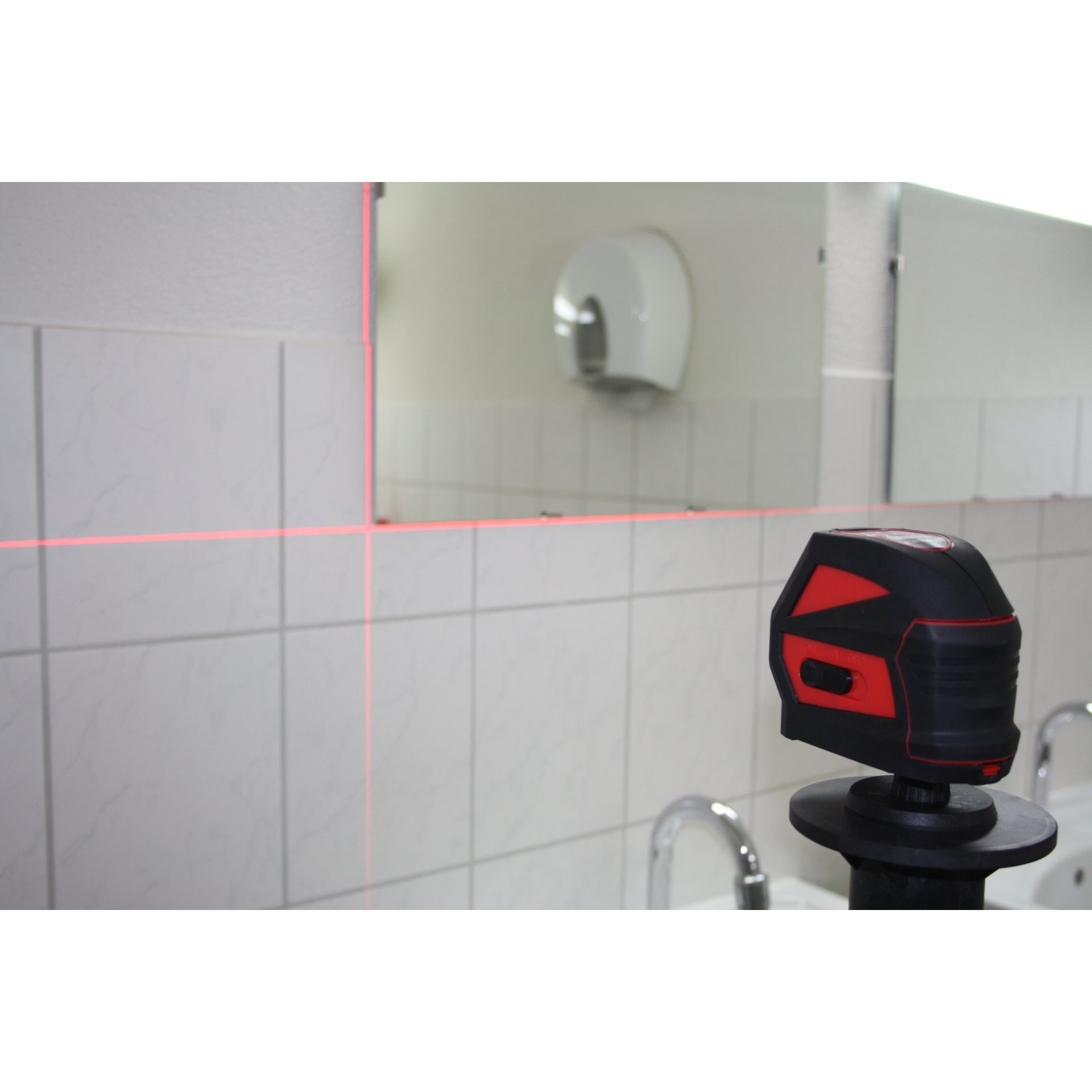

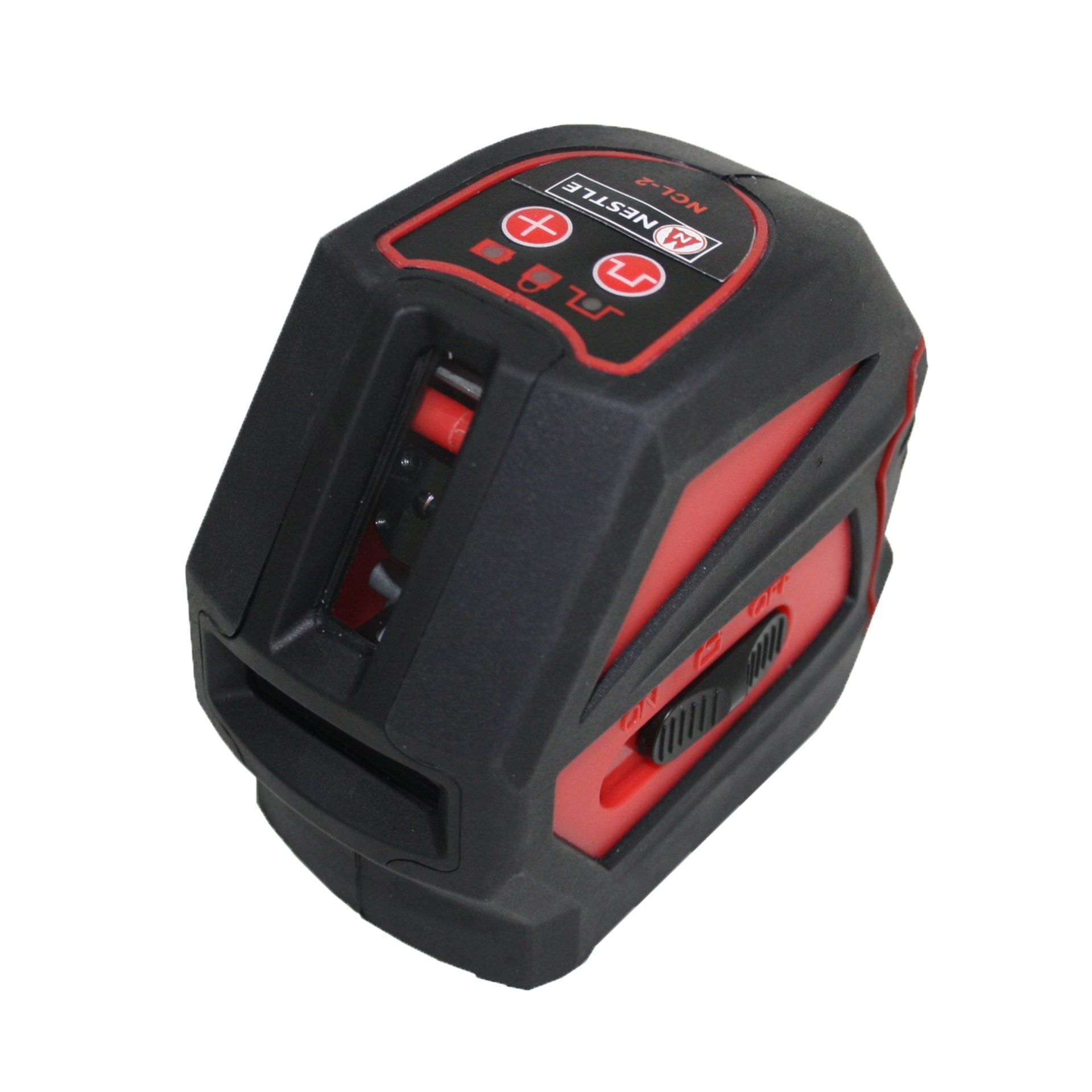

The NCL-2 cross line laser has an extremely robust construction, is also rubber-coated and therefore especially designed for tough, daily use. It has fine, yet strong laser lines that are excellently visible even over longer distances. The built-in pendulum compensator enables reliable self-levelling. The simple operating concept makes it quickly ready for use and ideal for interior work.

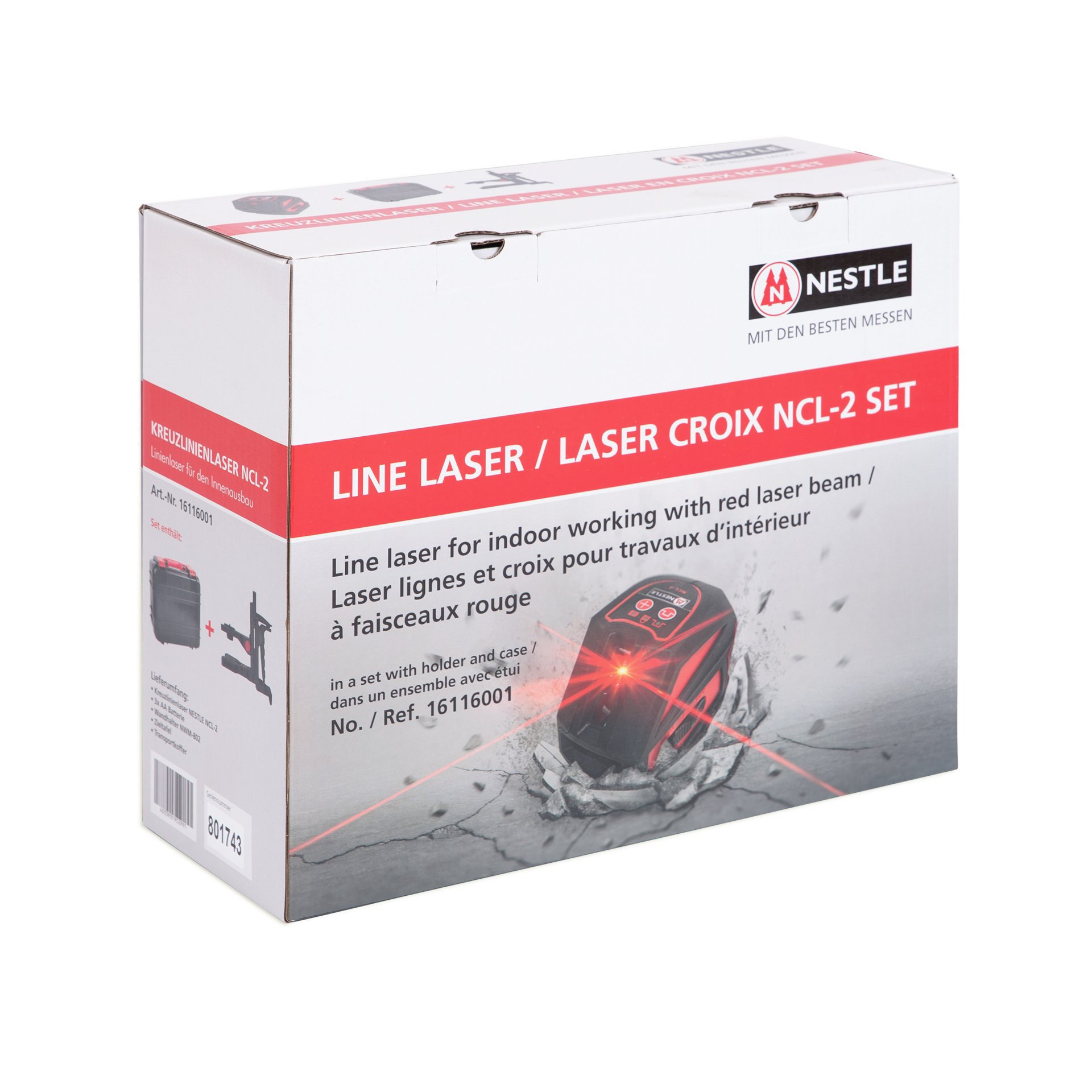

The NCL-2 set consists of: NCL-2, target plate, wall mount NWM-802, case, laser goggles, batteries, instructions

Scope of Delivery

Cross line laser NESTLE NCL-2
Target board
Wall bracket NWM-802
Suitcase
Laser goggles
Batteries
Manual
