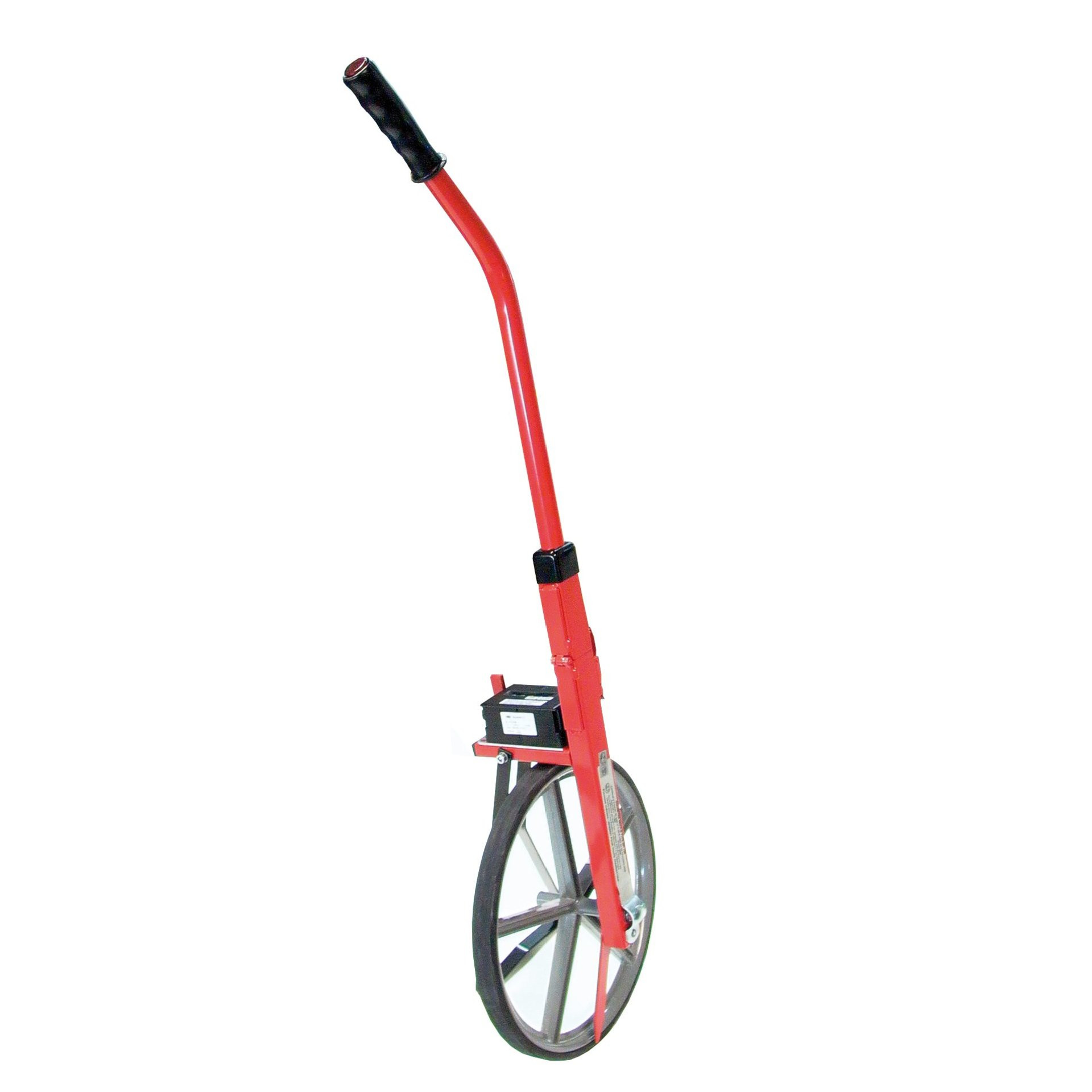

NESTLE measuring wheel with single arm fork

Simple distance measurements over long distances

Top Features

  • Due to the high quality production, our measuring wheels often provide decades of service in tough daily use.
  • As a certificate of quality, a sticker on the wheel indicates the deviation from the correct circumference. A Nestle exclusive feature!
  • For official use, a version with official declaration of conformity is optionally available (formerly known as calibration).

Technical Data

Colour Building warning colour red
Weight 3400 g
Wheel Spoked wheel
Wheel diameter 318.5 mm
Measuring range 9999.99 m / cm reading
Resolution 0.01 m
Wheel circumference 1 m
Tolerance < 0.05 %
Additionally for official use (Declaration of Conformity) Item no. 70100120
Product Number (PID) 12008000

Highlights at a Glance

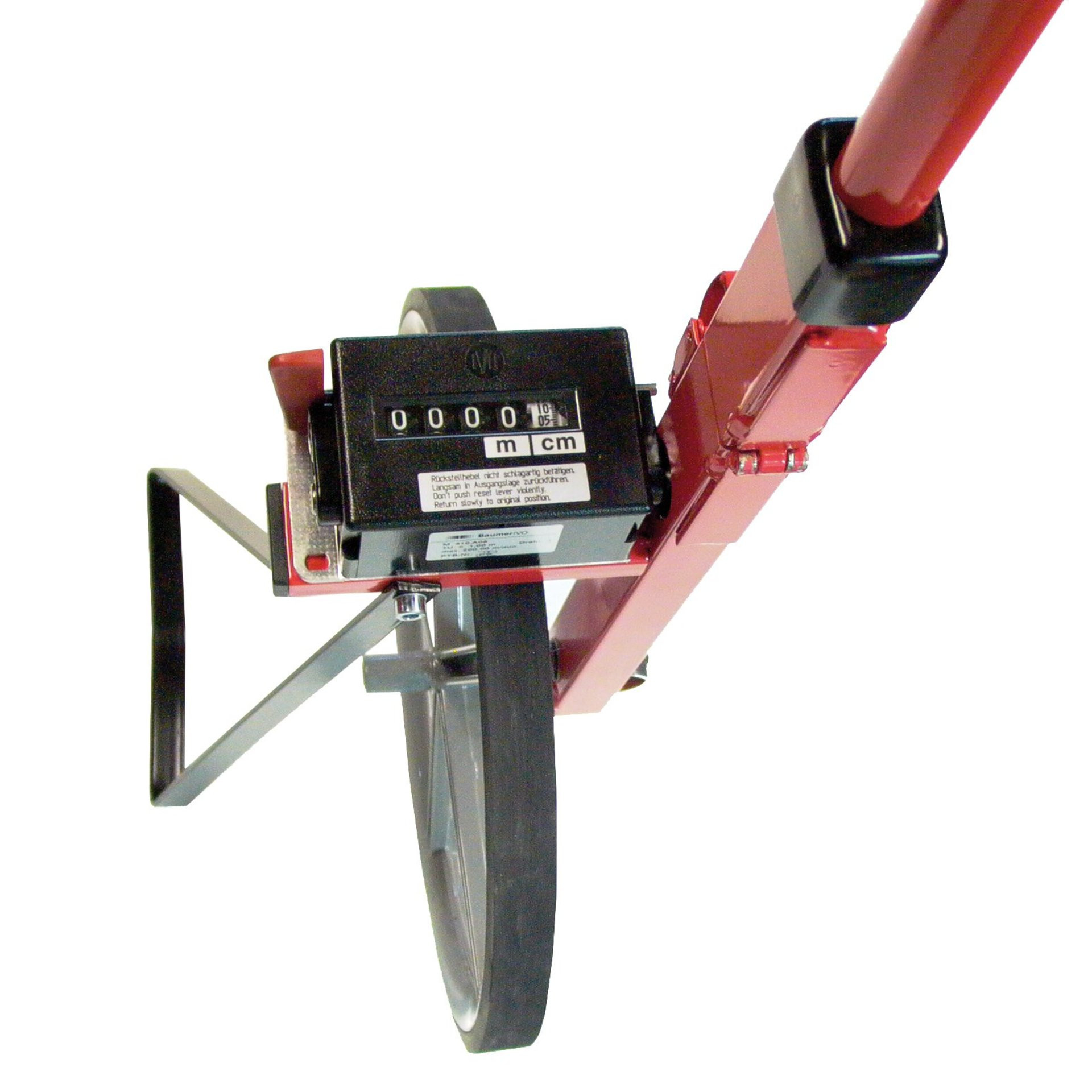

  • Quality counter MADE IN GERMANY above the measuring wheel and thus easy to read from a standing position.
  • Counter also counts backwards, subtractions are possible.
  • Zeroing lever directly next to the counter enables a quick reset.
  • Sturdy and generous storage bracket simply folds out to the side.
  • Brake integrated in the parking bracket prevents unintentional falsification of the measurement result.
  • The frame is completely robot-welded from metal and additionally powder-coated in traffic warning colour red.
  • Sturdy spoke wheel made of die-cast aluminium keeps the measuring wheel securely on track and ensures maximum smoothness...
  • The wheel´s framework is robot-welded and guarantees for lasting quality and durability.
  • With the 12008000 measuring wheel, the guide rod is not fixed by a wing screw as is usually the case, but can be folded back with the help of a wire bracket. This makes a backlash-free and exact connection possible.

Description

Measuring wheels are used for measuring distances on level ground. The wheel is rolled along the measuring distance while being held forward by a guide rod. The distance travelled is displayed by means of a counter. Typical areas of application are: official use, road and track construction, agriculture and forestry, landscaping and everywhere where distance measurements over medium to long distances are required. The quality counter records the distances in the direction of travel and subtracts against the direction of travel. This measuring wheel is equipped with a parking bracket, integrated brake and a foldable guide rod. NESTLE measuring wheels are always "Made in Germany".

Scope of Delivery

NESTLE measuring wheel with single arm fork
