NESTLE levelling tripod, aluminium, medium heavy version, 90-170cm

For the longest and toughest use

Top Features

  • Outstanding ease of use
  • Best quality in workmanship and material, thus suitable for many years of the hardest use

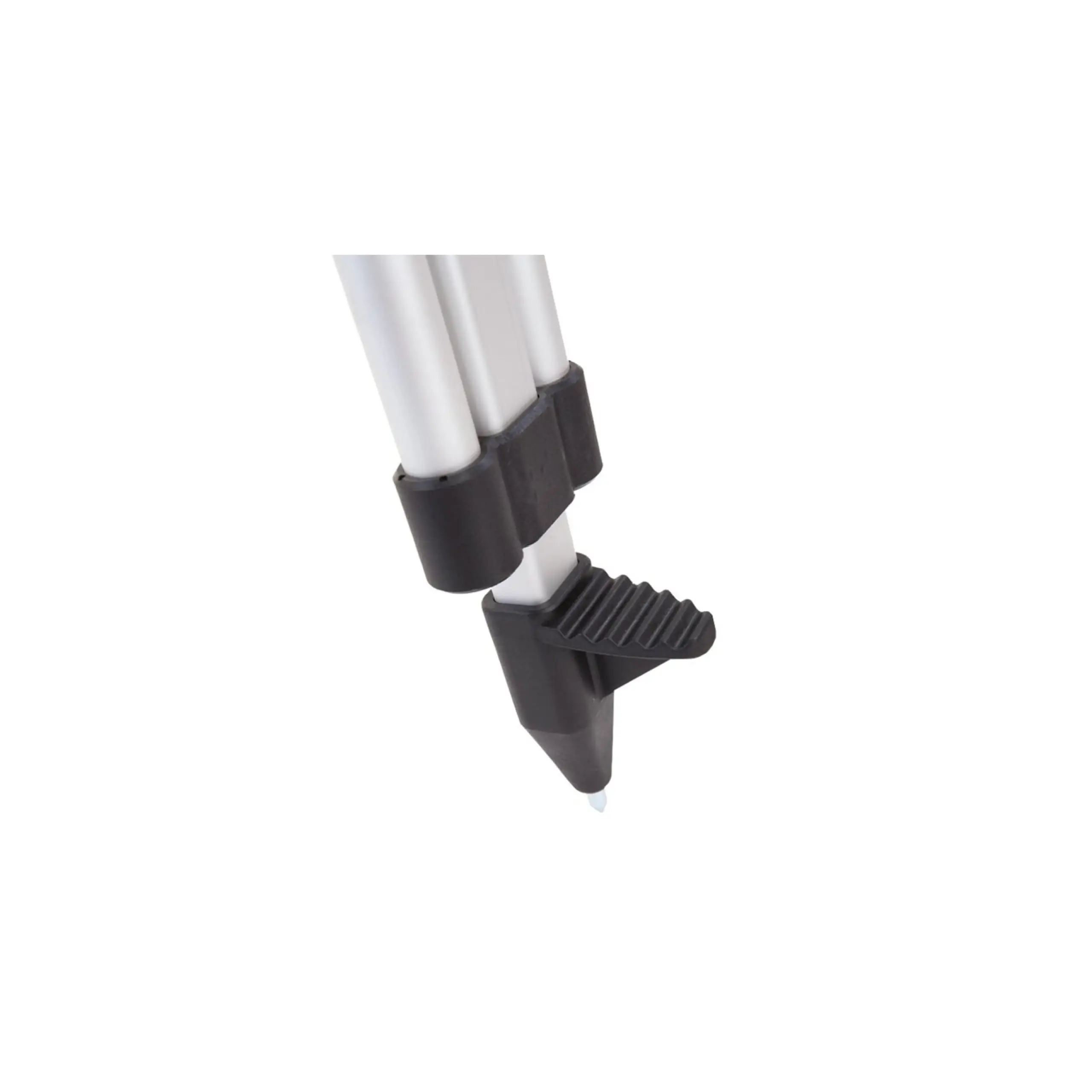

  • Sturdy tread shoe for the toughest use

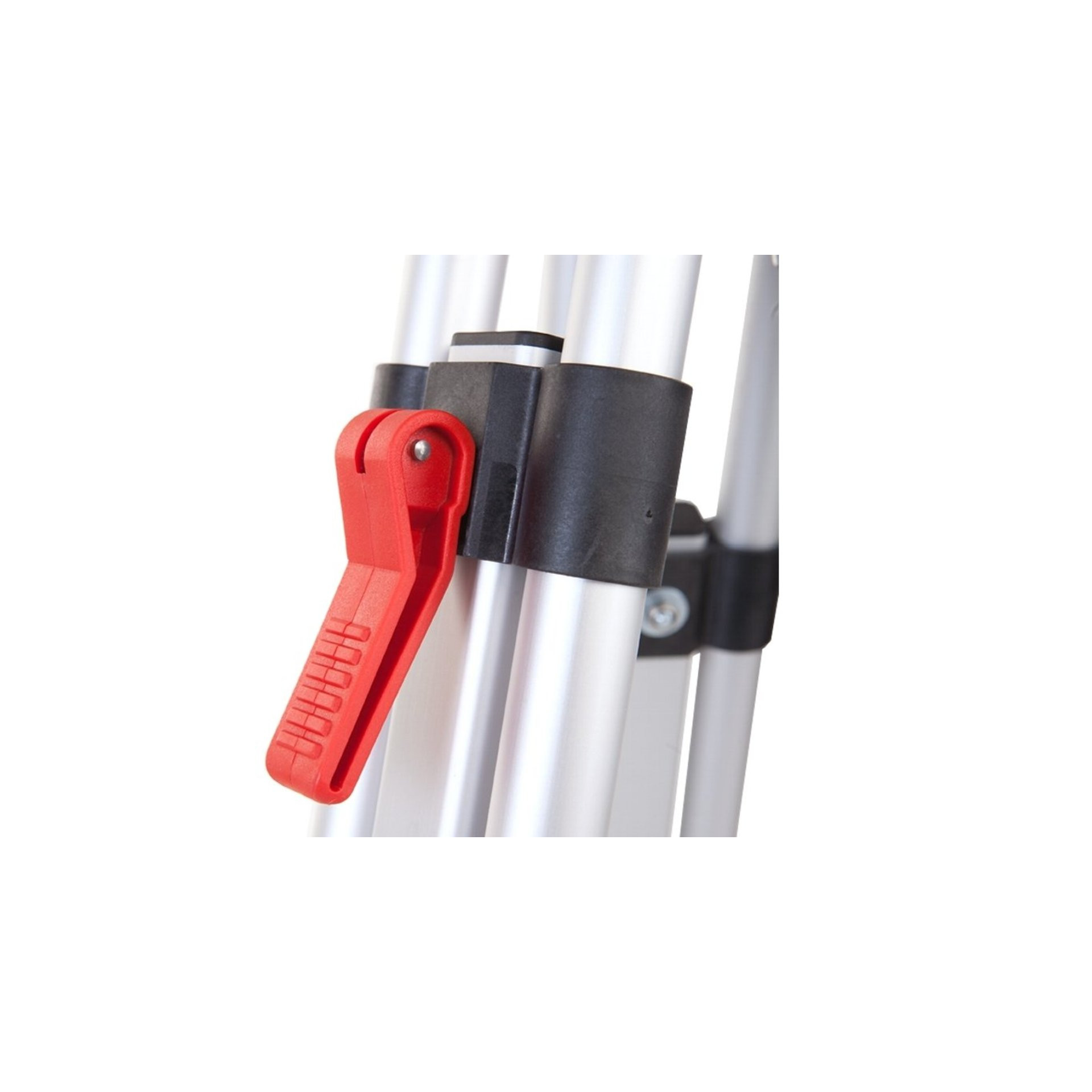

  • Quick locking with ergonomically designed eccentric clamps
  • Suitable for working with levels, light rotary lasers and theodolites

Variants

Execution

Equipment

Technical Data

Connection 5/8"
Working range at 1m tip distance 90 - 170 cm
Weight 3700 g
Clamping Eccentric, revolving
Head flat
Transport length 106 cm
Product Number (PID) 13102000

Highlights at a Glance

  • Even with gloves on, easy operation of the tripod is guaranteed.
  • With the patented circumferential clamping band, the clamping acts on both the outer tubes and the centre profile. This ensures a constant clamping force in every extension position of the stand.
  • The aluminium parts are anodised and therefore extremely weatherproof.
  • The aluminium tubes slide easily and smoothly without jamming, the material is protected and the life of the tripod is extended.
  • Head made of glass fibre reinforced plastic

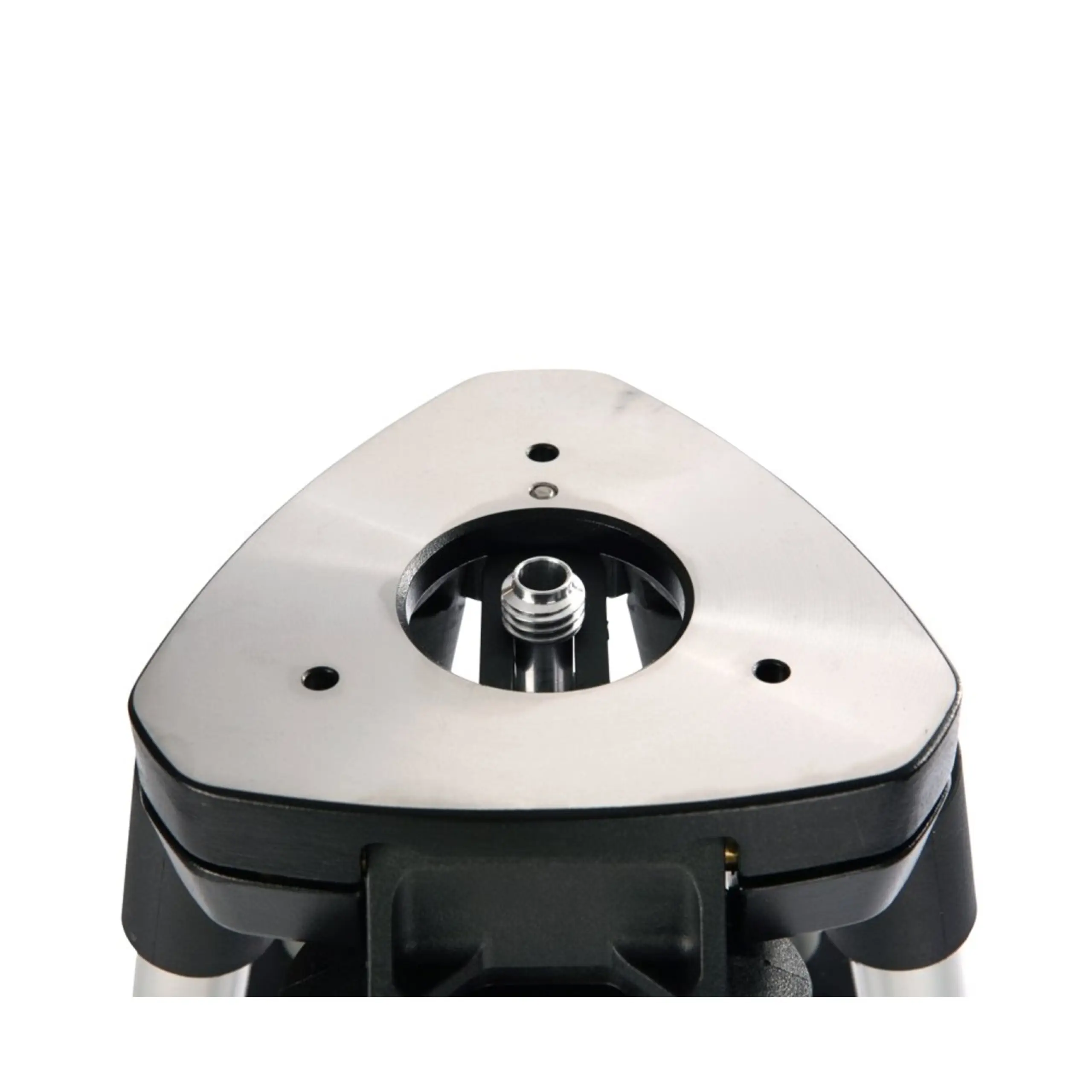

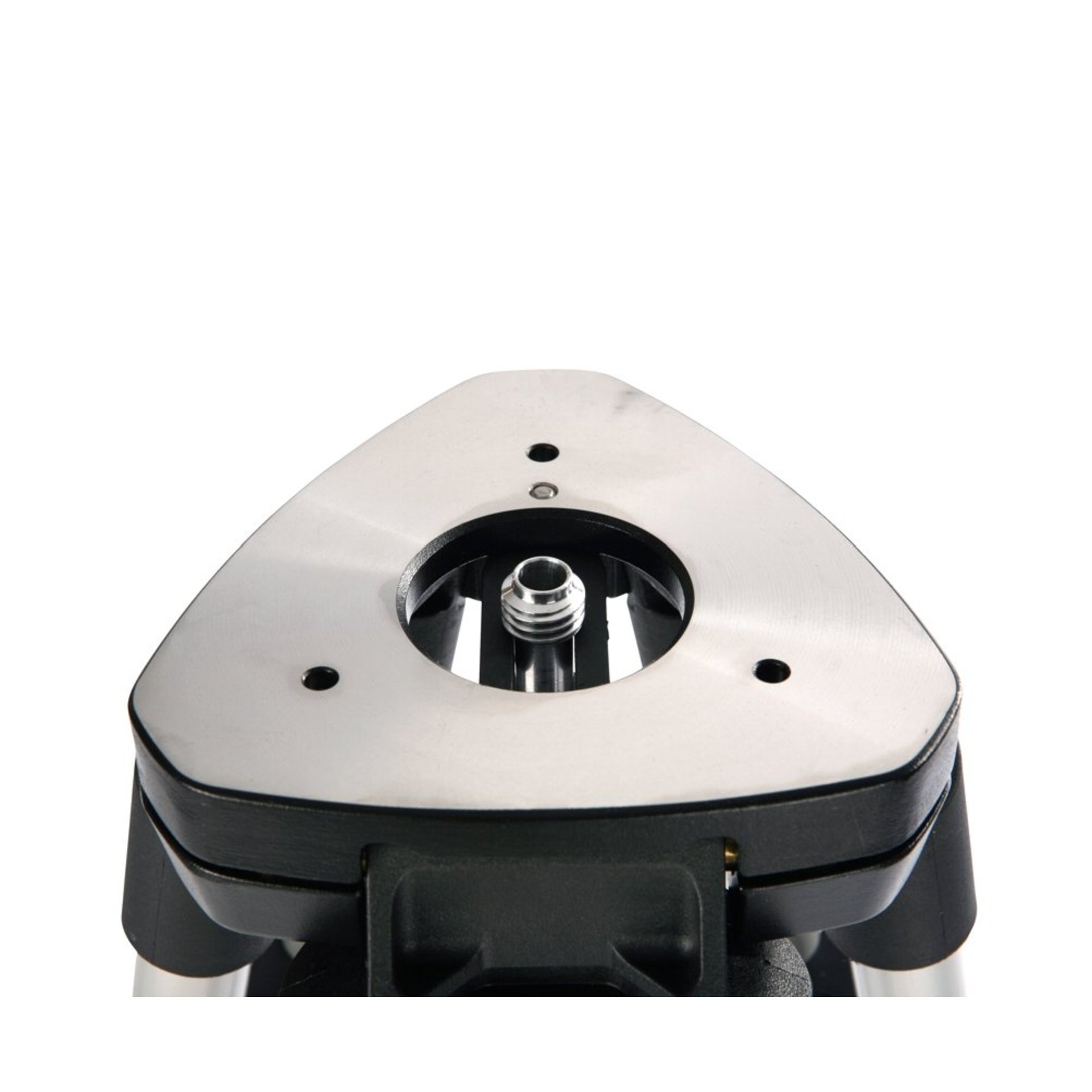

  • Bubble level integrated in the tripod head for fast and secure set-up
  • The plastic parts are made of glass-fibre reinforced polyamide and are therefore extremely robust.

Description

The medium-weight aluminium tripod is especially suitable for working with levels, light rotating lasers and theodolites. The quick-locking mechanism with ergonomically designed eccentric clamps ensures easy operation of the tripod.

Scope of Delivery

Tripod
