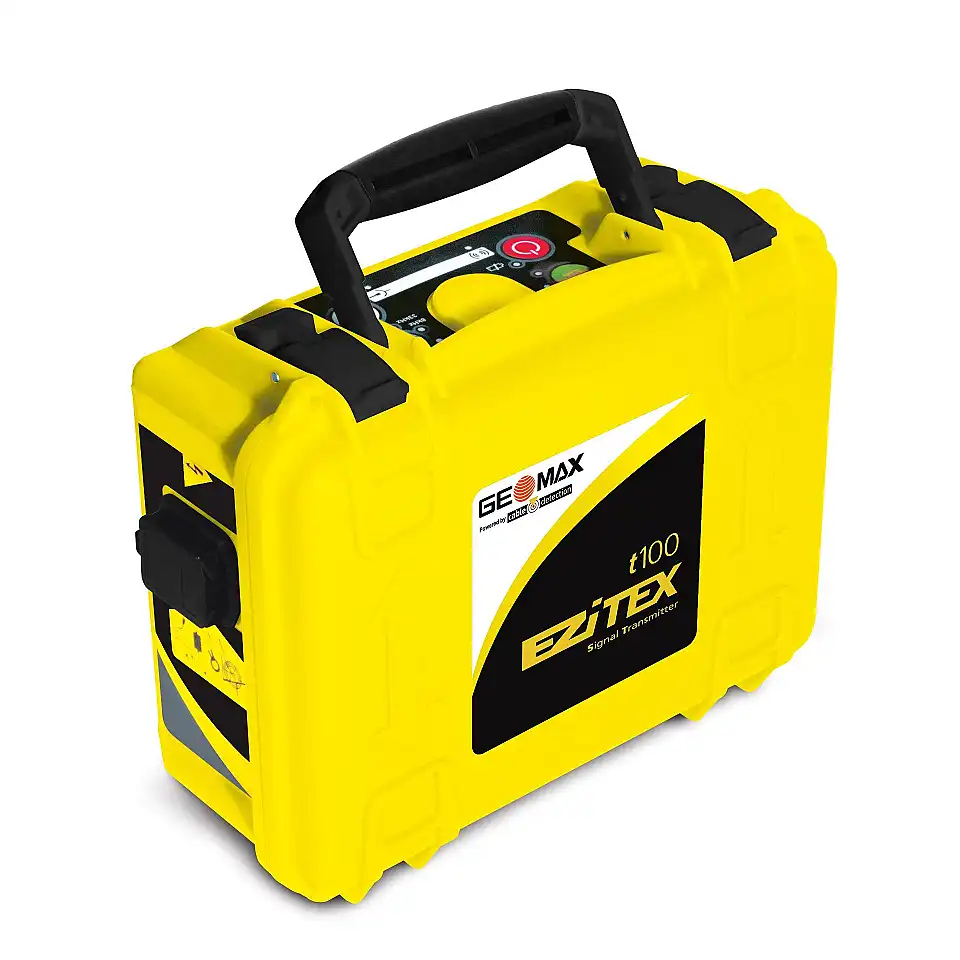

GeoMax EZiTEX t100 signal transmitter
For improved location of supply lines
Top Features
-
For easy and accurate tracking or location of underground cables or pipes.
Variants
Variant
Technical Data
| Dimensions | 105 mm (H) x 190 mm (D) x 235 mm (W) |
|---|---|
| Batteries | 4 x D alkali |
| Direct connection (300 Ohm) | Up to max. 1 W |
| Frequency/Mode | 8 kHz, 33 kHz and combined 8/33 kHz |
| Weight | 2.5 kg |
| Induction (max.) | Up to max. 1 W |
| Power | 4 levels |
| Protection class | IP67 |
| Product Number (PID) | 27503000 |
Highlights at a Glance
-
For use before excavation work.
-
Enables clear audible and visual controls.
-
Compact, robust and easy to use.
Description
The EZiTEX t100 signal transmitter is used to improve the location of pipes that do not emit a reliable signal. When used in conjunction with EZiCAT pipe locating systems, it allows easy location and accurate tracking of underground cables and pipes. The transducer fundamentally improves performance and allows for improved indications in areas of high signal overlap, accurate depth determination and detection over longer distances through coded signal strength.
Scope of Delivery
GeoMax EZiTEX t100 signal transmitter
Batteries
Manual
