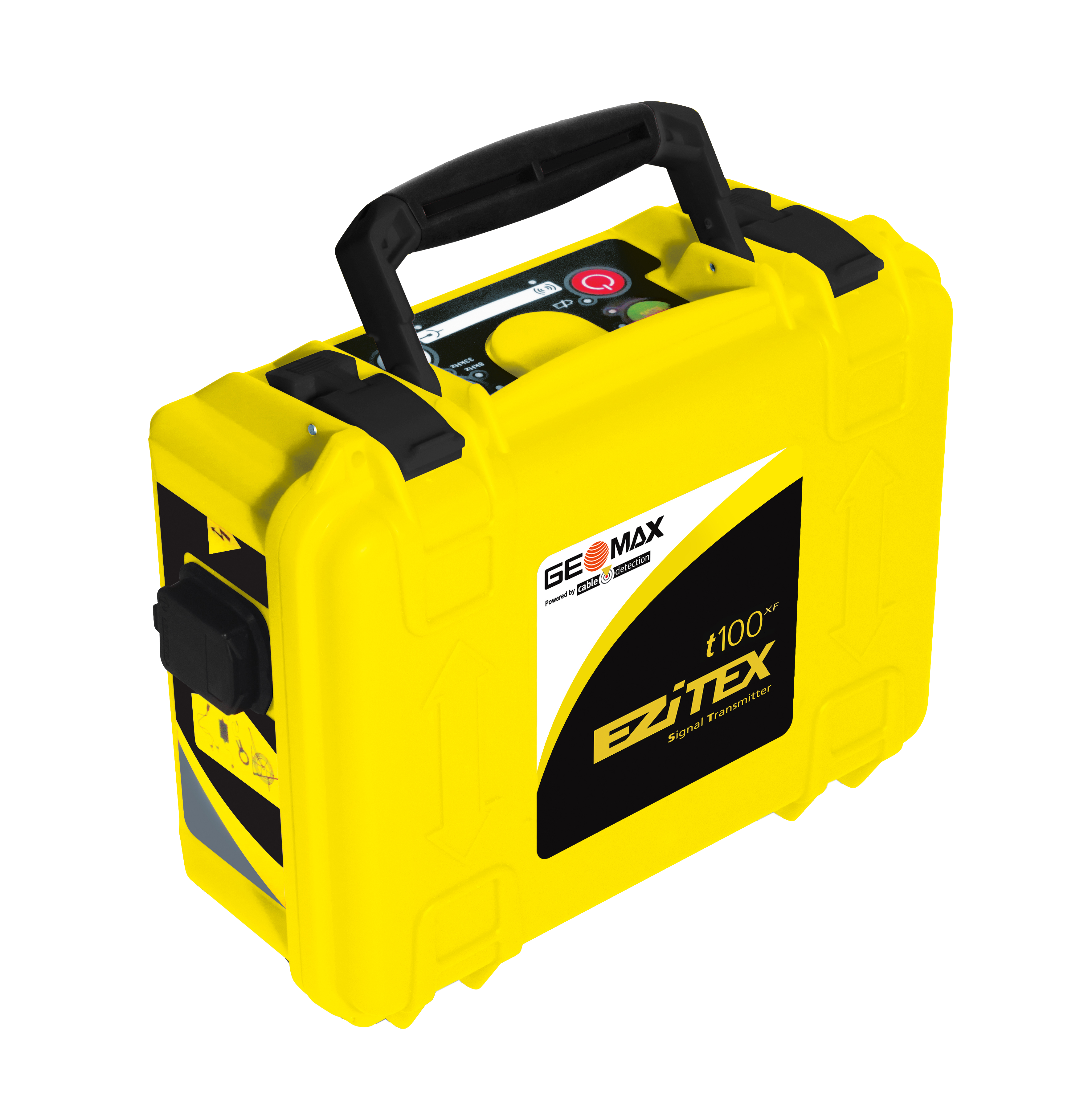

GeoMax EZiTEX t100-xf signal transmitter
For tracking underground supply lines over longer distances
Top Features
-
Improved location of utility lines in areas with high signal overlap.
-
Signal generator significantly improves the accuracy of the locating process.
-
Improved location of inactive utilities such as street lights.
-
For tracking underground supply lines over long distances
Variants
Variant
Technical Data
| Dimensions | 105 mm (H) x 290 mm (D) x 235 mm (W) |
|---|---|
| Batteries | 4 x D alkali |
| Direct connection (300 Ohm) | Up to max. 3 W when connected to an underground supply line with an impedance of 300 Ohm |
| Frequency/Mode | 8 kHz, 33 kHz, 512 Hz, 640 Hz |
| Weight | 2.5 kg |
| Induction (max.) | Up to max. 1 W |
| Power | 4 levels |
| Protection class | IP67 (cover closed), IP65 (cover open) |
| Product Number (PID) | 27526000 |
Highlights at a Glance
-
Easy to use
-
Compact and robust
-
Reduces damage to supply lines
-
Integrated self-test
Description
The EZiTEX t100-xf signal transmitter is used to improve the location of pipes that do not emit a reliable signal. When used in conjunction with EZiCAT line locators, it allows easy location and accurate tracking of underground cables and pipes. The transducer fundamentally improves performance, allowing enhanced indications in areas of high signal overlap, accurate depth determination and detection over longer distances through coded signal strength. The t100-xf also has four frequencies and is specifically designed to work in conjunction with the EZiCAT 750 xf cable locator for longer distance detection.
Scope of Delivery
GeoMax EZiTEX t100-xf signal transmitter
Cable set
Batteries
