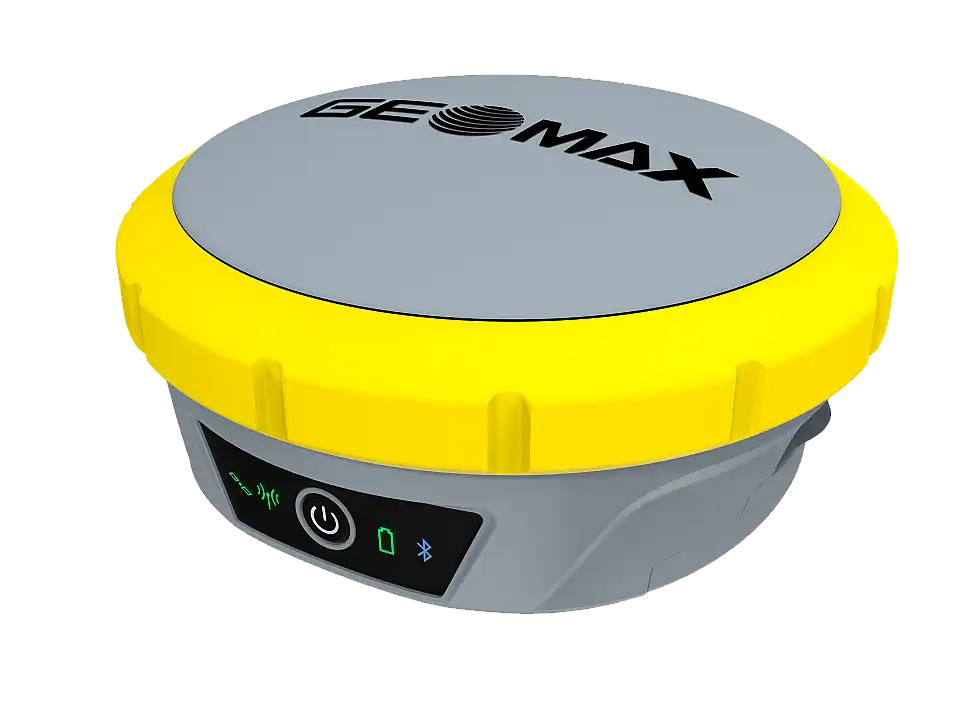

GEOMAX Zenith55 LTE-UHF-IMU
Professional-grade performance, practical value
Top Features
-
Calibration-free tilt compensation
-
600+ channels, multi-constellation
-
fully integrated into the Geomax product environment
-
Robust design (IP68)
Variants
Variant
Technical Data
| GNSS Tracking | GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, SBAS |
|---|---|
| Channels | 600+, multi-constellation |
| Tilt compensation | calibration-free IMU |
| Interfaces and connection | 4G LTE, UHF, Bluetooth, WLAN, USB, TNC, microSD, SIM, Lemo |
| Working time | RTK: 11 h, Static:12.5 h |
| Working temperature | -40°C to +65°C |
| Accuracy RTK | Hz 10 mm + 1 ppm, V 20 mm + 1 ppm |
| Accuracy RTK - tiltmode | additional Hz uncertainty 2 cm up to 30° inclination |
| Protection class | IP68 |
| Dimensions | Height 75 mm, Ø 167 mm |
| Weight without batteries | 1.14 kg |
| Product Number (PID) | 29537000 |
Highlights at a Glance
-
Impact protection: can withstand tipping over from a height of 2 m onto hard surfaces.
-
Antenna can be used as a base or rover
-
Protection class: IP68 protection against dust and water
-
Two internal batteries: can be replaced during operation, Li-Ion 3.4 Ah / 7.2 V
-
GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, SBAS satellite tracking
Description
The Zenith55 is a professional-grade GNSS smart antenna that combines advanced features with practical value. It offers efficient workflows that generate a strong return on investment for construction and surveying professionals. Integrated into the GeoMax product environment, the Zenith55 works seamlessly with GeoMax robotic total stations, field controllers and the X-PAD field software. This makes it more than just a GNSS receiver – it’s a comprehensive solution that ensures dependable precision and boosts productivity.
Scope of Delivery
Antenna Zenith55
2 batteries
charging cradle with power supply
USB-serial cable
UHF antenna
quick guide
case
