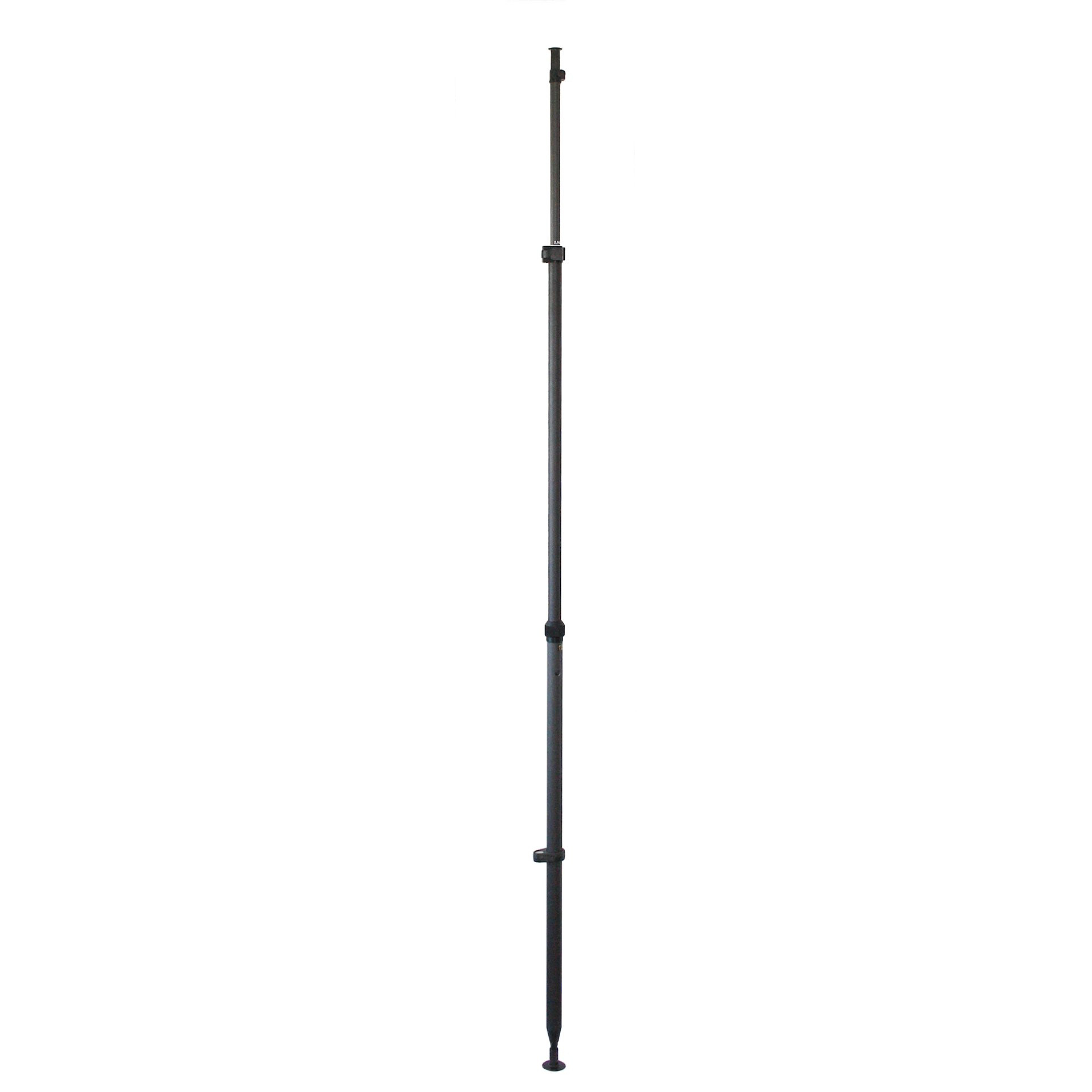

NESTLE GNSS Pole Carbon PT-9

Quickly disconnect the antenna

Top Features

  • Quick-out with 5/8.
  • Particularly short transport dimensions.

Technical Data

Connection 5/8" with Quick-out Qo-9
Working range max. 2 m
Diameter Outer tube 32 mm, inner tube 26 mm, head tube 20 mm
Weight 700 g
Clamping 1 x quick clamp, 1 x screw clamp
Dragonfly 20 ´
Transport dimension 1 m
Product Number (PID) 14034000

Highlights at a Glance

  • With height control marking.
  • Two fasteners make it easy to quickly extend and retract the pole.

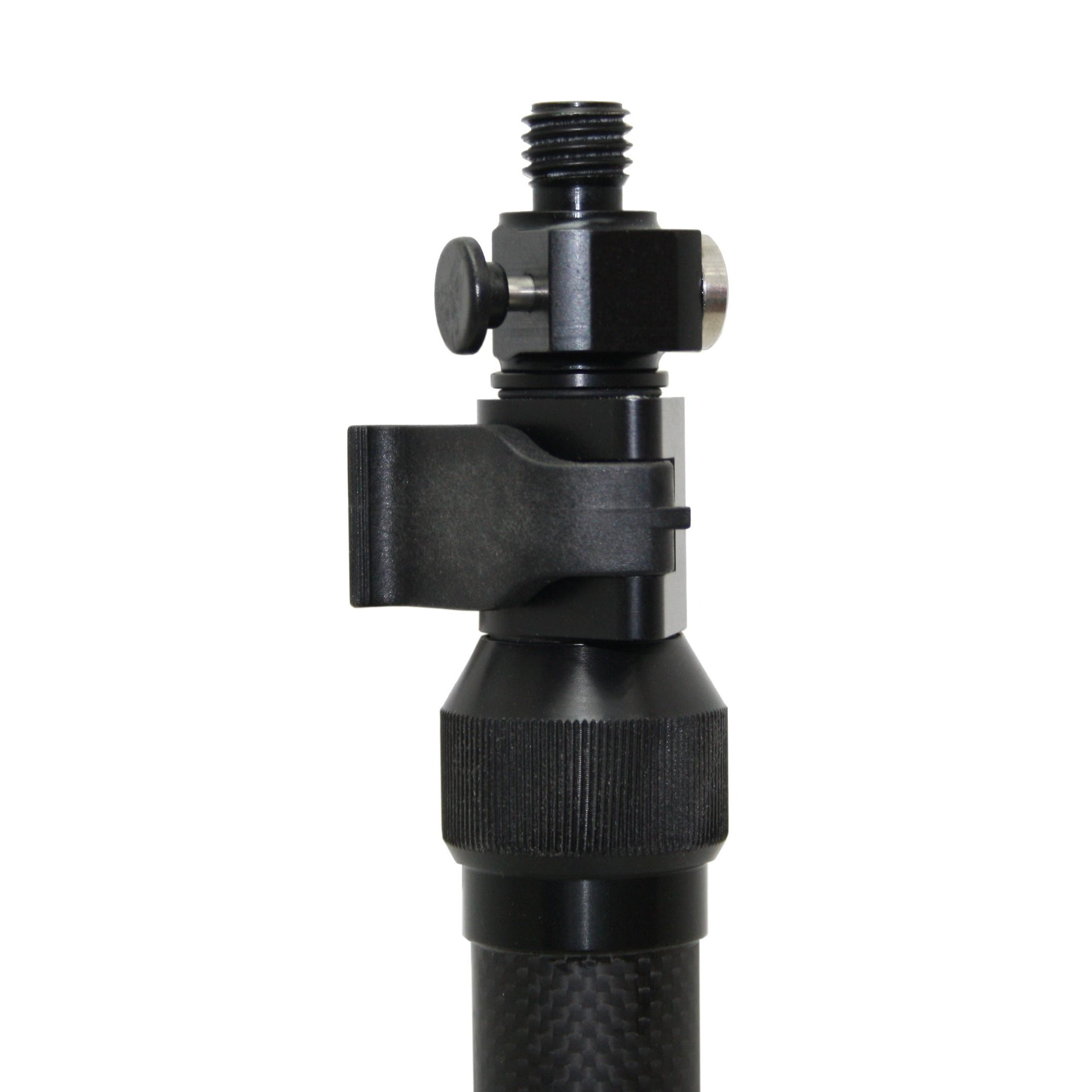

  • The GNSS antenna can be quickly and securely separated from the pole using the Qo-9 quick-out adapter (included), allowing for particularly flexible and fast work.

Description

With the PT-9 carbon GNSS pole, you can mount GNSS antennas quickly and easily on the pole. The PT-9 impresses with its working height of two metres with double telescoping and a transport dimension of only one metre. Two latches make it easy to extend and retract the pole. The GNSS antenna can be quickly separated from the pole with the included Qo-9 quick-out adapter. This allows for particularly flexible and fast work.

Scope of Delivery

GNSS Pole PT-9
Quick-Out Adapter
