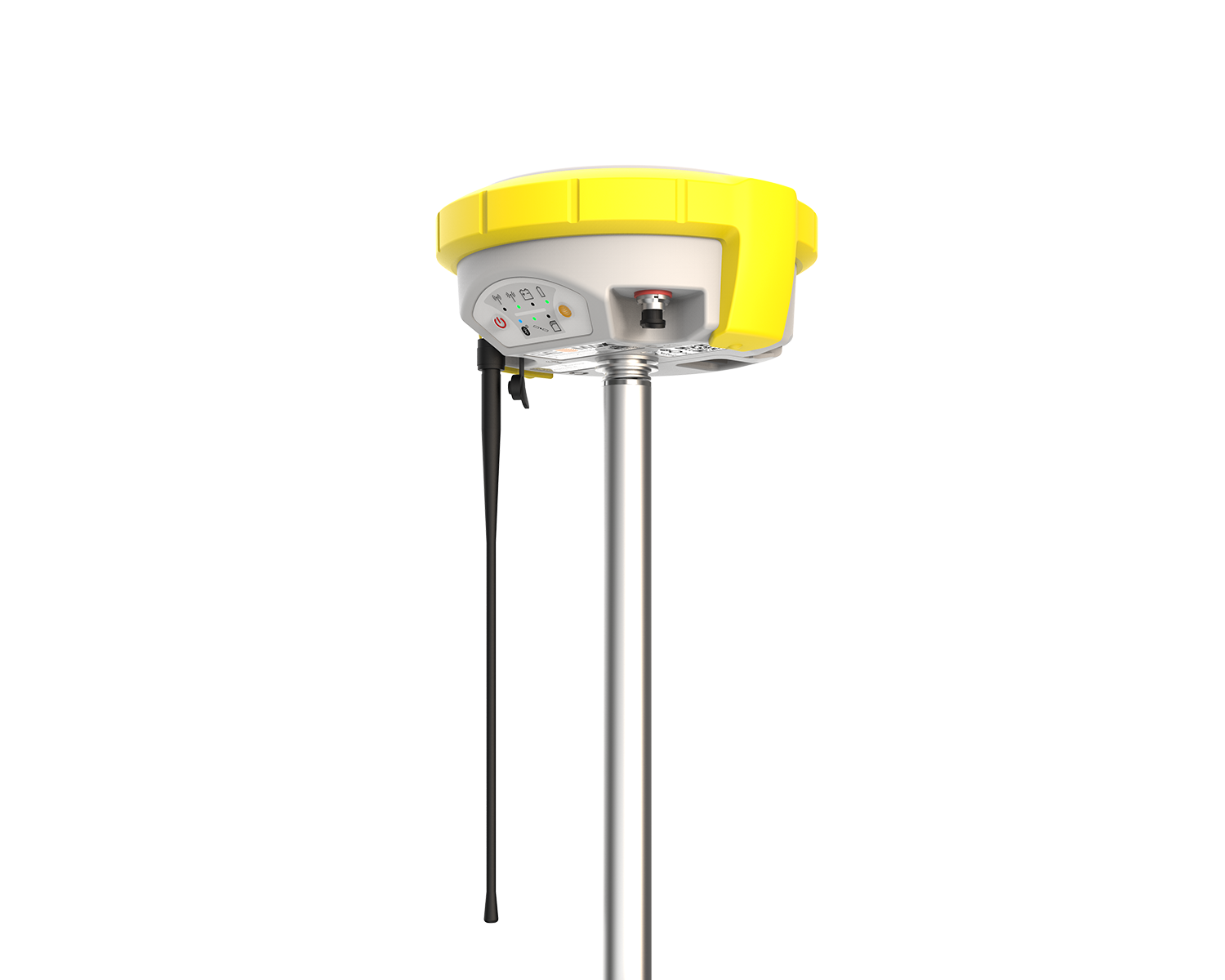

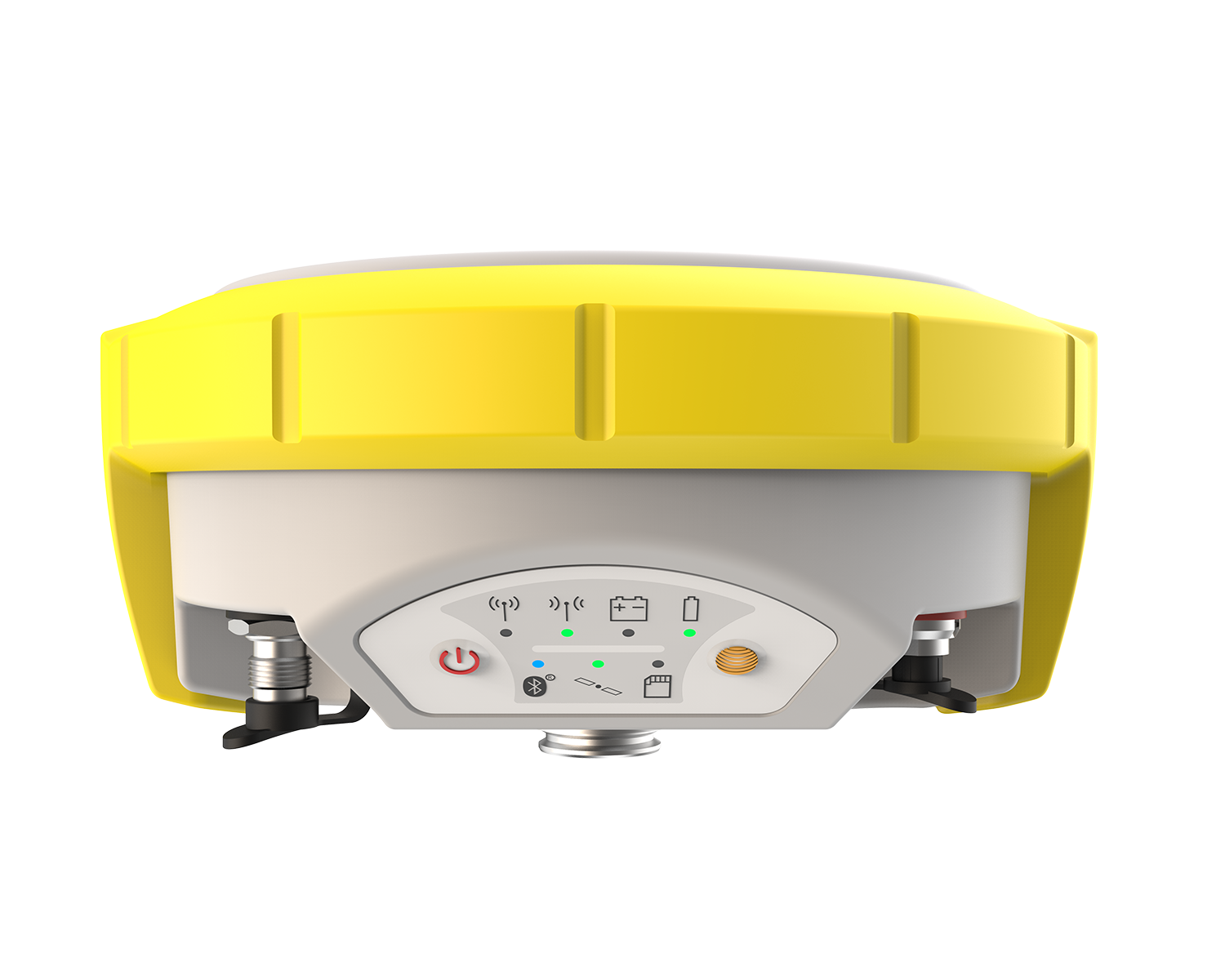

GeoMax Zenith 16 Rover Set

Modern satellite surveying made easy

Top Features

  • 555 channels
  • GPS, Glonass, Galileo, Beidou, SBAS, QZSS, NavIC
  • PPP

Variants

Variant

Technical Data

Weight approx. 1,200g
Accuracy RTK Hz: 8 mm + 1 ppm, V: 15 mm + 1 ppm
Protection class IP68
GNSS Tracking GPS, Glonass, Galileo, Beidou, SBAS, QZSS, NavIC
Channels 555, multi-constellation
Working time RTK: 6 h, Static:7 h
Dimensions Height 95 mm, ø 198 mm
UHF optional (Zenith16 Art.No. 29533000)
Product Number (PID) 29534000

Highlights at a Glance

  • Processes signals from 7 satellite systems and is PPP capable
  • Unrestricted connection possibilities
  • Antenna available as base or rover
  • Three different field computers can be selected
  • For all German-speaking and European correction data services

Description

The Zenith16 offers cutting-edge technology at an affordable price and therefore also impresses with its remarkable price-performance ratio. Experience increased productivity and less downtime thanks to the performance of GeoMax's cutting-edge technology.

The modern and compact GeoMax Zenith16 GNSS antenna is versatile and receives the entire spectrum of satellite signals (GPS, GLONASS, Galileo, BeiDou, etc.). The antenna is also PPP-enabled, thus offering unrestricted connectivity options.

Please note that the price is only available on request.

Scope of Delivery

Zenith16
Battery
Charger with power supply unit
USB cable
SD card
SD card adapter
Suitcase
Manual
Operating instructions

Request
