NESTLE MIDI prism pole, shock-absorbing, 50-80 cm, wild connection

Simple operation - perfect results!

Top Features

  • The laser engraving remains permanently visible, so you can work at the exact height without having to remeasure.
  • The carbide tip does not wear out, thus no falsification of the measurement result due to blunt tips.

Variants

Connection

Technical Data

Connection Game / Leica
Weight 400 g
Clamping Screw clamp
Length 50-80 cm
Scale offset 86 mm
Product Number (PID) 14003000

Highlights at a Glance

  • MIDI prism rods for surveying of all kinds in the building sector and cadastre.
  • With a length of 50-80 cm, the MIDI pole can be positioned closer to the ground than standard prism poles. This means that the resulting error is much smaller when the pole is not quite perpendicular.
  • Easy and space-saving to transport.
  • Tip made of aluminium with carbide insert. The carbide does not wear out even after years of use.

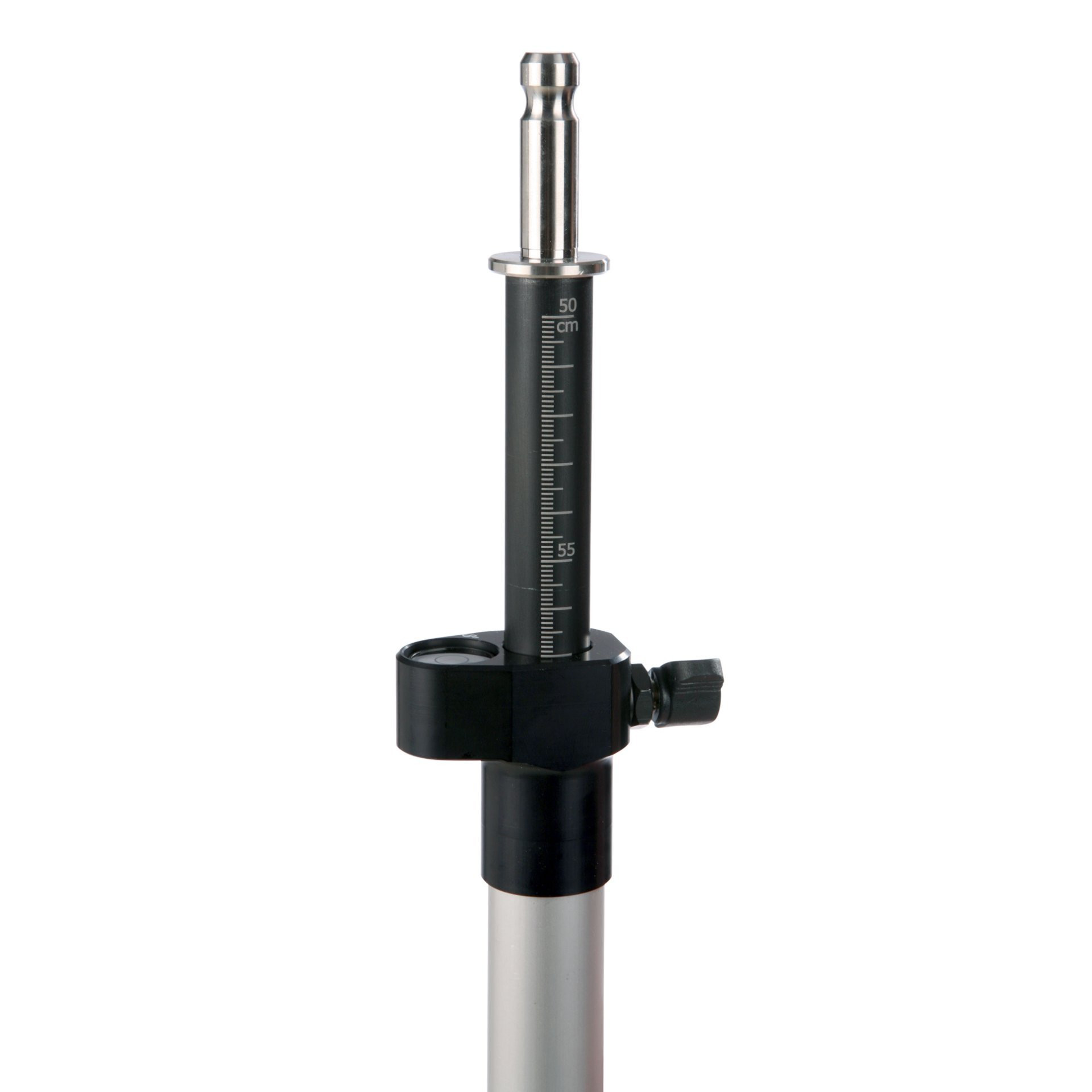

  • The graduation is indestructibly applied with a patented laser engraving.
  • PD-3, with Wild/Leica connection.

Description

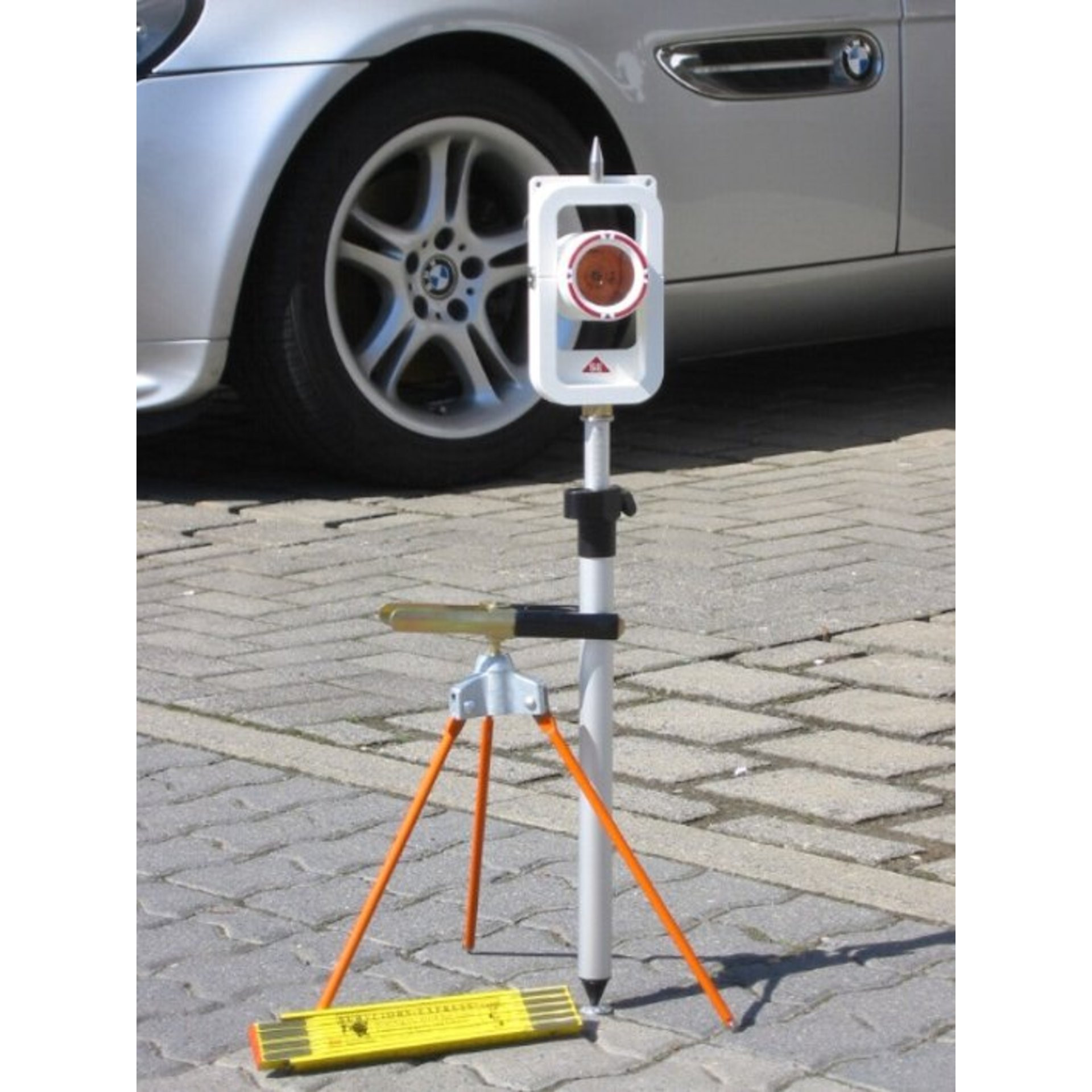

With the NESTLE MIDI prism pole, you can position your prism much closer to the ground point and thus avoid unnecessary measuring errors when the prism is not quite perpendicular. Its patented laser engraving, the indestructible hard metal tip and the practical shock absorption make it a companion for many years.

Scope of Delivery

NESTLE MIDI prism pole (PD-3)
