NESTLE Prism Punch Marker (PN-1)

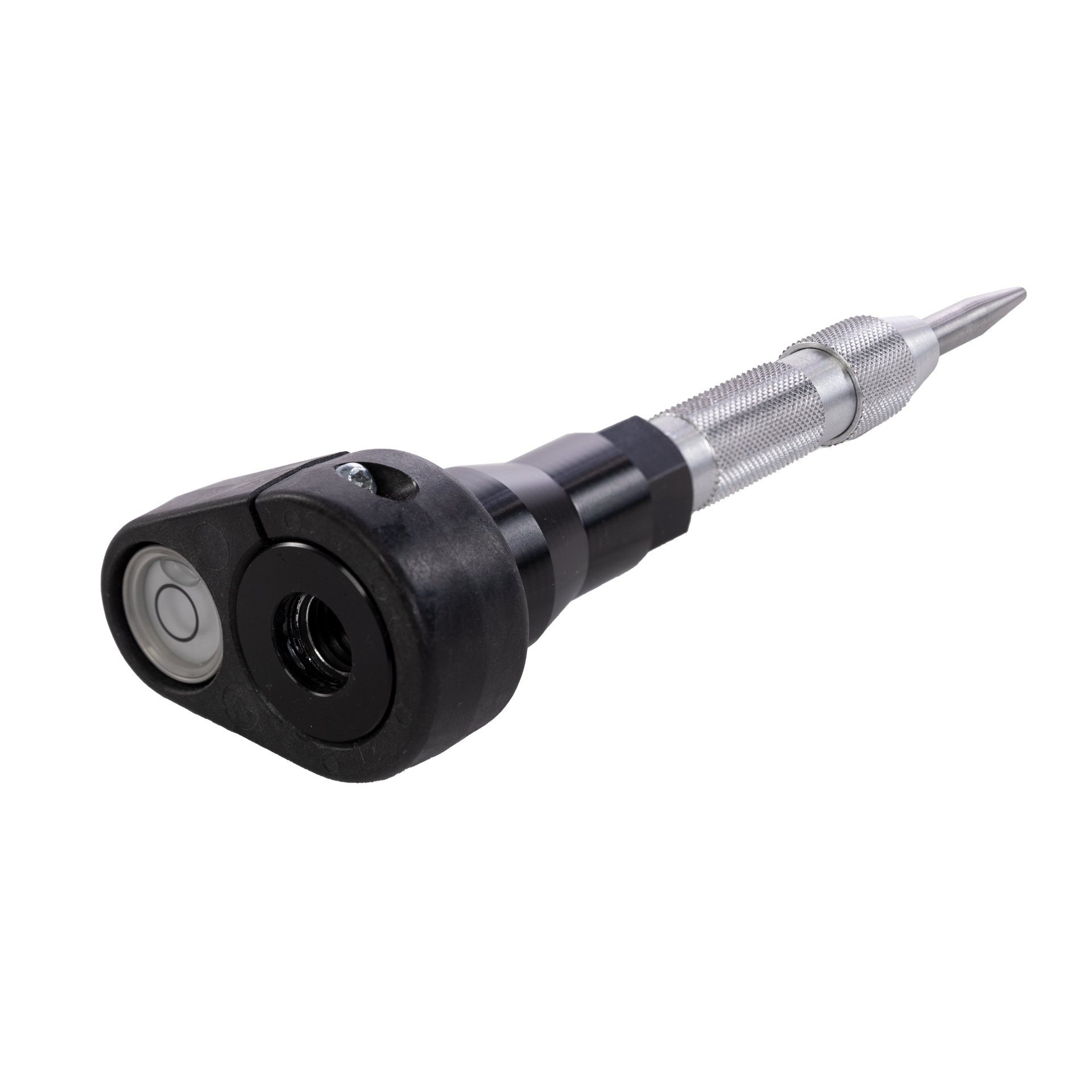

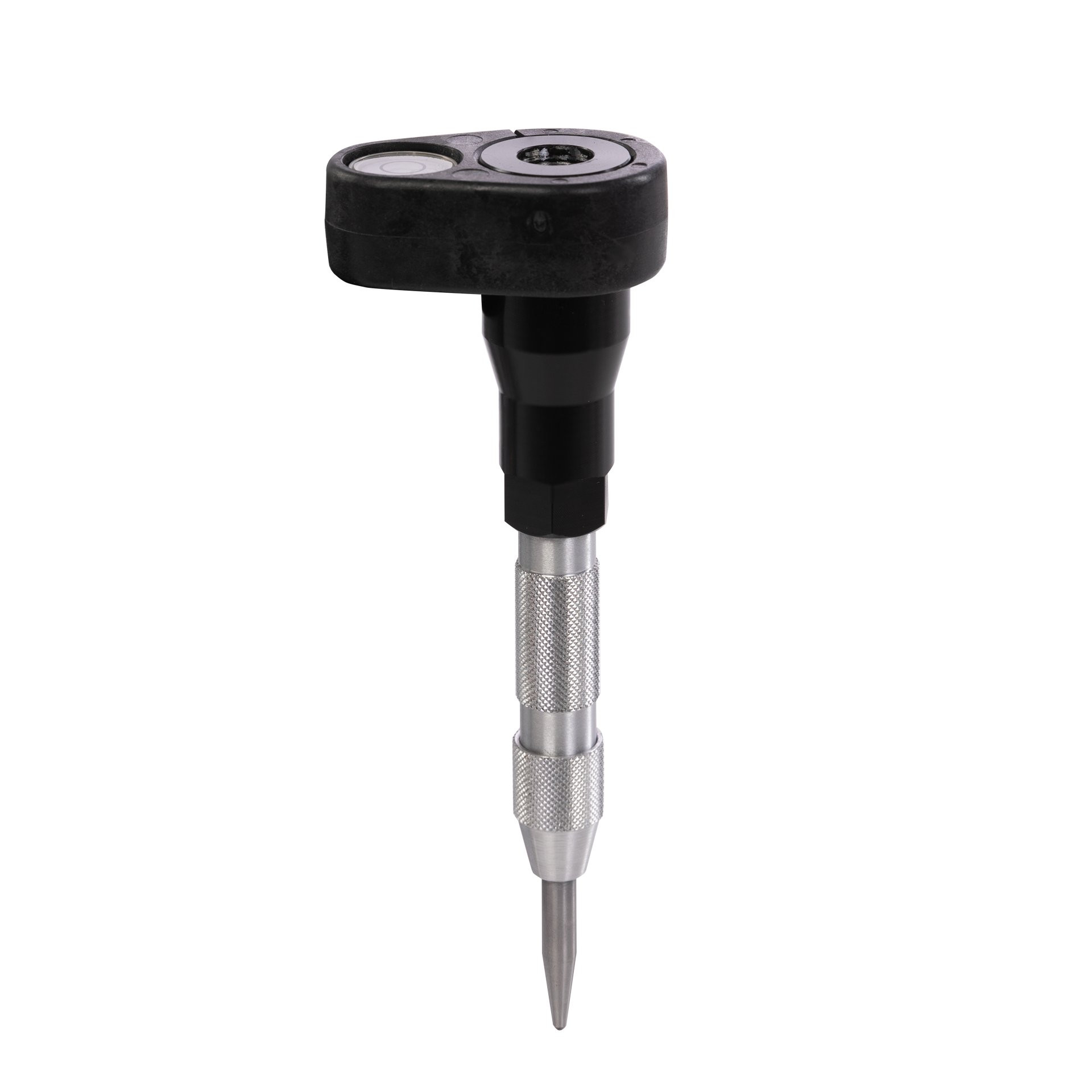

Mini prism pole with bubble level and integrated centre punch tip

Top Features

  • Ideally suited for staking out close to the ground
  • Made in Germany

Technical Data

Connection type top all NESTLE M12 prism adapters
Release force 120 -150 Newton (N)
Weight (without adapter) 120 gr
Length 16 cm
Length with prism+adapter 30 cm
Product Number (PID) 14047000

Highlights at a Glance

  • Exact setting of centre punch points on surfaces

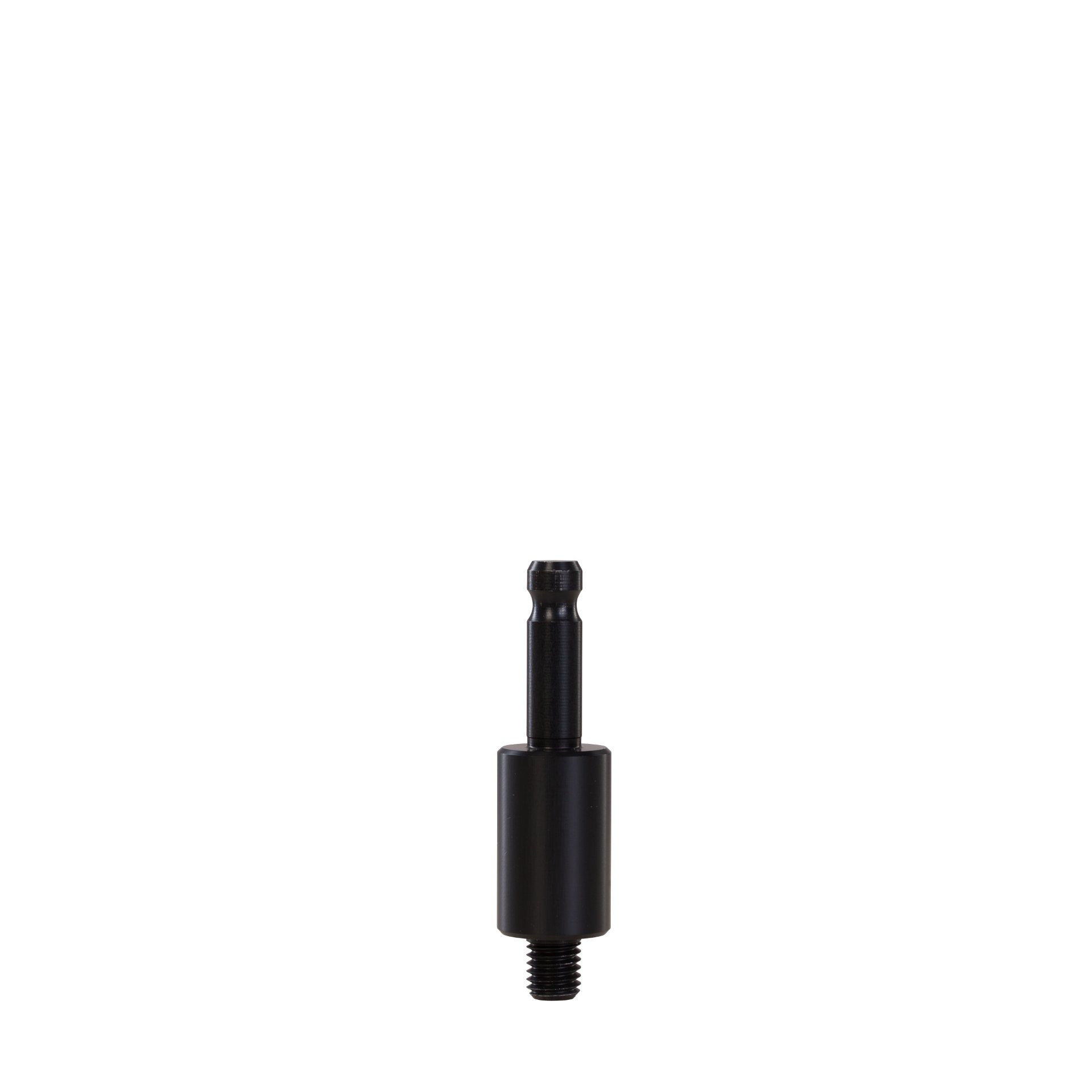

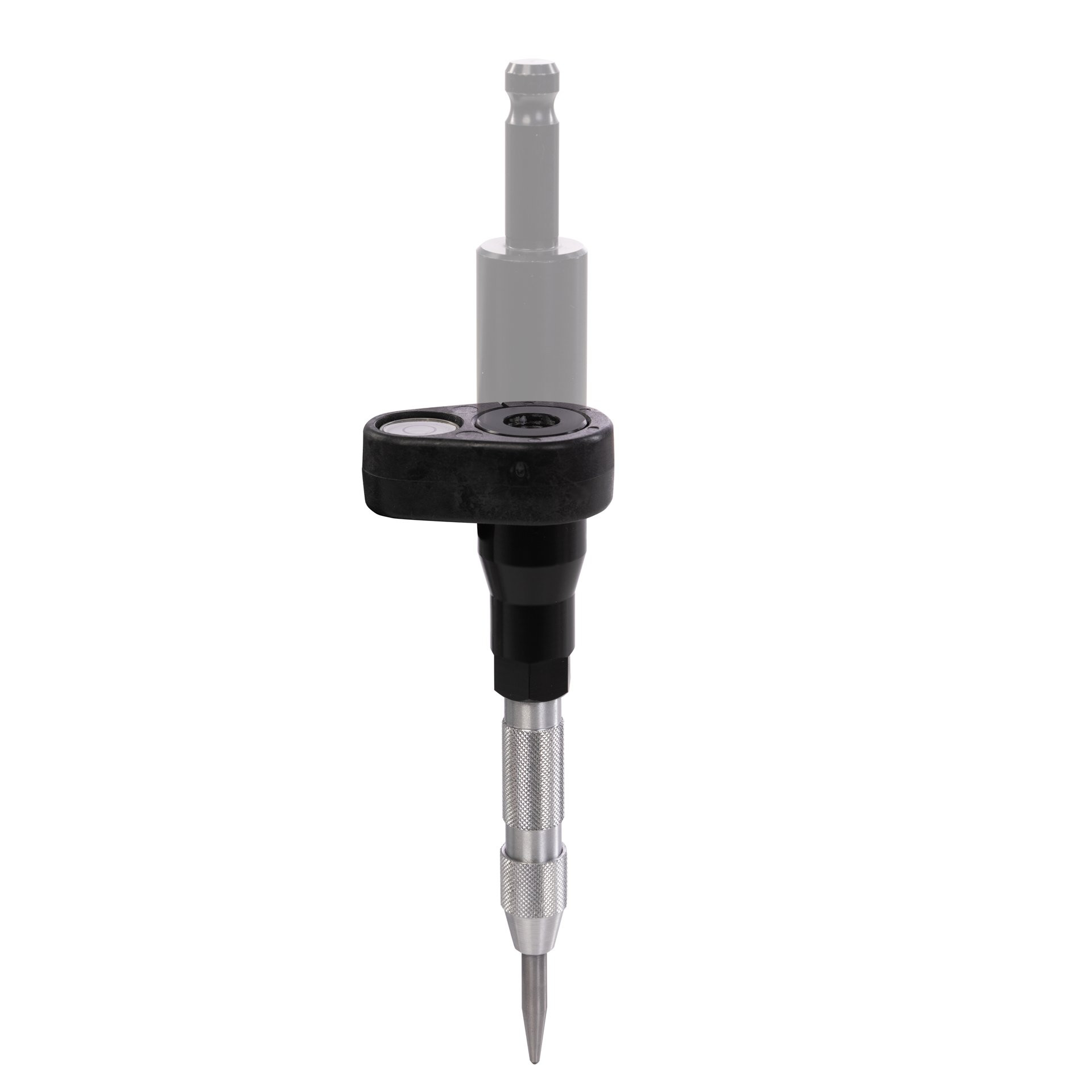

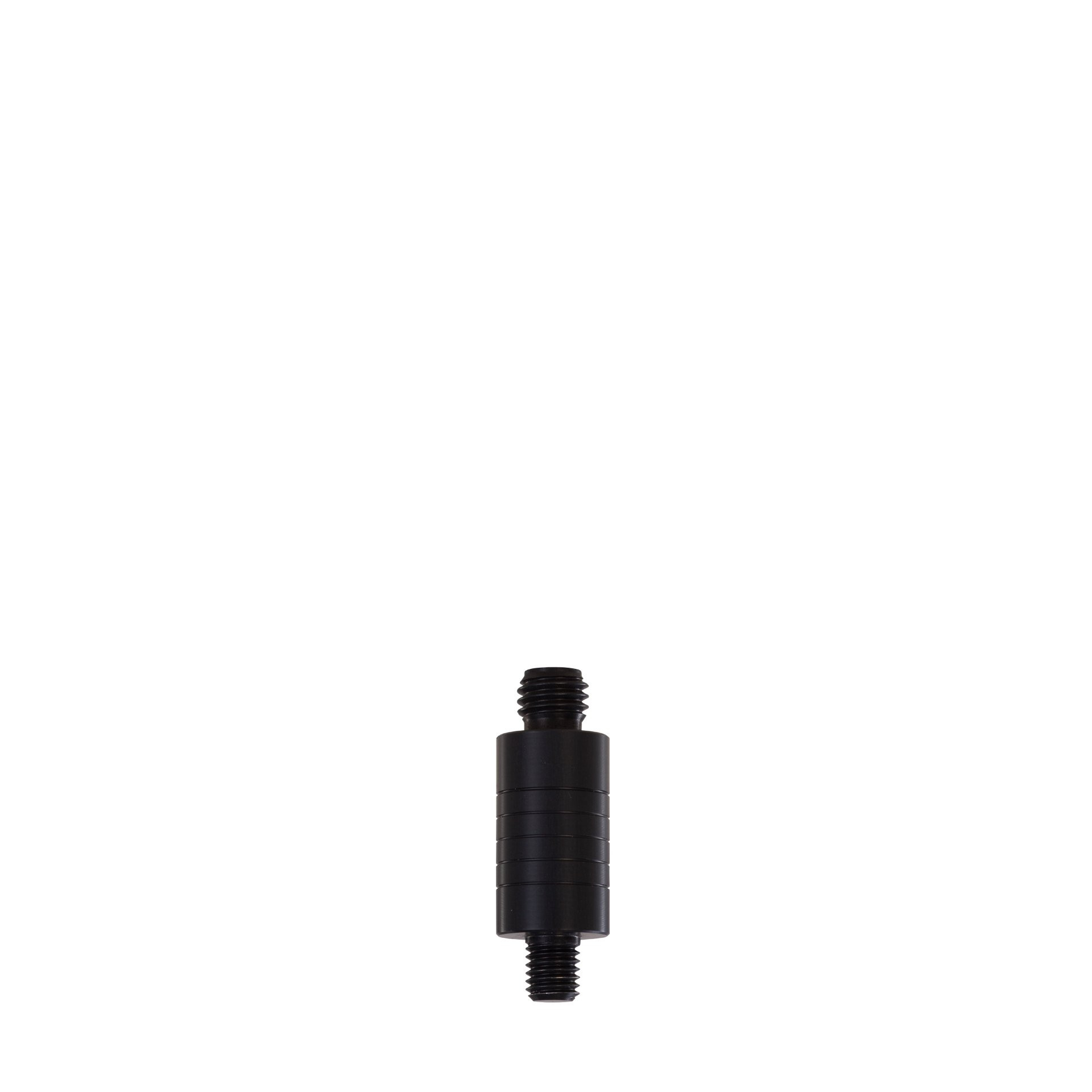

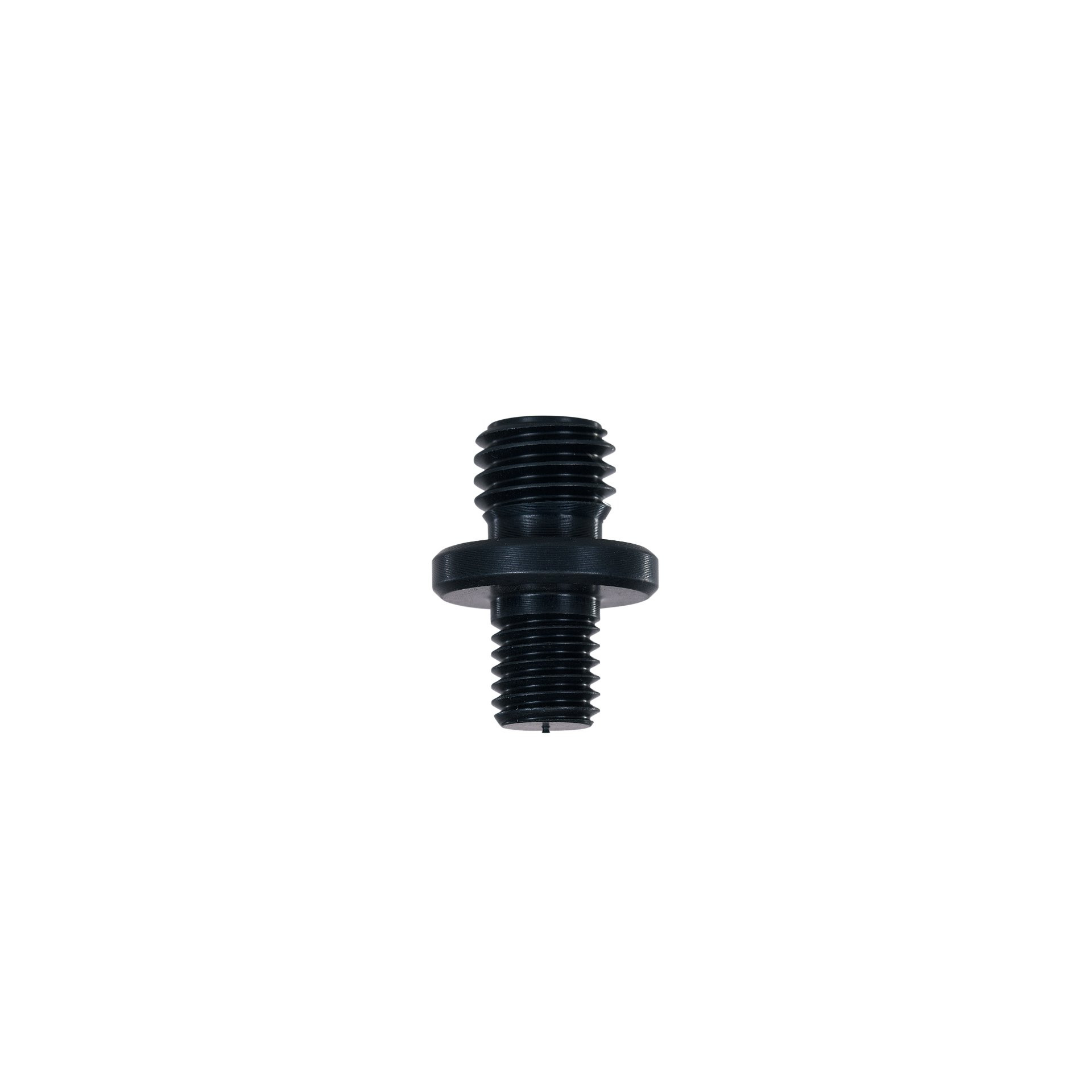

  • Suitable for many common prism types with selectable (included) adapter
  • Durable centre punch with 120 N release force

Description

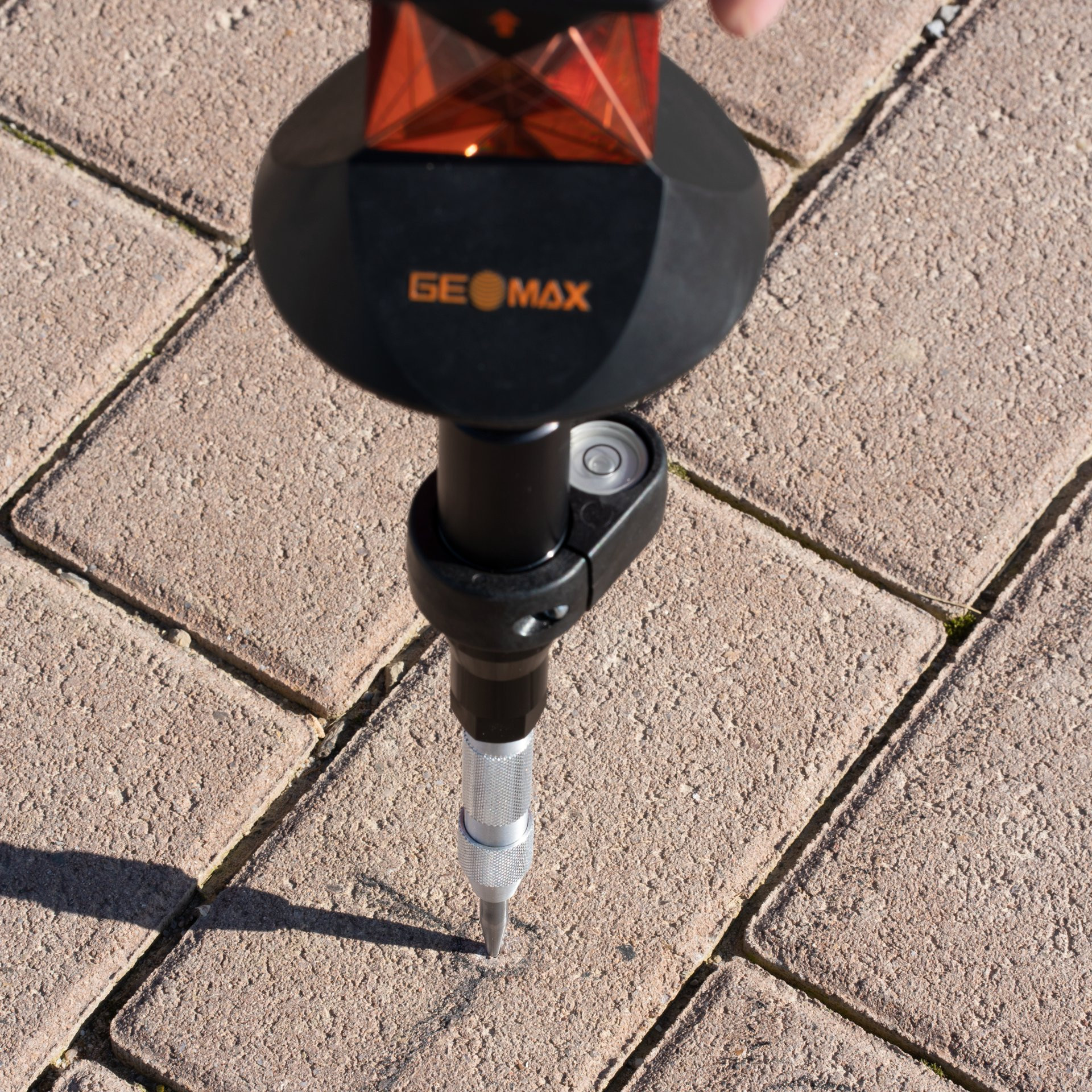

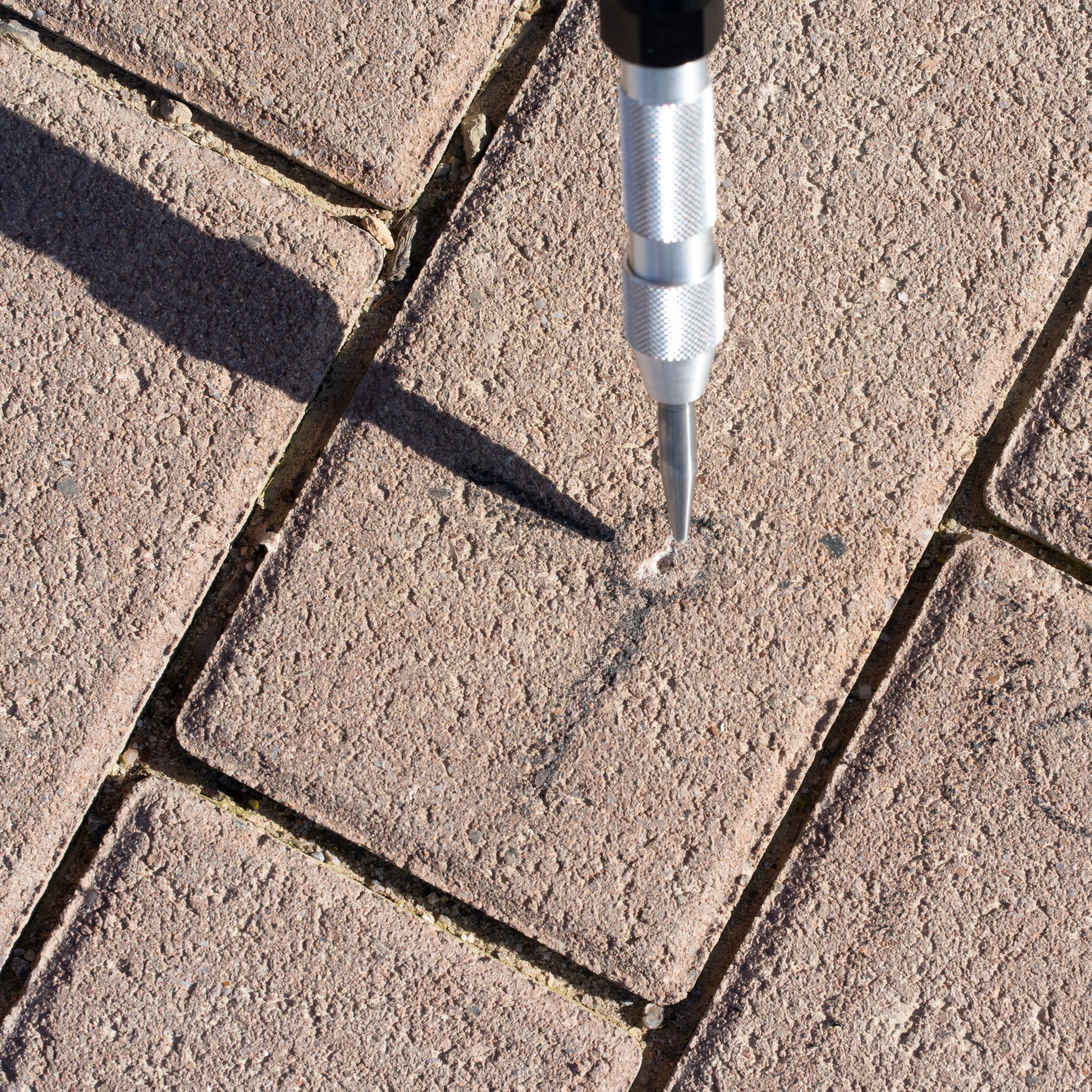

The NESTLE Punchmarker PN-1 is a mini prismatic rod with a centre punch tip. Use the PN-1 for all staking work close to the ground and place an exact centre punch on the surface. The punch is triggered by pressure from above on the rod, the triggering force is 120 -150 Newton, thus you get a clear and easily visible punch point on all surfaces.

Scope of Delivery

Miniprism pole PN-1 including prism adapter (specify prism type when ordering)
