NESTLE wall bracket NWM-802, 2-piece

Perfect for interior finishing

Top Features

  • Eyelet for wall mounting Clamp for drywall rails

Variants

Variant

Execution

Technical Data

Weight 750 g
Instrument connection 1/4"
Mass 200 x 65 x 175 mm
Tripod connection 1/4" + 5/8"
Vertical height adjustment 9 cm setting wheel, 5 cm on magnetic plate
Product Number (PID) 21139000

Description

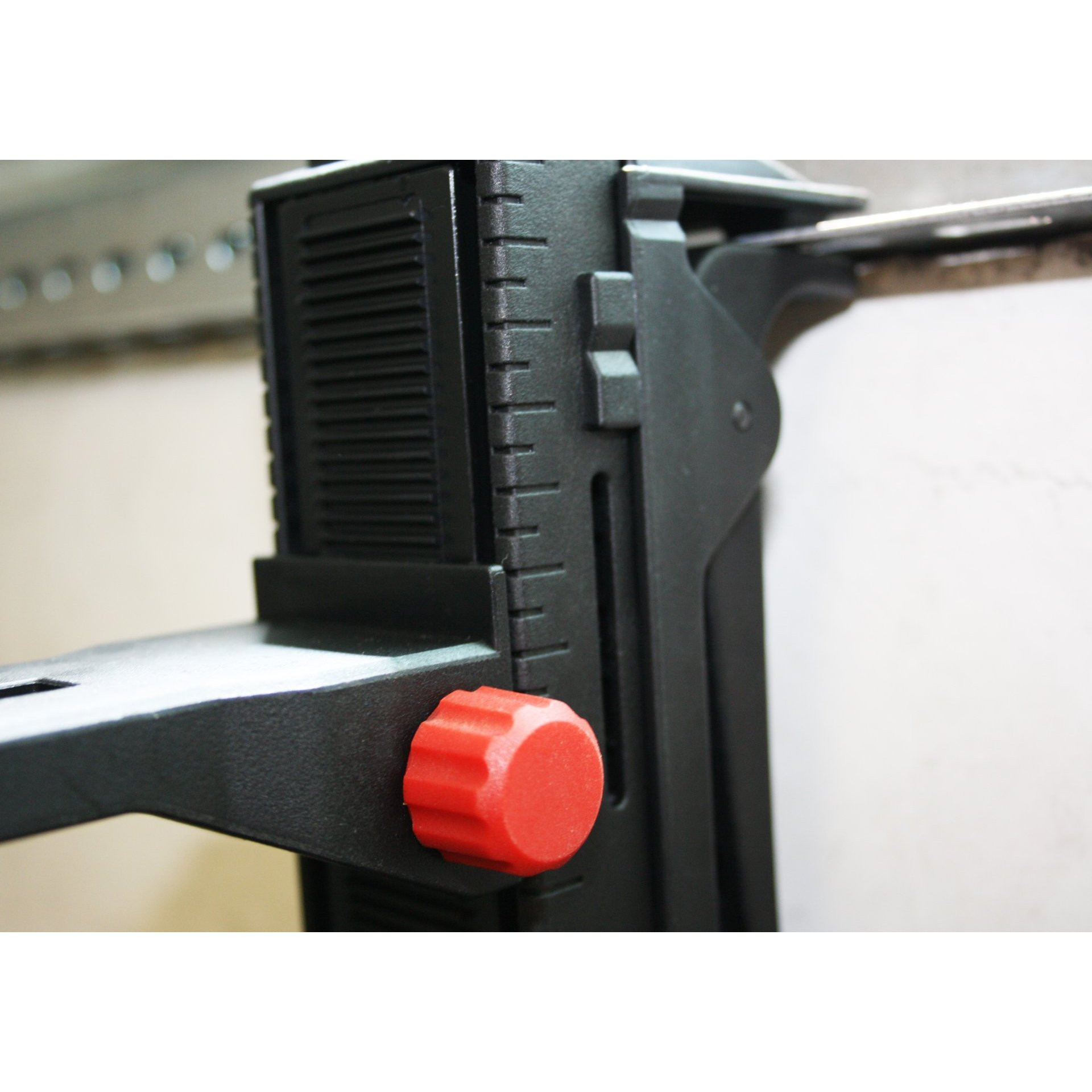

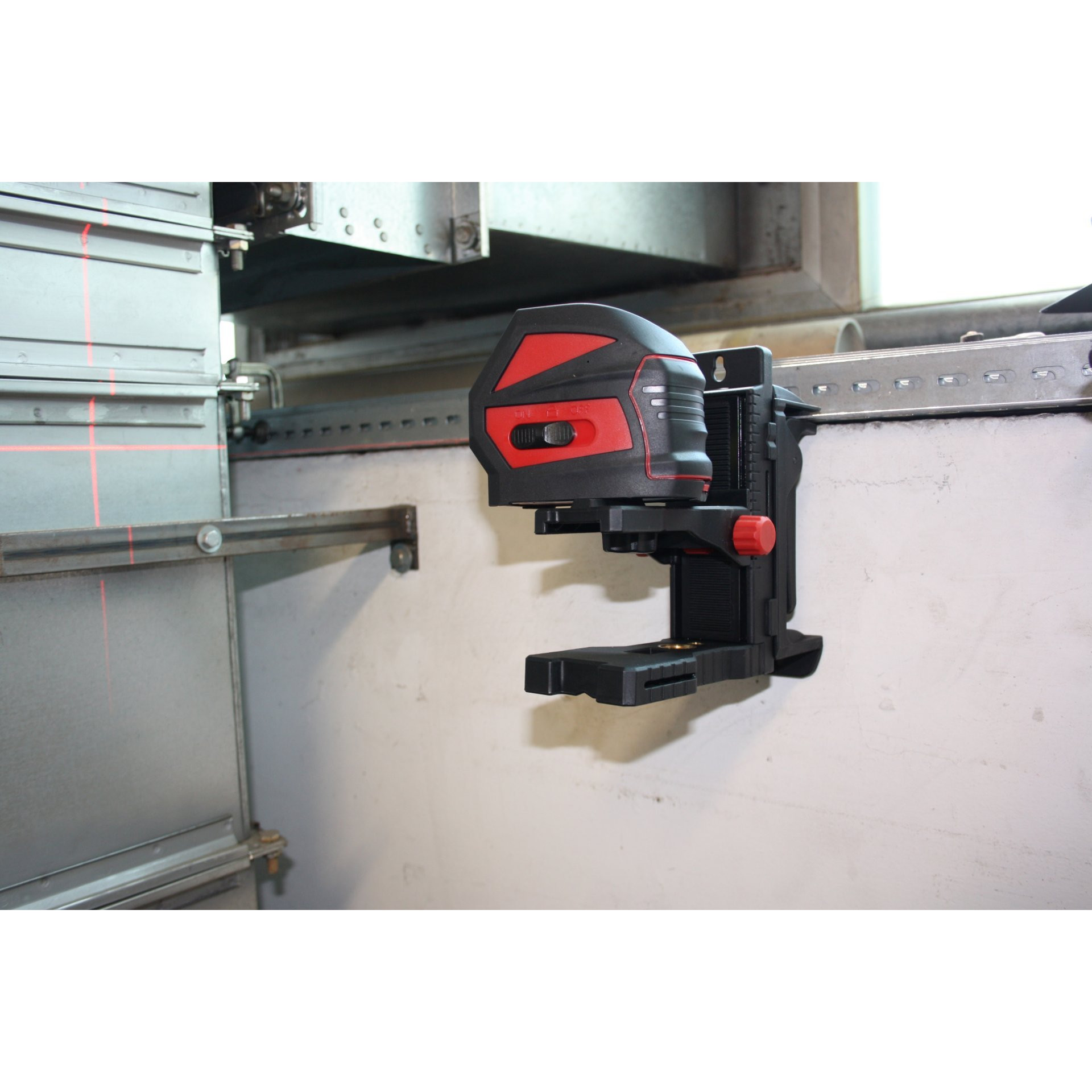

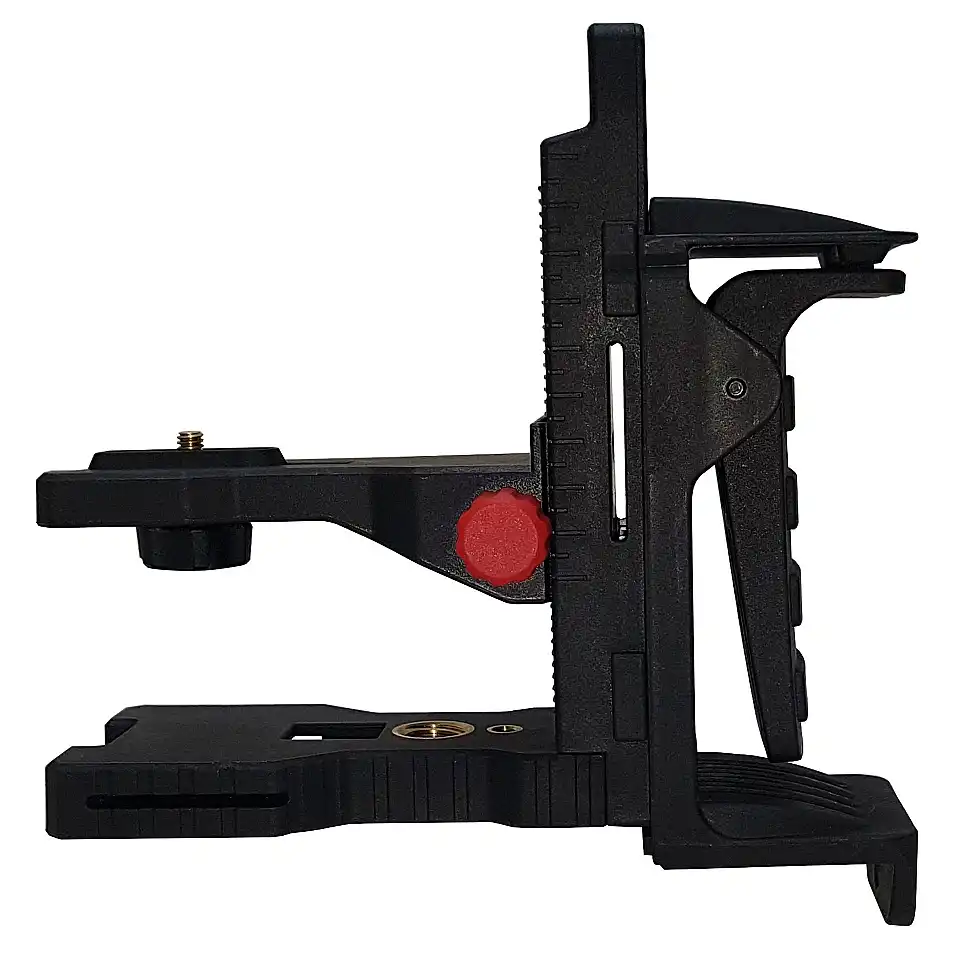

The two-part wall mount is suitable for attaching point or line lasers to walls, angle rails or tripods (5/8", 1/4"). It consists of a vertically adjustable instrument carrier with 1/4" connection and a base carrier with clamp. The vertical is adjustable up to 14 cm. The instrument carrier and the base carrier are magnetically connected.

Scope of Delivery

Wall mount NVM-802

Request
