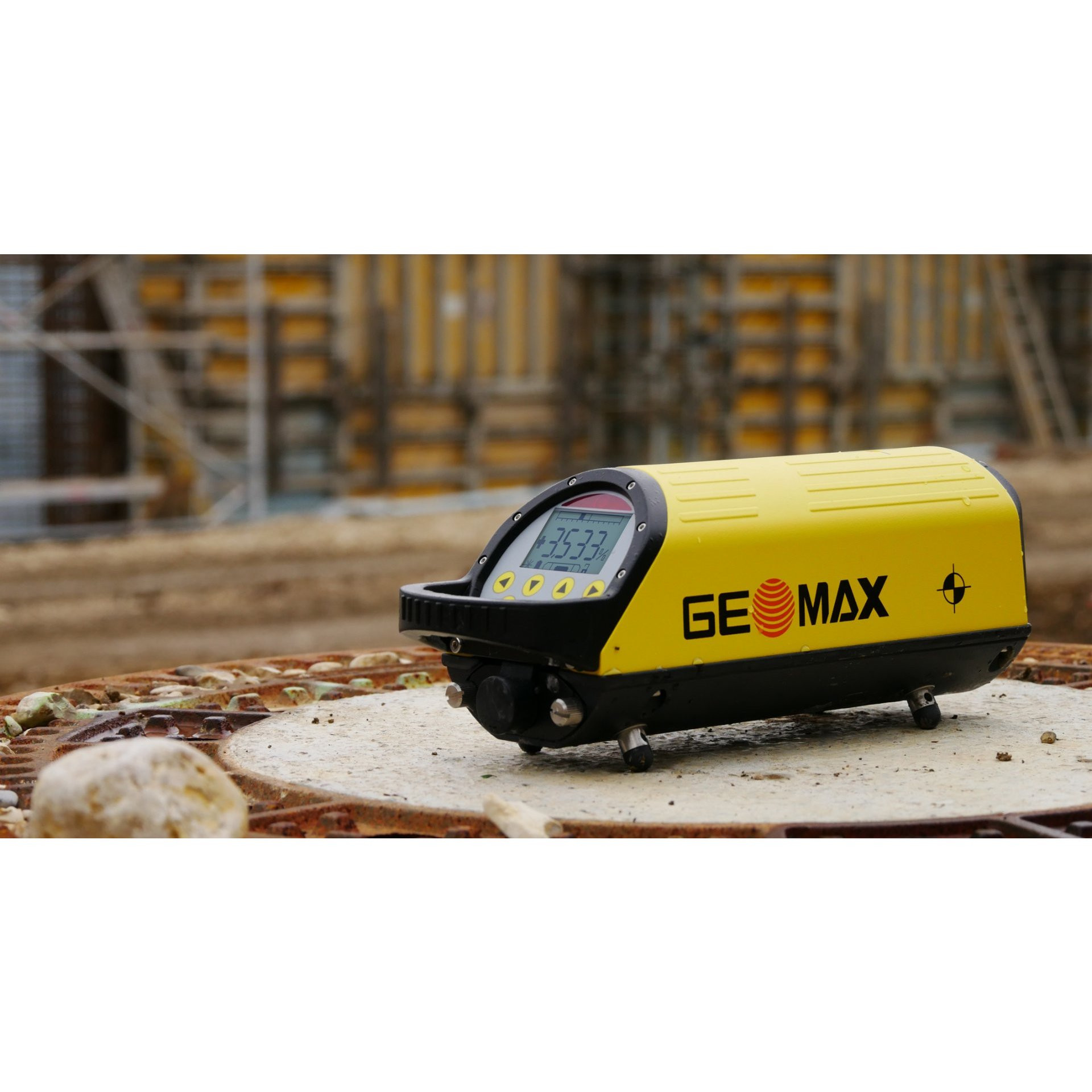

GEOMAX Zeta 125 pipe laser, LC2 SET

Robust ductwork laser with universal target plate

Top Features

  • Extremely robust construction (IP68) for tough use.
  • Highest range.
  • Compact size, can be used from 125 (5) pipe.

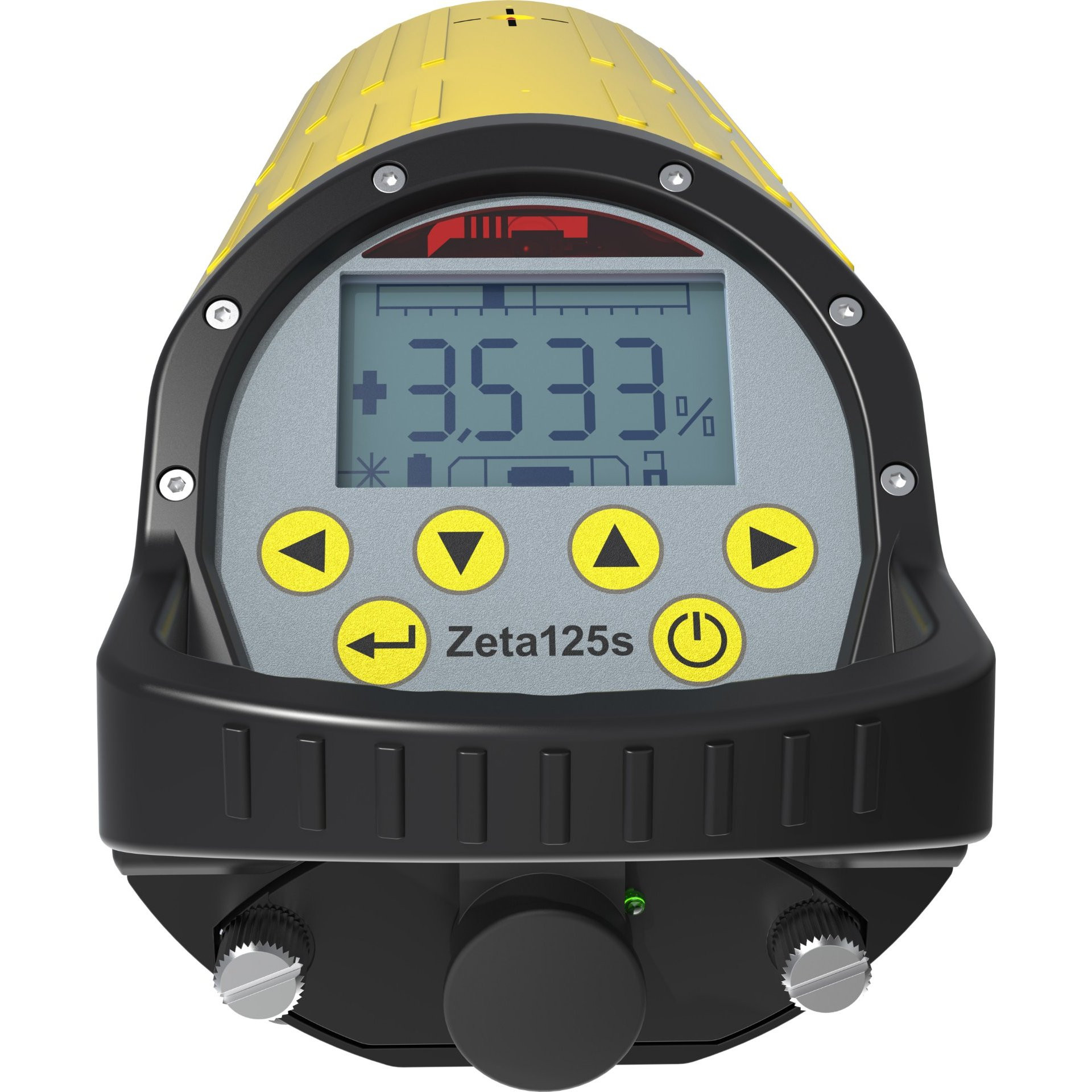

  • Easy-to-read, illuminated display.

Variants

Execution

Equipment

Technical Data

Operating time 41 Hours
Weight 2070 g
Laser diode visible 635 (red), Class 2 (Zeta 125) nm
Dimensions 306 x 105 x 113 mm
Inclination range + 40 % to - 10 %
Reach < 200 m
Self-levelling range +45 % to -15 %
Power supply Lithium-ion (Li-ion pack) rechargeable
Temperature range -20 °C to +50 °C
Tolerance ± 5 mm per 100 m
Product Number (PID) 28014000

Highlights at a Glance

  • The screwable feet adapt the instrument to different diameters, ensuring that users can work on site in almost any situation.
  • Wide range of use: inclination from -10 % to +40 %, range < 200 m.
  • With the alignment function (Zeta 125S only), you align the laser to the direction of escape, even outside the trench, by remote control.
  • GeoMax Zeta 125S with additional vertical rotation plane and cross-axis levelling

Description

Civil engineering work is one of the most demanding tasks in the construction industry. Here in particular, constant precision and accuracy are an absolute must. GEOMAX Zeta class pipe lasers offer you virtually error-free work thanks to an accuracy of ± 5 mm at 100 metres. The Zeta 125 LK2 pipe laser offers you maximum productivity thanks to fast self-levelling and an inclination range of +40 % to -10 %. Thanks to its slim and robust die-cast aluminium housing, it is also suitable for pipes with a diameter of 125 mm. The high IP68 protection class makes it completely dust and waterproof and, in conjunction with the remote control, also ideal for one-man operation.

Set consisting of Zeta 125 LK2 with universal levelling board + G948797 base depot.

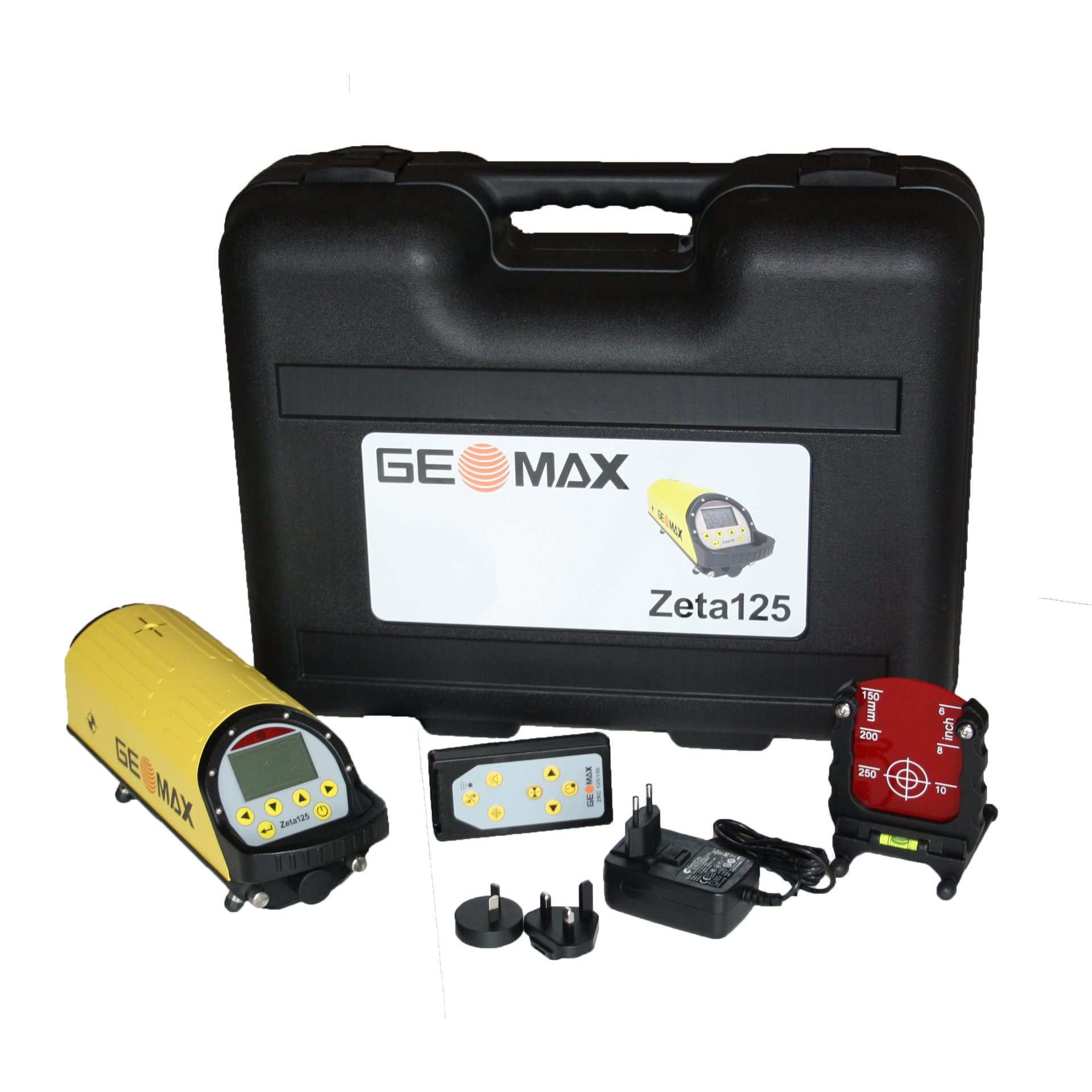

Scope of Delivery

GEOMAX Zeta 125 LK2 ductwork laser
Leg depot set G948797
Universal target board
Power supply unit LDG125 with 3 x Schuko adapter
Battery
Remote control
Transport case
Manual
