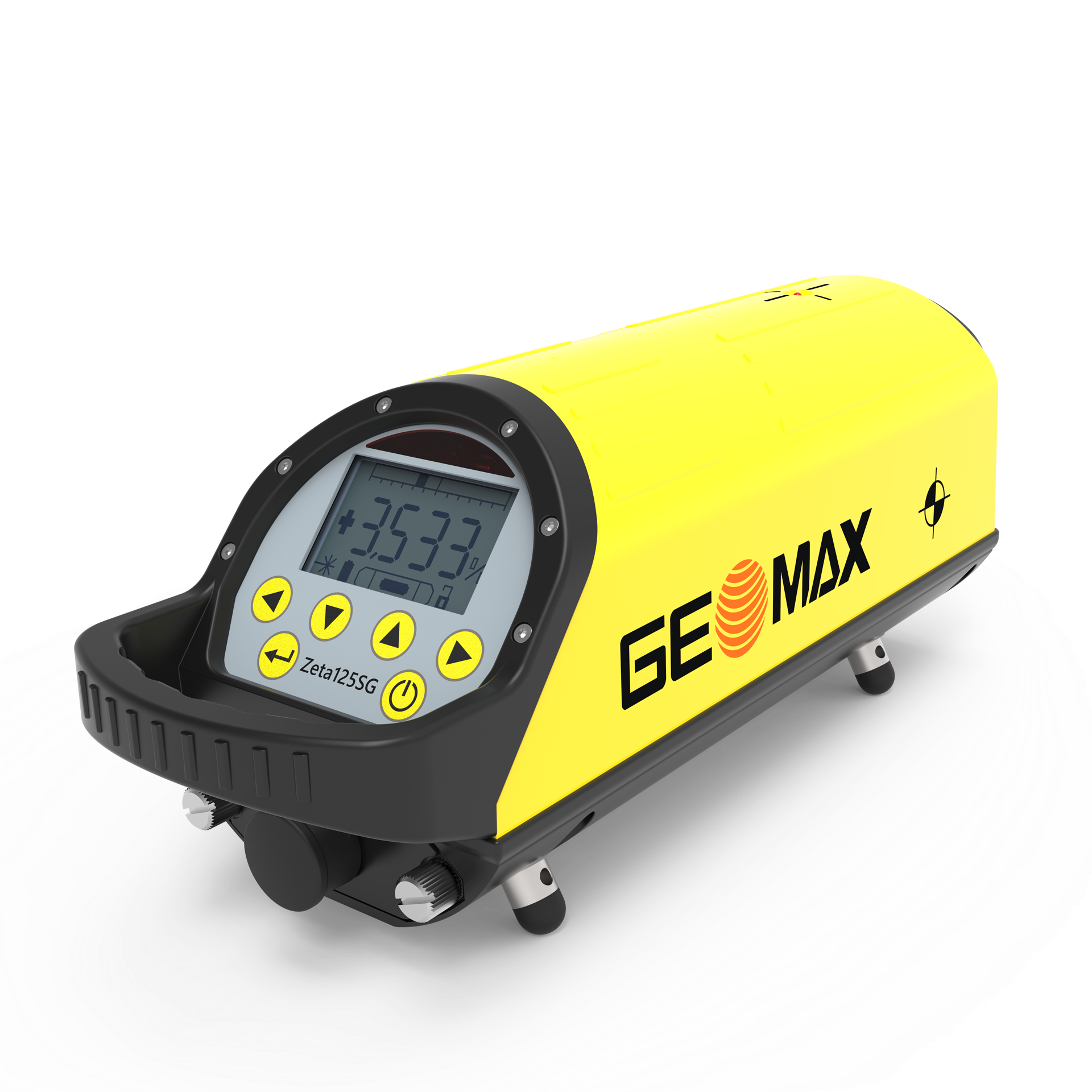

GEOMAX Zeta 125SG pipe laser, green, LC3 SET

Robust ductwork laser with vertical rotation plane and green laser beam

Top Features

  • Extremely robust construction (IP68) for tough use.
  • Highest range.
  • Compact size, can be used from 125 (5) pipe.
  • Easy-to-read, illuminated display.
  • Green laser beam

Variants

Execution

Equipment

Technical Data

Operating time 40 Hours
Weight 2070 g
Laser diode visible 520 nm (green), class 3R
Dimensions 306 x 105 x 113 mm
Inclination range + 40 % to - 10 %
Reach < 200 m
Self-levelling range +45 % to -15 %
Power supply Lithium-ion (Li-ion pack) rechargeable
Temperature range -20 °C to +50 °C
Tolerance ± 5 mm per 100 m
Product Number (PID) 28017000

Highlights at a Glance

  • The screwable feet adapt the instrument to different diameters, ensuring that users can work on site in almost any situation.
  • Wide range of use: inclination from -10 % to +40 %, range < 200 m.
  • With the alignment function (Zeta 125SG only), you align the laser to the direction of escape, even outside the trench, by remote control.
  • GeoMax Zeta 125SG with additional vertical rotation plane and cross-axis levelling

Description

Civil engineering work is one of the most demanding tasks in the construction industry. Here in particular, constant precision and accuracy are an absolute must. GEOMAX Zeta class pipe lasers offer you virtually error-free work thanks to an accuracy of ± 5 mm at 100 metres. The Zeta 125SG LK3 sewer construction laser offers you maximum productivity thanks to fast self-levelling and an inclination range of +40 % to -10 %. Thanks to its slim and robust die-cast aluminium housing, it is also suitable for pipes with a diameter of 125 mm. The high IP68 protection class makes it completely dust and waterproof and, in conjunction with the remote control, also ideal for one-man operation. The S series of Geomax Zeta pipe lasers offers a vertical alignment function.

Set consisting of Zeta 125SG LK3 with universal target plate + G948797 base depot.

Scope of Delivery

GEOMAX Zeta125SG LK3 ductwork laser
Leg depot set G948797

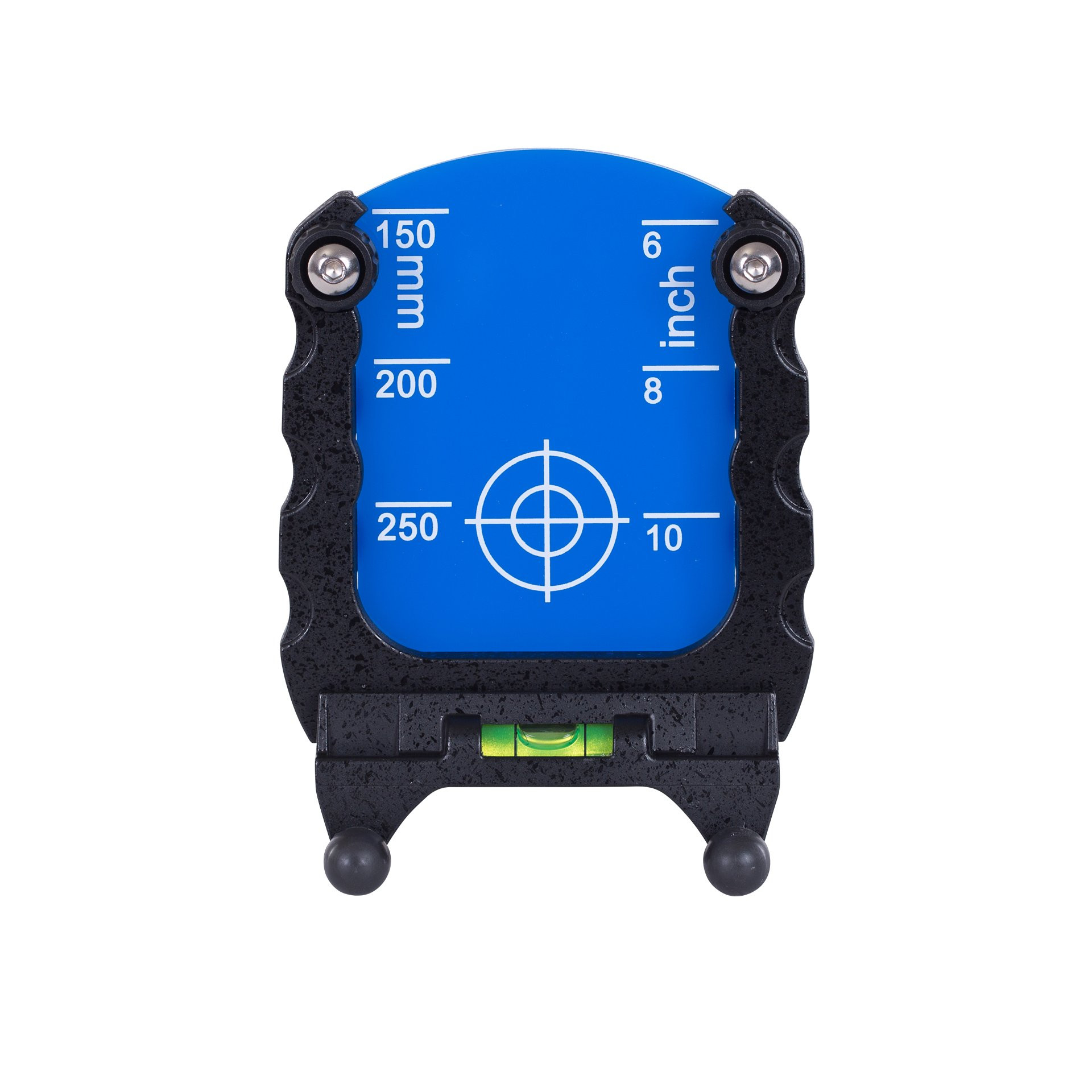

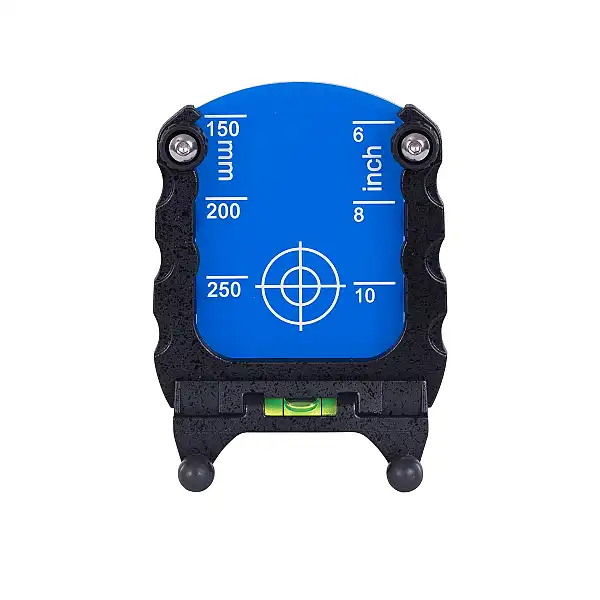

Universal target plate, blue

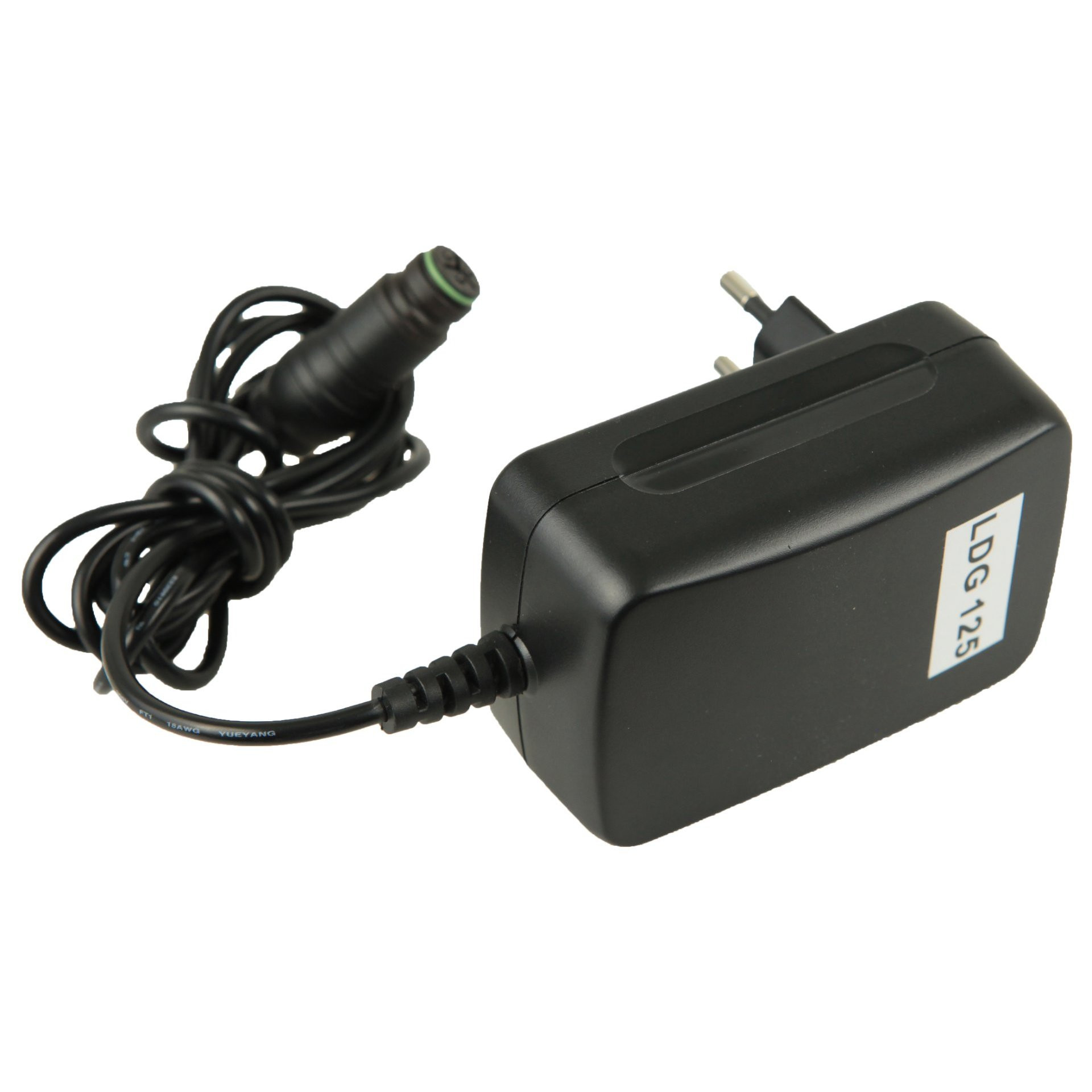

Power supply unit LDG125 with 3 x Schuko adapter
Battery
Remote control
Transport case
Manual
