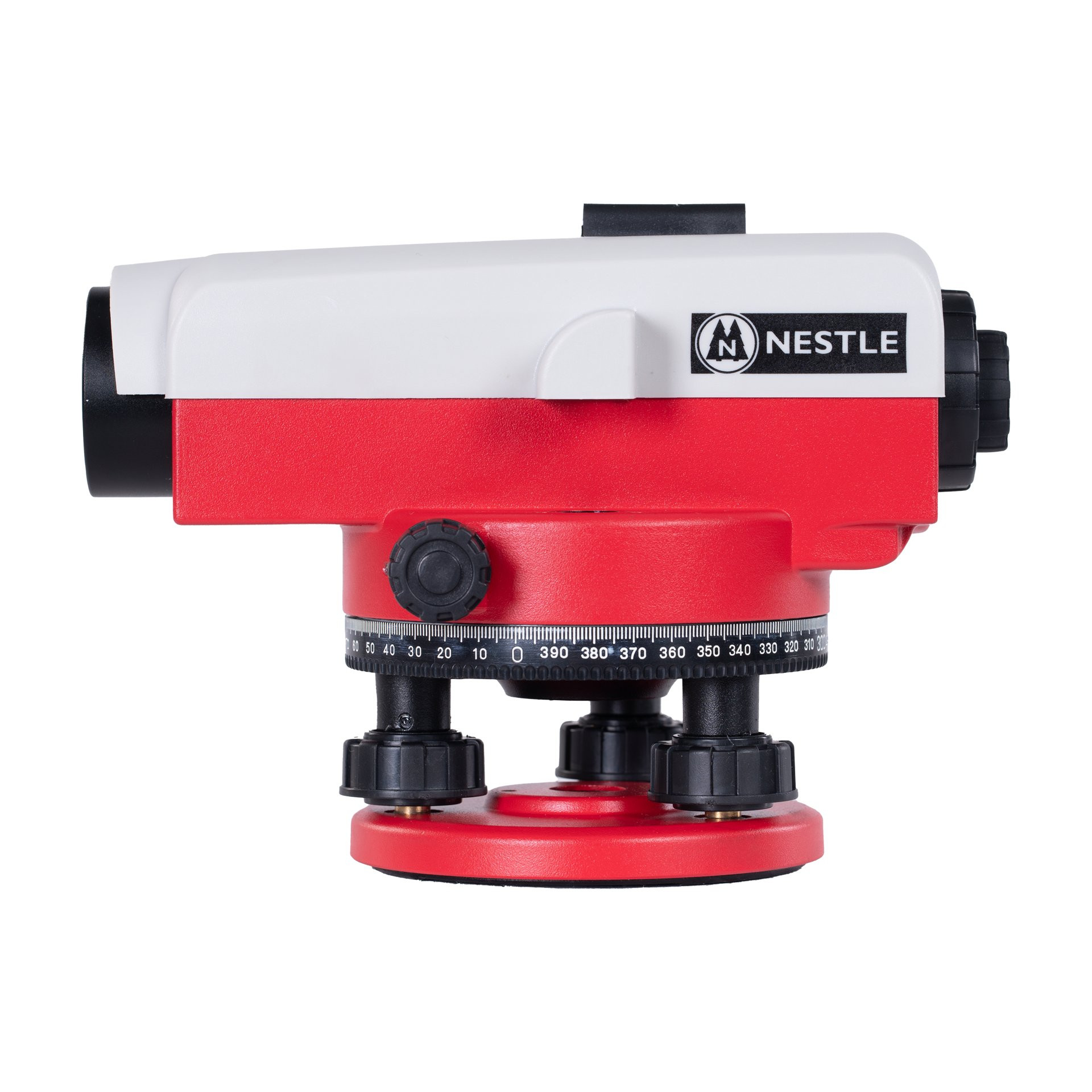

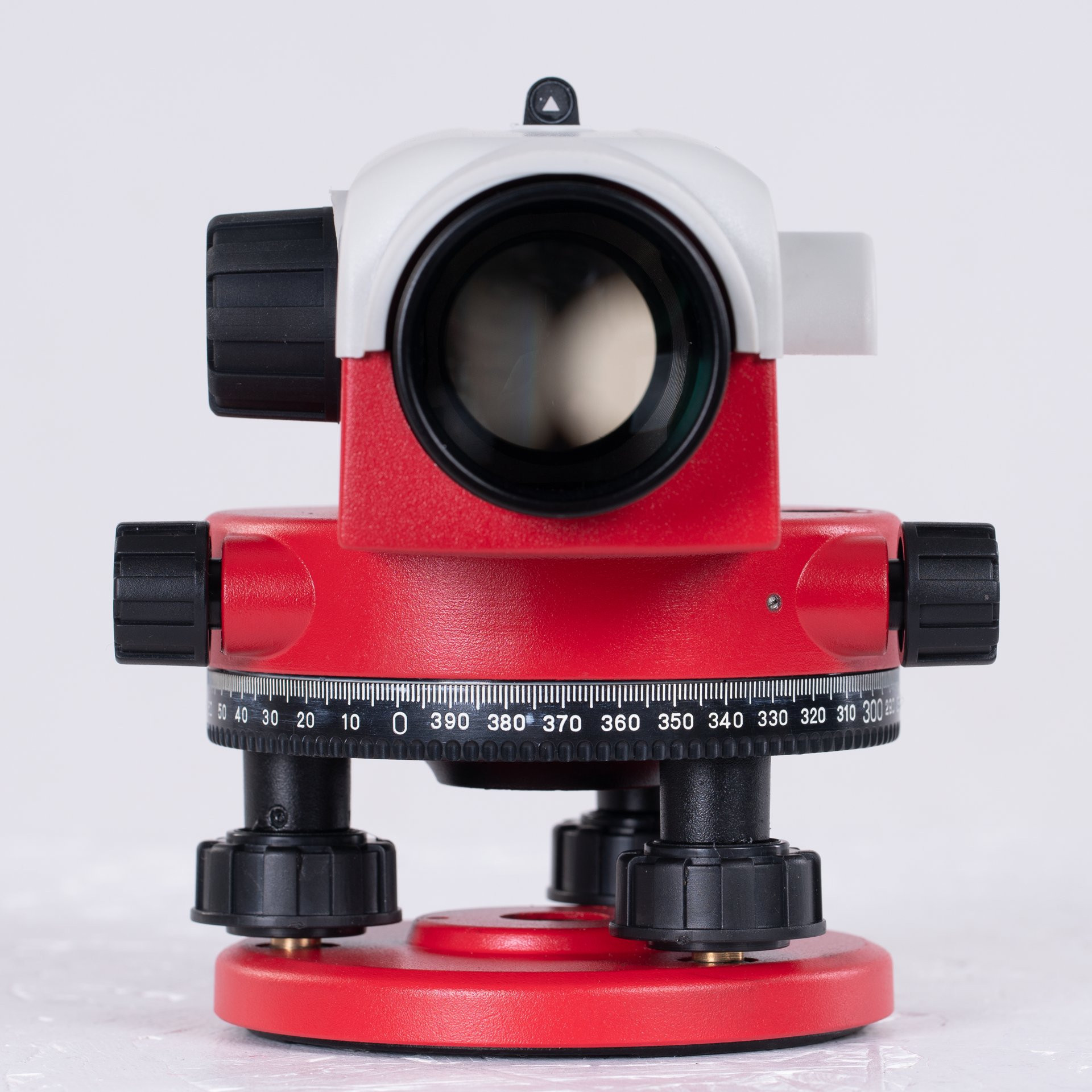

NESTLE NAL 32 Levelling device, 32x magnification, IP54

Very good appearance with above-average workmanship.

Top Features

  • Fine levelling by air-damped compensator.
  • The knobs are easy to reach.
  • Splash-proof (IP54)
  • Robust and precise with an optimal price-performance ratio.
  • Very good appearance with above-average workmanship.

Variants

Execution

Magnification

Technical Data

Accuracy to 1 km double levelling ± 1.0 mm
Weight 1450 g
Compensator air-damped
Shortest target distance 0.5 m

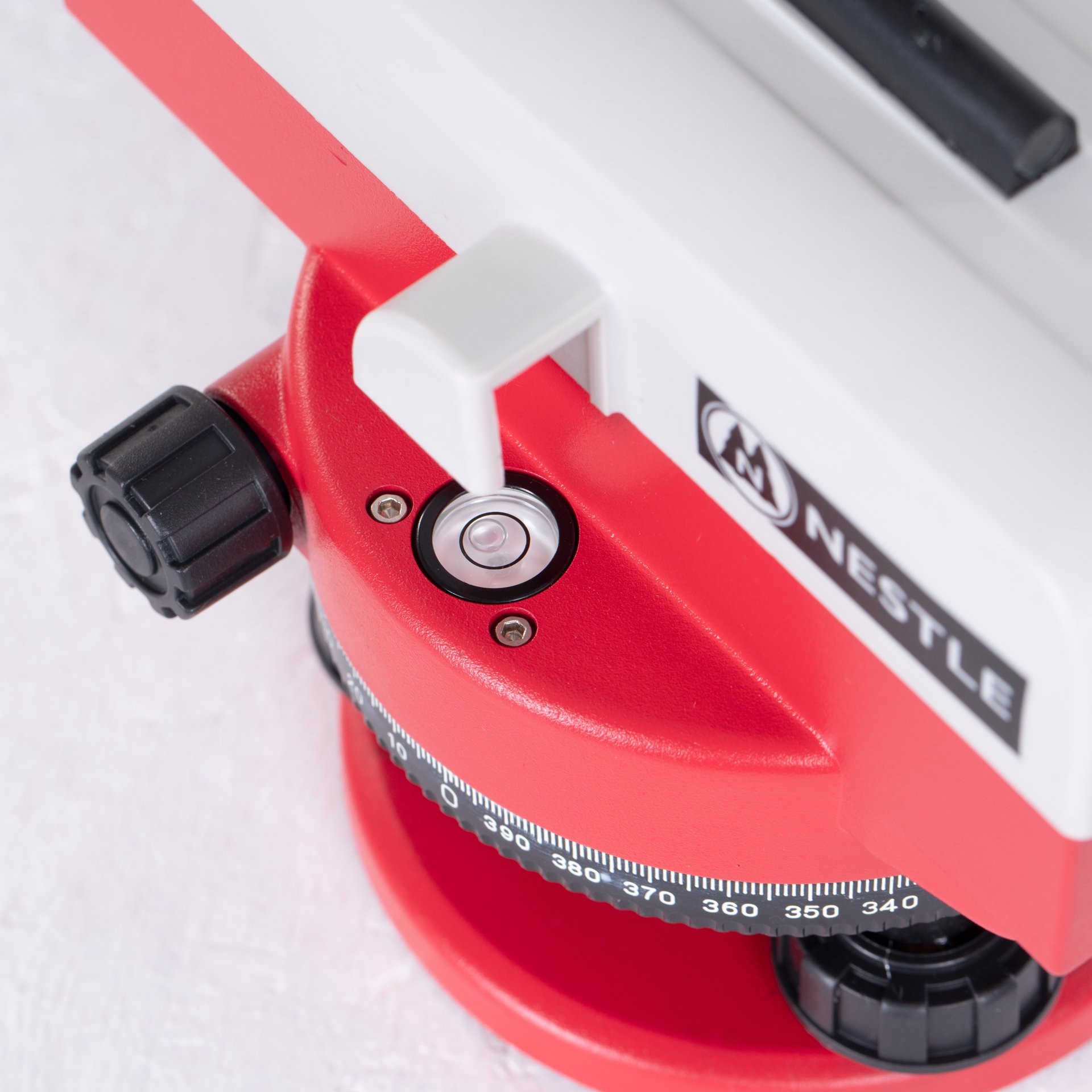

Dragonfly 8' / 2 mm
Dimensions 200 x 135 x 140 mm
Multiplication constant 100
Lens aperture 40 mm
Protection class IP54
Sub-circle 400 gon
Tolerance compensator < 0.3 mm
Enlargement 32-fold
Product Number (PID) 15045001

Highlights at a Glance

  • Horizontal angle measurement.
  • Determination of the height difference between several points.
  • Optical distance measurement by means of two distance lines.
  • Stake out the height of a point.
  • Housing base made of aluminium, cover and rotary knobs made of plastic.
  • Large, ergonomically shaped knob for focusing.

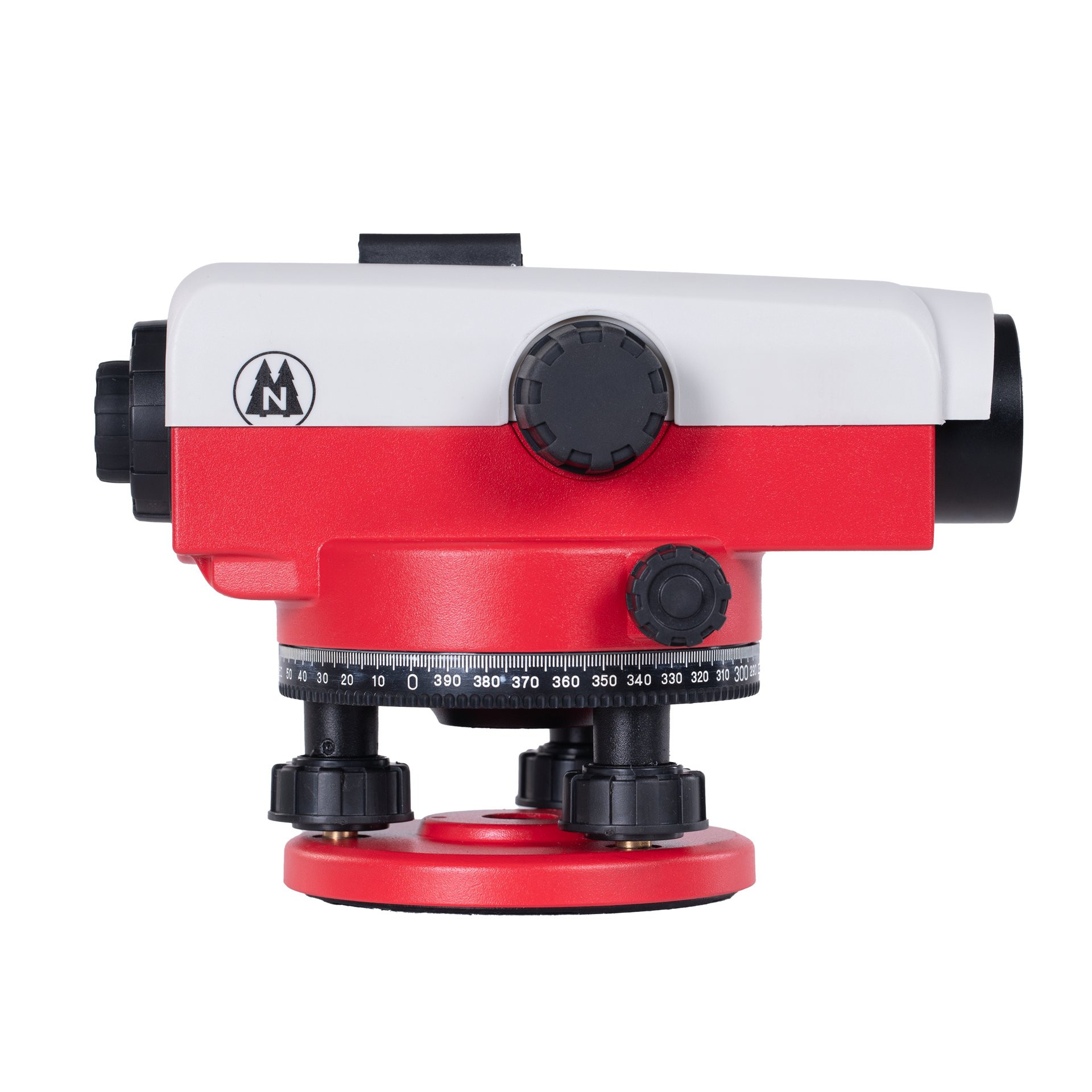

  • Easy-to-reach rotary knobs on both sides for the fine drive.

Description

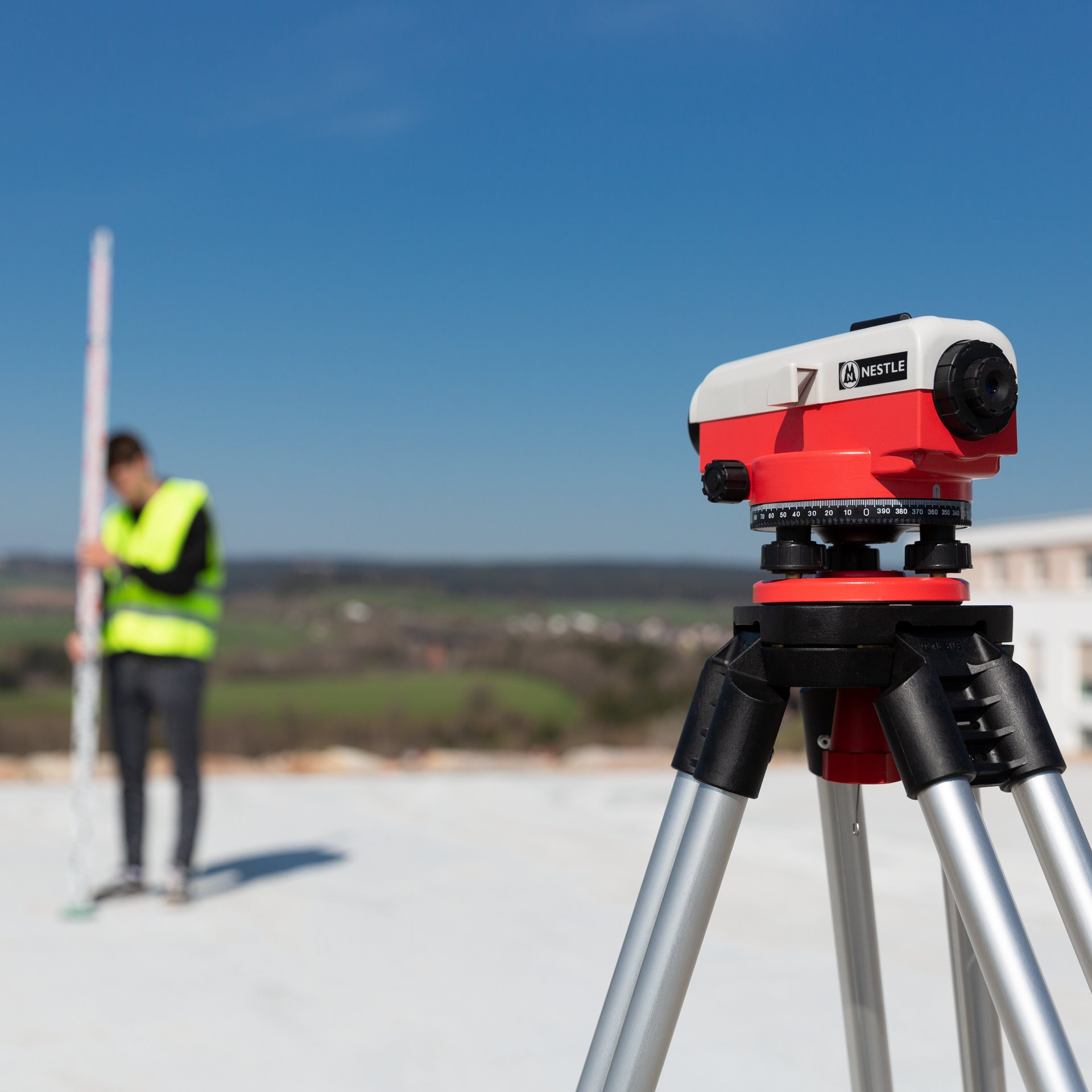

The levels of the NAL series impress with their robust and high-quality construction. The air-damped, precisely working compensator and the excellent optics make the NAL levels a reliable partner for your daily height transfers and levelling work at an optimal price-performance ratio. The type 2 of the NAL series is a version that has been revised in detail and consistently further developed with the proven technical features of the NAL series and thus forms the ideal levelling device for the construction industry.

Scope of Delivery

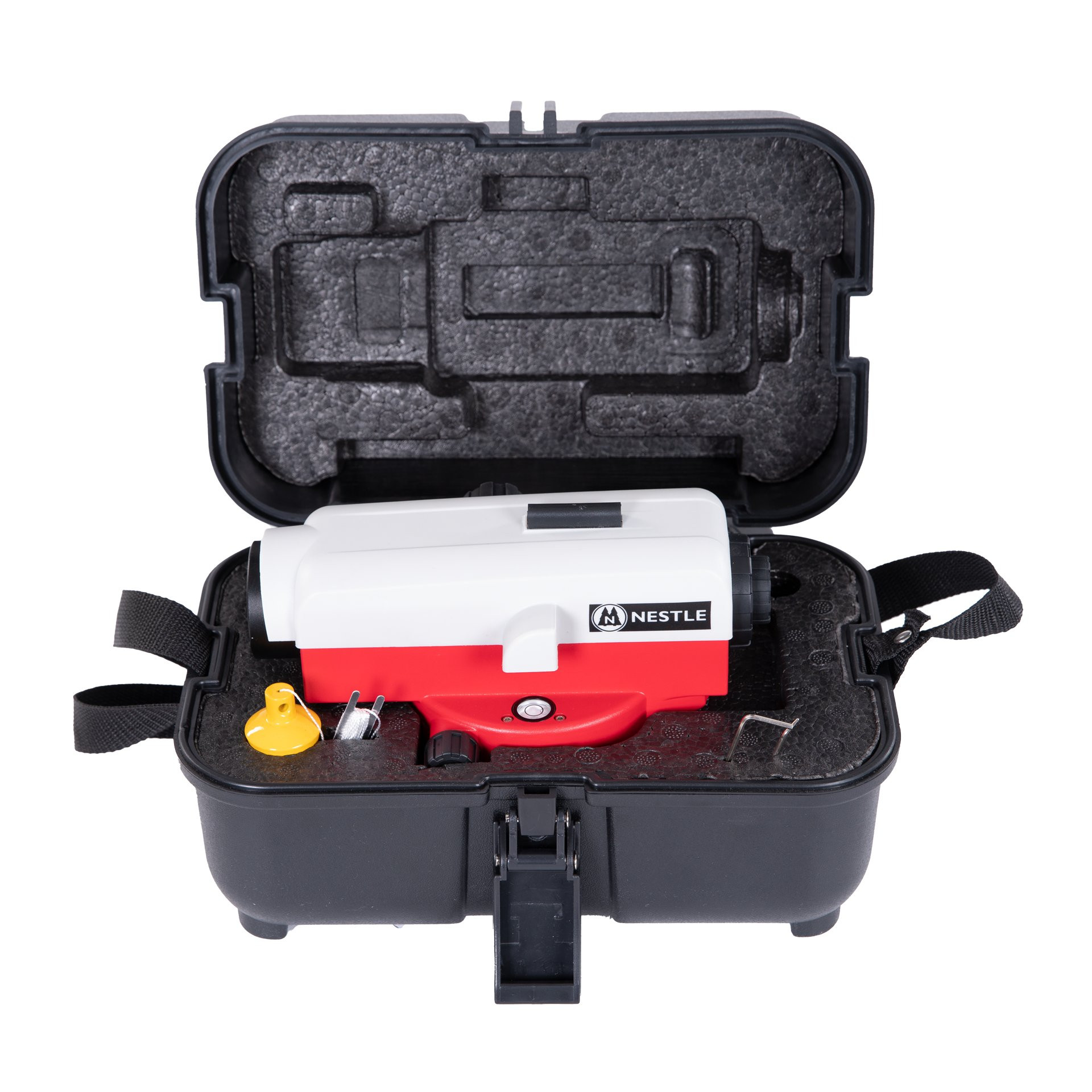

NESTLE NAL 32 levelling device, plumb bob, adjustment tool, operating instructions, case
