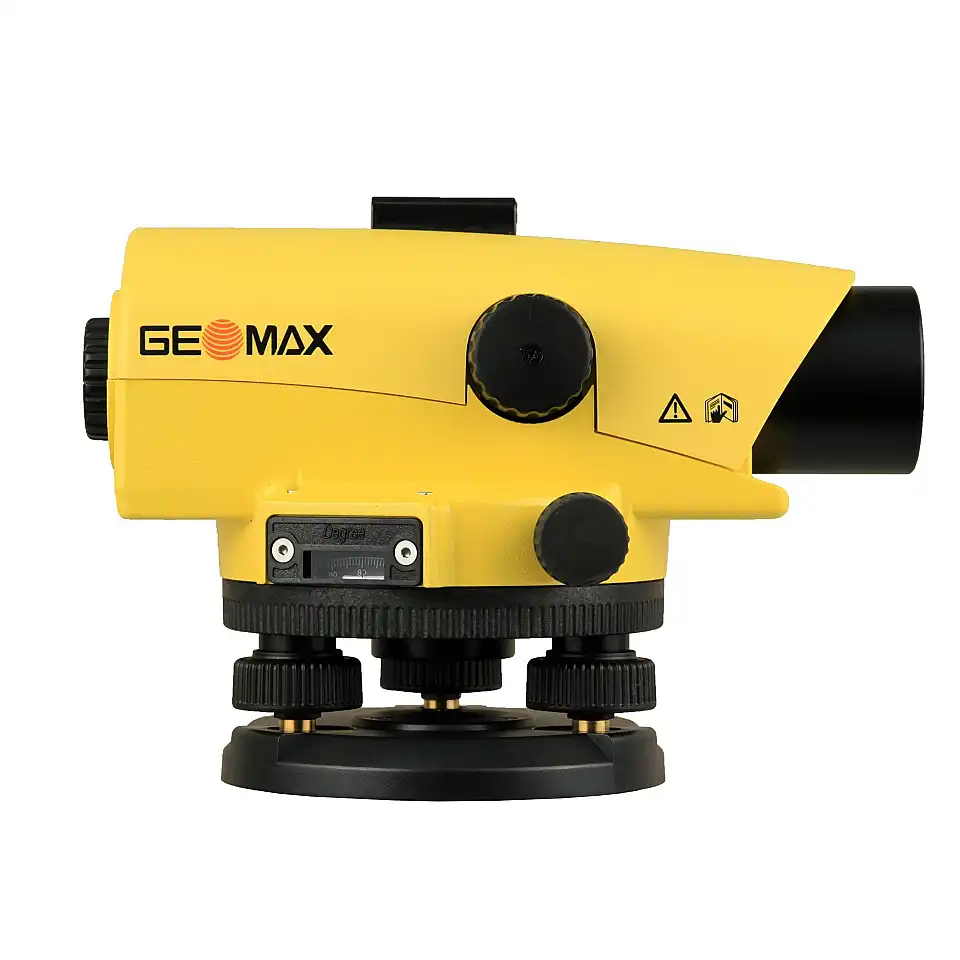

GEOMAX ZAL330 Automatic level 30x magnification, IP57
ZAL300 Series - Patented professional quality for the toughest conditions
Top Features
-
Robust and precise for your day-to-day construction and engineering tasks.
-
Housing according to protection class IP57 with gas-filled telescope.
-
Ergonomic two-sided endless fine drive.
Variants
Serie
Execution
Magnification
Technical Data
| Distance threads | yes |
|---|---|
| Accuracy 1 km Doubleiv. | 1.2 mm |
| Weight | 1500 g |
| Compensator | Automatic, magnet-damped, pat. magneX |
| Shortest target distance | 0.8 m |
| Dragonfly | 8'/ 2 mm |
| Multiplication/addition constant | 100 / 0 |
| Inclination range | ±15° |
| Lens aperture | 40 m |
| Protection class | IP57 |
| Pitch circle / division | 360° and 400 gon / 1°, 1gon |
| Enlargement | 30x |
| Product Number (PID) | 27009000 |
Highlights at a Glance
-
From everyday tasks to high accuracy requirements, the ZAL300 series is your first choice for robustness, comfort and accuracy.
-

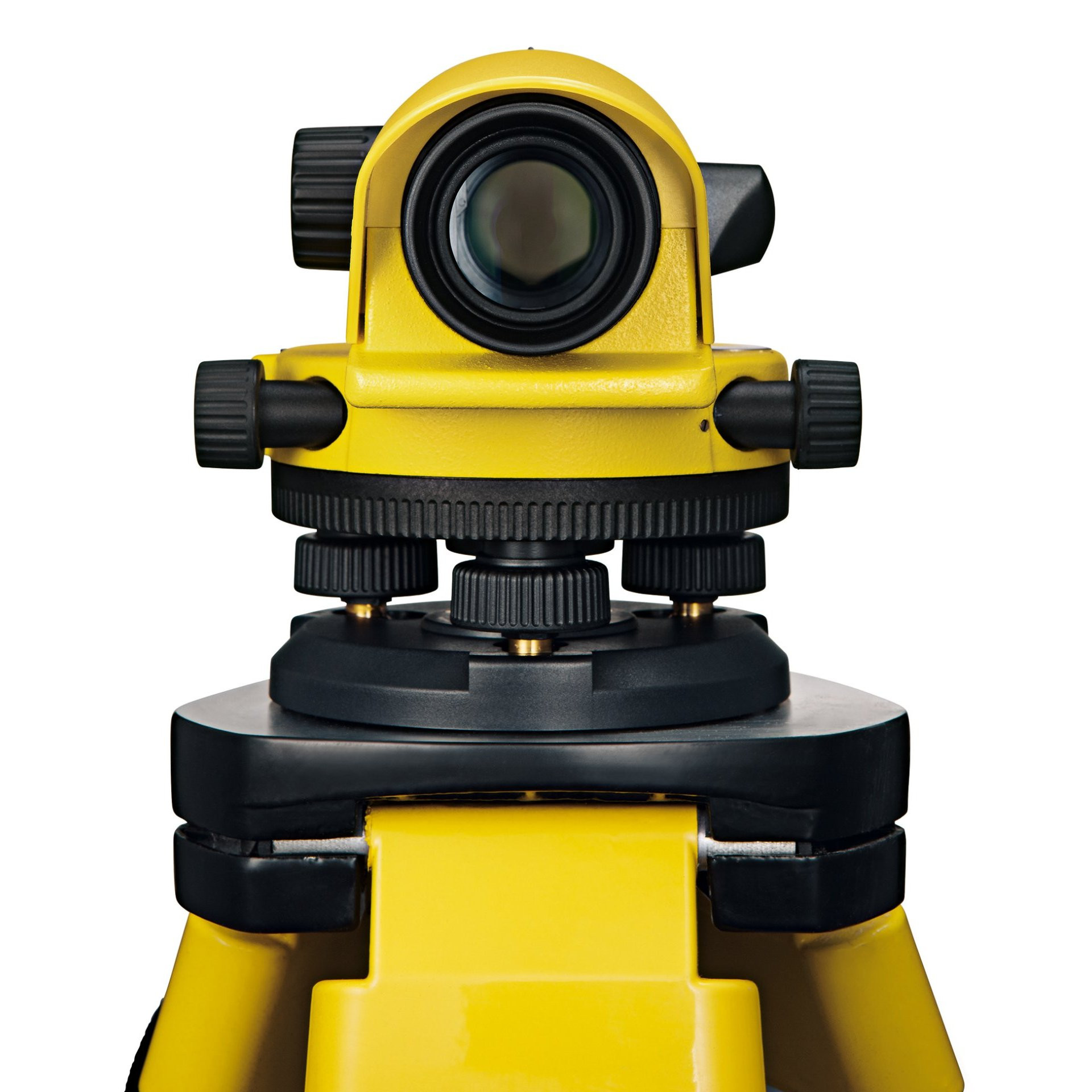

The best-in-class optics in the ZAL300 and the magneX compensator are housed in a sealed and shock-proof casing. This makes the instruments insensitive to vibrations and all weather conditions.
-
The graduated circle has a 360° graduation and a 400 gon graduation for horizontal angle measurements.
-
With distance threads for optical distance measurements and simple terrain surveys
-
ZAL330 with 30x magnification, art. no. 27009000
Description

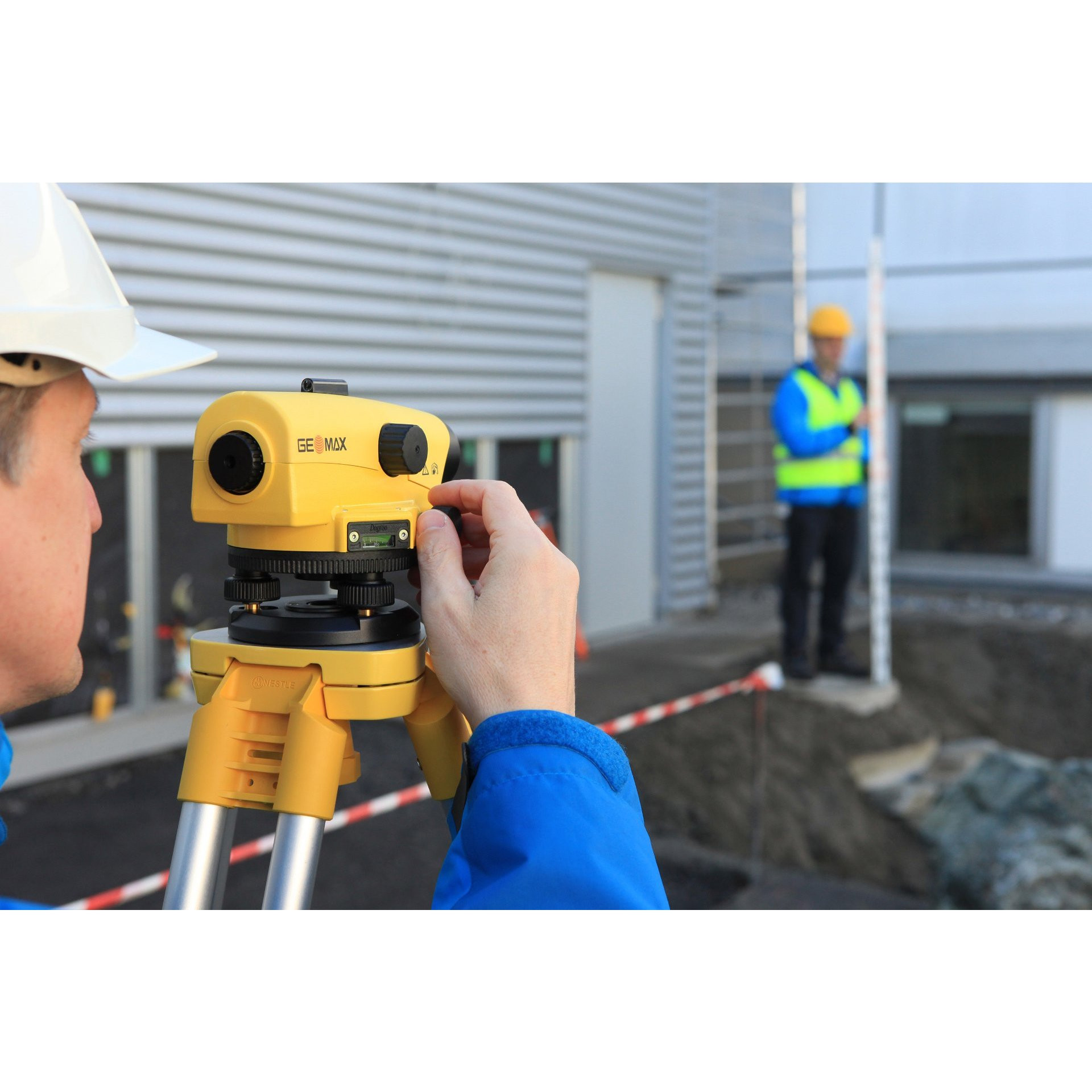

The automatic level is used in civil engineering to create horizontal surfaces, to set height differences or to set up machines and structures. Levels replace spirit levels where their accuracy is no longer sufficient or their use would be too costly. GeoMax's flagship level is the first choice when robustness, comfort and accuracy are important. The ZAL300 series features a patented compensator system and magnetic damping designed to withstand the toughest construction conditions.

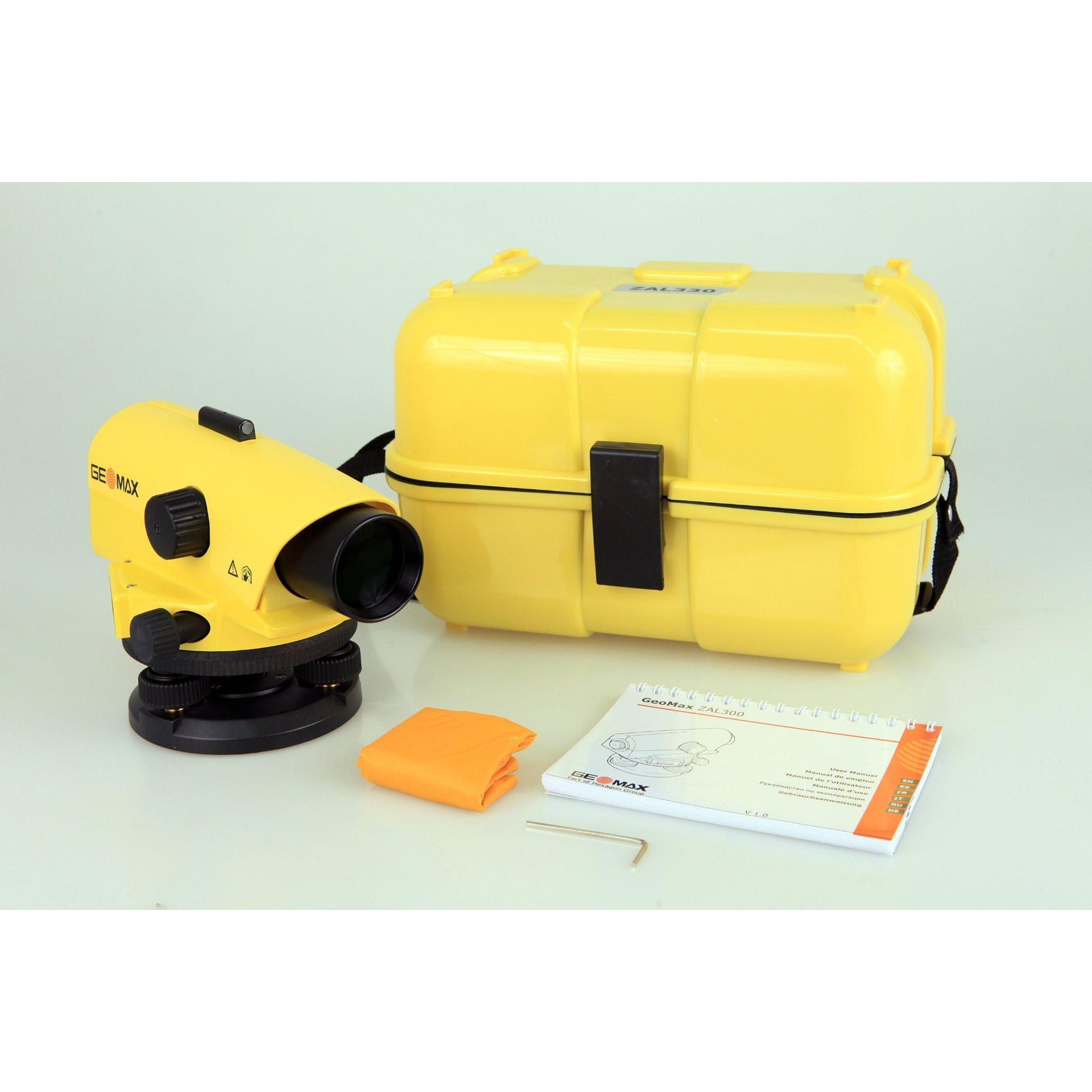

Scope of Delivery
Levelling device ZAL330
Transport case
Adjustment tool
Manual
