| Working range | 12.5 to 153 cm |
|---|---|
| Weight | 2180 g |
| Clamping | Union nut with collet clamp |
| Dragonfly | Circular bubble |
| Load capacity | 24 kg |
| Transport dimension | 58 cm |
| Product Number (PID) | 13802001 |

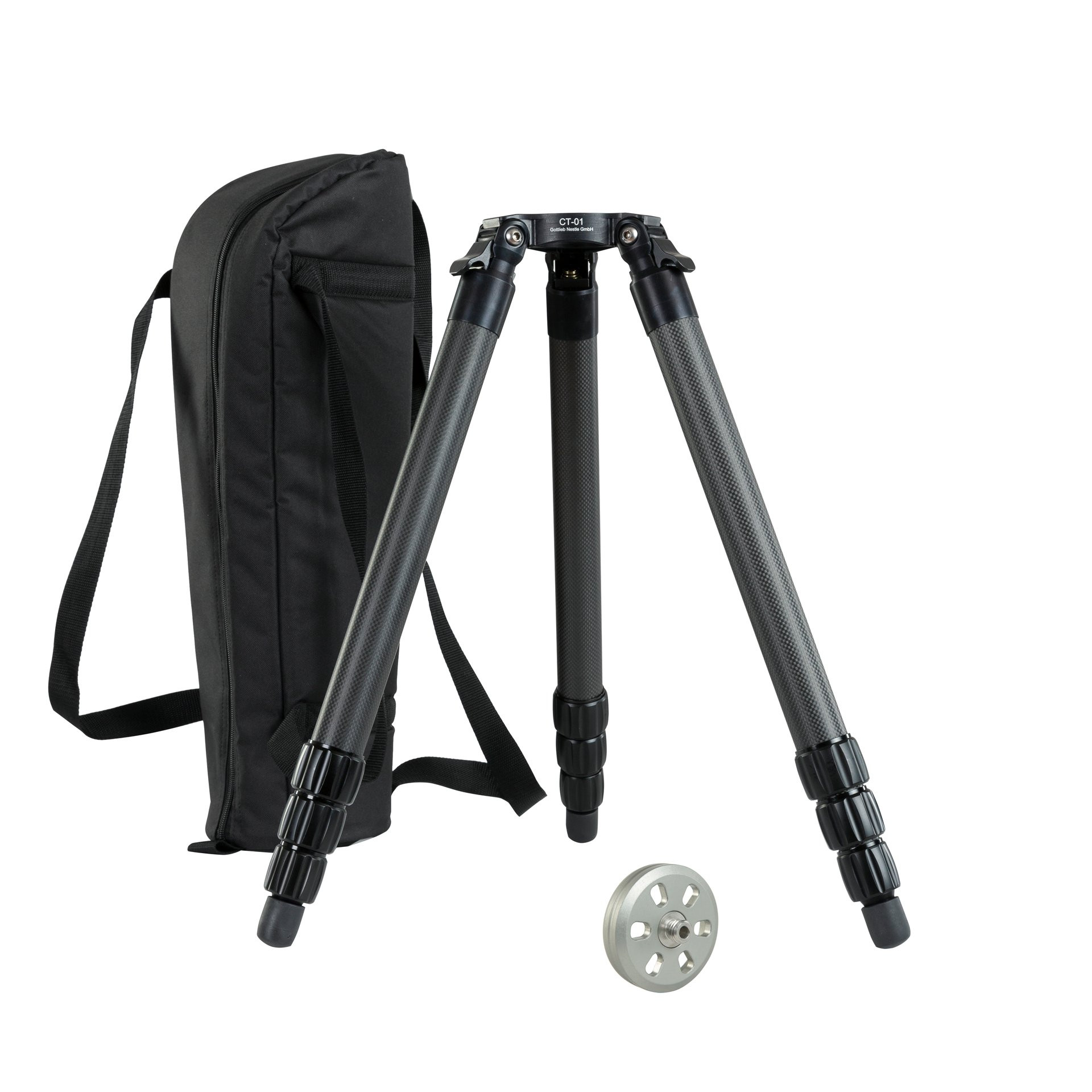

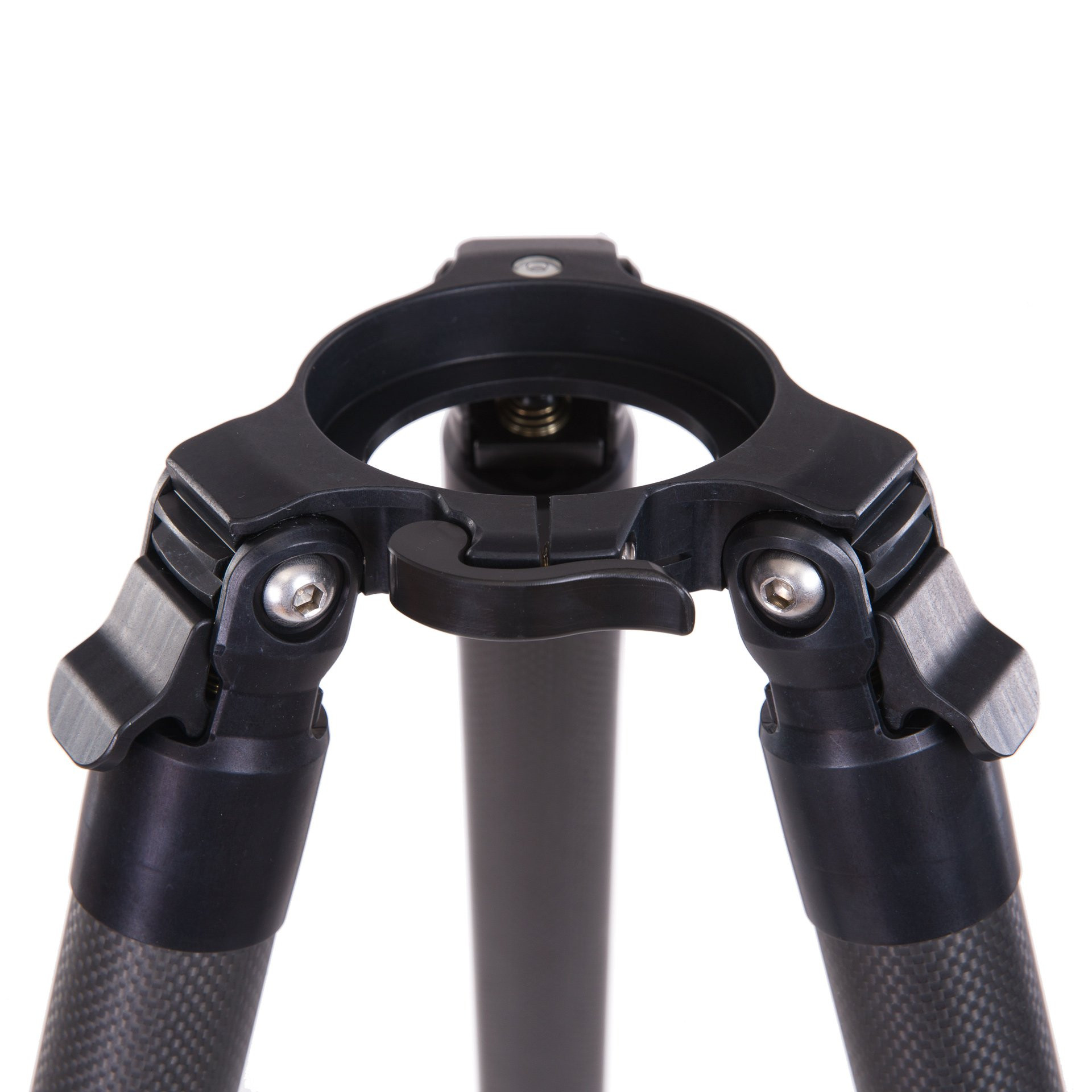

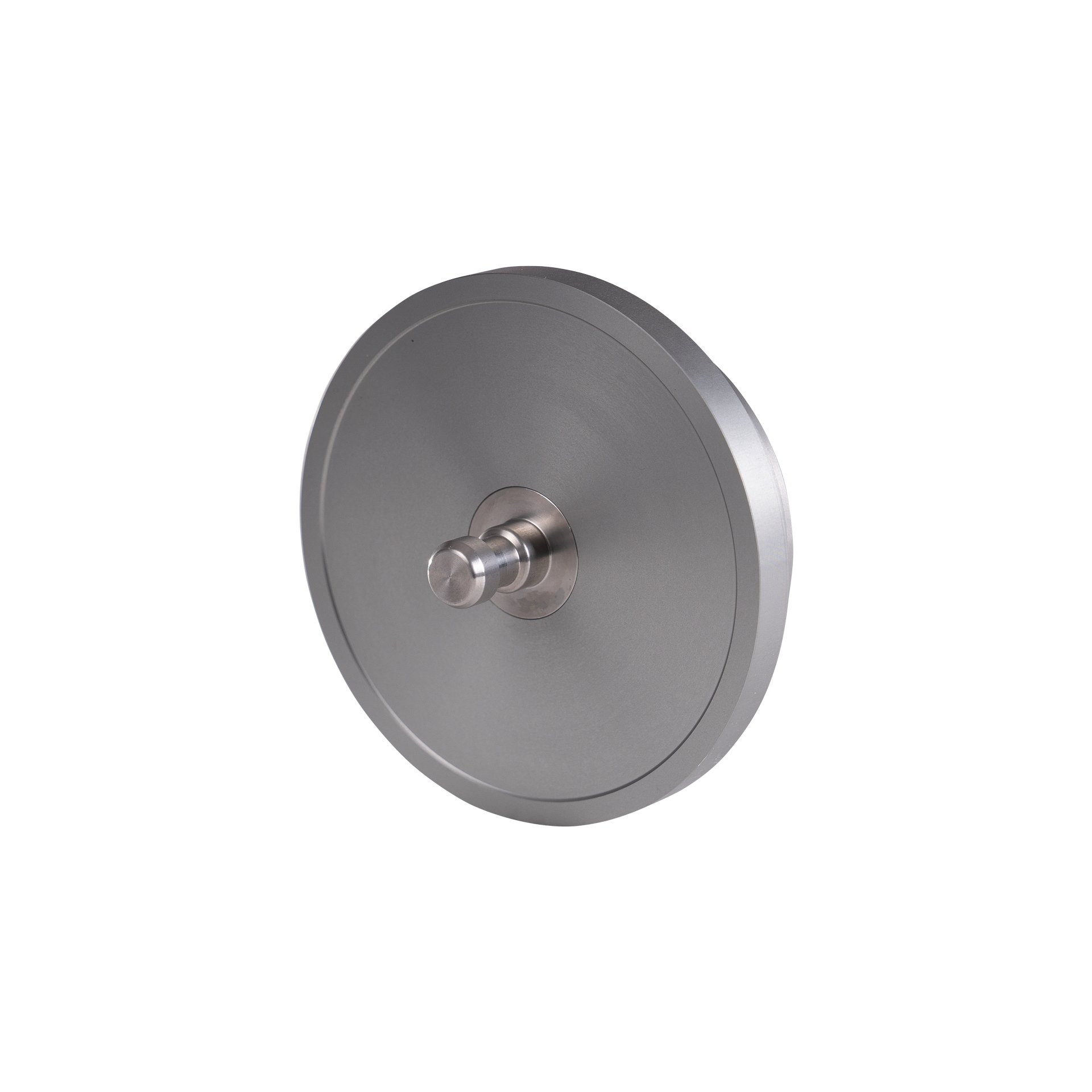

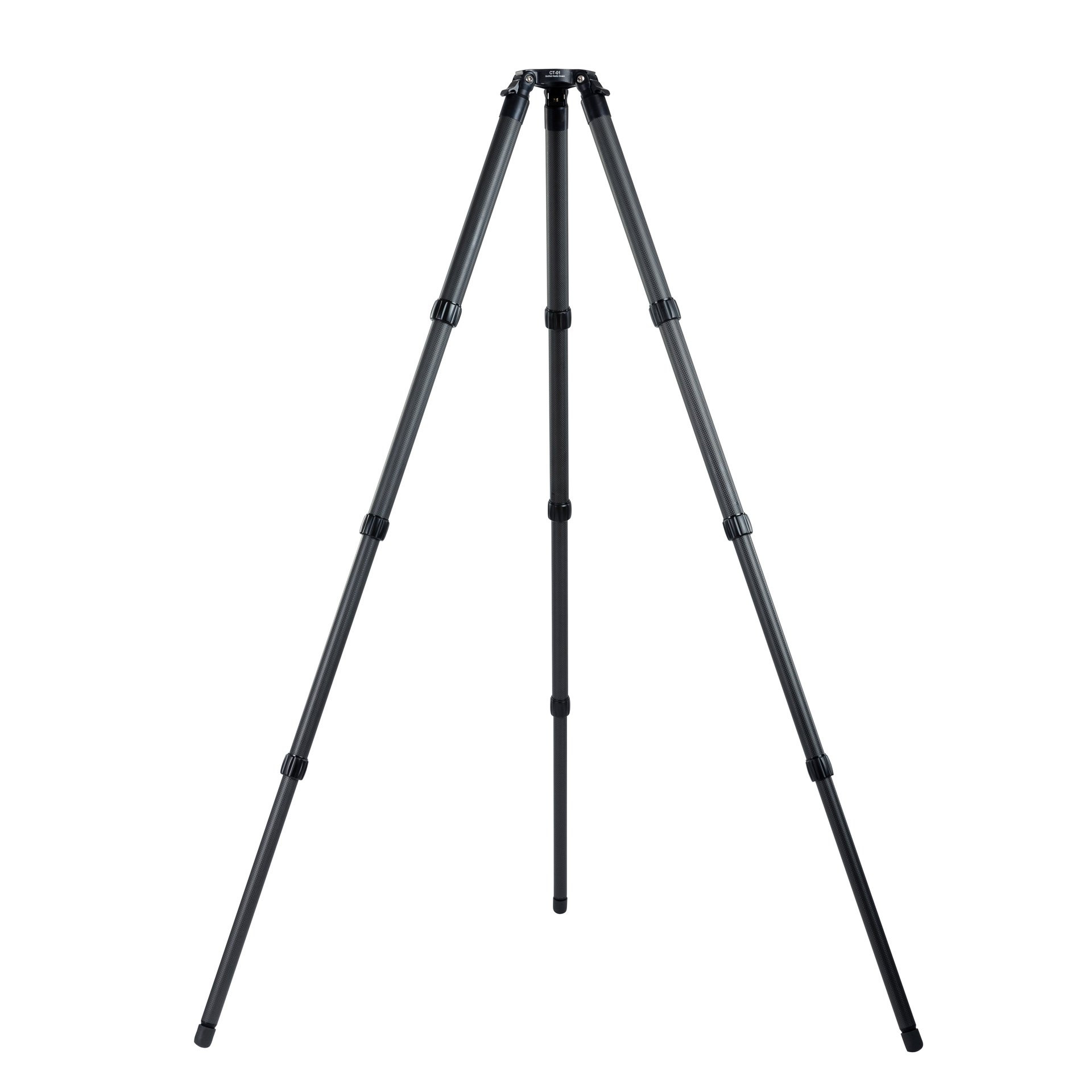

The NESTLE carbon tripod CT-01 is particularly suitable for working with terrestrial 3D laser scanners. Due to the 4-fold extendable tripod legs, the tripod can be quickly and flexibly adjusted to the desired height. The tripod legs are locked quickly and with high precision by means of collet chuck clamps. The adjustable spreading stop prevents unintentional slipping of the legs on slippery floors. The legs are made of high-quality, silk matt carbon fibre. The side-mounted head plate lock is used for collision-free attachment of the head plate, which can be changed without tools. Including adapter for instruments with 5/8" connection and bag. Further instrument adapters (1/4", 3/8", Pin16mm for Leica or PIN X7 for Timble) are optionally available. The low weight of carbon (only 2.2 kg) reduces transport costs, e.g. on air travel, and a change of viewpoint can be carried out easily.
