Machine control mast MCM-116
Vibration-damped receiver mast for machine control
Top Features
-
Scale abrasion resistant with millimetre graduation
-
Suitable for all construction machines
-
With integrated damping
Variants
Execution

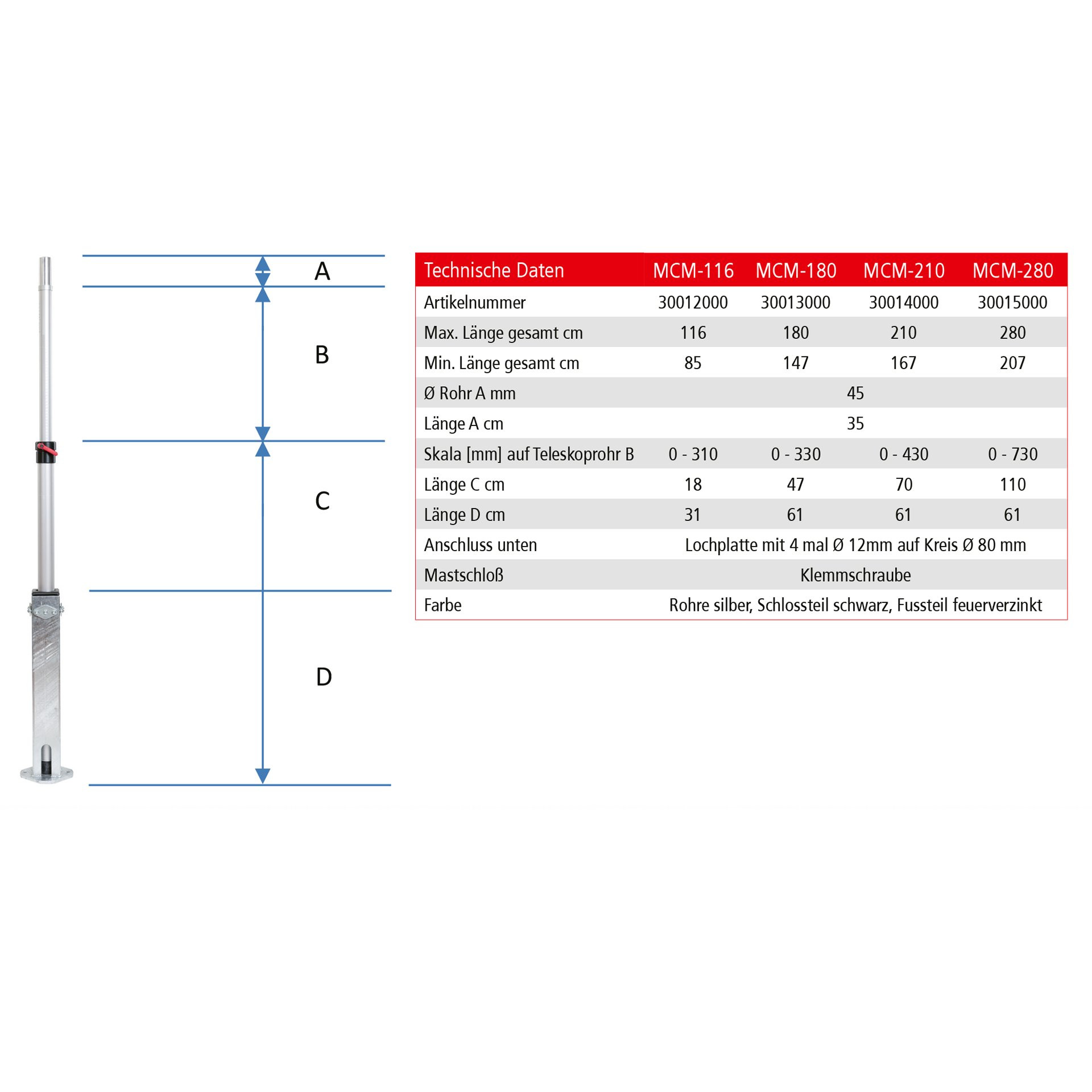

Technical Data
| Colour | Tubes silver, lock part black, foot part hot-dip galvanised |
|---|---|
| Weight | 6.1 kg |
| Length A | 35 cm |
| Length C | 18 cm |
| Length D | 31 cm |
| Mast lock | Clamping screw |
| max. total length | 116 cm |
| min. Total length | 85 cm |
| Ø Tube A | 45 mm |
| Scale on telescopic tube B | 0 - 310 mm |
| Product Number (PID) | 30012000 |
Highlights at a Glance
-
The Nestle MCM machine control masts are stable masts for MC sensors such as prisms, GNSS antennas or laser receivers
-
The MCM masts are suitable for all construction machines and can be telescoped if required
-
The scale of the telescope range is laser-inscribed, abrasion-resistant and with millimetre graduation
-
The integrated damping significantly reduces oscillations and vibrations, so that transducers on the masts are less stressed
Description
Scope of Delivery
Mast MCM-116
