NESTLE prism pole PA-3-D with pressure clamping, 130-215 cm
Simple operation - perfect results!
Top Features
-

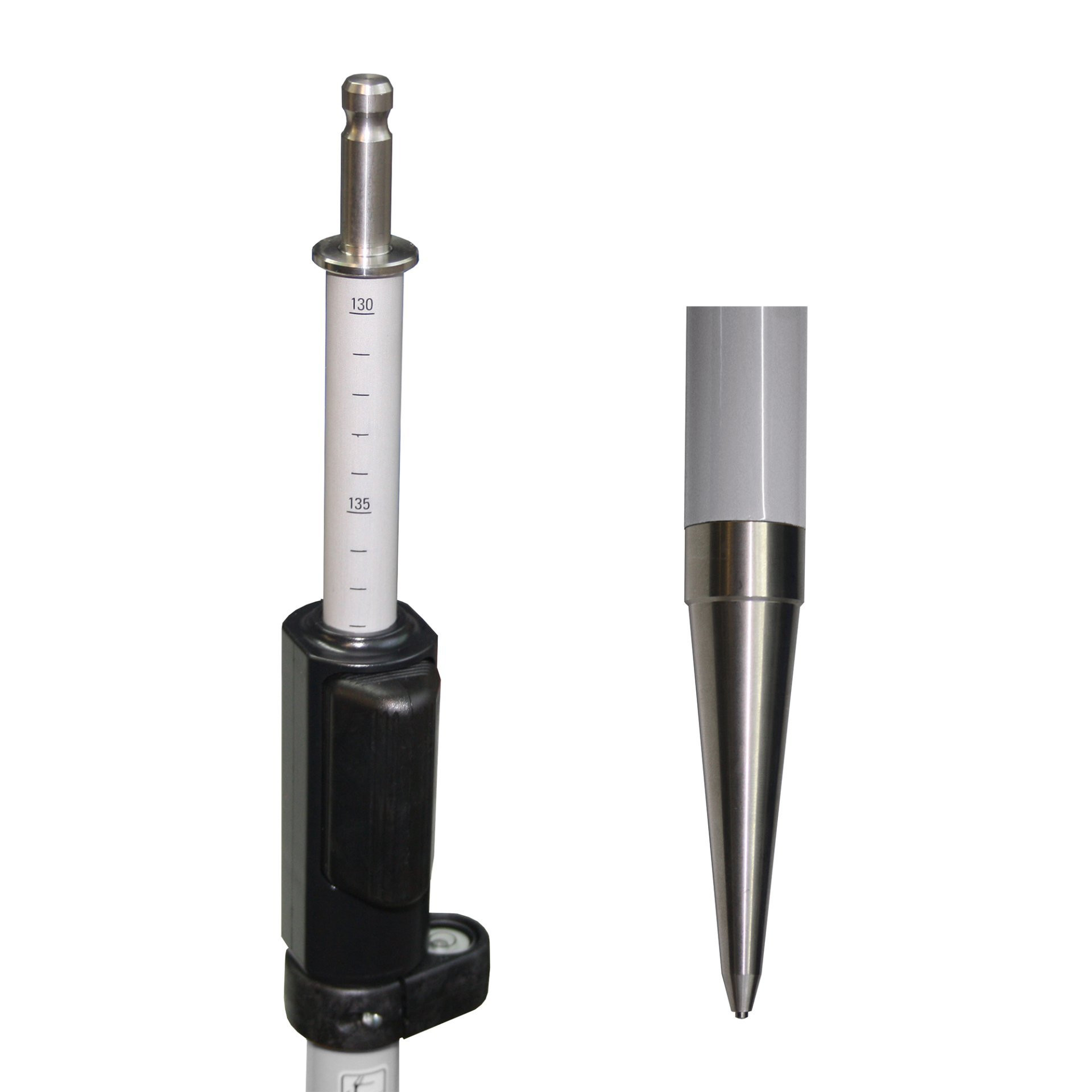

Pin/pin for Leica/wild prisms pre-mounted.
Variants
Variant
Technical Data
| Adapter | Wild/Leica pin included |
|---|---|
| Weight | 800 g |
| Clamping | Pressure clamping |
| Length | 130 - 215 cm |
| Product Number (PID) | 14014000 |
Highlights at a Glance
-

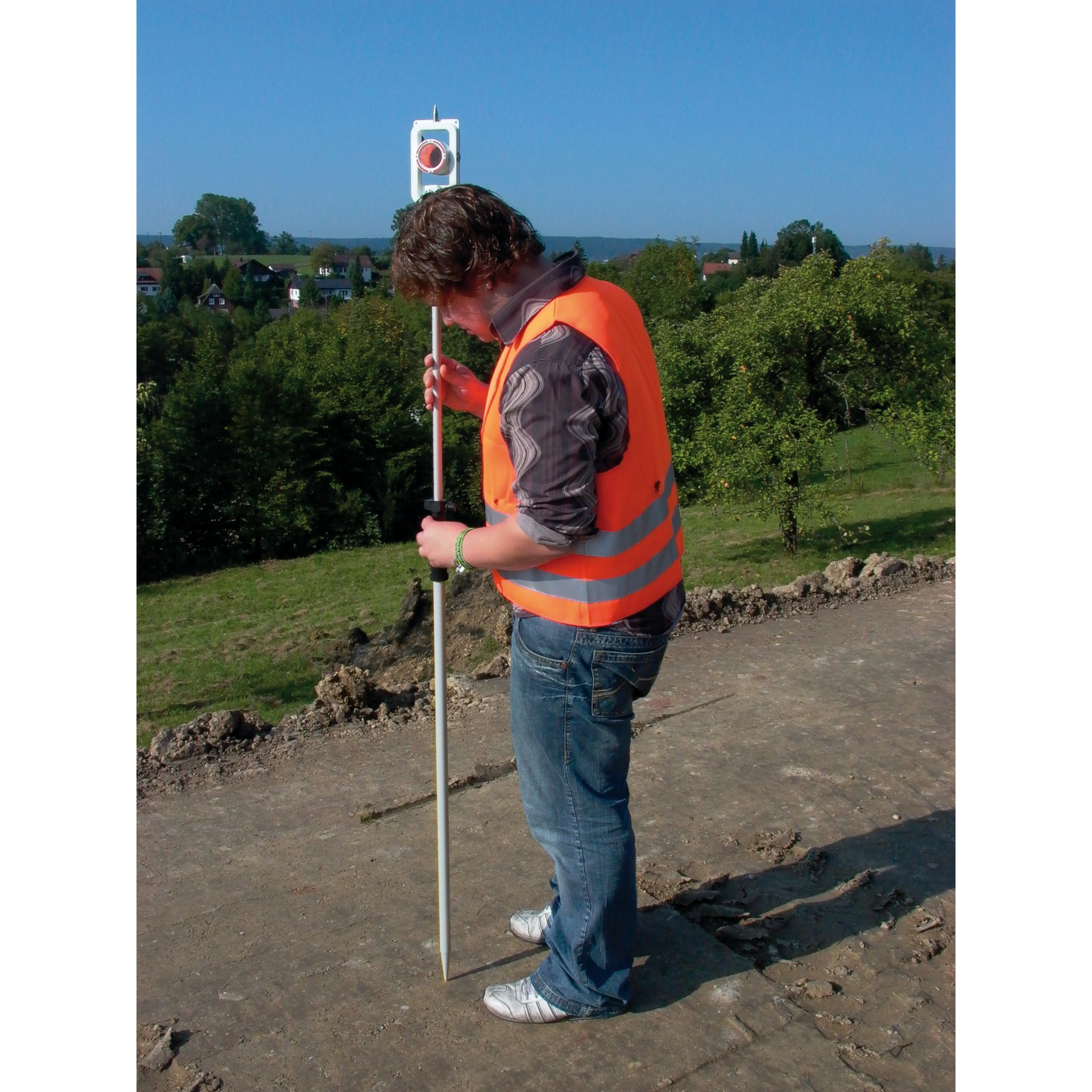

Prism pole for surveying of all kinds in the building sector and cadastre.
-
Simplest operation: set the right height with one hand, clamp with the other hand using the push-button. Our prism poles also play a pioneering role in terms of robustness:
-
Outer and inner pipe are anodised and insensitive to weathering.
-
The graduation is indestructibly applied by a special laser printing process.
-
Stainless steel tip.
-
Pin/pin for Leica /Wild prisms pre-mounted.
Description
The NESTLE prism pole PA-3-D is characterised by its specially hardened tip, which wears down by 95 %, and the extremely durable aluminium and stainless steel combination. Its robust pressure clamping for the extension tube, shock absorption and permanent pitch make it universally applicable. Can be used for all common prism systems with the Wild/Leica connection.
Scope of Delivery
NESTLE prism pole (PA-3-D)
-
