NESTLE GNSS Pole PS-9

Low weight - comfortable handling!

Top Features

  • Quick-out with 5/8''.
  • Light and narrow.
  • Excellent for GIS (geographic information system) applications.

Variants

Variant

Technical Data

Inner tube diameter 20 mm
Connection 5/8" with quick-out
Working range 115 - 200 cm
Special feature Light, slim, quick-out
Outer pipe diameter 25 mm
Weight 480 g
Clamping Quick eccentric
Division 160, 180, 190, 200 cm
Transport dimension 117 cm
Product Number (PID) 14023000

Highlights at a Glance

  • Due to its low weight, the PS-9 is particularly suitable for measurements in the GIS area, but also for all other surveys with light antennas.

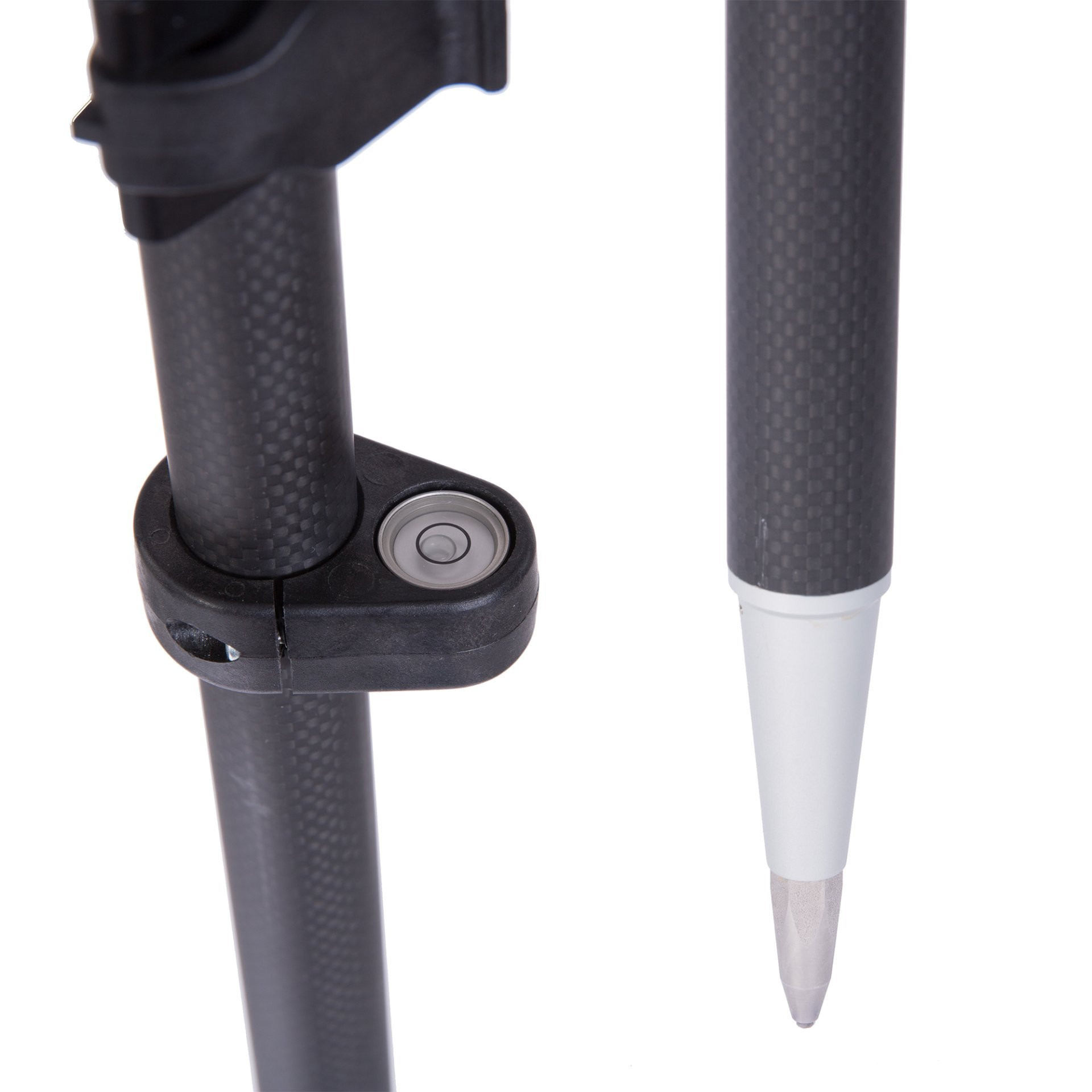

  • Outer tube, 25 mm, and inner tube 20 mm, are made of carbon.
  • A quick-release fastener allows the pole to be extended easily and quickly.
  • The upper 5/8" connection can be quickly removed from the rod with a push-button (quick-out), allowing particularly flexible and fast working.

Description

The required accuracy in data acquisition presupposes the use of a professional antenna pole. The carbon poles from NESTLE impress with their low weight, durability and comfortable handling. The PS-9 is particularly suitable for surveys in the GIS area and for light antennas. The upper connection can be quickly removed from the rod with a push-button (quick-out), so antennas can be quickly and safely mounted and dismounted.

Scope of Delivery

NESTLE GNSS Pole 25/20 (PS-9)
