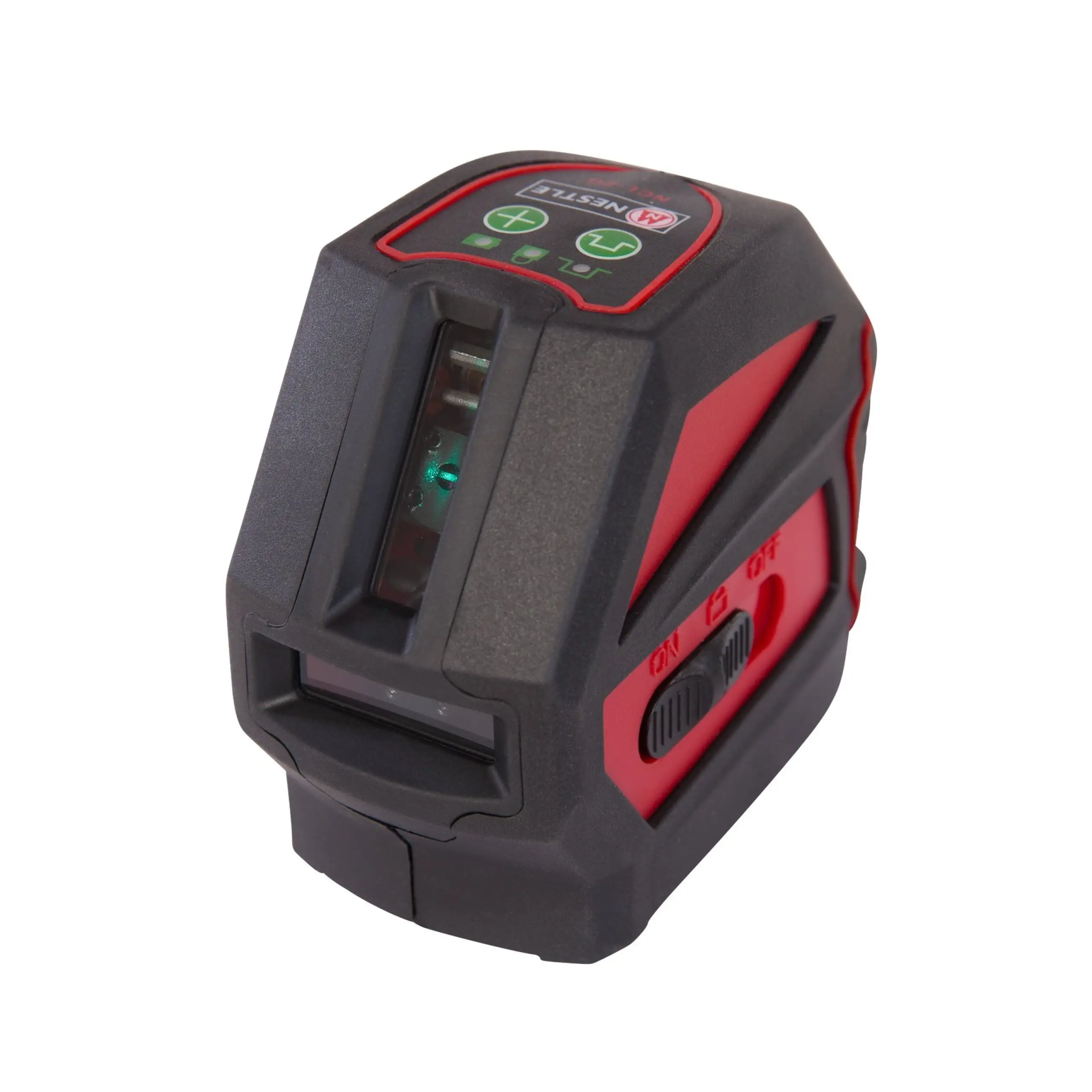

NESTLE Cross Line Laser NCL-2G SET

Robust cross line laser with green laser beam in SET

Top Features

  • Cross line laser NCL-2G in SET with wall mount and case with green laser beam

Variants

Variant

Technical Data

Working range / with detector 20 m / 50 m with receiver
Operating time > 5 Hours
Operating temperature -10°C to +45°C
Insert indoors
Weight 480 g
Weight SET 3600
Threaded connection 1/4"
Storage temperature -20°C to +60°C
Laser 505 nm visible, class 2
Dimensions 119 x 62 x 95 mm
Self-levelling range 4° ± 0.5°
Tolerance horizontal line ± 3 mm per 10 m
Tolerance vertical line ± 2.5 mm per 10 m
Product Number (PID) 16117001

Highlights at a Glance

  • The human eye recognises green light much better than red light. Due to the green laser beams, the NESTLE NCL-2G cross line laser impresses with a high visibility of the projected lines.
  • Integrated pendulum compensator that does the fine adjustment for you.
  • Pulse mode for working with receiver over long distances.
  • Simplest operability
  • Possibility to fix the laser lines for inclined projection.
  • Audible warning.

Description

The NCL-2G cross line laser with green laser beam has an extremely robust construction, is also rubber-coated and therefore especially designed for tough, daily use. It has green and fine, yet powerful laser lines that are excellently visible even over longer distances. The built-in pendulum compensator enables reliable self-levelling. The simple operating concept makes it quickly ready for use and ideal for interior work. The green laser beams are much better perceived by the human eye.

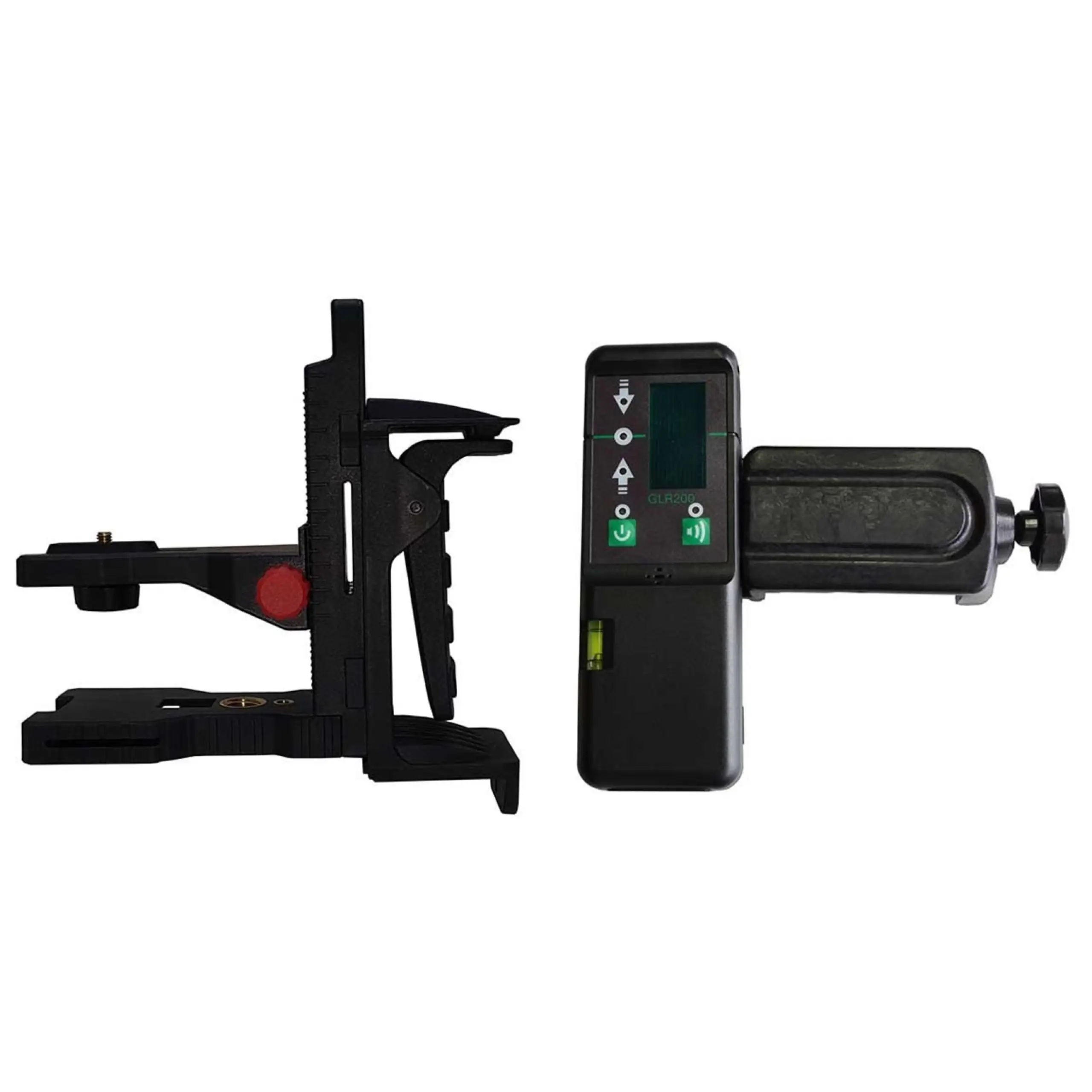

The NCL-2G set consists of: NCL-2G, target plate, wall mount NWM-802, case, laser goggles, batteries, instructions

Scope of Delivery

Cross line laser NESTLE NCL-2G
Target board
Wall bracket NWM-802
Suitcase
Laser goggles
Batteries
Manual
