NESTLE Cross Line Laser NCL-2G SET
Robust cross line laser with green laser beam in SET
Top Features
-
Cross line laser NCL-2G in SET with wall mount and case with green laser beam
Variants
Variant
Technical Data
| Working range / with detector | 20 m / 50 m with receiver |
|---|---|
| Operating time | > 5 Hours |
| Operating temperature | -10°C to +45°C |
| Insert | indoors |
| Weight | 480 g |
| Weight SET | 3600 |
| Threaded connection | 1/4" |
| Storage temperature | -20°C to +60°C |
| Laser | 505 nm visible, class 2 |
| Dimensions | 119 x 62 x 95 mm |
| Self-levelling range | 4° ± 0.5° |
| Tolerance horizontal line | ± 3 mm per 10 m |
| Tolerance vertical line | ± 2.5 mm per 10 m |
| Product Number (PID) | 16117001 |
Highlights at a Glance
-
The human eye recognises green light much better than red light. Due to the green laser beams, the NESTLE NCL-2G cross line laser impresses with a high visibility of the projected lines.
-
Integrated pendulum compensator that does the fine adjustment for you.
-
Pulse mode for working with receiver over long distances.
-
Simplest operability
-
Possibility to fix the laser lines for inclined projection.
-
Audible warning.
Description

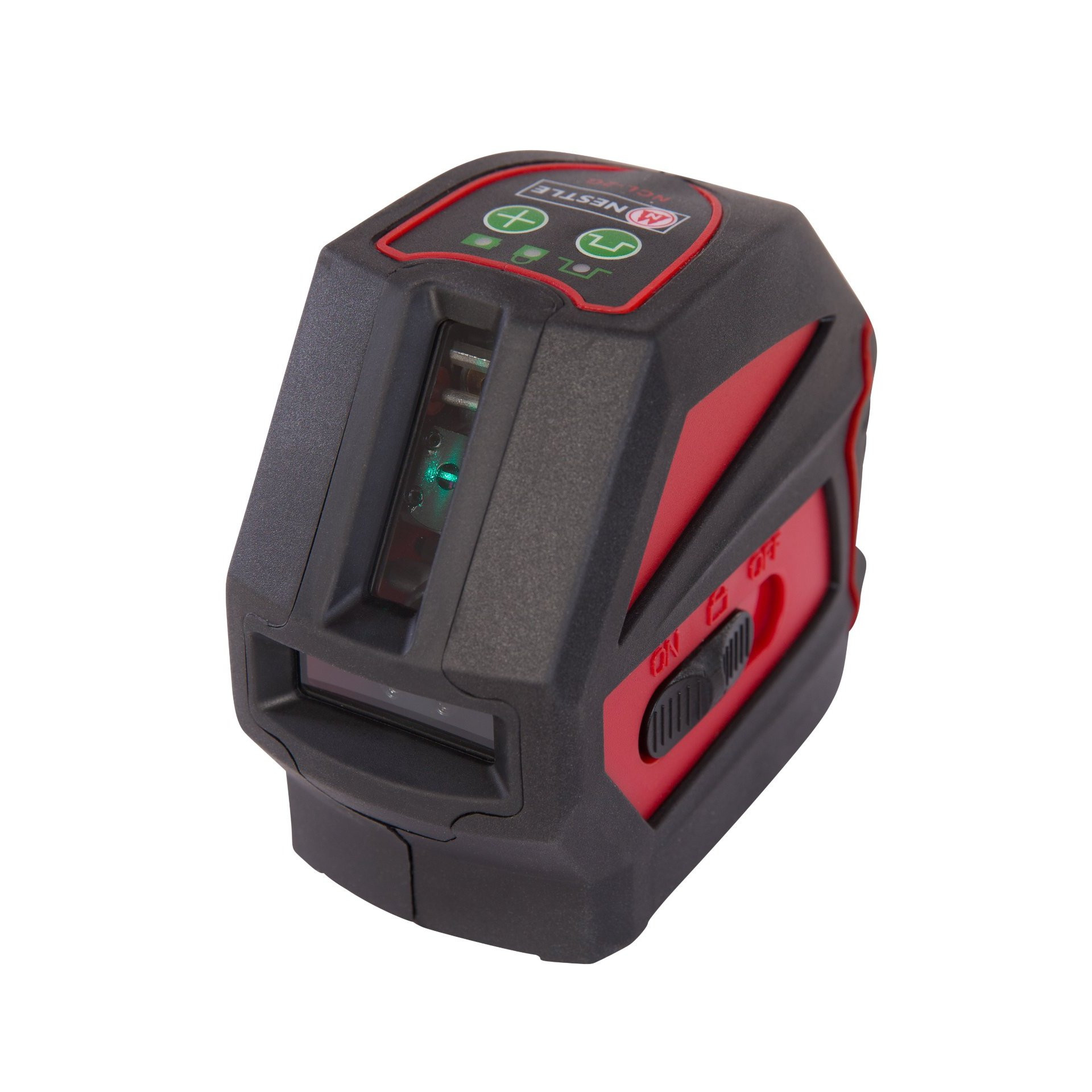

The NCL-2G cross line laser with green laser beam has an extremely robust construction, is also rubber-coated and therefore especially designed for tough, daily use. It has green and fine, yet powerful laser lines that are excellently visible even over longer distances. The built-in pendulum compensator enables reliable self-levelling. The simple operating concept makes it quickly ready for use and ideal for interior work. The green laser beams are much better perceived by the human eye.

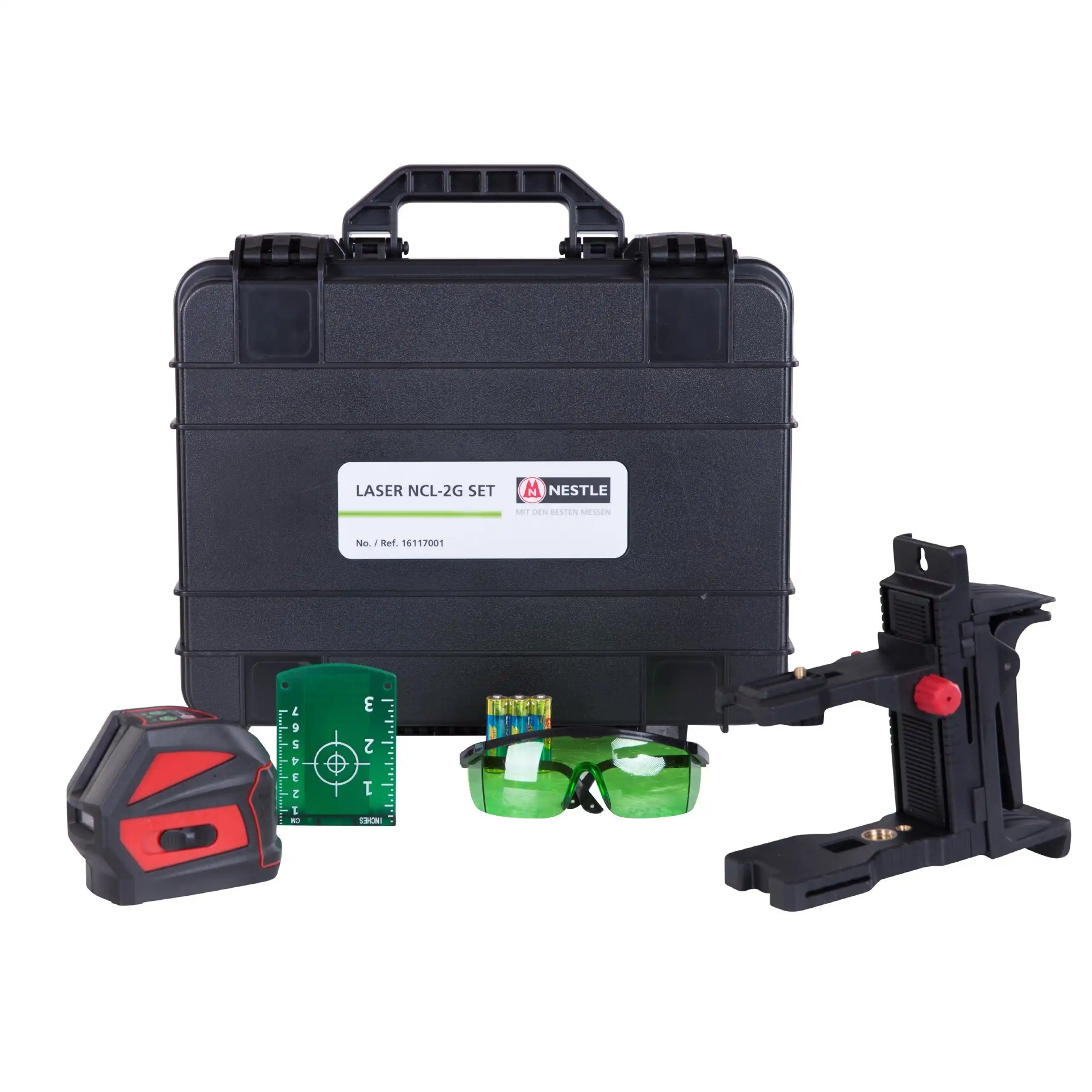

The NCL-2G set consists of: NCL-2G, target plate, wall mount NWM-802, case, laser goggles, batteries, instructions
The NCL-2G set consists of: NCL-2G, target plate, wall mount NWM-802, case, laser goggles, batteries, instructions
Scope of Delivery
Cross line laser NESTLE NCL-2G
Target board

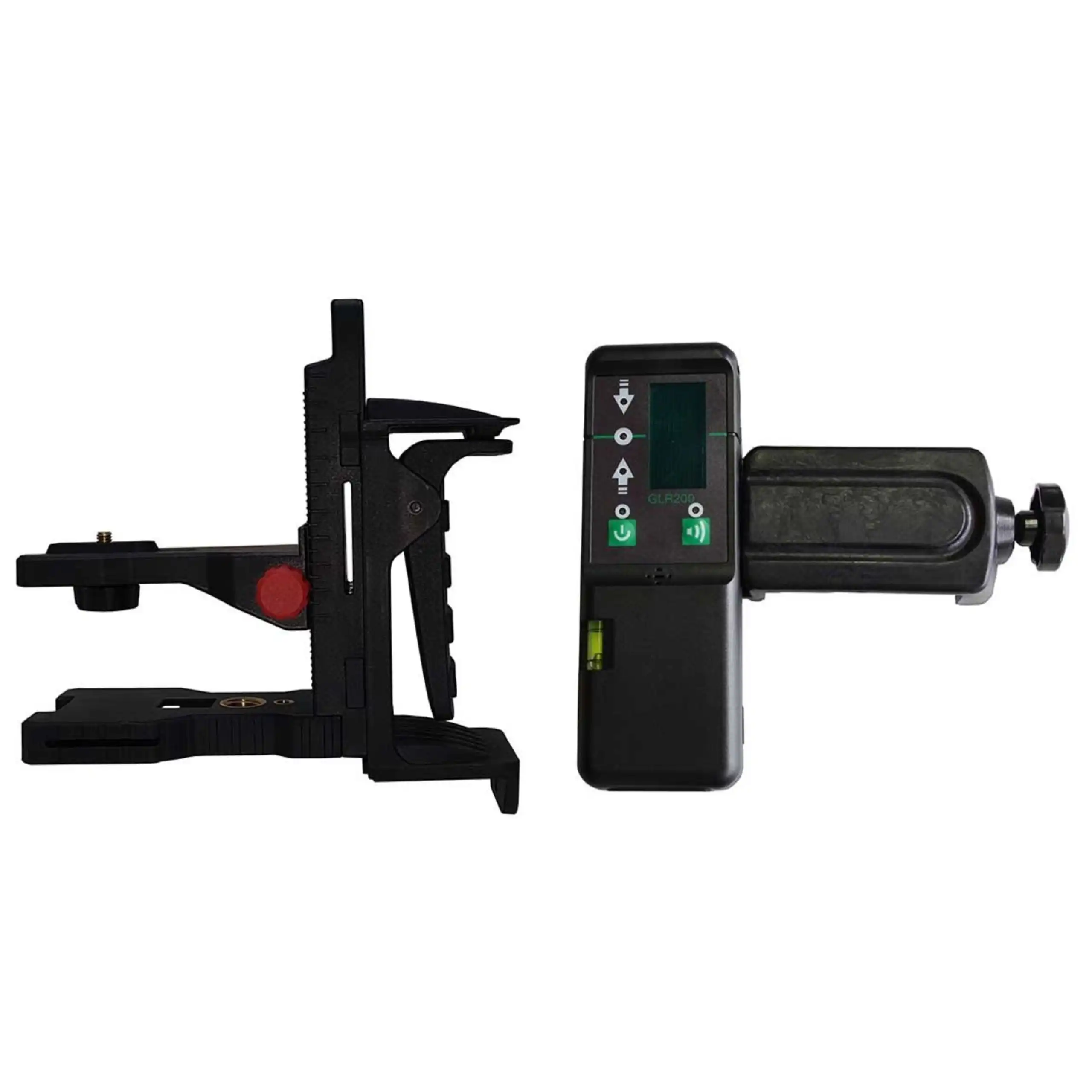

Wall bracket NWM-802
Suitcase
Laser goggles
Batteries
Manual
