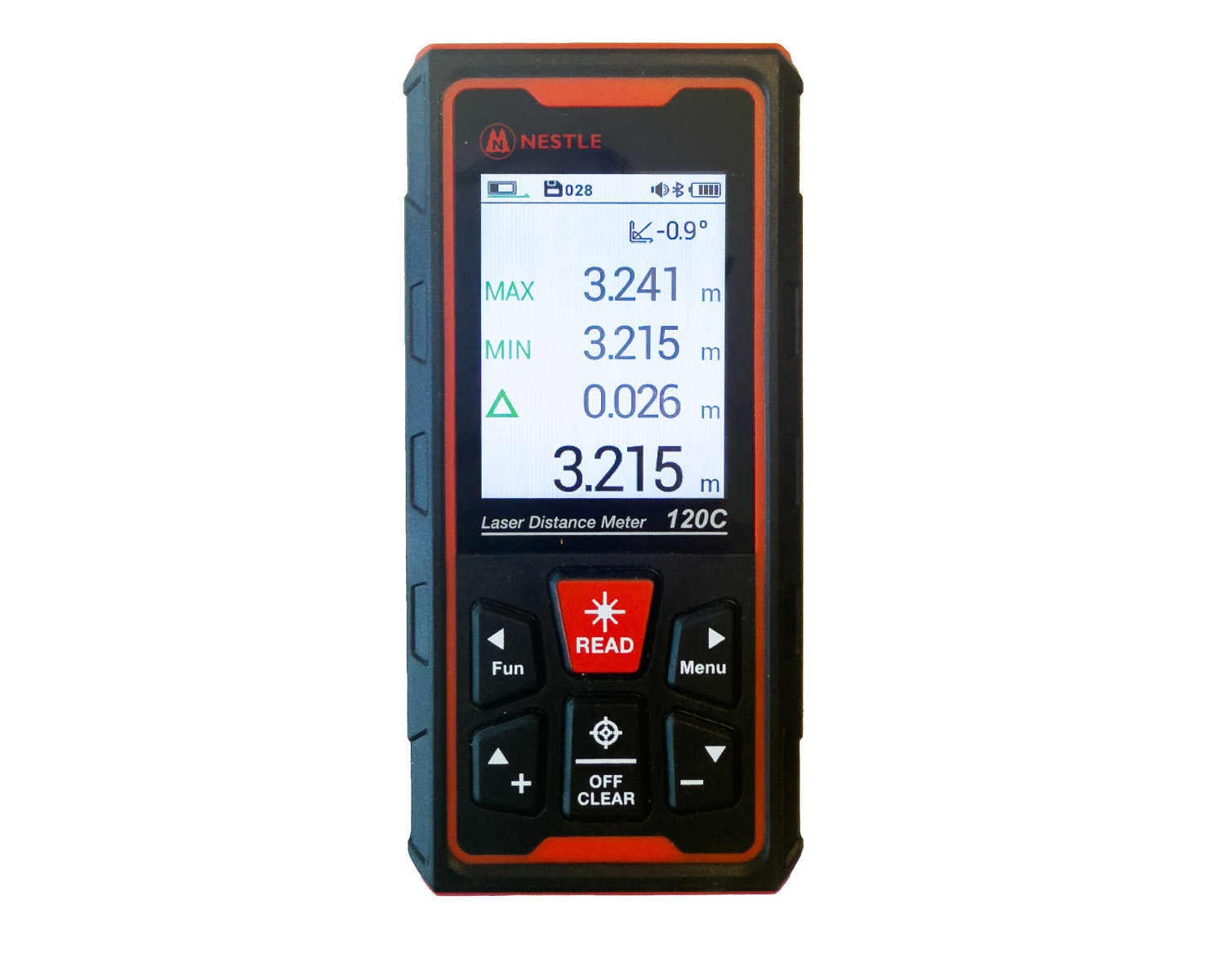

NESTLE NDL-120C Laser distancemeter

Fast measuring with laser precision

Top Features

  • Integrated camera for precise targeting
  • Large, easy-to-read LCD TFT display with backlighting
  • Memory for up to 100 measured values
  • Multiple measurement modes: distance, area, volume, Pythagoras measurement
  • USB-C rechargeable lithium-ion battery (permanently installed)
  • 360° angle measurement (display ±90°)
  • Automatic laser and device switch-off to save energy

Variants

Variant

Technical Data

Laser class 2
Measuring range 0.05 - 120 m
Resolution 0.001 m
Tolerance ± 2 mm
Reading m / ft / inch
Dimensions 30 x 61 x 128 mm
Power supply Li-ion battery
Charging current DC 5V > 1A, USB-C
Protection class IP68
Operating temperature 0°C to +40°C
Weight 0.193 kg
Product Number (PID) 24111001

Highlights at a Glance

  • Target finder: 4x zoom camera.
  • Compact device with many measuring functions. Fast measurement results.
  • Very good readability thanks to large digits and display illumination.
  • Laser range is 120 m.
  • Bluetooth connection with the JoyPlan app for extended application possibilities.
  • The green laser of the NDL-120C is up to four times brighter than red lasers, ensuring particularly good visibility outdoors or in bright light – a clear advantage on construction sites or when used outdoors.

Description

The NESTLE NDL-120Cis a handy and compact laser rangefinder. Despite its small size, it measures distances of up to 100 meters without contact. The integrated Li-ion battery is charged via the included USB-C cable (power adapter not included).

With this range finder you will always do a good job regardless of the surrounding conditions.

The backlighting of the high-quality display ensures that the various modes and options are easily recognizable even in unfavorable lighting conditions.

Scope of Delivery

NESTLE NDL-120C Laser Rangefinder
Bag
wrist strap
USB-C cable
user manual
