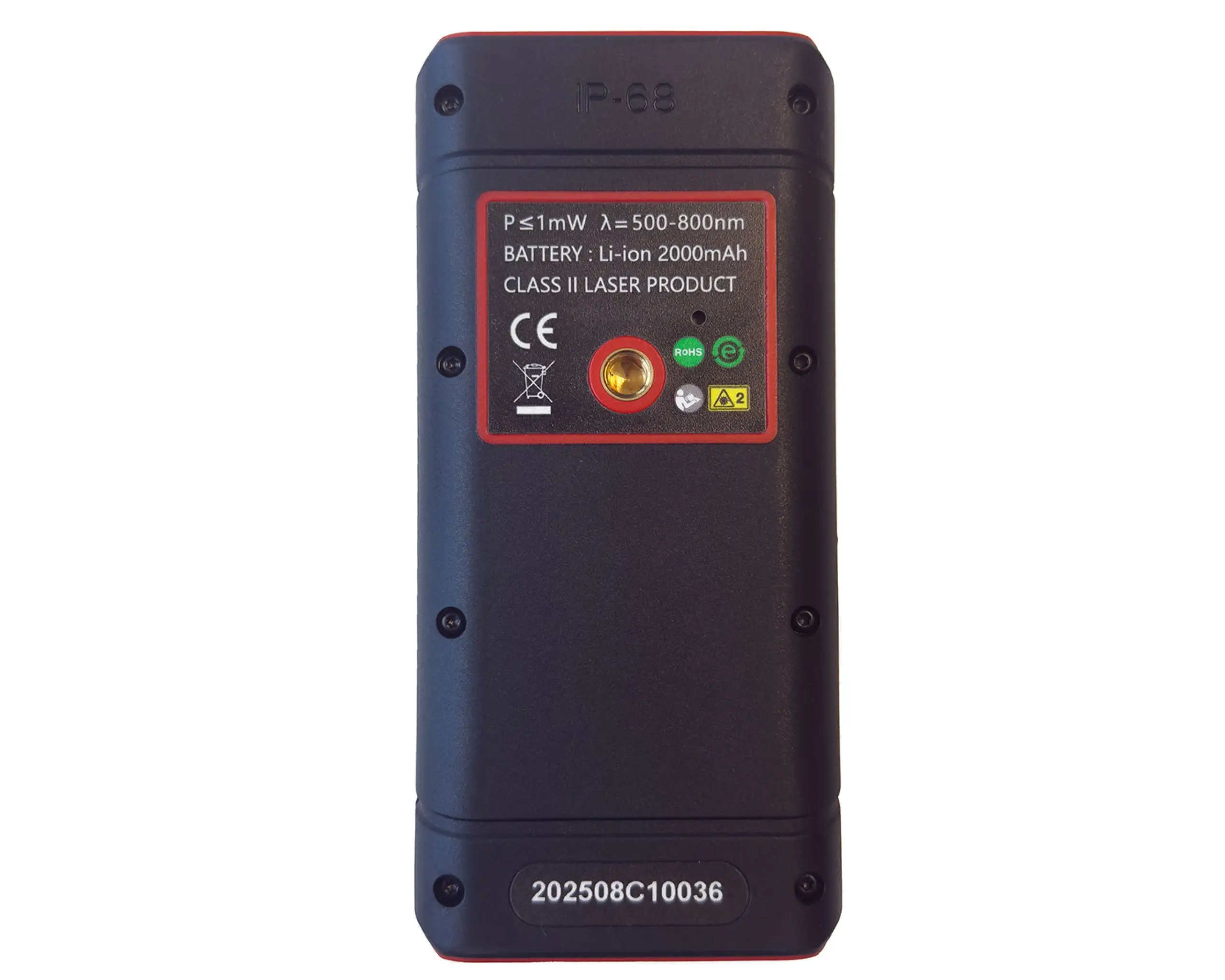

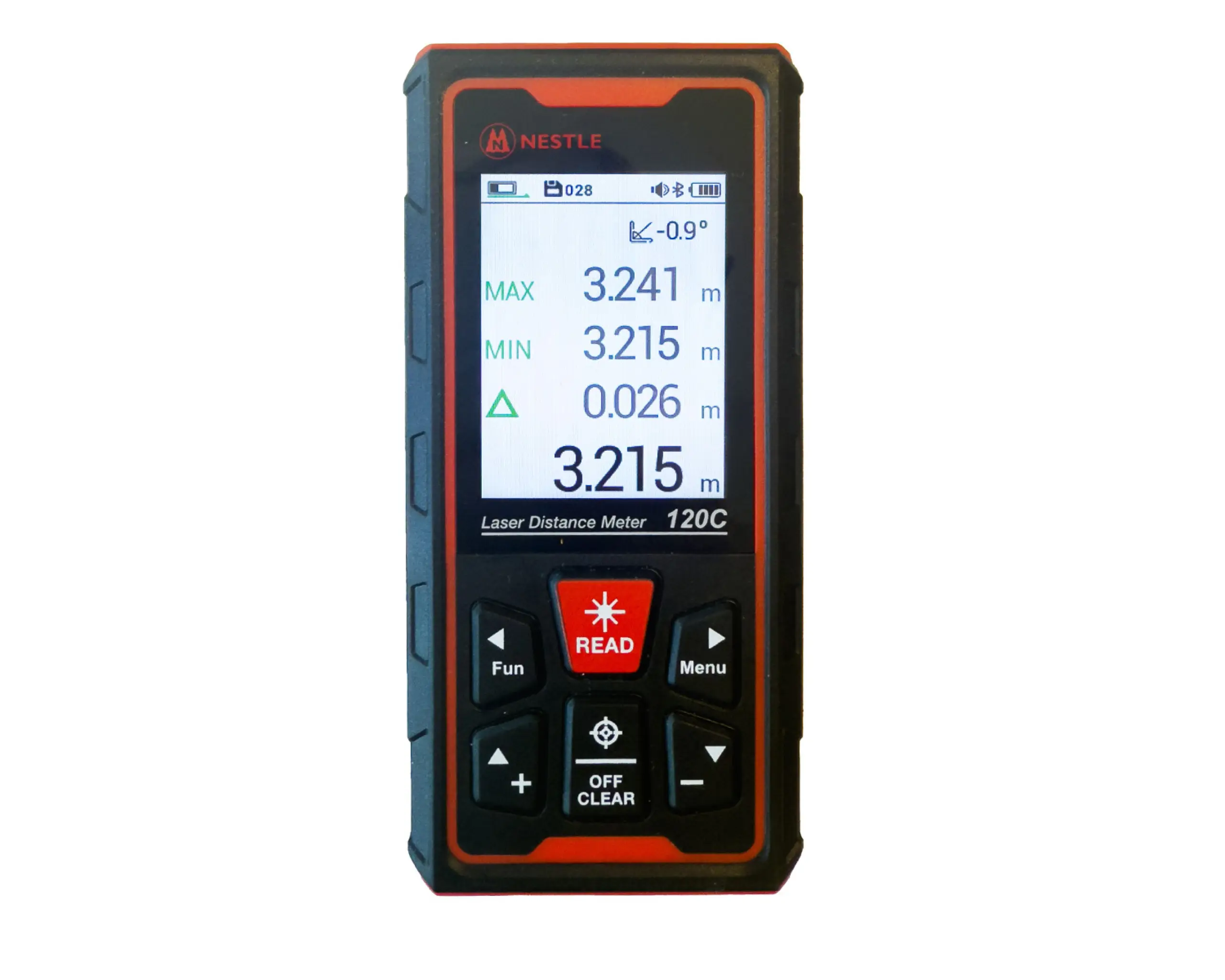

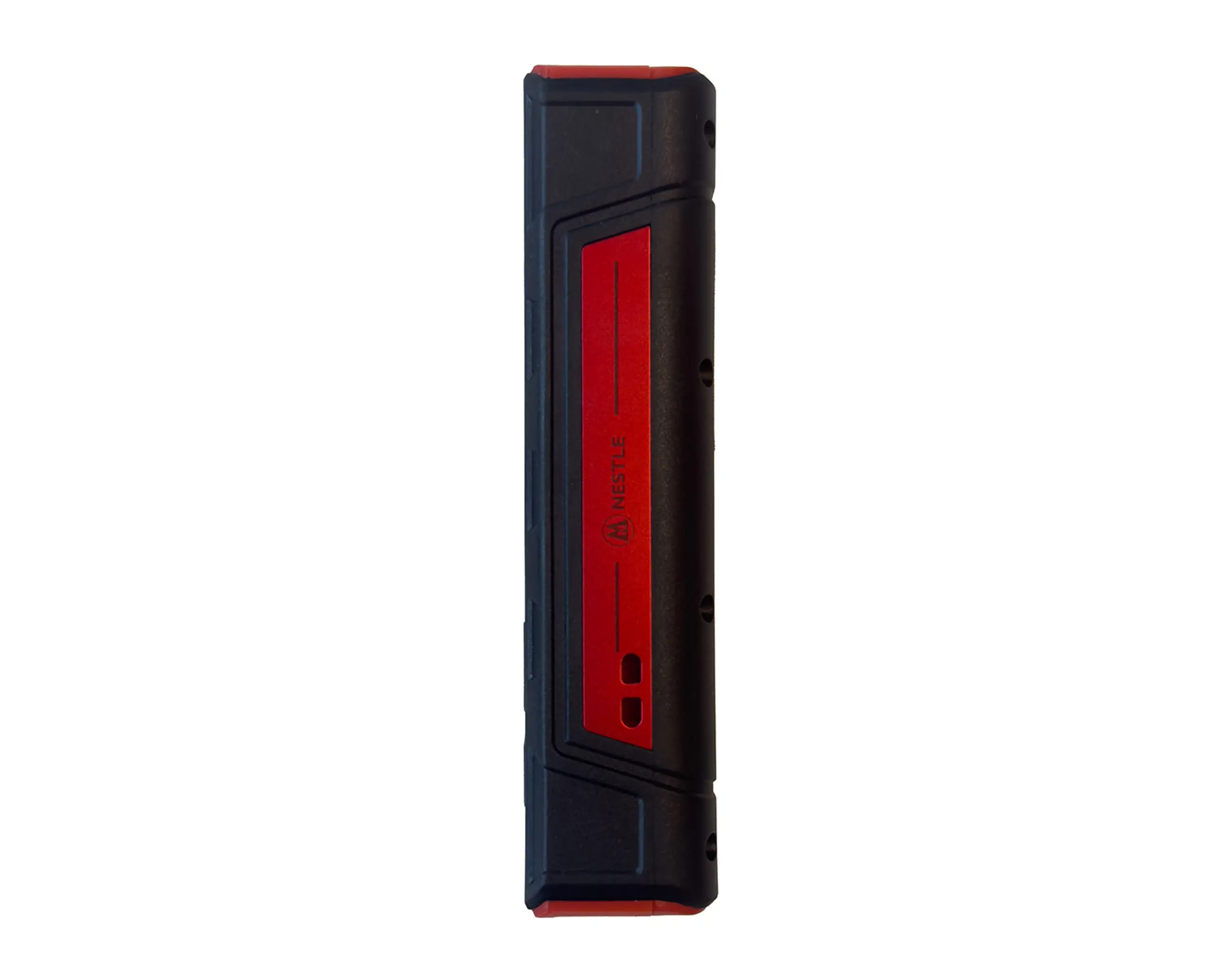

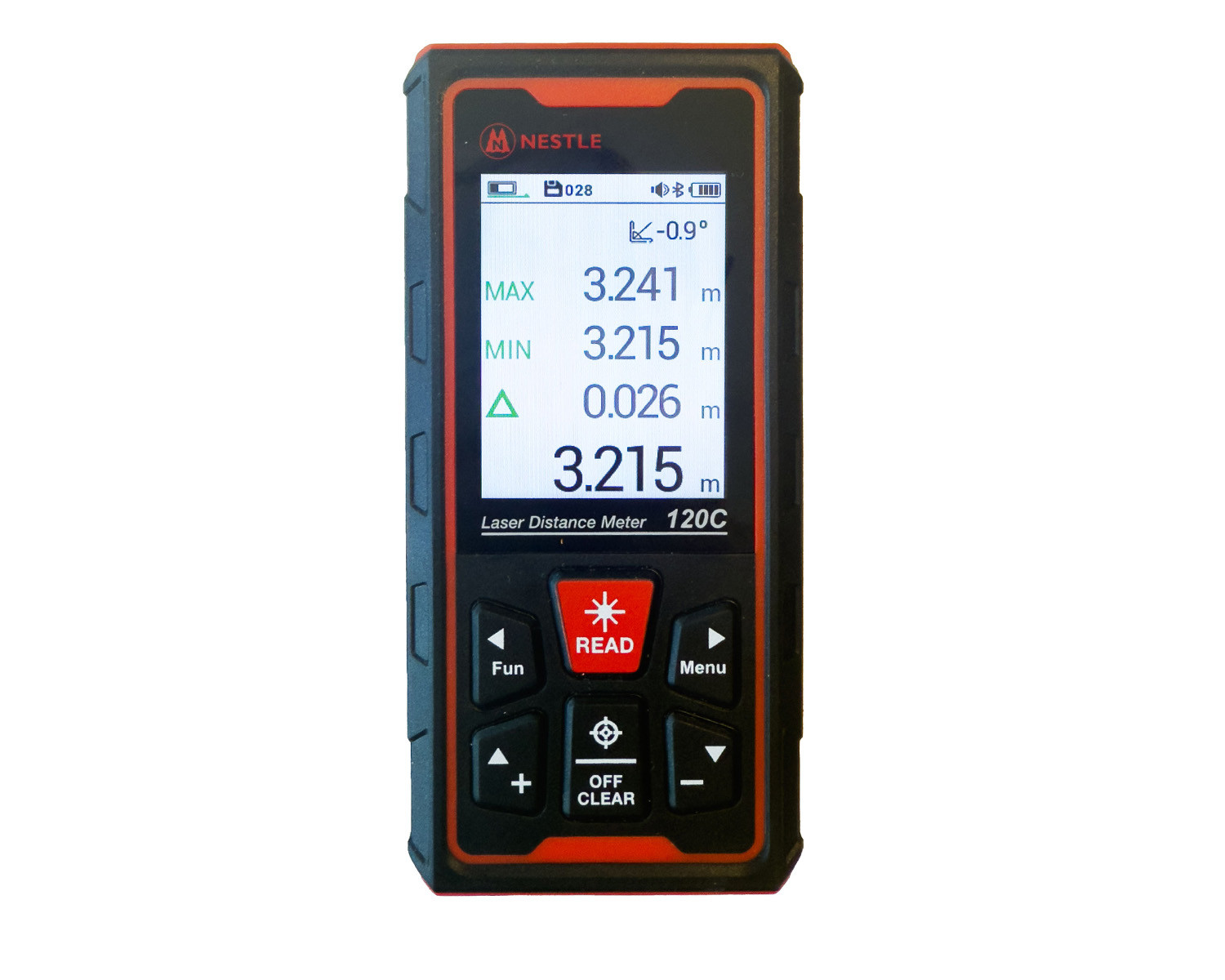

NESTLE NDL-120C Laser distancemeter
Fast measuring with laser precision
Top Features
-

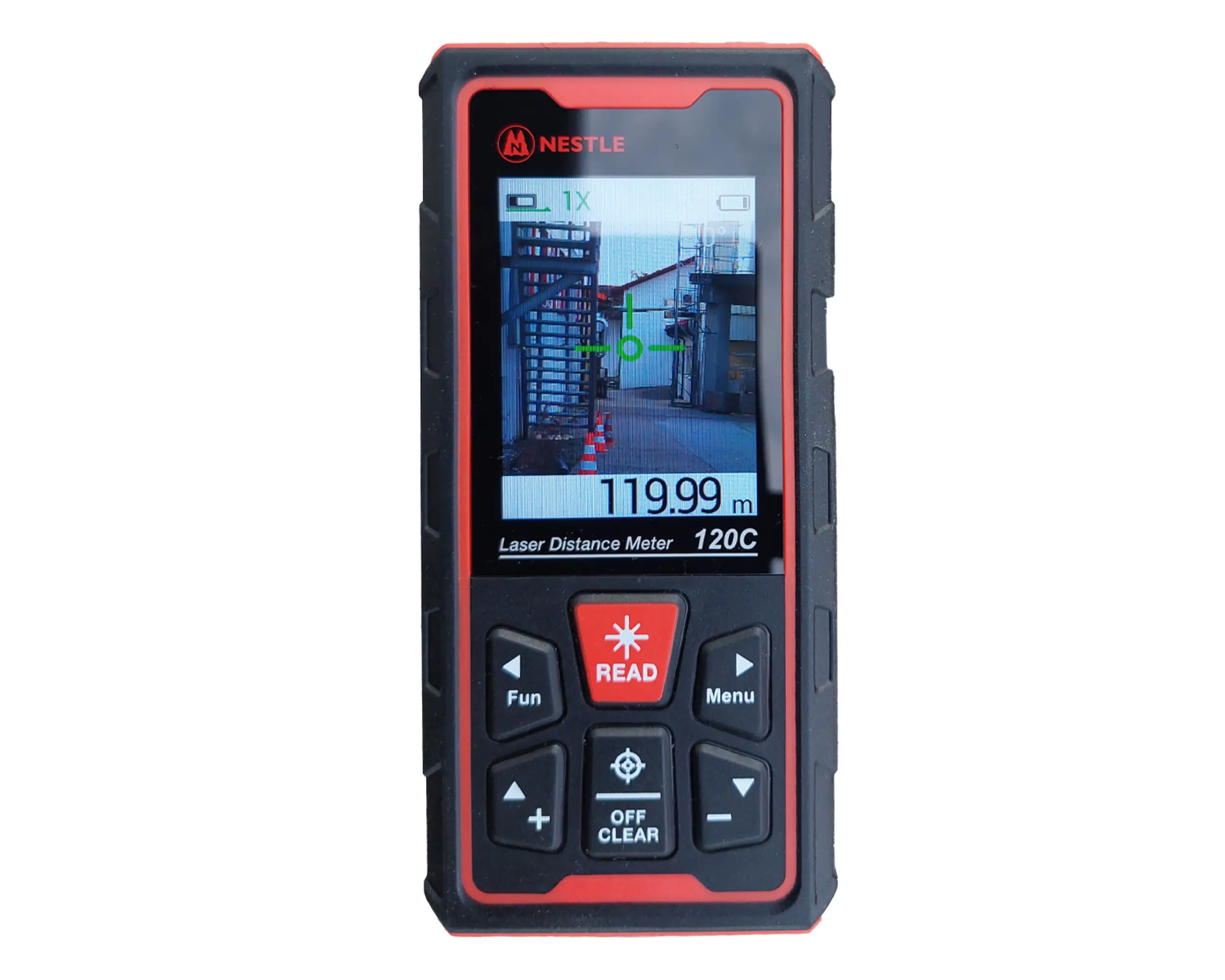

Integrated camera for precise targeting
-
Large, easy-to-read LCD TFT display with backlighting
-
Memory for up to 100 measured values
-
Multiple measurement modes: distance, area, volume, Pythagoras measurement
-
Waterproof and dustproof for use in all weather conditions
-
USB-C rechargeable lithium-ion battery (permanently installed)
-
360° angle measurement (display ±90°)
-
Automatic laser and device switch-off to save energy
Variants
Variant
Technical Data
| Laser class | 2 |
|---|---|
| Measuring range | 0.05 - 120 m |
| Resolution | 0.001 m |
| Tolerance | ± 2 mm |
| Reading | m / ft / inch |
| Dimensions | 30 x 61 x 128 mm |
| Power supply | Li-ion battery - fixed |
| Charging current | DC 5V > 1A, USB-C |
| Protection class | IP68 |
| Operating temperature | 0°C to +40°C |
| Weight | 193g |
| Protection class | IP68 |
| Product Number (PID) | 24111001 |
Highlights at a Glance
-
Target finder: 4x zoom camera.
-
Compact device with many measuring functions. Fast measurement results.
-
Very good readability thanks to large digits and display illumination.
-
Laser range is 120 m.
-
The green laser of the NDL-120C is up to four times brighter than red lasers, ensuring particularly good visibility outdoors or in bright light – a clear advantage on construction sites or when used outdoors.
Description
The NESTLE NDL-120Cis a handy and compact laser rangefinder. Despite its small size, it measures distances of up to 100 meters without contact. The integrated Li-ion battery is charged via the included USB-C cable (power adapter not included).
With this range finder you will always do a good job regardless of the surrounding conditions.
The backlighting of the high-quality display ensures that the various modes and options are easily recognizable even in unfavorable lighting conditions.
Scope of Delivery
NESTLE NDL-120C Laser Rangefinder
Bag
wrist strap
USB-C cable
user manual
