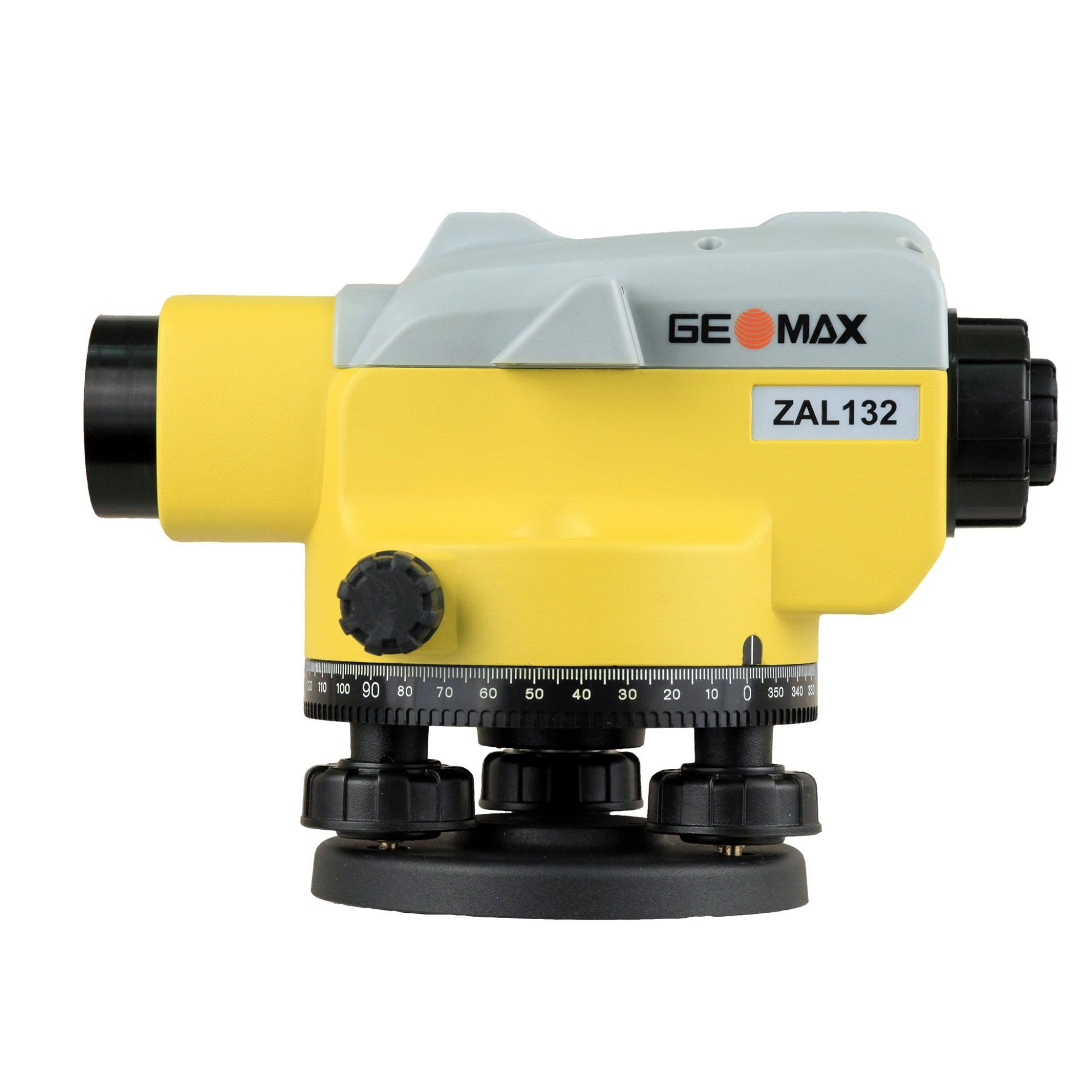

GEOMAX ZAL132 automatic level, 32x magnification, IP54

Automatic level for daily use

Top Features

  • Robust and precise for your daily tasks in the construction sector.
  • Housing sealed according to protection class IP54 and thus splash-proof.
  • Ergonomic two-sided endless fine drive.

Variants

Serie

Execution

Magnification

Technical Data

Distance threads yes
Accuracy 1 km Doubleiv. 2,0 mm
Weight 1500 g
Compensator air-damped
Shortest target distance < 1 m
Dragonfly 8'/ 2 mm
Multiplication/addition con. 100 / 0
Inclination range ±15°
Protection class IP54
Field of view < 2.1 at 100 m
Pitch circle / division 360° / 1°
Enlargement 32 x
Product Number (PID) 27002000

Highlights at a Glance

  • With graduated circle for horizontal angle measurements
  • With distance threads for optical distance measurements and simple terrain surveys
  • Staking heights
  • Automatic compensation by air-damped compensator.
  • ZAL132 with 32x magnification

Description

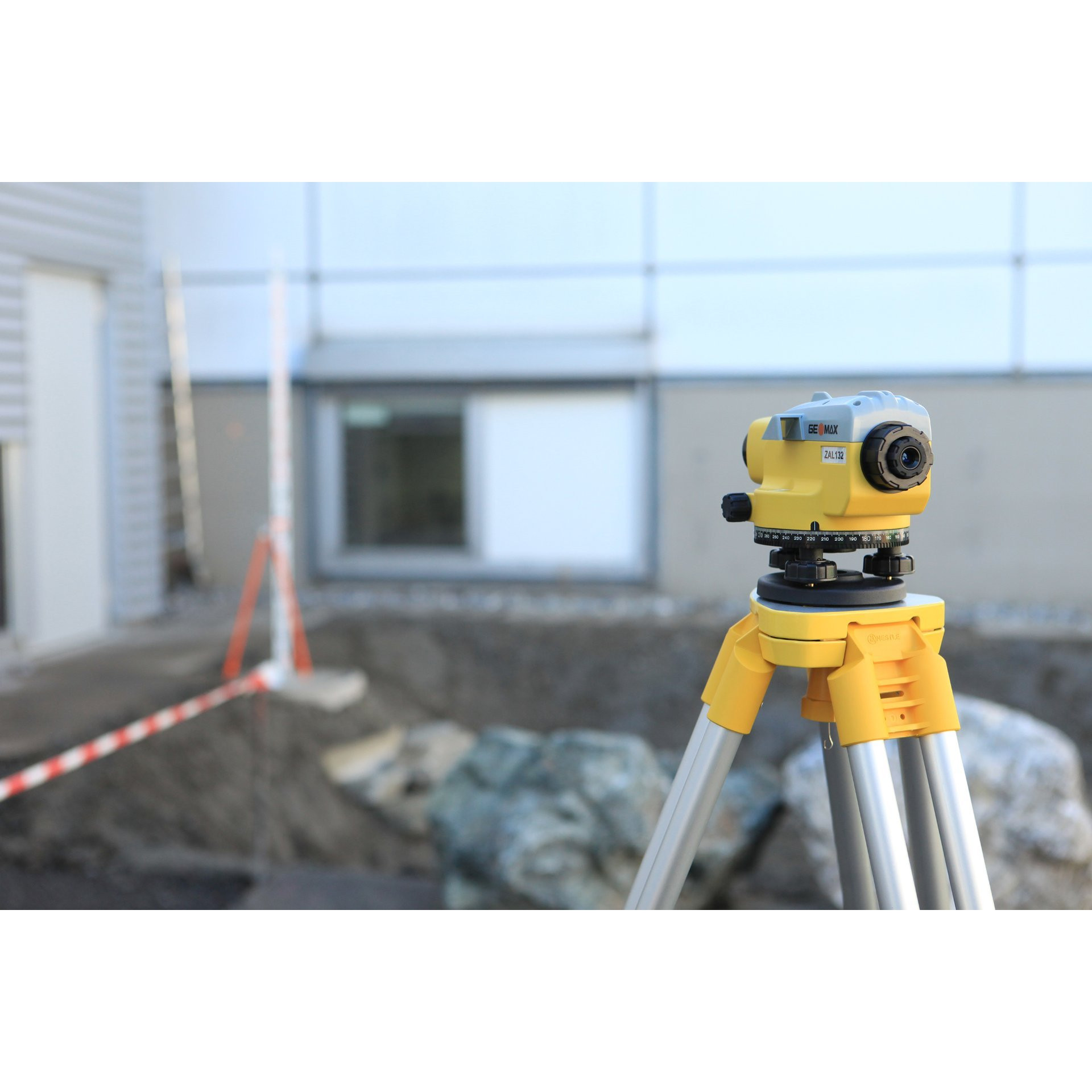

The automatic level is used in civil engineering to create horizontal surfaces, to set height differences or to set up machines and structures. Levels replace spirit levels where their accuracy is no longer sufficient or their use would be too costly. The ZAL100 series impresses with an outstanding price-performance ratio and includes reliable, or long-lasting devices. Their robust construction and precise optics recommend them for everyday tasks in the construction sector.

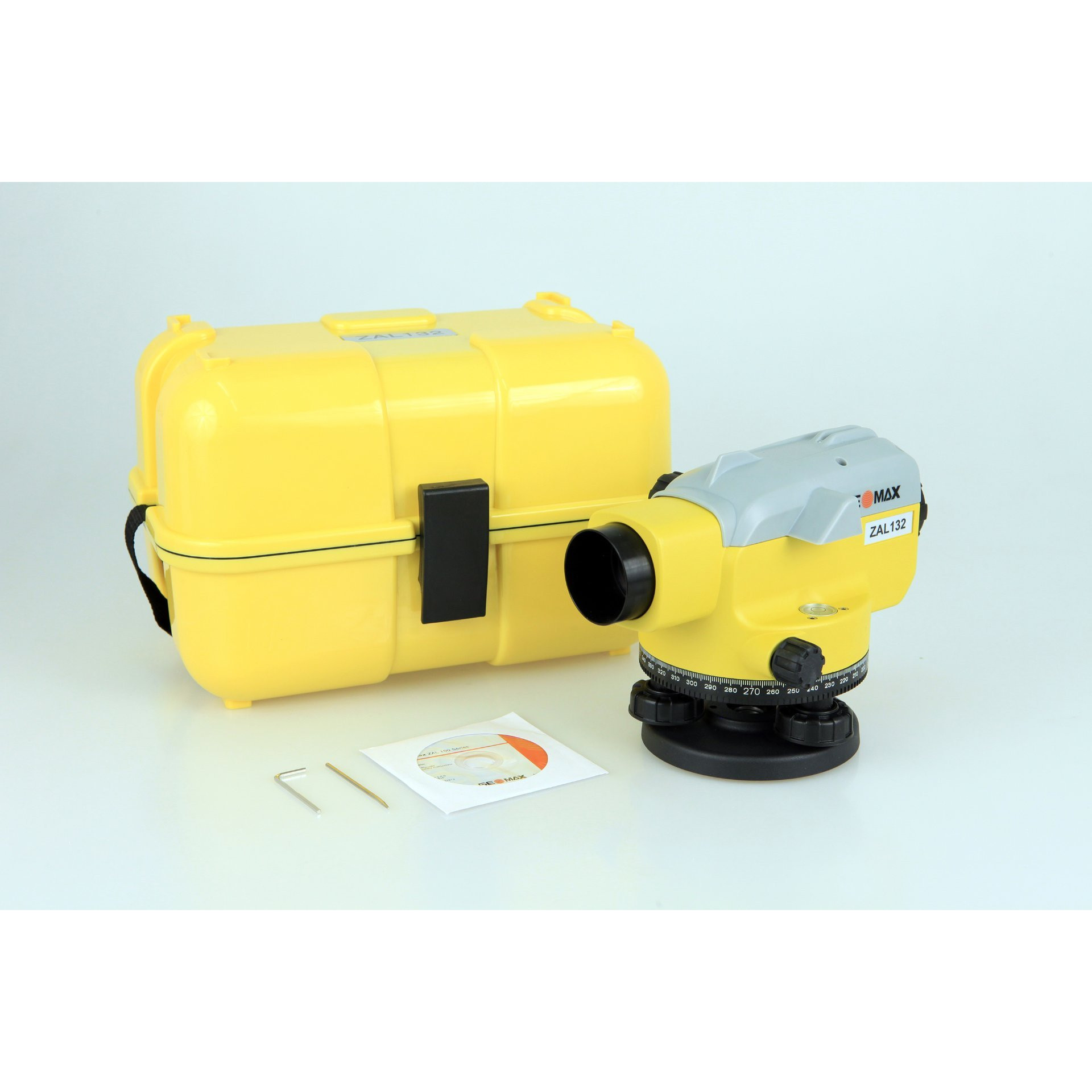

Scope of Delivery

Levelling device ZAL132
Transport case
Adjustment tool
Manual
