NESTLE GNSS 2-segment carbon pole with cable routing holes

Low weight - comfortable handling!

Top Features

  • Amazingly light weight less effort is required.
  • The carbide tip does not wear out - thus no falsification of the measurement result due to blunt tips.

Variants

Equipment

Technical Data

Connection 5/8"
Diameter rod 32 mm
Weight 520 g
Length 200 cm (2 x 100 cm)
Product Number (PID) 14011000

Highlights at a Glance

  • For GNSS measurements of all kinds.

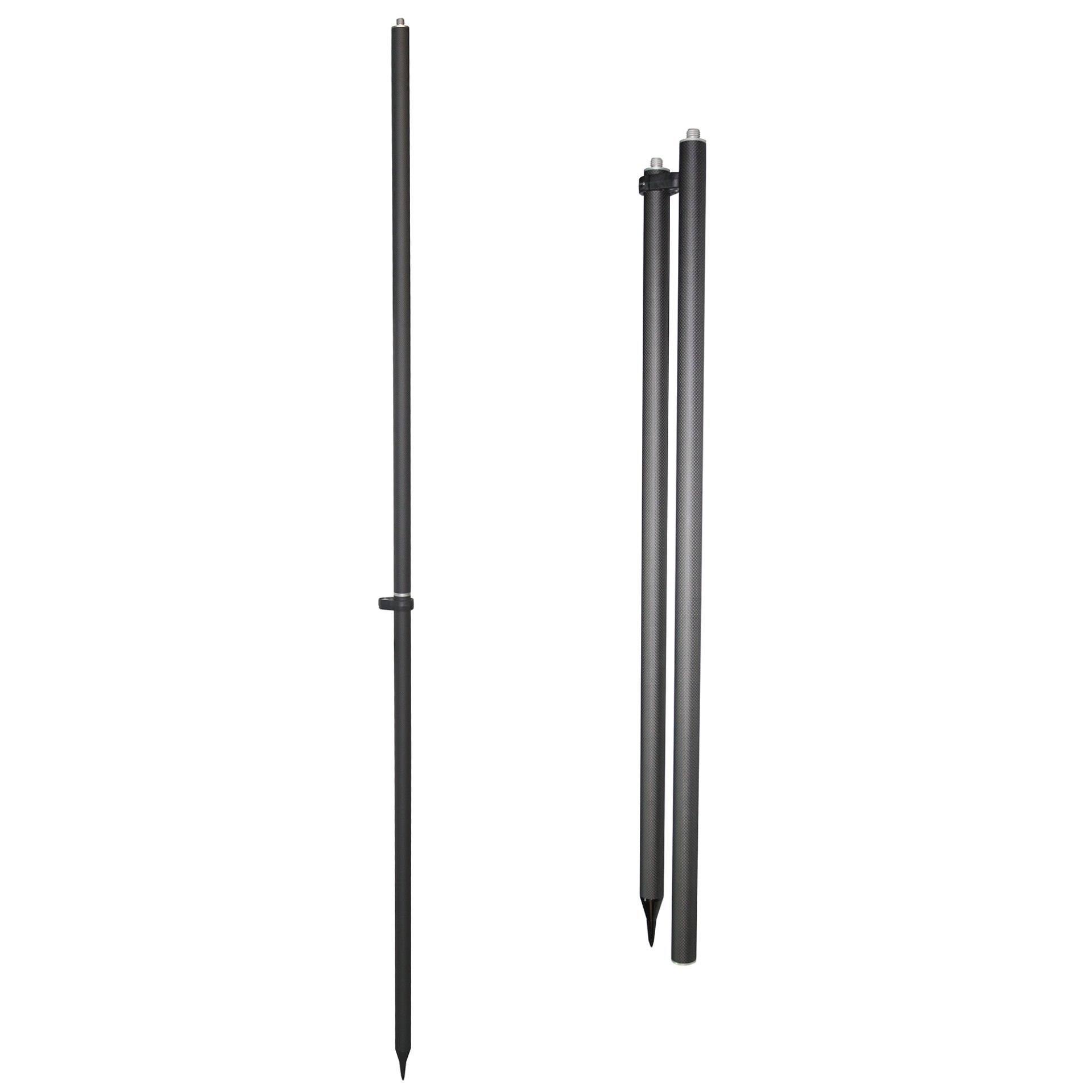

  • The two-piece GNSS pole is ideal for surveying tasks where numerous measurements need to be taken.

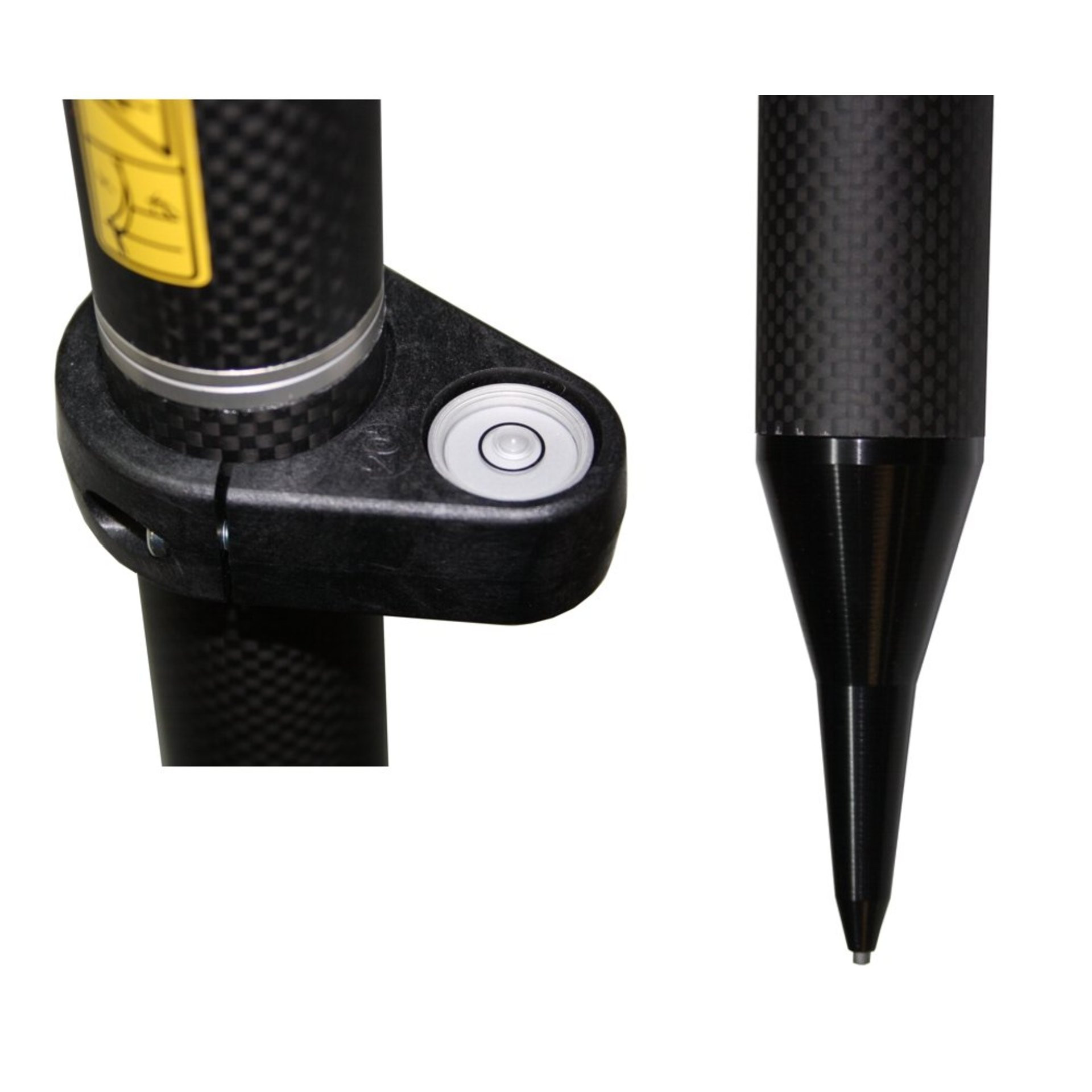

  • For plumb positioning, the lower part of the rod is equipped with a circular bubble.
  • The aluminium tip contains a pressed-in pin made of indestructible tungsten carbide, which shows no signs of wear even after prolonged use under the toughest conditions.
  • The carbon ensures comfortable handling even in cold temperatures.

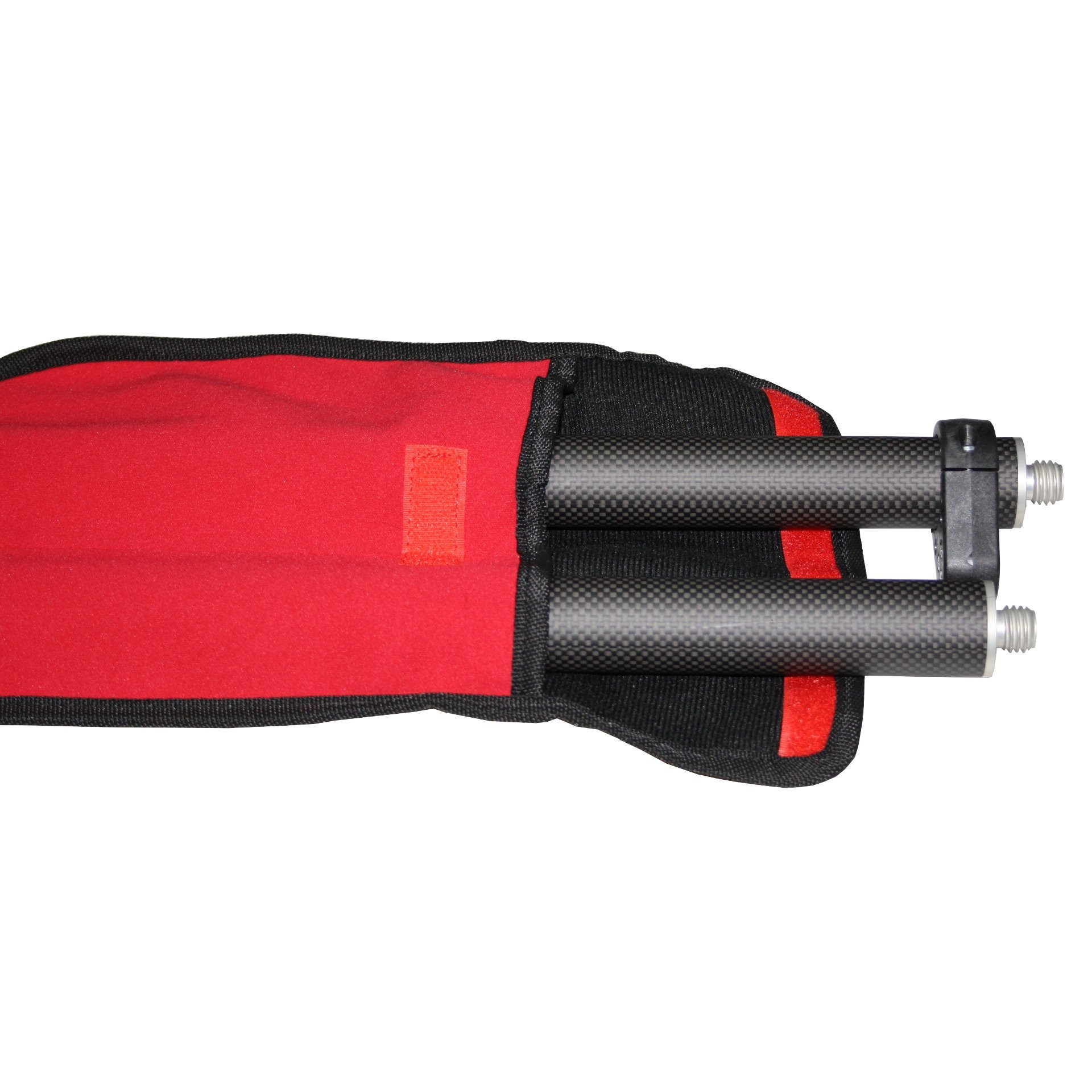

  • The two segments of the pole can be transported in a space-saving way in the bag included in the delivery. Additional top segments can be used to extend the pole by 1 m each if required.

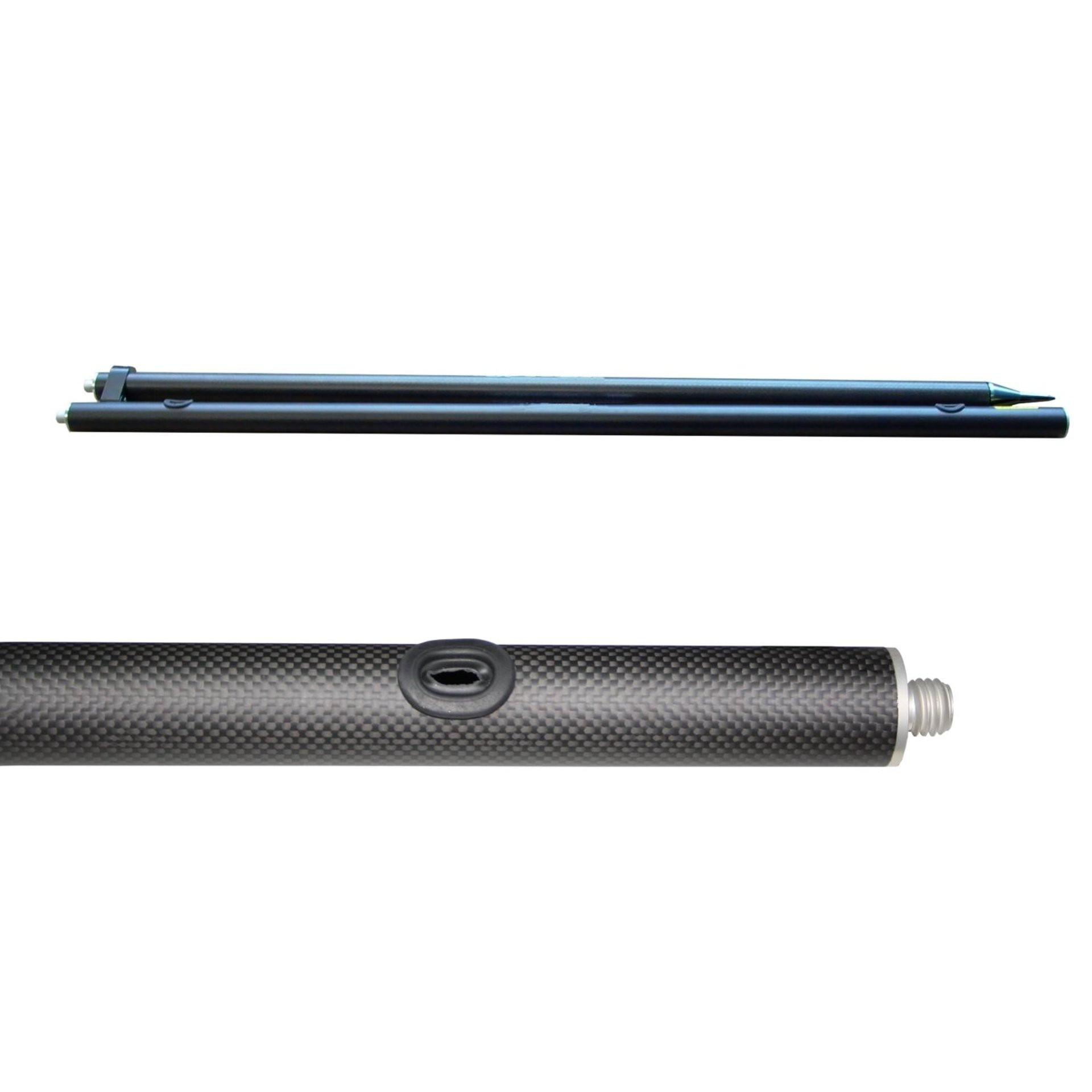

  • The upper segment has two guide holes with rubber sleeves to accommodate the antenna cable.
  • PP-2-H, art. no. 14011000, 2-segment carbon rod with cable guide holes

Description

The required accuracy in data acquisition presupposes the use of a professional pole. The carbon rods from NESTLE impress with their light weight, durability and convenient handling.

Scope of Delivery

NESTLE GNSS Pole (PP-2-H)
