NESTLE GNSS Pole Carbon PG-9 / 3-fold lockable / Ouick-out

Convenient handling with quick connection

Top Features

  • The carbide tip does not wear out - thus no falsification of measurements due to blunt tip.
  • Outer tube and inner tube made of carbon for ergonomic working.
  • Convenient to transport and clean.

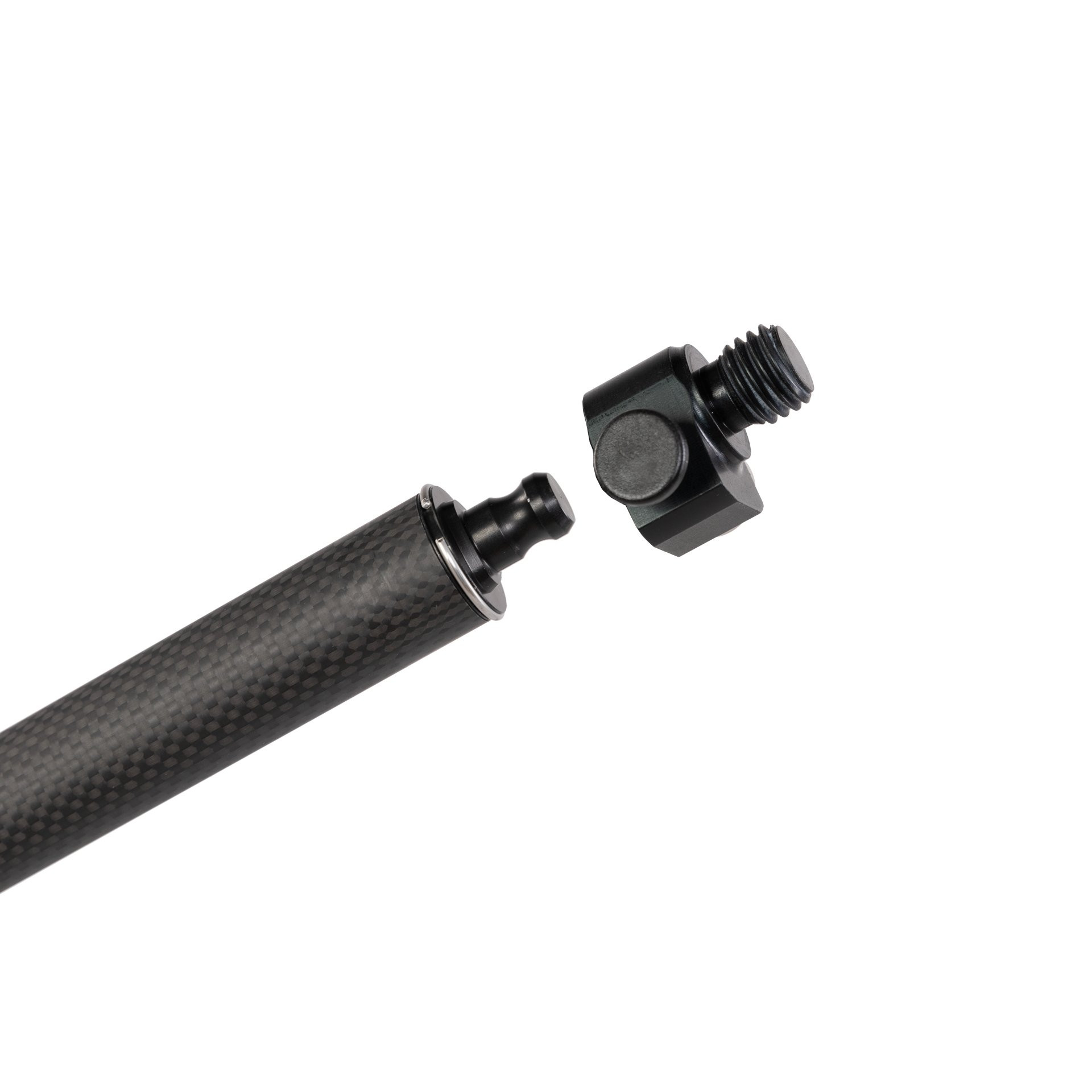

  • With "Quick-out" quick connector for secure and fast attachment of the antenna.

Variants

Variant

Technical Data

Connection 5/8"
Working range Locking 1.60 / 1.80 / 2.00 m
Special feature Carbon-carbon, telescopic, 3-fold adjustment, "Quick-out" quick connector
Diameter Outer tube 32 mm , inner tube 25 mm
Weight 700 g
Clamping Screw clamp
Transport dimension 134 cm
Product Number (PID) 14041000

Highlights at a Glance

  • For GNSS measurements of all kinds.
  • The screwable sand plate prevents the pole from sinking in soft terrain when recording and setting out. Can be screwed onto the top for exact centring.
  • Outer and inner tube made of carbon pleasant handling even at low temperatures.

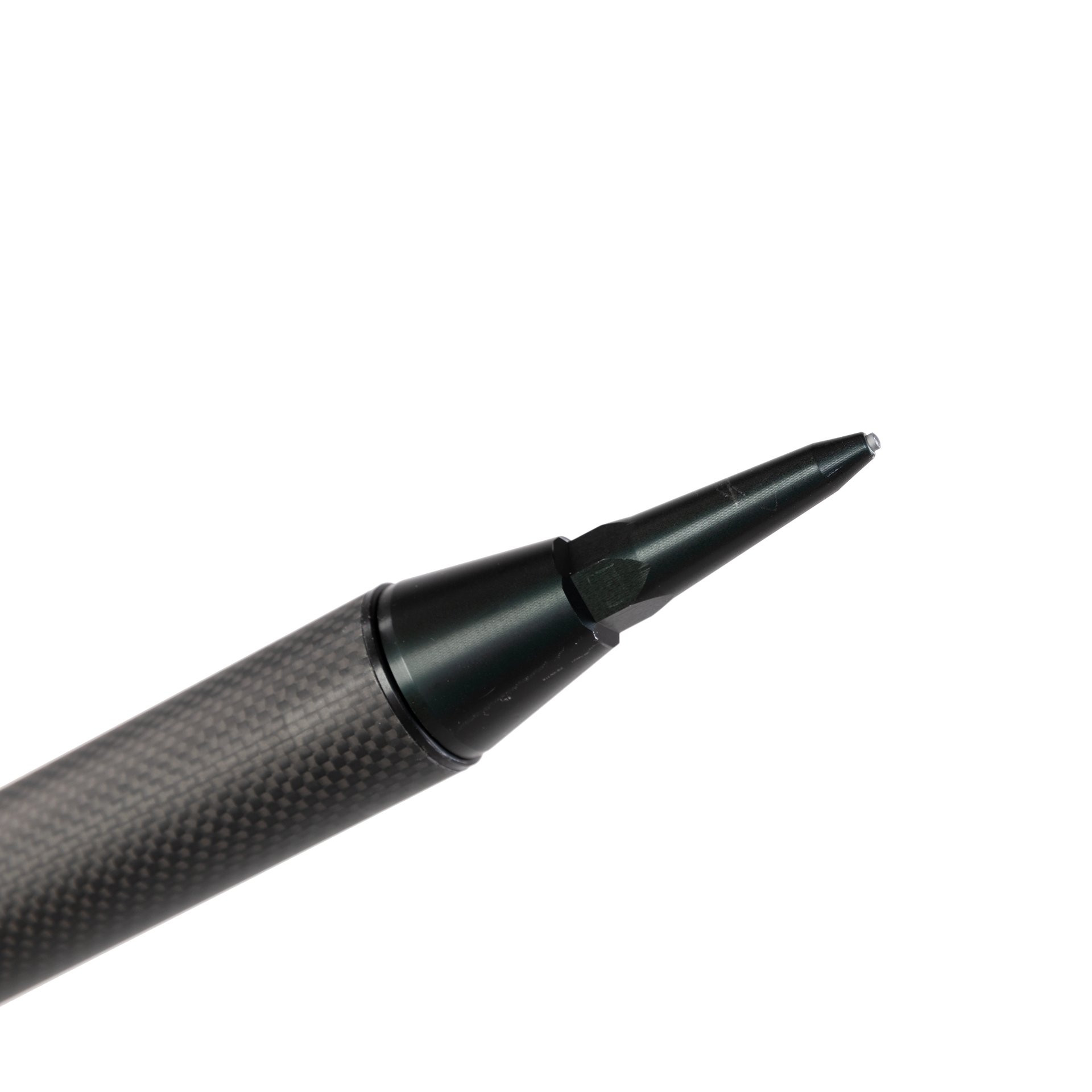

  • Tip with carbide insert.

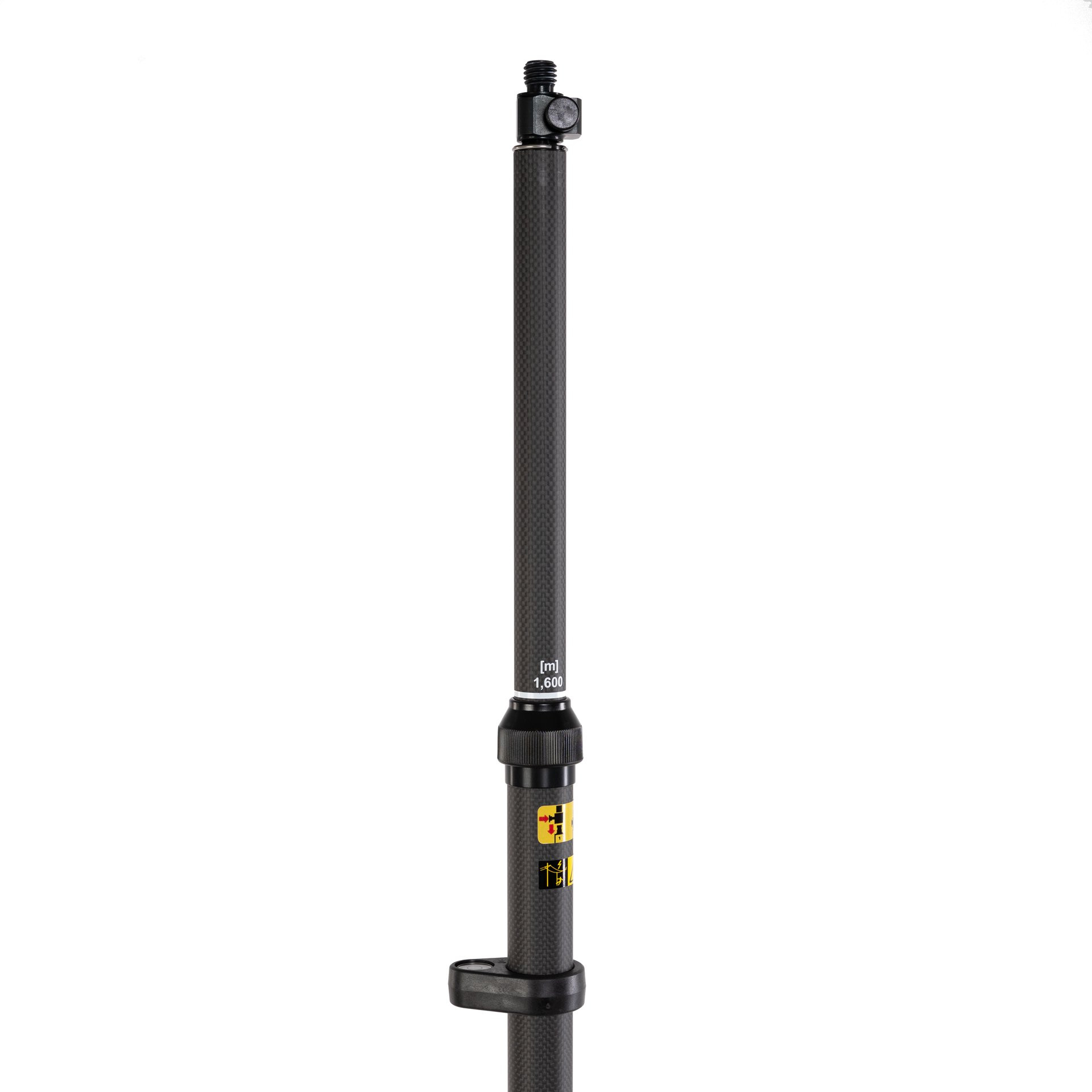

  • The pole is telescopic with locking at 1.60 m, 1.80 m, 2.00 m.
  • For ergonomic work, both poles have a 132 cm immersion tube, so field calculators can be attached at a comfortable working height.

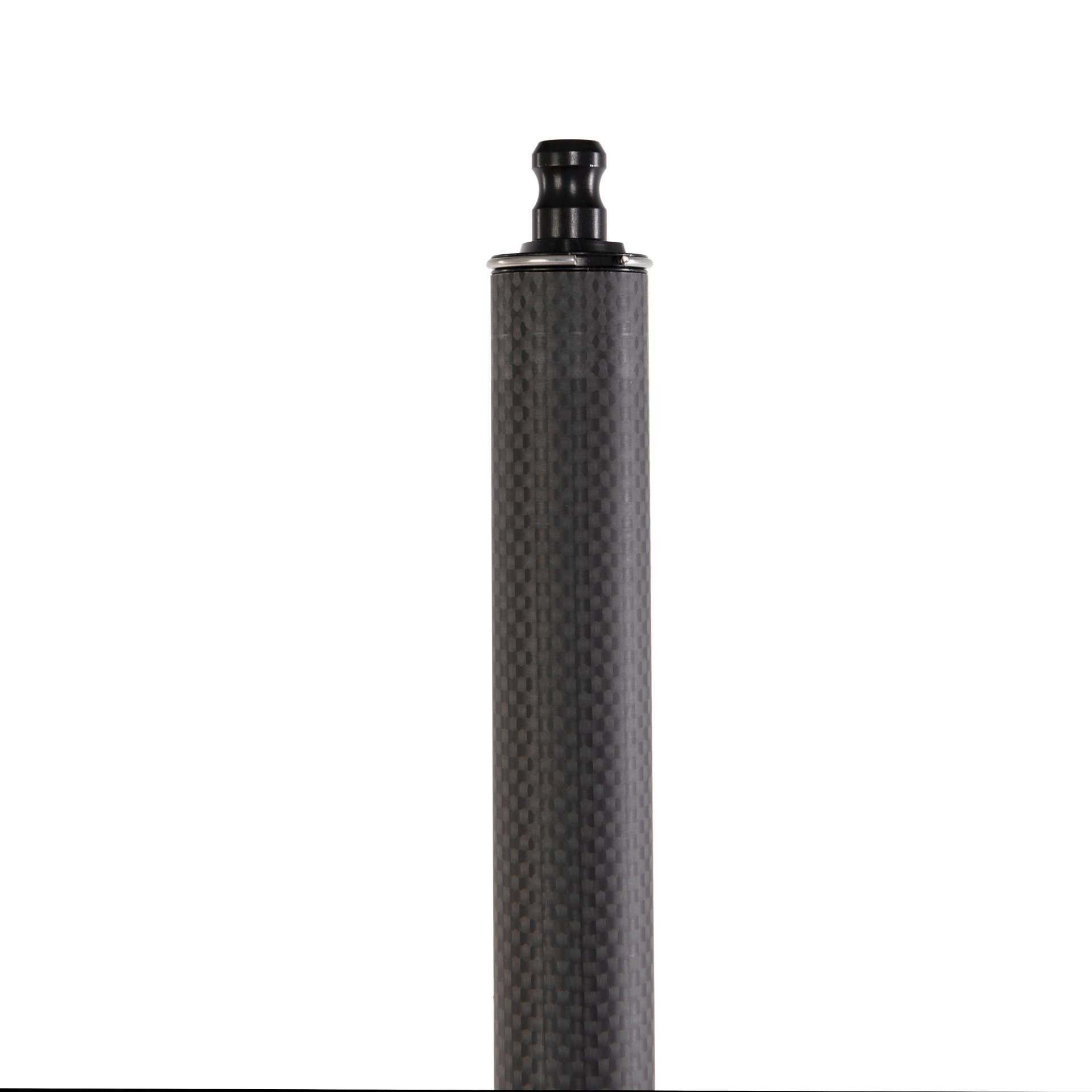

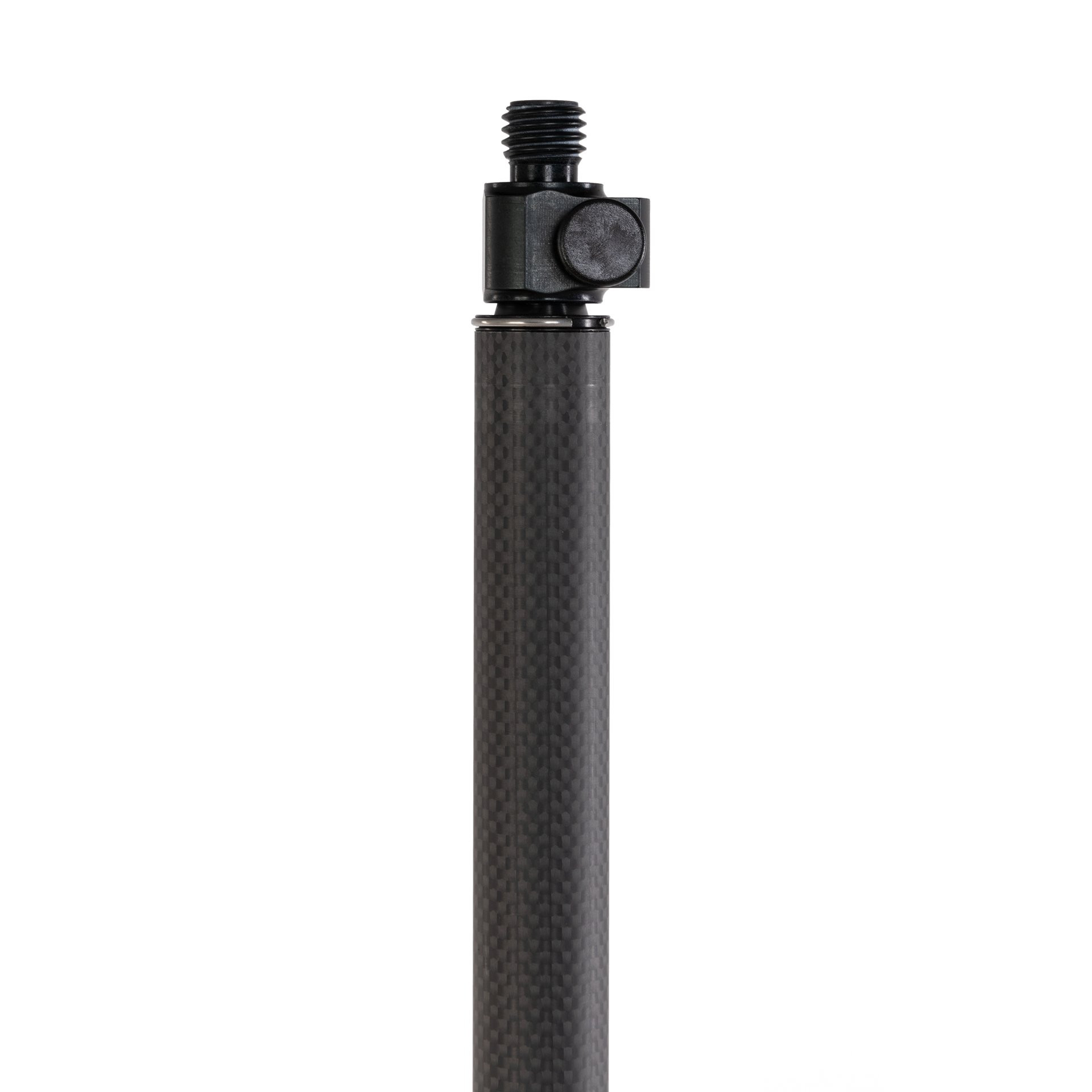

  • PG-9, art. no. 14041000 with integrated quick connector "Quick-out", for quick and safe attachment or replacement of the antenna.

Description

The required accuracy in data acquisition presupposes the use of a professional pole. The carbon poles from NESTLE impress with their light weight, durability and convenient handling. Rod with 3-fold grid (160 cm, 180 cm, 200 cm) and integrated quick connector "Quick-out" for easy, quick and safe attachment of the GNSS antenna. Without screwable sand plate.

Scope of Delivery

NESTLE GNSS Pole (PG-9)
