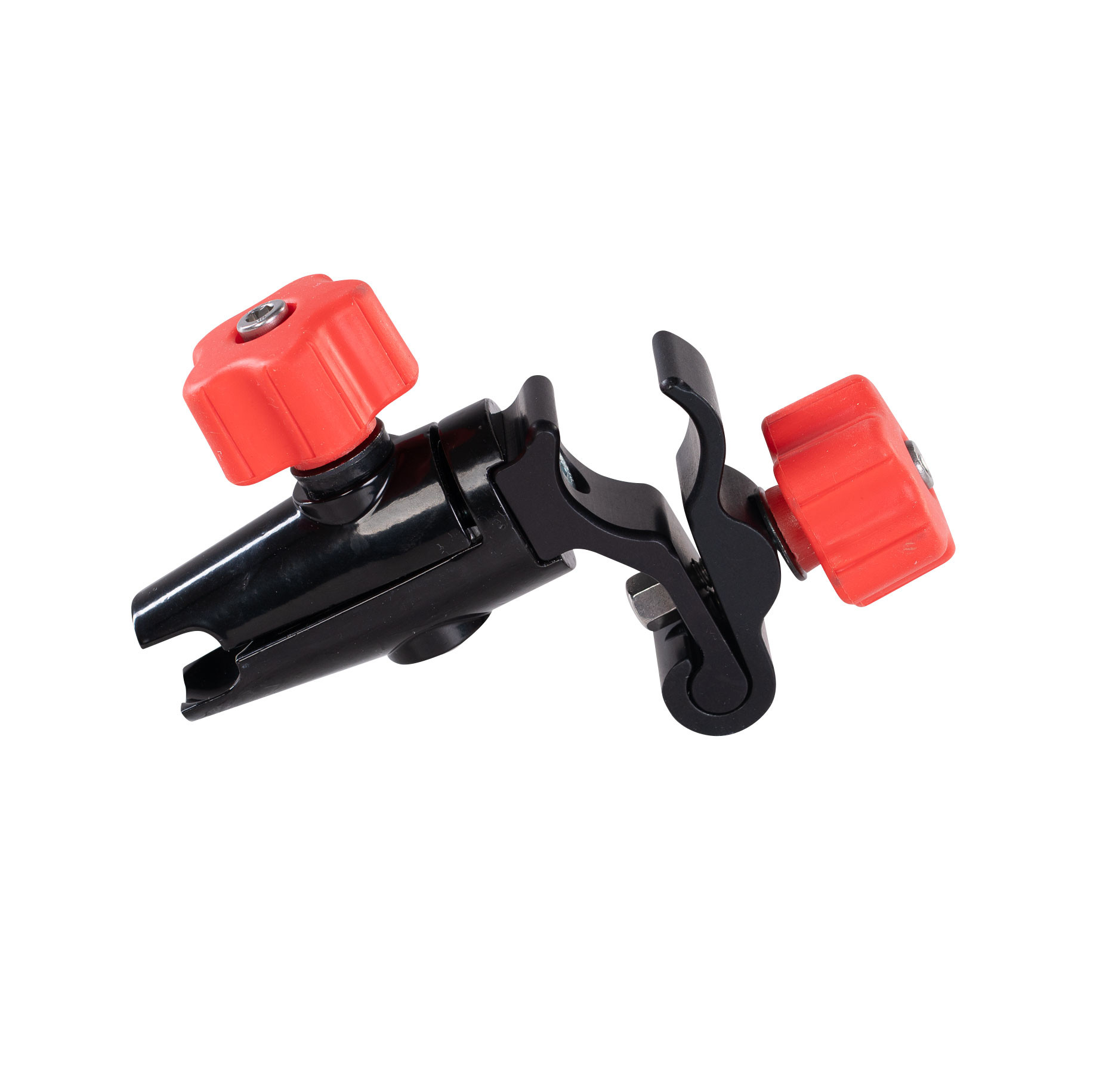

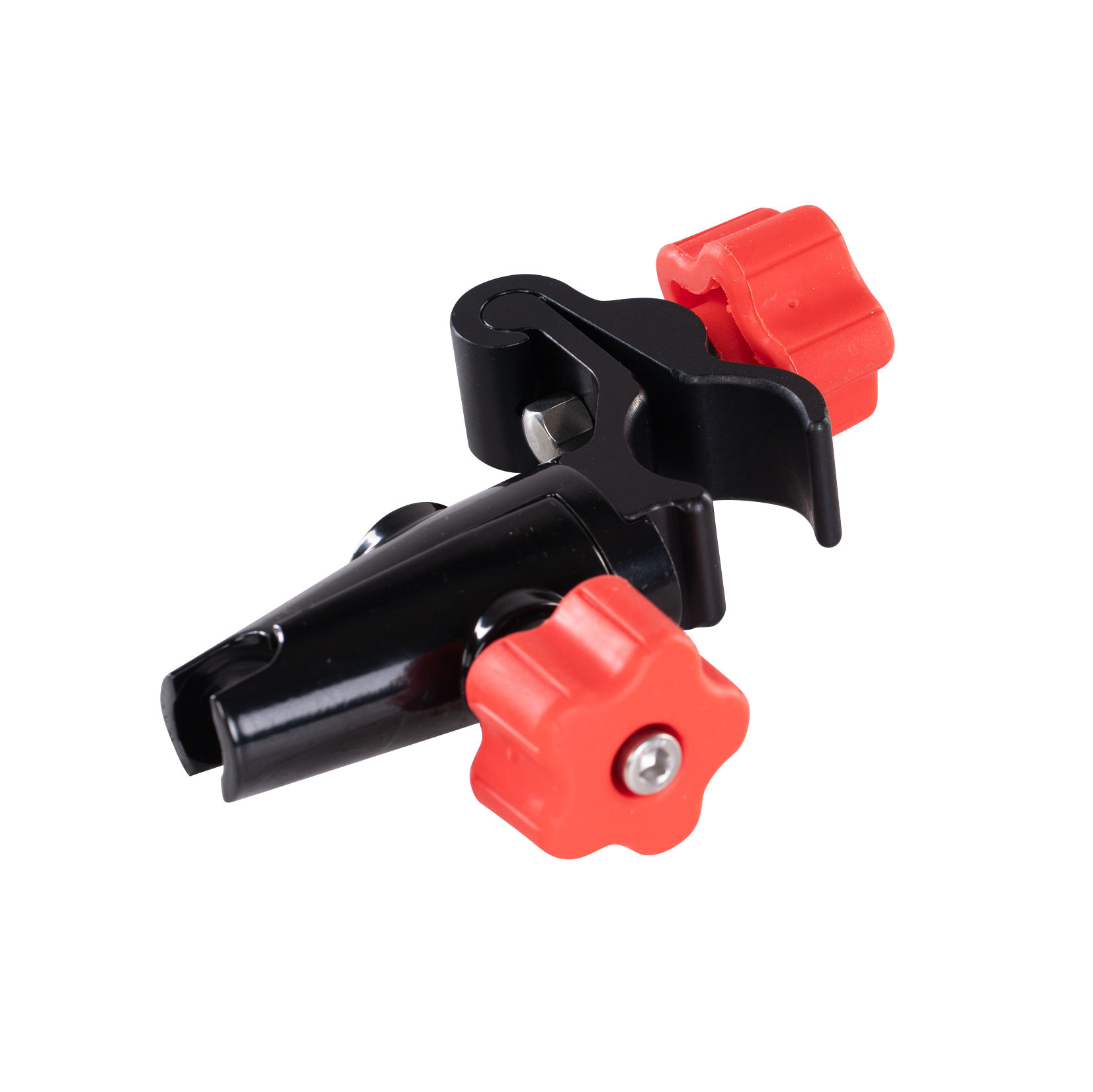

NESTLE HB-S basic holder (for rods)
Continuous rotation and tilting
Top Features
-
Particularly short ball & socket version
-
Double-C clamping for perfect clamping pressure distribution on the rod
Variants
Variant
Execution
Technical Data
| Function | Base holder for NESTLE HB-S carrier system (for poles) |
|---|---|
| Pole clamping | Double-C screw clamp |
| Clampable pole diameters | 22 - 32, Claw holder for ball Ø 25 mm |
| Weight | 240 g |
| Product Number (PID) | 14807000 |
Highlights at a Glance
-
Double-C clamping for perfect clamping pressure distribution on the rod
Description
The NESTLE HB-S system is a mounting system for field computers on prism and GNSS poles. The mounting system consists of two parts: Basic holder: which is attached to the pole, the basic holder can accommodate all computer carriers of the HB-S series.
Computer carrier: for a specific type of computer. The connection between the base holder and the computer carrier is created by a particularly short ball and claw clamp. This clamp makes it very easy to rotate and tilt the field calculator.
The base holder, with double C-clamp, enables perfect clamping pressure distribution for all carbon rods.
Scope of Delivery
Basic holder HB-S system
