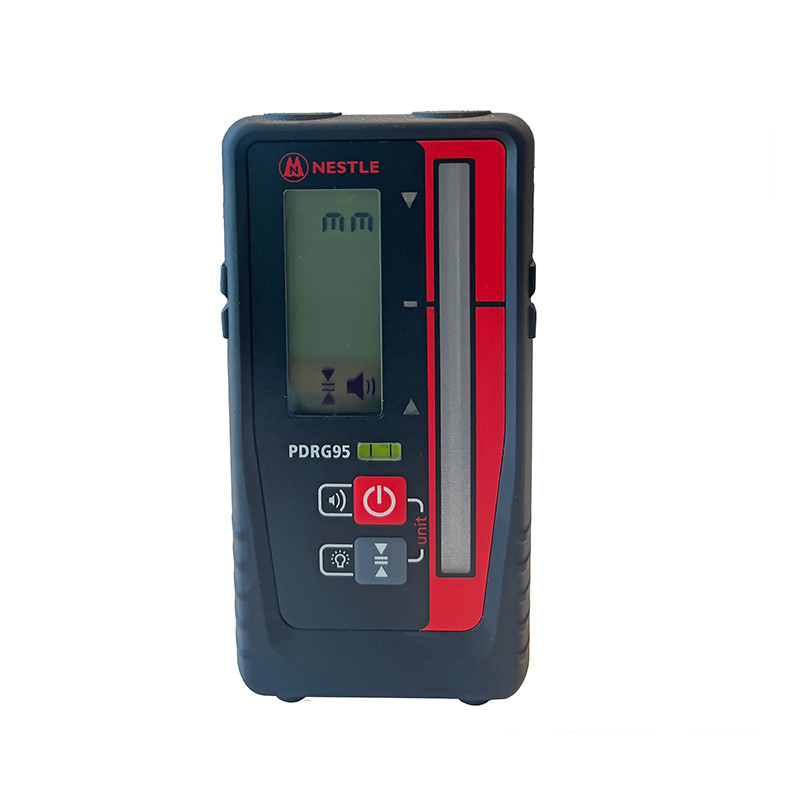

NESTLE PULSAR receiver PDRG95
Receiver for rotating lasers with green or red laser beam
Top Features
-
Receiver with mm display
-
Receiver for rotating lasers with red or green laser beam
-
Front and rear display for optimum readability.
-
Receiver Made in Germany
Variants
Variant
Function
Technical Data
| Displayable units | mm, cm, Inch, fract.Inch |
|---|---|
| Display accuracy | ± 1 / ± 2 / ± 5 mm |
| Equipment | Magnet, spirit level, clamp holder, loudspeaker, 3 LEDs |
| Automatic switch-off | Yes |
| Batterie | 1 x AA |
| Filter | against flash light and sunlight |
| Altitude display | numerical mm, graphic, LED |
| Receiving field length | 90 mm |
| Laser beams | red and green |
| Volume | loud / quiet / off |
| Dimensions / Weight | 135 x 69 x 25 mm / 0.19 kg |
| Protection class | IP67 |
| Wavelength | 450 - 800 nm |
| Product Number (PID) | 16834001 |
Highlights at a Glance
-
The deviation from the laser beam (height values) is displayed as an arrow, with LED and in mm and is also supported acoustically.
-
The reception sensitivity (display accuracy) can be set in tree stages.
Description
The NESTLE PDRG95 receiver is the ideal receiver for all rotation lasers in the NESTLE Pulsar series. When a laser beam hits the receiver field, an arrow in the display shows the direction in which the receiver must be moved. The direction of displacement is supported by 3 LEDs, and the deviation to the center of the receiving field (reference) is also displayed in mm. The IP67 protection class makes this receiver suitable for indoor and outdoor applications in harsh construction site environments.
Scope of Delivery
NESTLE receiver PDRG95
Clamp holder
1 x AA Batterie
