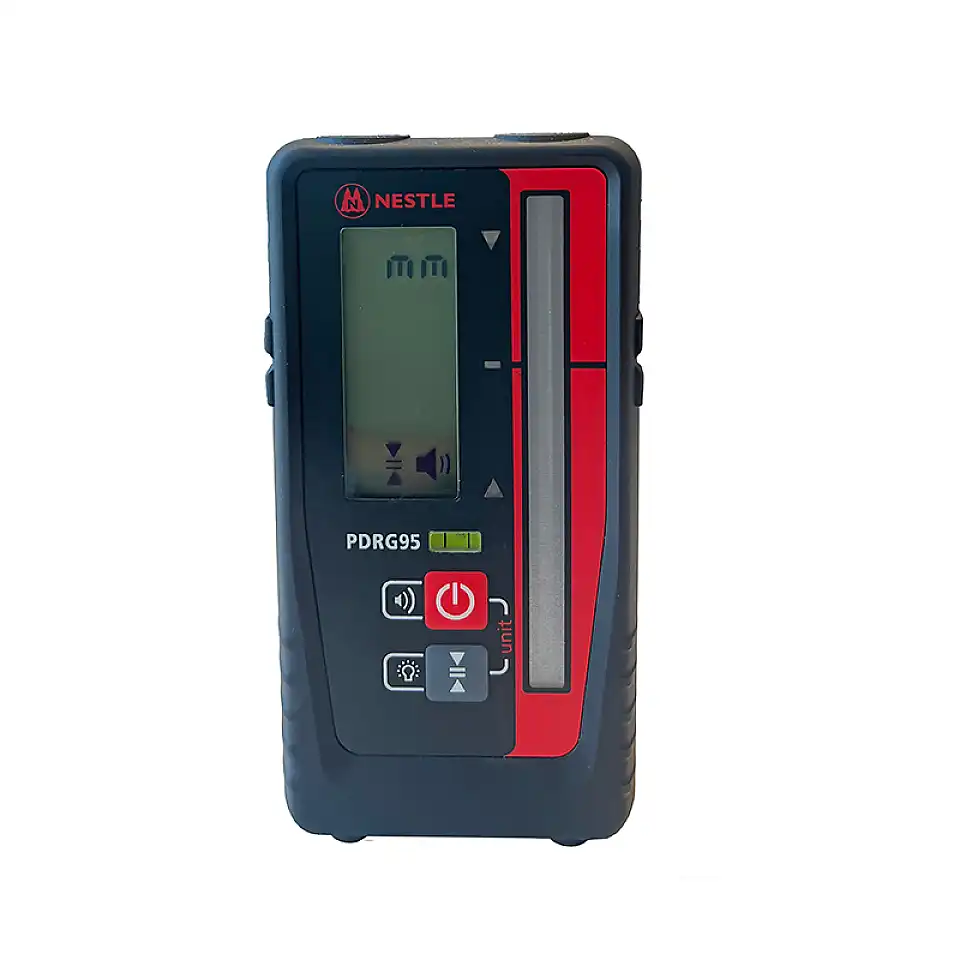

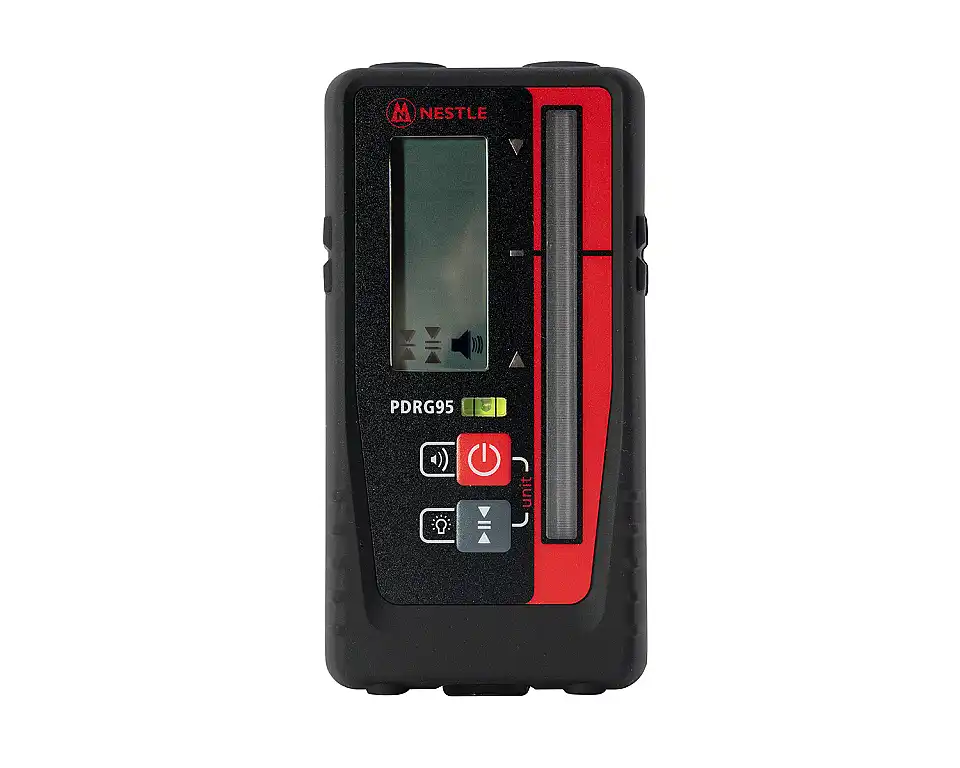

NESTLE PULSAR receiver PDRG95

Receiver for rotating lasers with green or red laser beam

Top Features

  • Receiver with mm display
  • Receiver for rotating lasers with red or green laser beam
  • Front and rear display for optimum readability.
  • Receiver Made in Germany

Variants

Variant

Function

Technical Data

Displayable units mm, cm, Inch, fract.Inch
Display accuracy +- 1 / +- 2 / +- 5
Equipment Magnet, spirit level, clamp holder, loudspeaker, 3 LEDs
Automatic switch-off Yes
Batterie 1 x AA
Filter against flash light and sunlight
Altitude display numerical mm, graphic, LED
Receiving field length 90 mm
Laser beams red and green
Volume loud / quiet / off
Dimensions / Weight 135 x 69 x 25 mm / 0.19 kg
Protection class IP67
Wavelength 450 - 800 nm
Product Number (PID) 16834001

Highlights at a Glance

  • The deviation from the laser beam (height values) is displayed as an arrow, with LED and in mm and is also supported acoustically.
  • The reception sensitivity (display accuracy) can be set in three stages.

Description

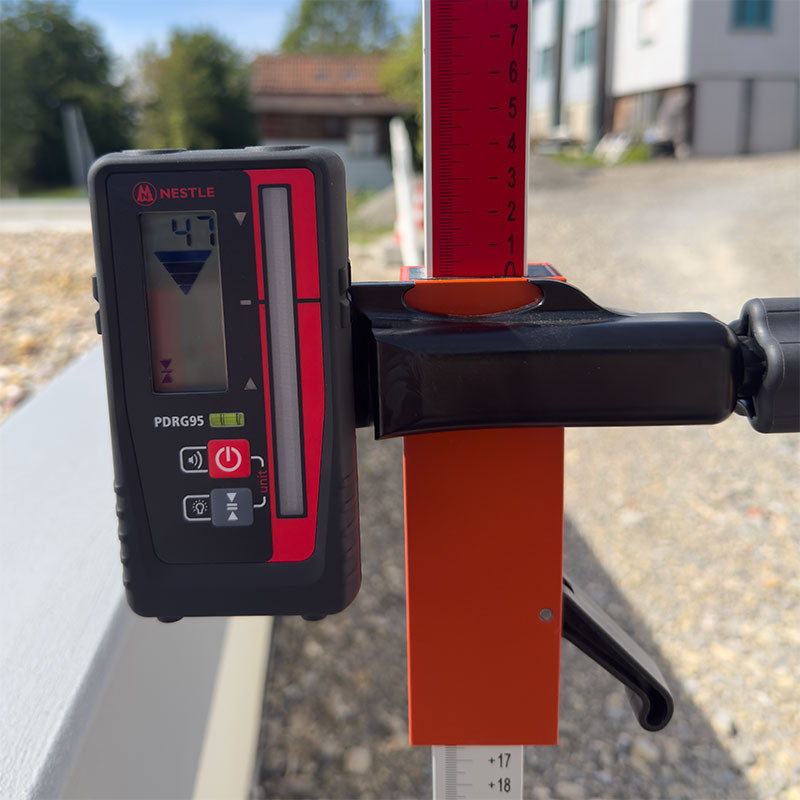

The NESTLE PDRG95 receiver is the ideal receiver for all rotation lasers in the NESTLE Pulsar series. When a laser beam hits the receiver field, an arrow in the display shows the direction in which the receiver must be moved. The direction of displacement is supported by 3 LEDs, and the deviation to the center of the receiving field (reference) is also displayed in mm. The IP67 protection class makes this receiver suitable for indoor and outdoor applications in harsh construction site environments.

Scope of Delivery

NESTLE receiver PDRG95
Clamp holder
1 x AA Batterie
