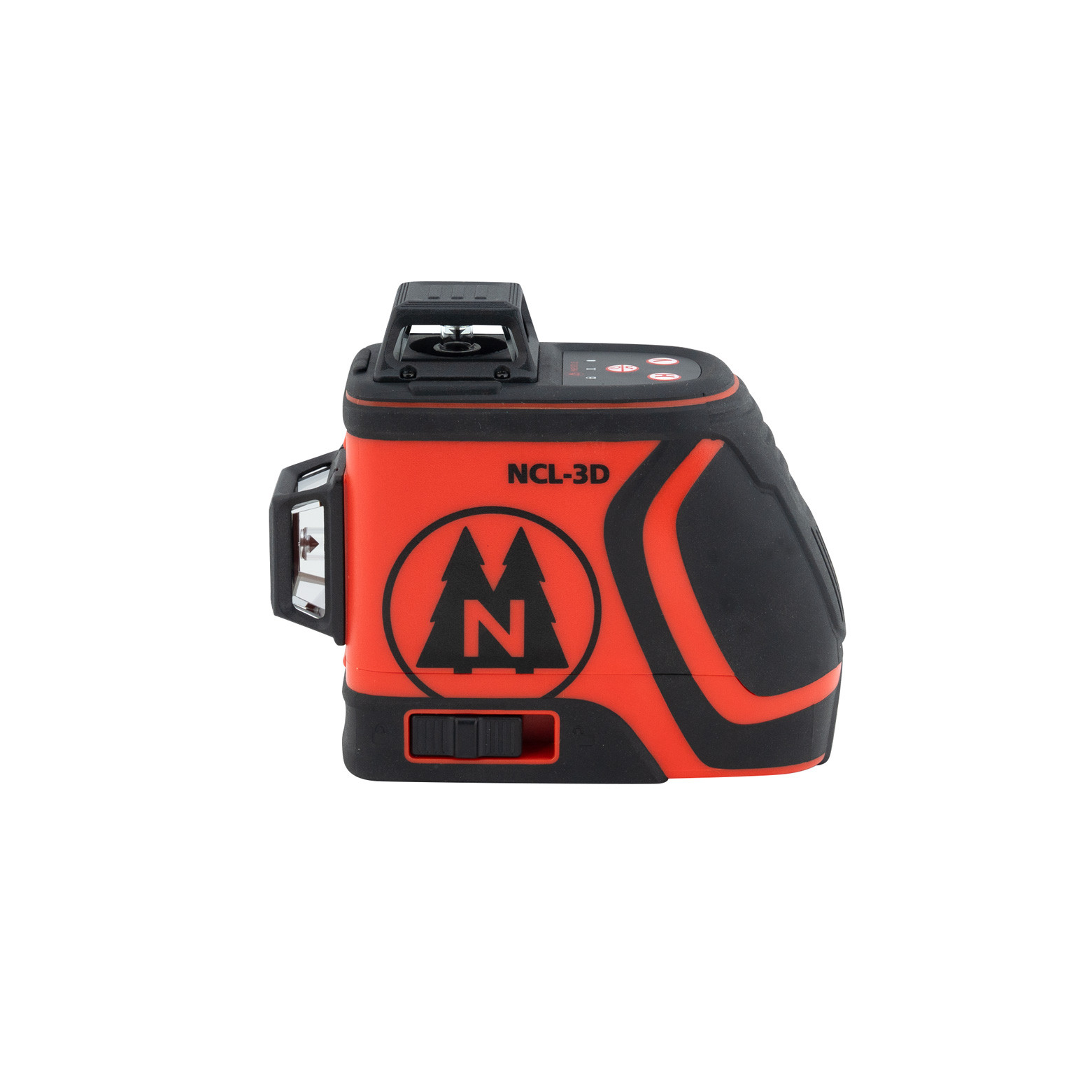

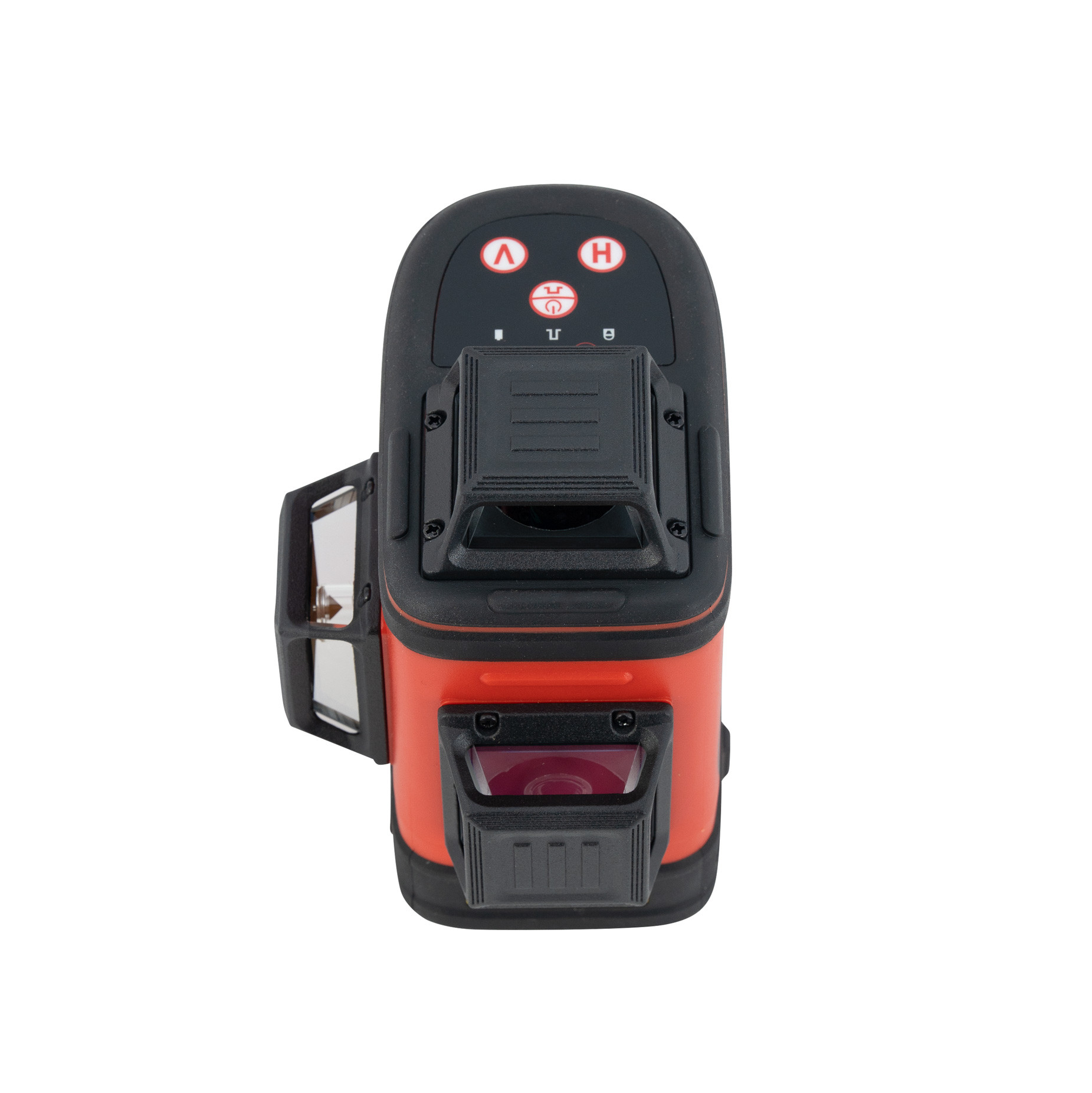

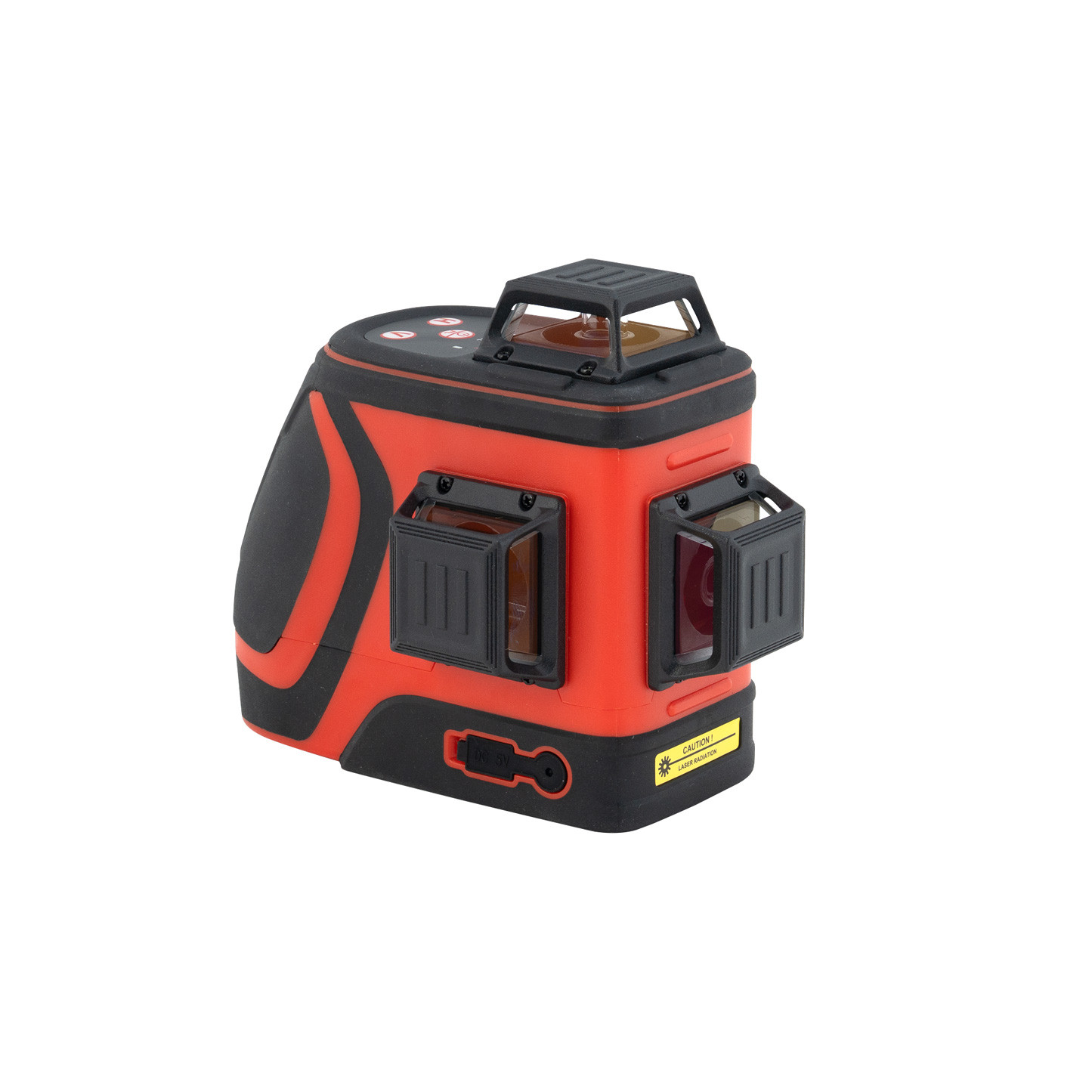

NESTLE Multi-Line Laser NCL-3D

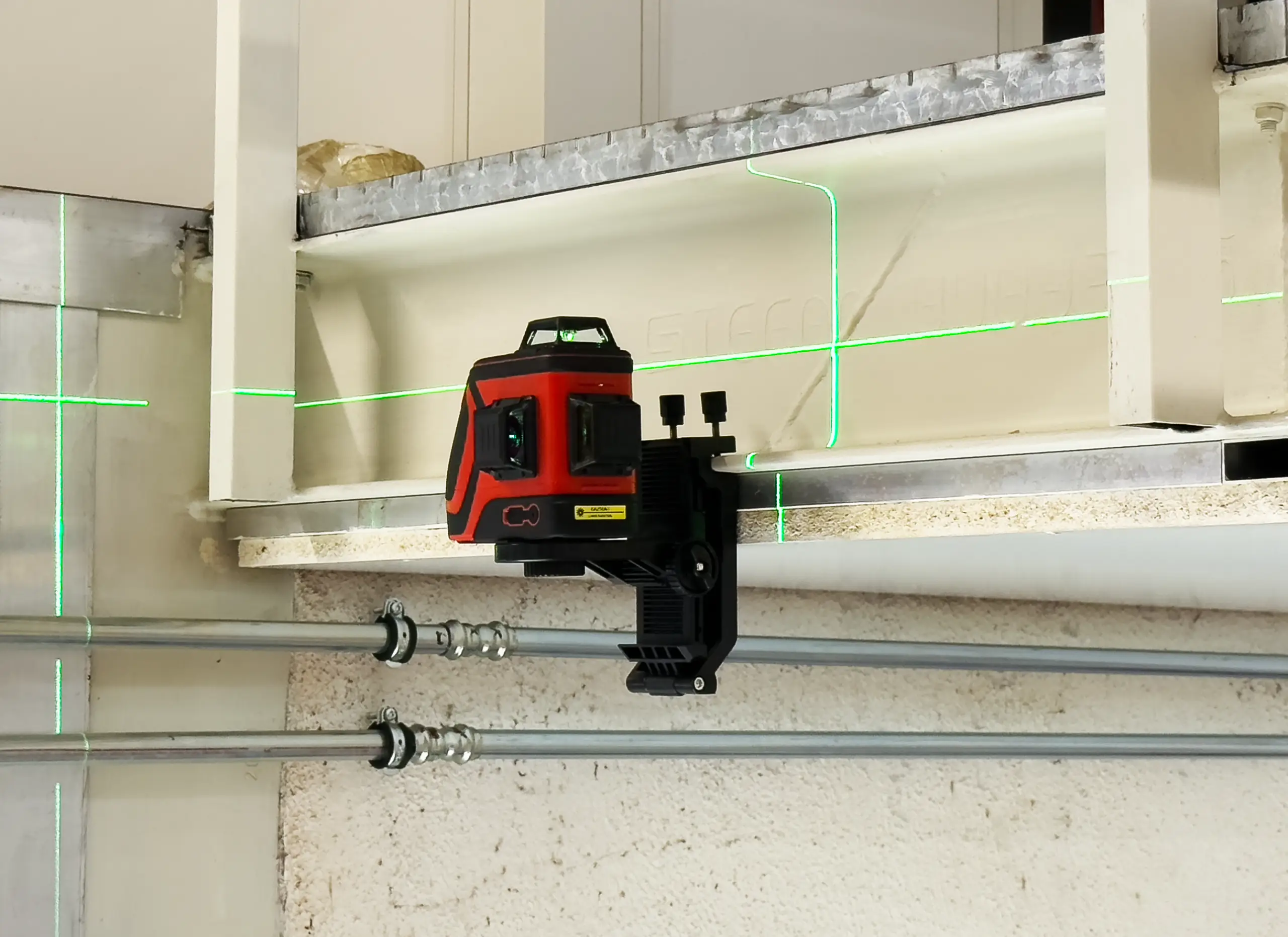

For precision alignments with green laser beam in 3 directions 360°

Top Features

  • 3x360 degree self-leveling laser
  • Durable pendulum assembly
  • ±4° self-leveling and manual mode
  • Green laser beams
  • IP54-Design
  • Pulse mode for receiver operation

Technical Data

Laser horizontal 1 x 360°
Laser vertical 2 x 360°
Laser 520 nm / Class 2 (according to IEC 60825-1)
Laser colour green
Protection class IP54 (dust and splash water protected)
Operation temperature -10°C to +40°C
Working area without receiver (300LUX) Ø 40 m

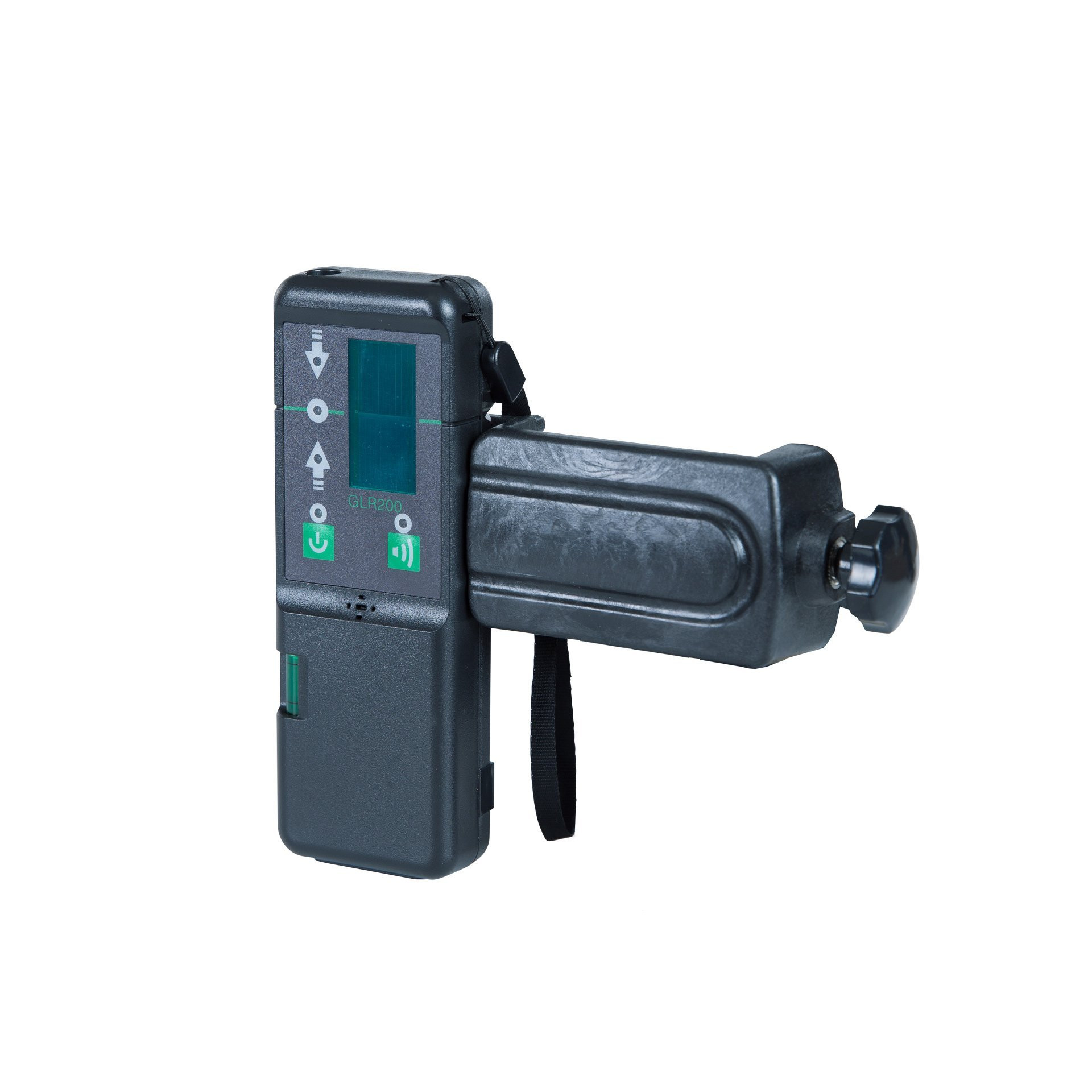

Work area with receiver (optional) Ø 80 - 120 m
Operational with receiver yes
Self-leveling range, time +-4°, < 4 seconds
Accuracy ± 2 mm / 10 m
Dimensions 150x80x125 mm
Weight (including battery) 700 g
Connection 1/4" & 5/8"
Power supply Li-Ionen battery 7,4 V 2600mAh
Operating time (all lines on, one battery) < 10 hours
Remote control range 50 m
Product Number (PID) 16118001

Highlights at a Glance

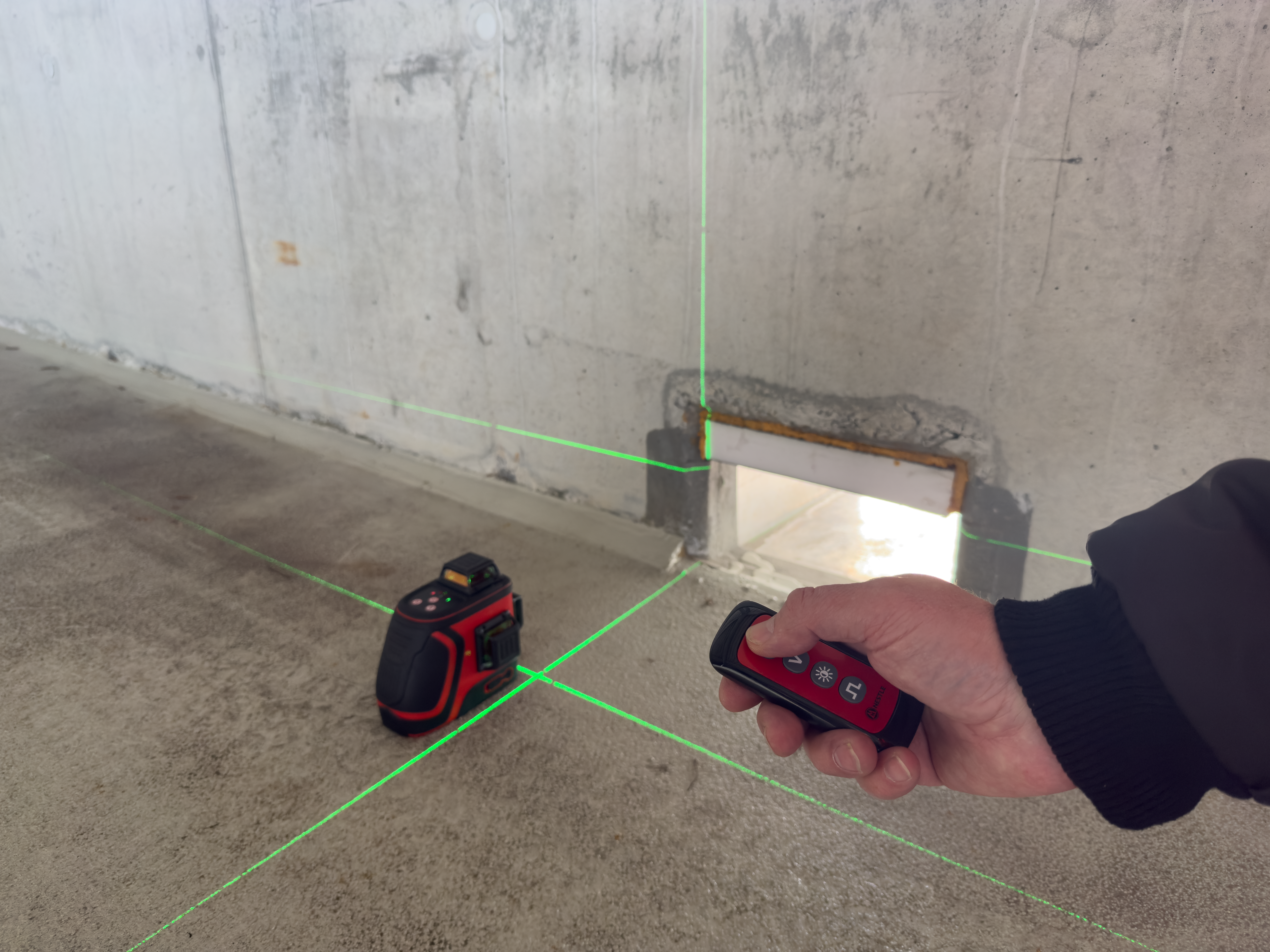

  • The laser lines can be switched on or off using the remote control, so you reduce unnecessary walking distances and work efficiently.
  • Green laser beams are perceived up to four times better by the human eye than red laser beams. The NESTLE NCL-3D is therefore also suitable for bright environments and large work areas.
  • With the included mains adapter and cable (Type-C / USB), you can charge the battery in the charging cradle or directly on the instrument.

Description

The NESTLE NCL-3D multi-line laser redefines precision. Equipped with three green laser lines, it ensures outstanding visibility and accuracy. The remote control allows convenient control, while the three laser lines, each with 360°, ensure comprehensive alignments. This instrument sets new standards in three-dimensional visualization and offers a reliable solution for projects where precise alignment are essential. With the NCL-3D you can achieve unsurpassed results in terms of precision and efficiency.

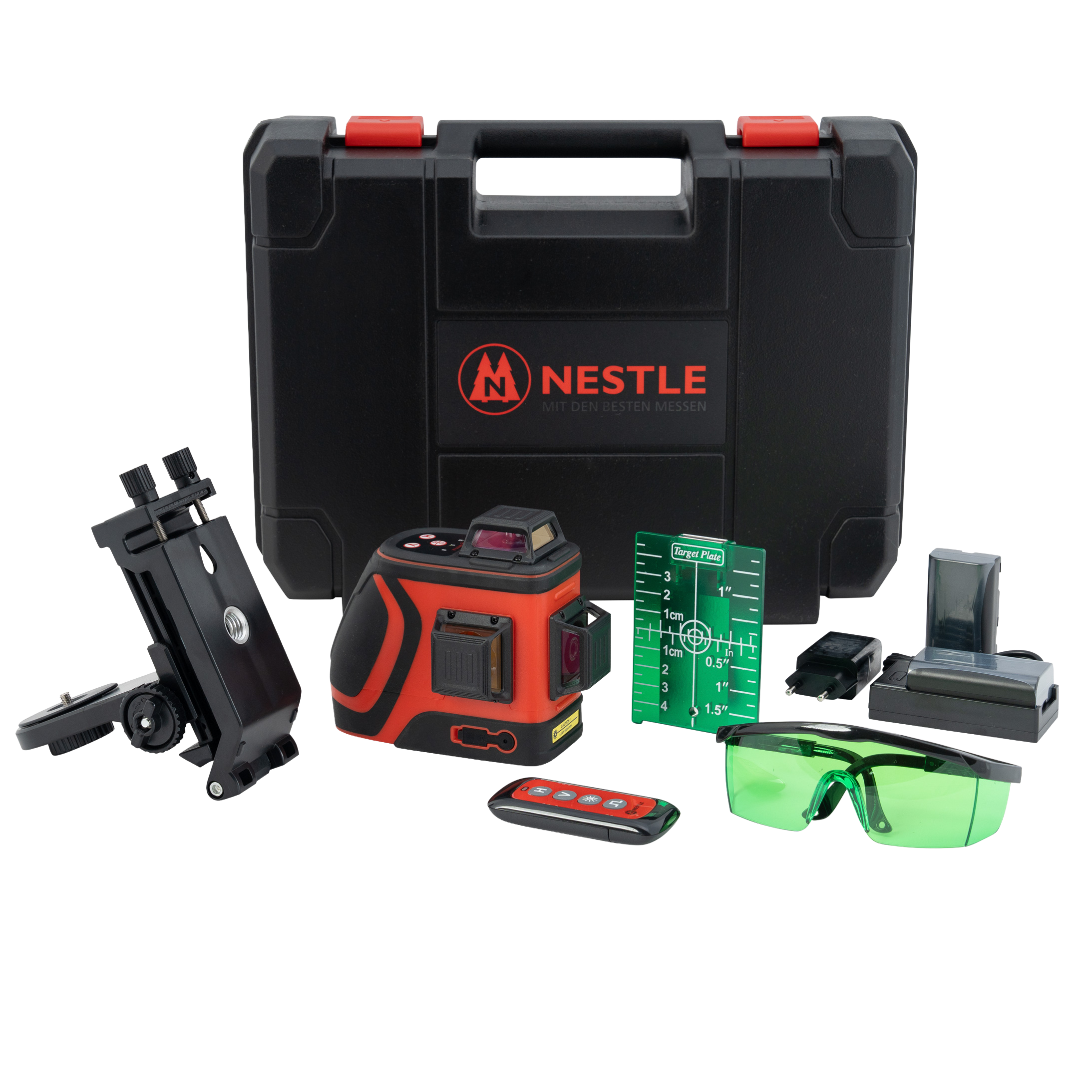

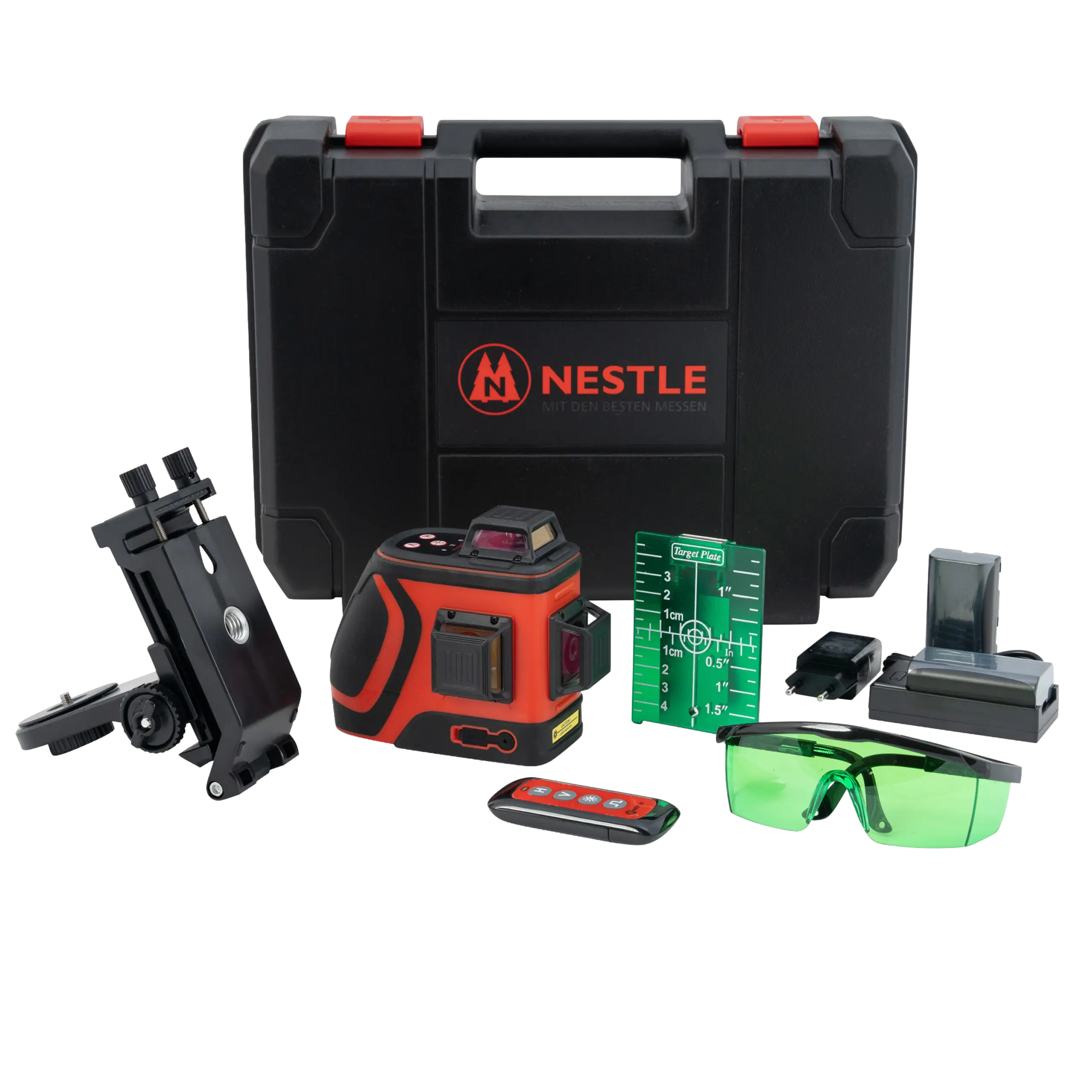

Scope of Delivery

NCL-3D
Remote control
2 Li-ion batteries
charging cradle
Type-C/USB cable
Power supply unit

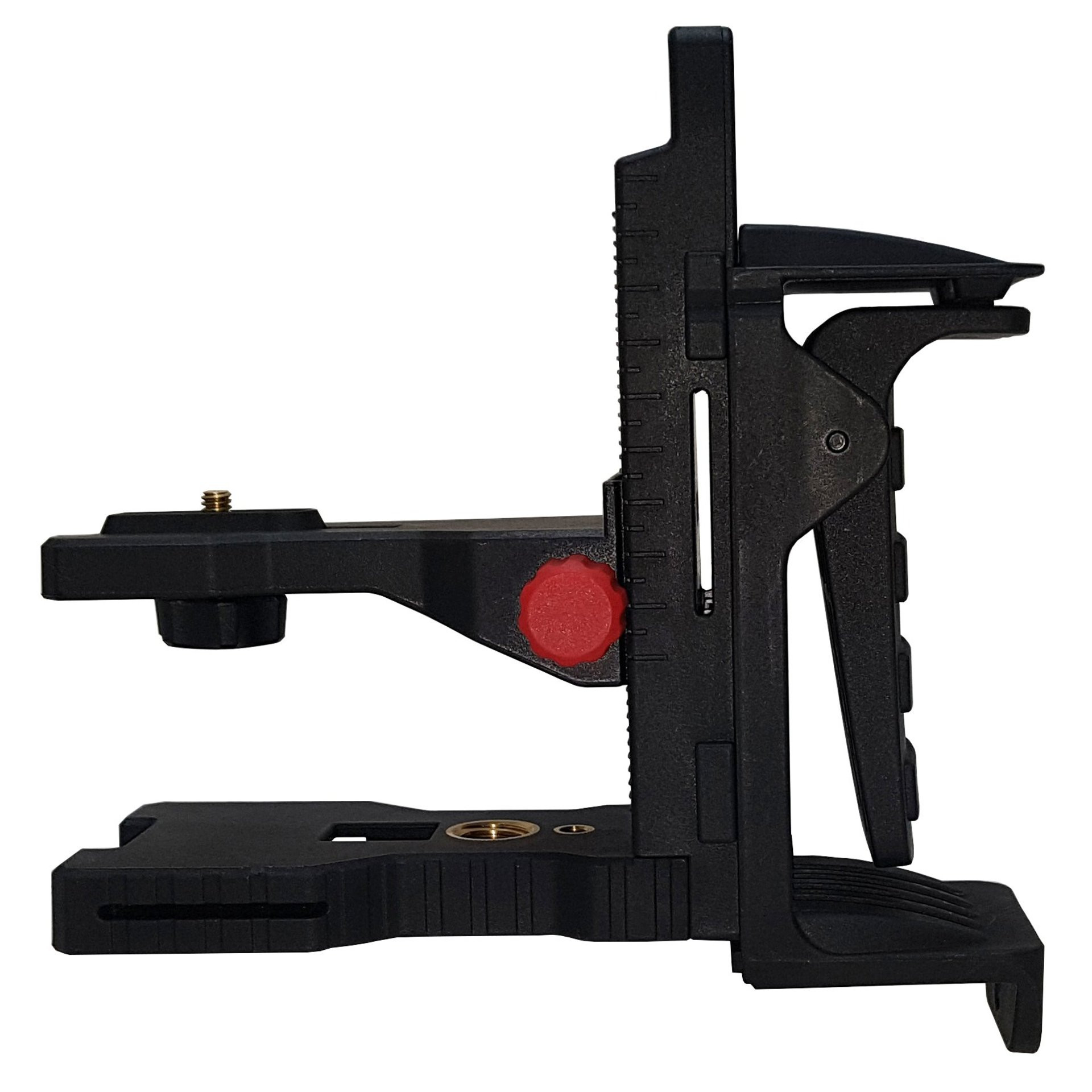

Wall mount
Suitcase
Manual
