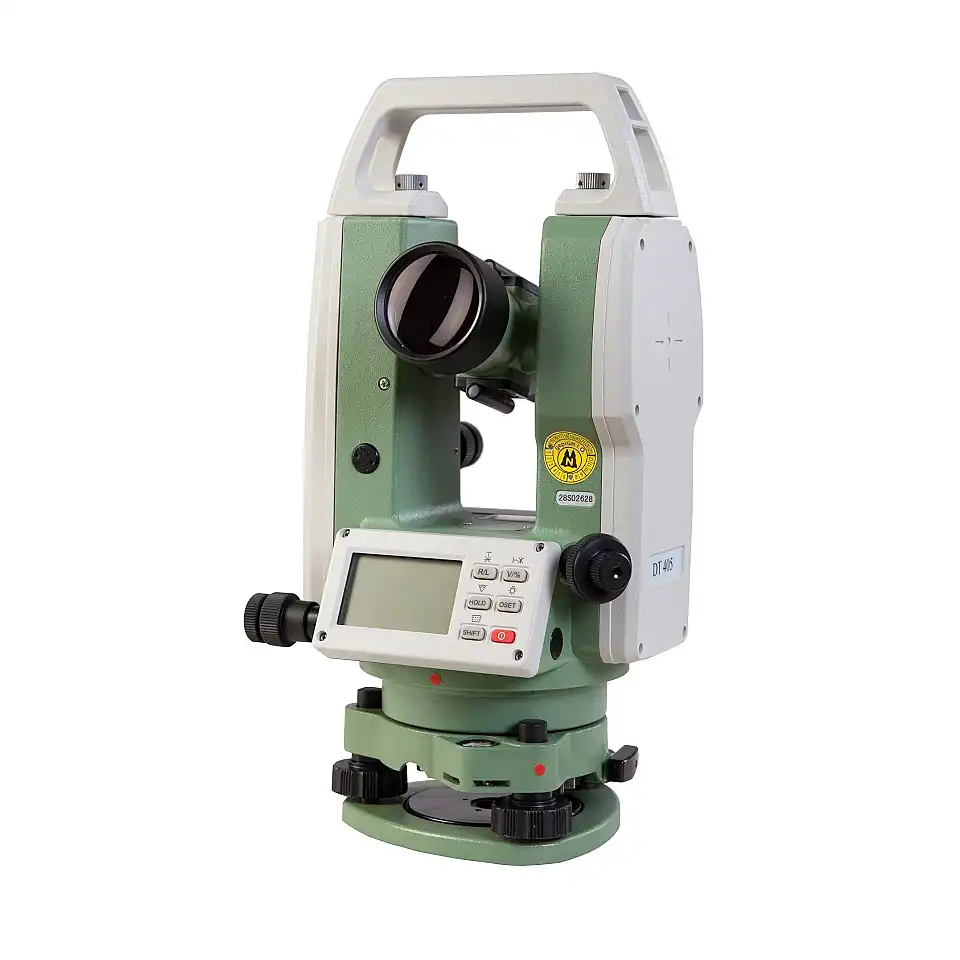

NESTLE DT-405 Theodolite Electronic Theodolite
For aligning and checking building axes
Top Features
-
Large and easy to read digits in the display
-
Tripod included
-
Integrated function for testing and adjustment in the field
Variants
Variant
Equipment
Execution
Technical Data
| Operation temperature | - 20°C to + 50°C |
|---|---|
| Accuracy angle measurement | 5 " |
| Weight | 4300 g |
| Shortest target distance | approx. 100 cm |
| Dimensions | 153 x 175 x 340 mm |
| Lens aperture | Ø 45 mm |
| Protection class / laser class | IP54 / 2 |
| Enlargement | 30x |
| Product Number (PID) | 15103000 |
Highlights at a Glance
-
With optical plummet
-
The DT-400 series is an electronic theodolite with a digital angle measuring unit.
-
Optionally with optical plummet (art. no. 15103000) or with laser plummet (art. no. 15104000).
-
Both tubular and circular bubble for quick levelling.
-
Switchable between degrees, GON and MIL.
Description

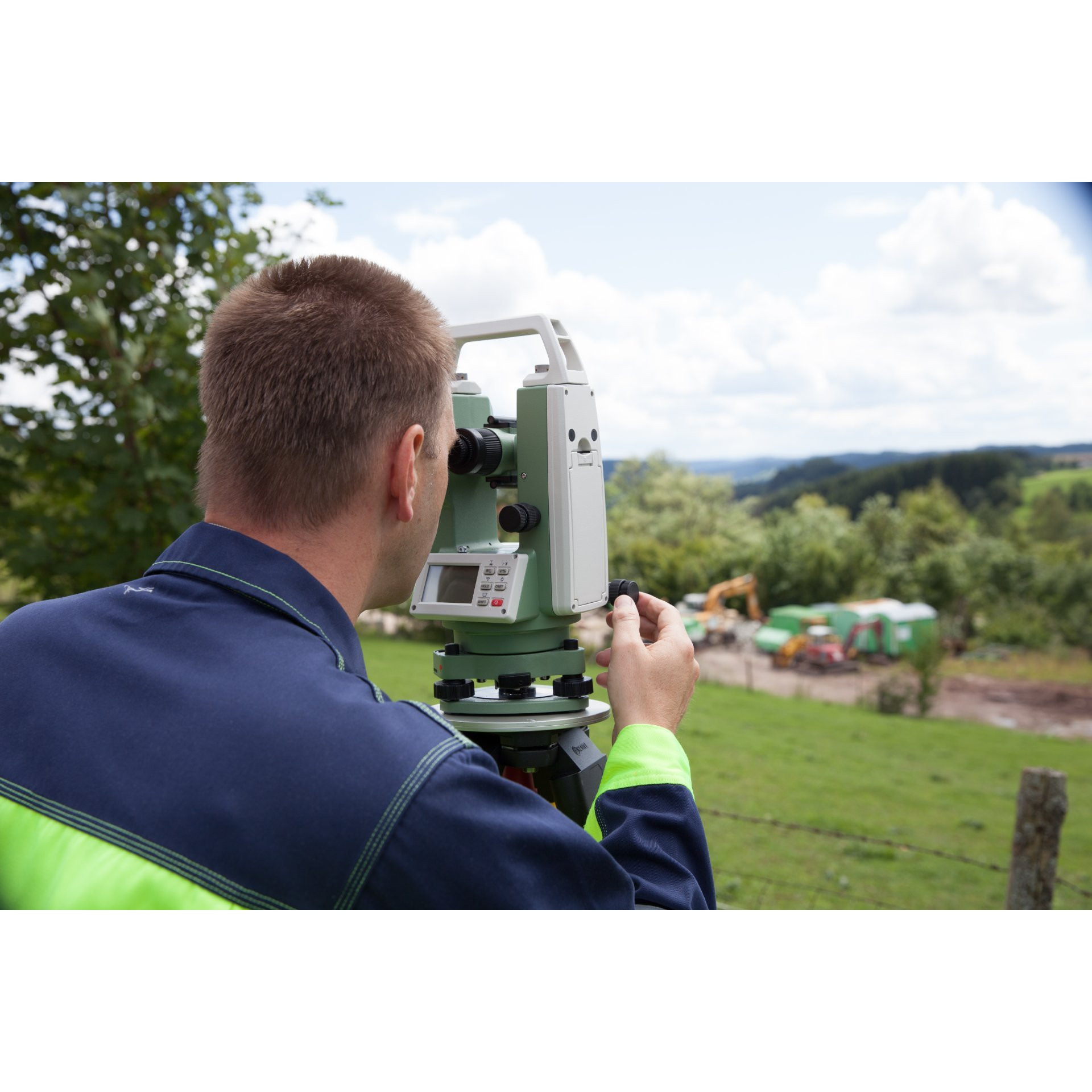

This lightweight, robust and very accurate electronic theodolite with an accuracy in angle measurement of 5" is particularly suitable for construction surveys and the engineering sector. The DT-405 is also ideally suited for demanding tasks such as angle checks, alignments, inclinations and short levellings due to its excellent workmanship and easy operation.
Scope of Delivery
Electronic theodolite
Manual
Charging station
Battery
Battery compartment
Adjustment tool
Rain bonnet
Transport case

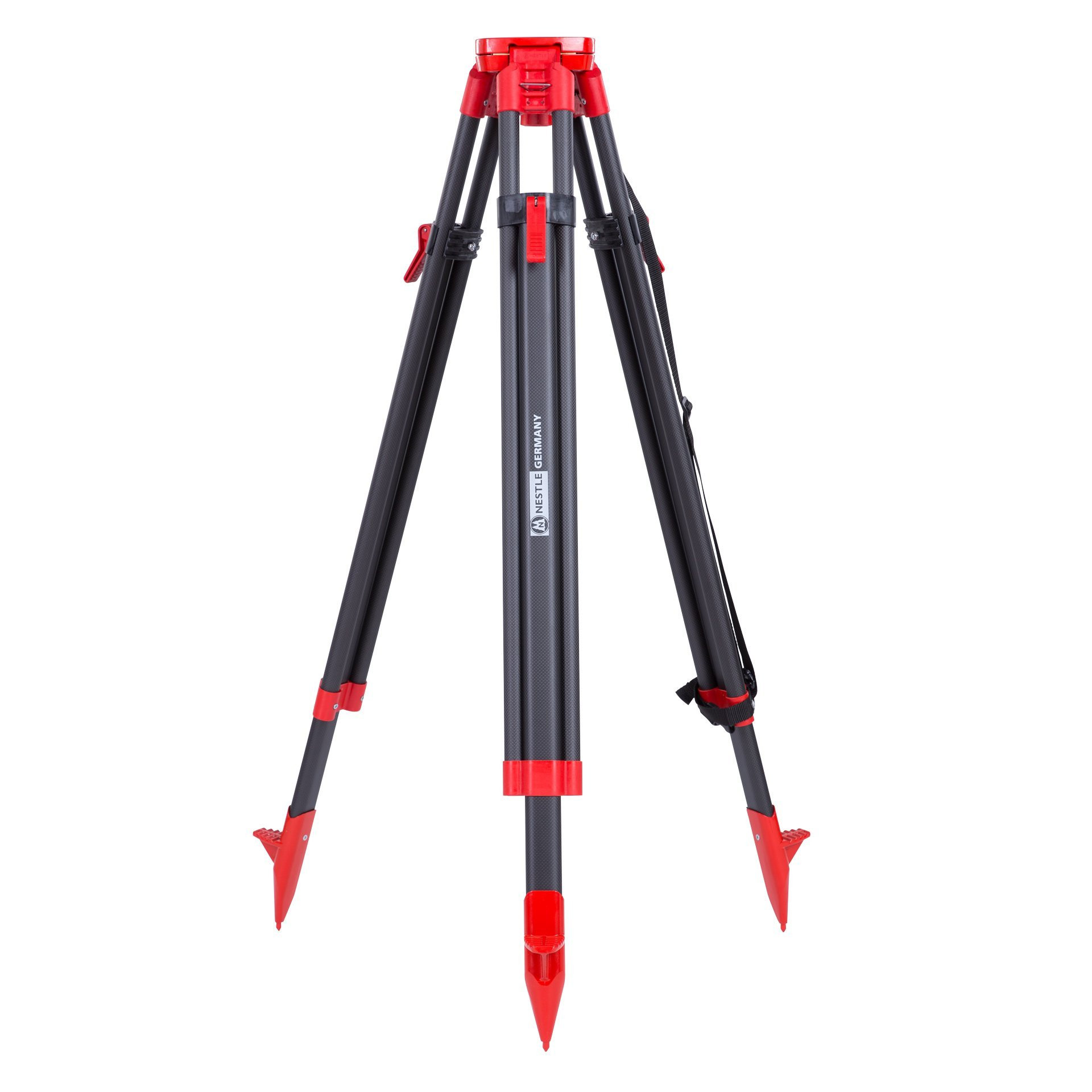

Tripod
