NESTLE DT-405 Theodolite Electronic Theodolite

For aligning and checking building axes

Top Features

  • Large and easy to read digits in the display
  • Tripod included
  • Integrated function for testing and adjustment in the field

Variants

Variant

Equipment

Execution

Technical Data

Operation temperature - 20°C to + 50°C
Accuracy angle measurement 5 "
Weight 4300 g
Shortest target distance approx. 100 cm
Dimensions 153 x 175 x 340 mm
Lens aperture Ø 45 mm
Protection class / laser class IP54 / 2
Enlargement 30x
Product Number (PID) 15103000

Highlights at a Glance

  • With optical plummet
  • The DT-400 series is an electronic theodolite with a digital angle measuring unit.
  • Optionally with optical plummet (art. no. 15103000) or with laser plummet (art. no. 15104000).
  • Both tubular and circular bubble for quick levelling.
  • Switchable between degrees, GON and MIL.

Description

This lightweight, robust and very accurate electronic theodolite with an accuracy in angle measurement of 5" is particularly suitable for construction surveys and the engineering sector. The DT-405 is also ideally suited for demanding tasks such as angle checks, alignments, inclinations and short levellings due to its excellent workmanship and easy operation.

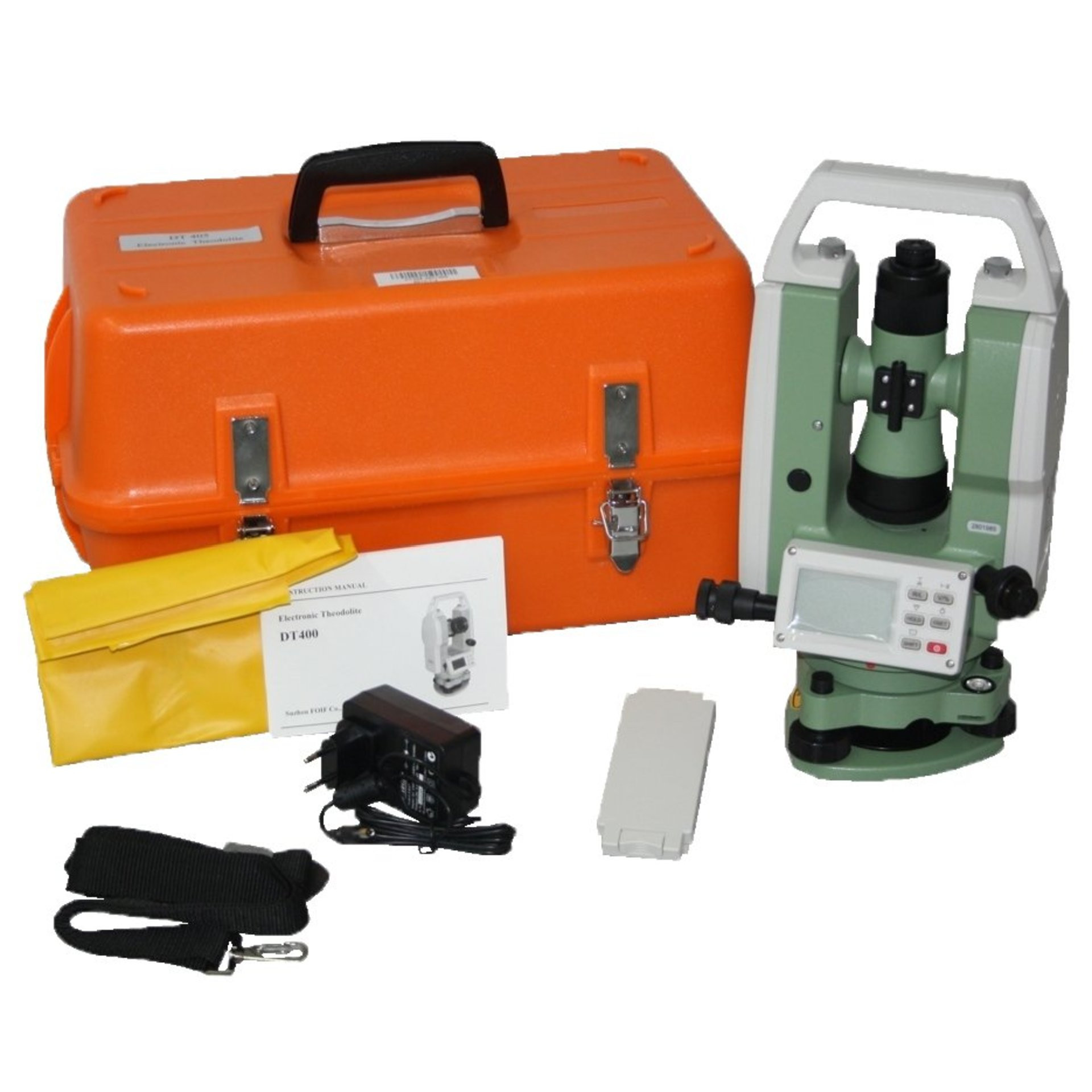

Scope of Delivery

Electronic theodolite
Manual
Charging station
Battery
Battery compartment
Adjustment tool
Rain bonnet
Transport case
Tripod
