NESTLE Pole-Tripod P3-Y
Universal tripod for prism or antenna poles
Top Features
-
Stable stand for prism or GNSS poles
-
Lightning-fast pole adjustment via thumb clamp
-
Head with side opening for ergonomic pole insertion
-
For all poles with a diameter of 18–32 mm
Variants
Variant
Execution
Technical Data
| Weight | 2.95kg |
|---|---|
| Clampable pipe diameters | 18 - 32mm |
| Leg adjustment range | 104 - 180cm |
| Head height at 1 m tip spacing | 165cm |
| Leg clamping mechanism | 2 legs with thumb clamp, 1 leg with screw clamp |
| Clamping head | mit seitlicher Öffnung |
| Material | Aluminium |
| Product Number (PID) | 14817001 |
Highlights at a Glance
-

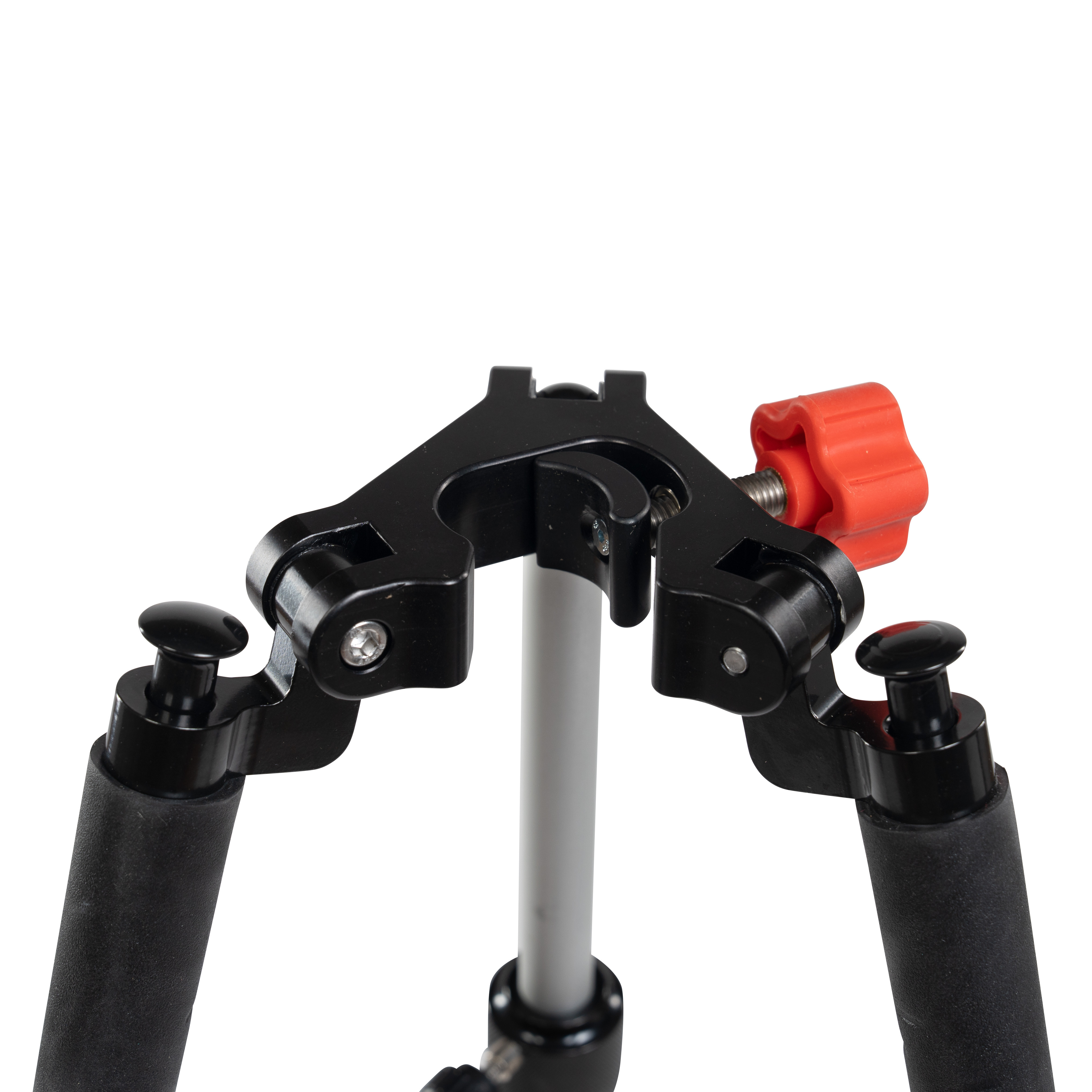

The rounded jaws of the C-clamp in the head optimally distribute the clamping pressure on the pole, thus protecting even carbon fiber poles.
-
Very stable stand for prism or GNSS poles, therefore also suitable for long-term setups.
-
The thumb clamp allows for quick and easy length adjustment of the legs.
Description

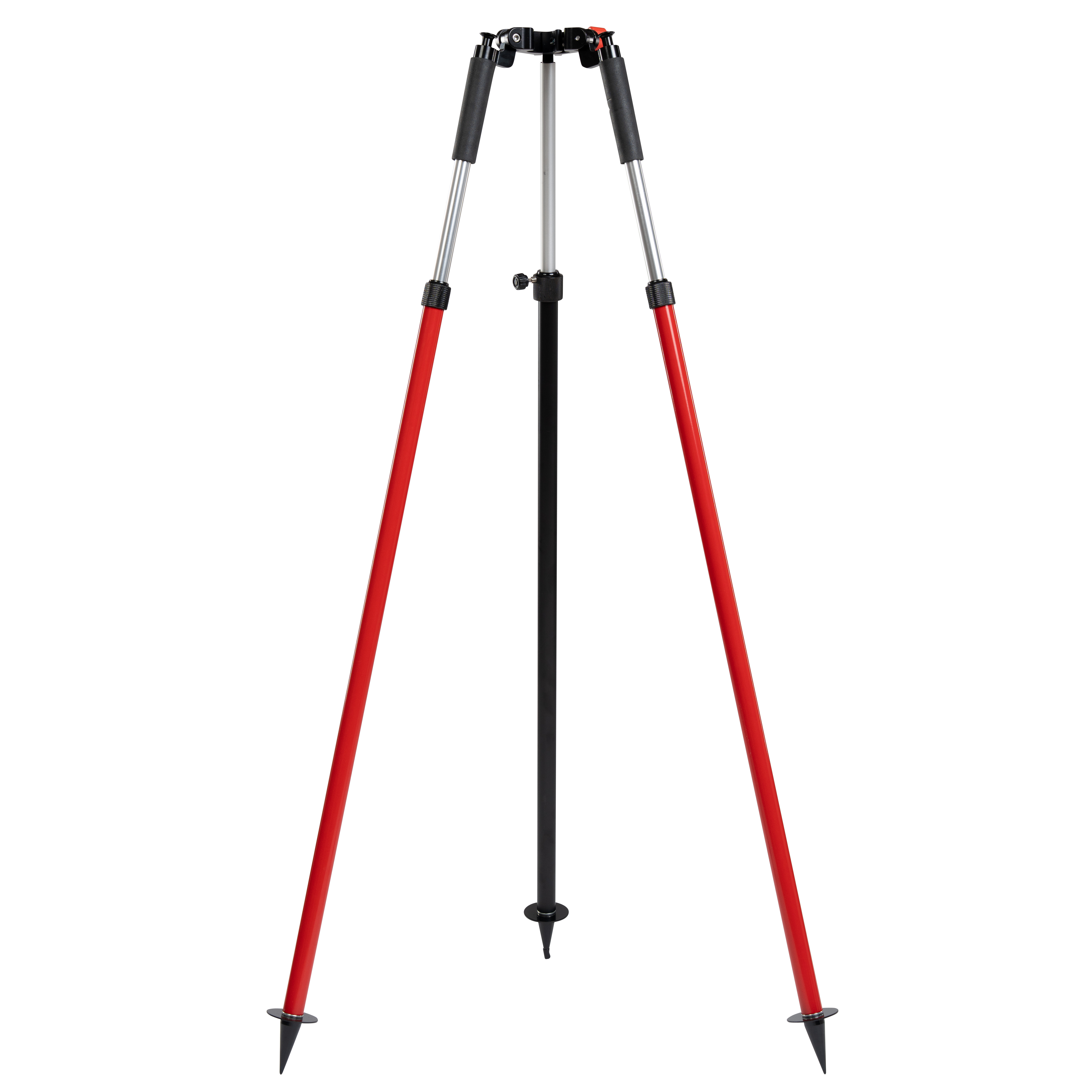

The particularly handy NESTLE P3-Y pole tripod is ideal for the stable positioning of prism and GNSS poles. Thanks to its three legs, your pole remains exceptionally stable, even over extended periods. The double-C clamp optimally distributes the clamping pressure on the pole, thus protecting carbon fiber poles. The thumb clamp on two legs allows for lightning-fast pole positioning. The pole tripod's head features a side opening for easy insertion of a prism or GNSS pole.
Setup is simplest: Secure the pole tripod to the pole – position the pole tip on the ground – adjust the spirit level using only two legs – finally, extend the third leg and fix this with locking screw – the prism/GNSS pole is now stable!
Scope of Delivery
NESTLE Pole-Tripod P3-Y

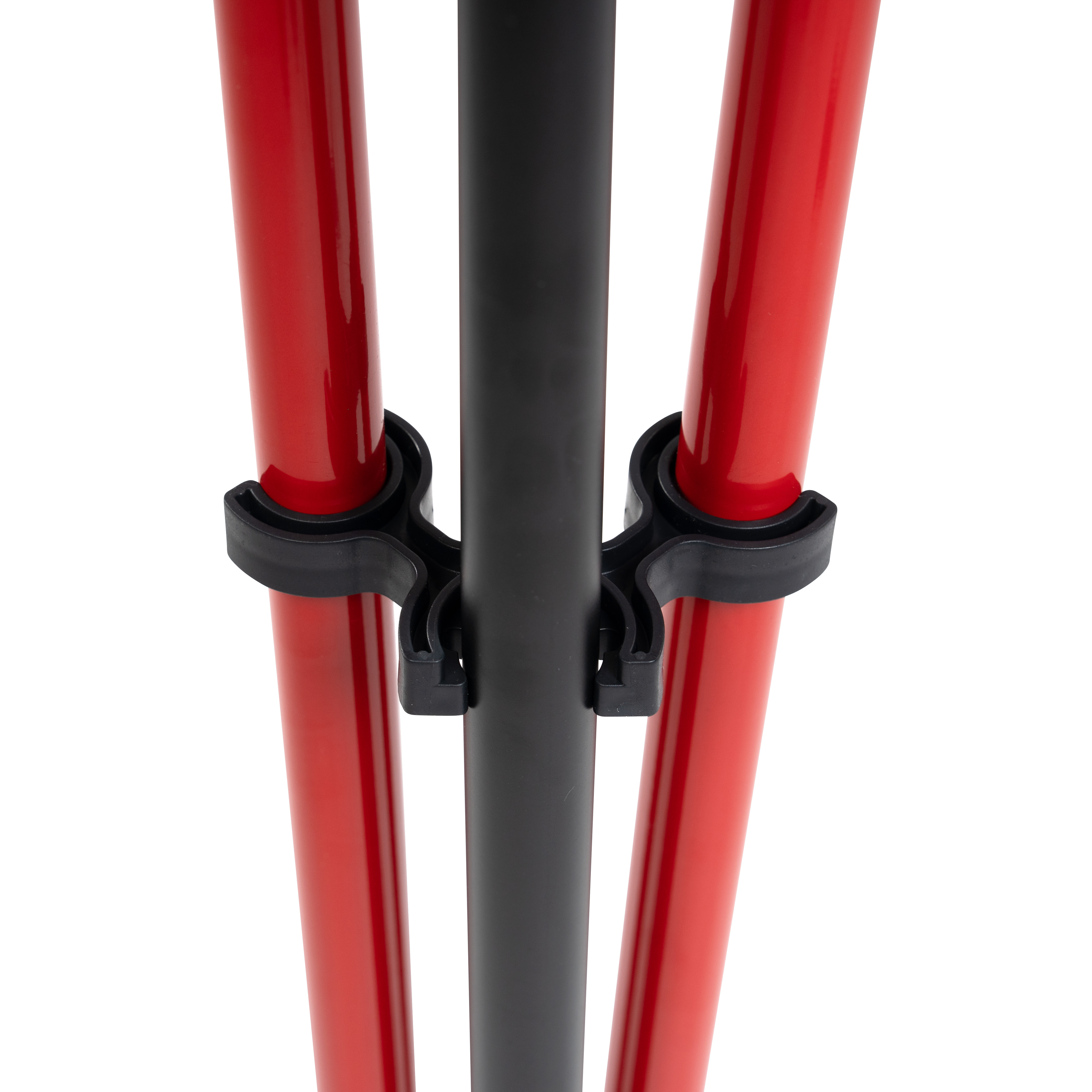

Nestle Legclip LC-25 (14802000)
