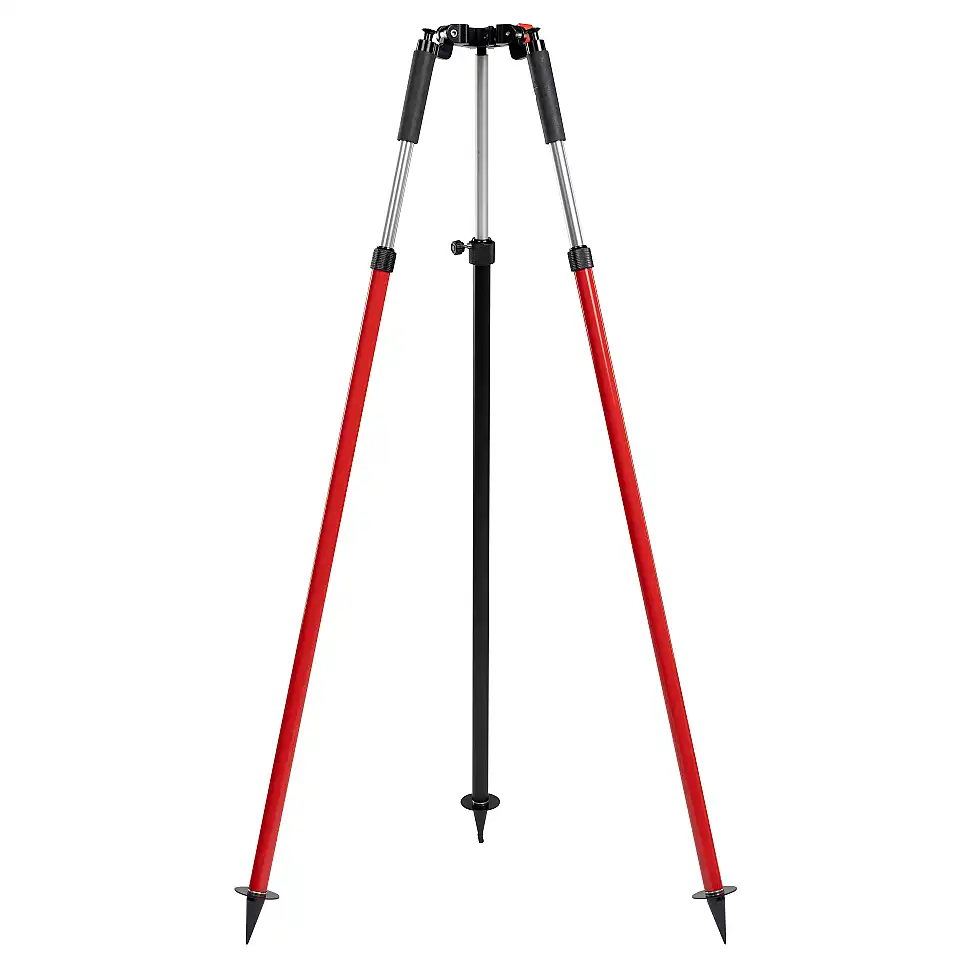

NESTLE Pole-Tripod P3-Y

Universal tripod for prism or antenna poles

Top Features

  • Stable stand for prism or GNSS poles
  • Lightning-fast pole adjustment via thumb clamp
  • Head with side opening for ergonomic pole insertion
  • For all poles with a diameter of 18–32 mm

Variants

Variant

Execution

Technical Data

Weight 2.95kg
Clampable pipe diameters 18 - 32mm
Leg adjustment range 104 - 180cm
Head height at 1 m tip spacing 165cm
Leg clamping mechanism 2 legs with thumb clamp, 1 leg with screw clamp
Clamping head mit seitlicher Öffnung
Material Aluminium
Product Number (PID) 14817001

Highlights at a Glance

  • The rounded jaws of the C-clamp in the head optimally distribute the clamping pressure on the pole, thus protecting even carbon fiber poles.
  • Very stable stand for prism or GNSS poles, therefore also suitable for long-term setups.
  • The thumb clamp allows for quick and easy length adjustment of the legs.

Description

The particularly handy NESTLE P3-Y pole tripod is ideal for the stable positioning of prism and GNSS poles. Thanks to its three legs, your pole remains exceptionally stable, even over extended periods. The double-C clamp optimally distributes the clamping pressure on the pole, thus protecting carbon fiber poles. The thumb clamp on two legs allows for lightning-fast pole positioning. The pole tripod's head features a side opening for easy insertion of a prism or GNSS pole.

Setup is simplest: Secure the pole tripod to the pole – position the pole tip on the ground – adjust the spirit level using only two legs – finally, extend the third leg and fix this with locking screw – the prism/GNSS pole is now stable!

Scope of Delivery

NESTLE Pole-Tripod P3-Y
Nestle Legclip LC-25 (14802000)
