| Function | Base holder for NESTLE HB-S carrier system (for poles) |
|---|---|
| Pole clamping | Double-C screw clamp |
| Clampable pole diameters | 22 - 32, Claw holder for ball Ø 25 mm |
| Weight | 240 g |
| Product Number (PID) | 14807000 |
The NESTLE HB-S system is a mounting system for field computers on prism and GNSS poles. The mounting system consists of two parts: Basic holder: which is attached to the pole, the basic holder can accommodate all computer carriers of the HB-S series.

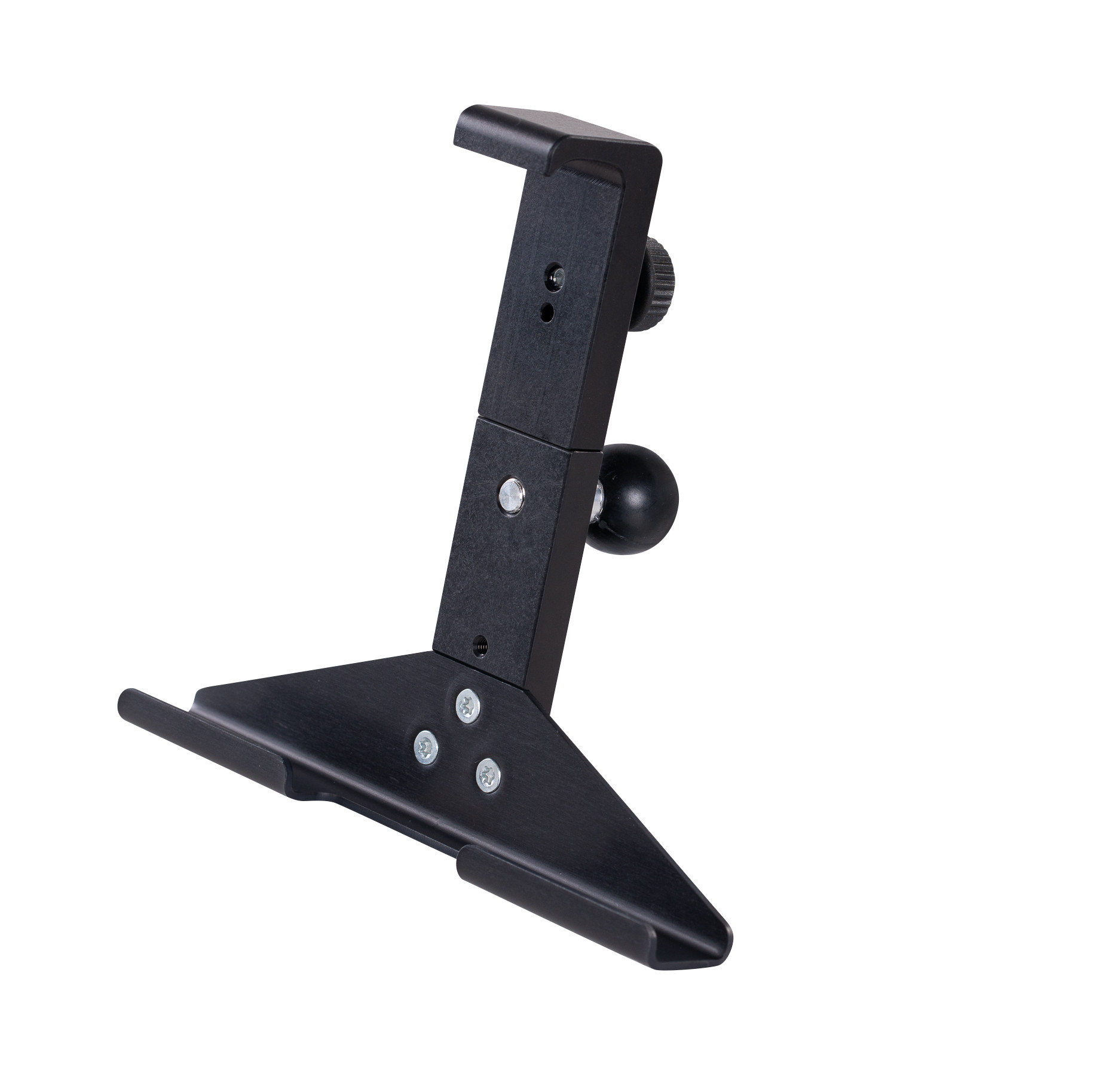

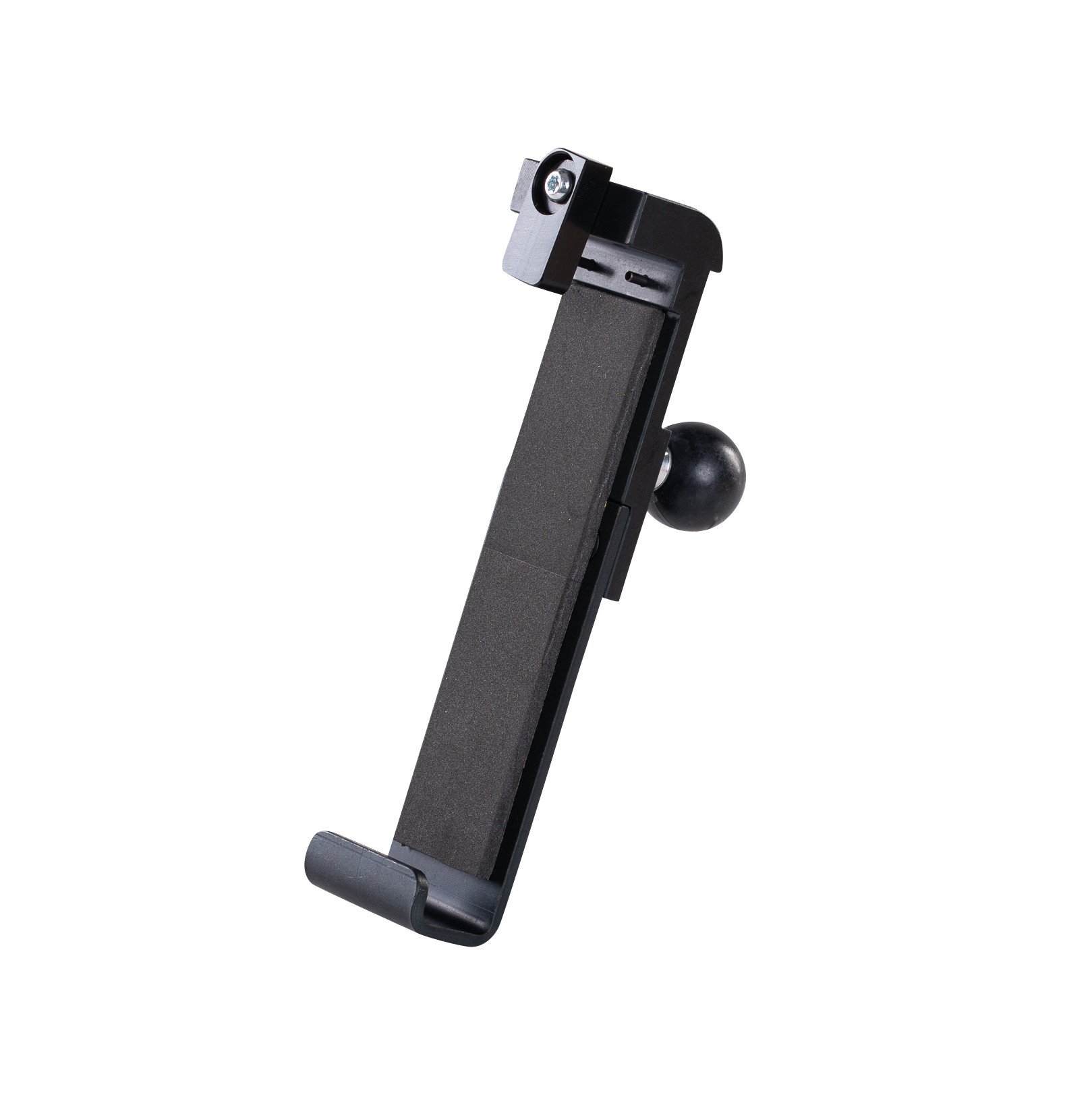

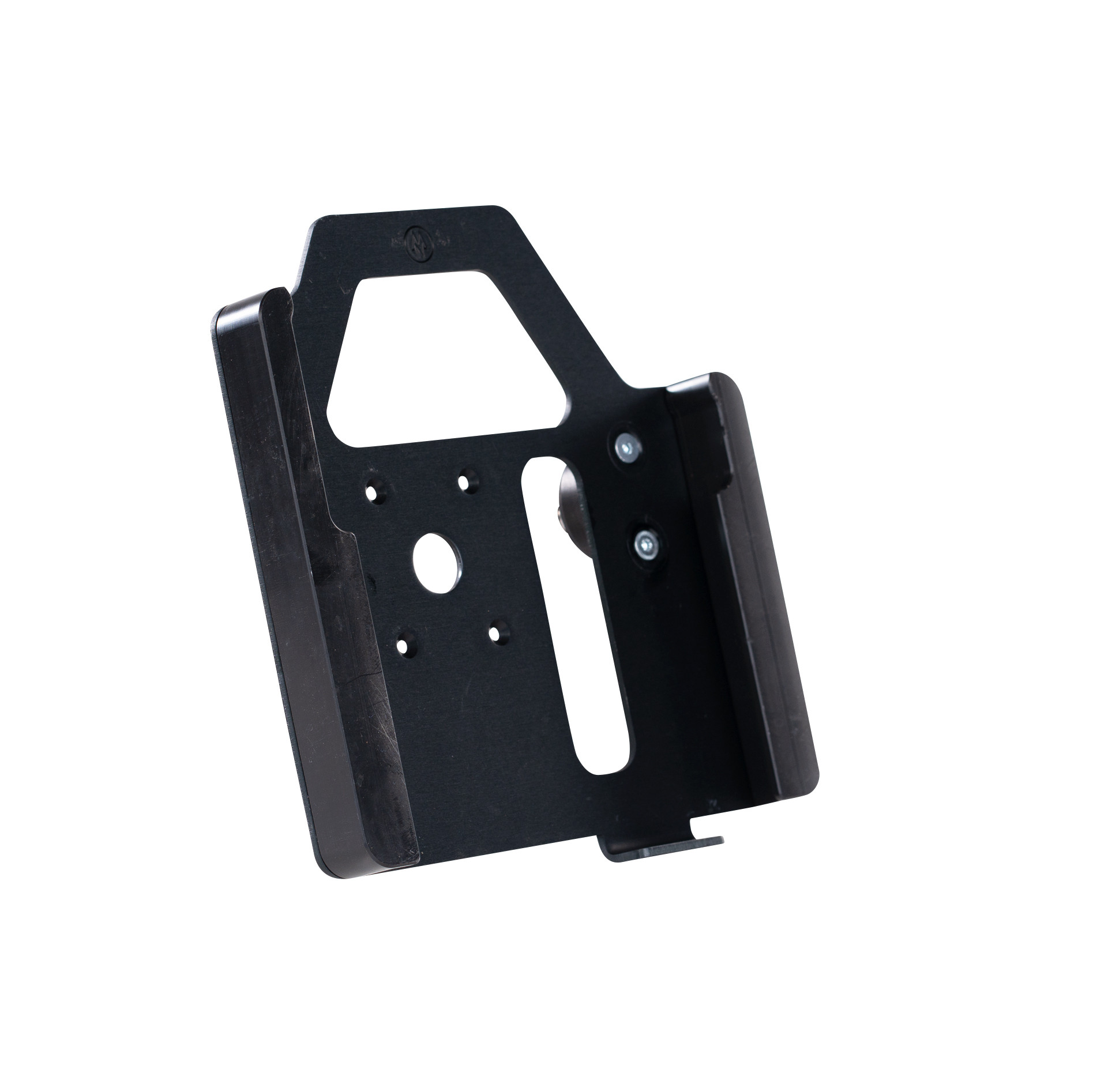

Computer carrier: for a specific type of computer. The connection between the base holder and the computer carrier is created by a particularly short ball and claw clamp. This clamp makes it very easy to rotate and tilt the field calculator.

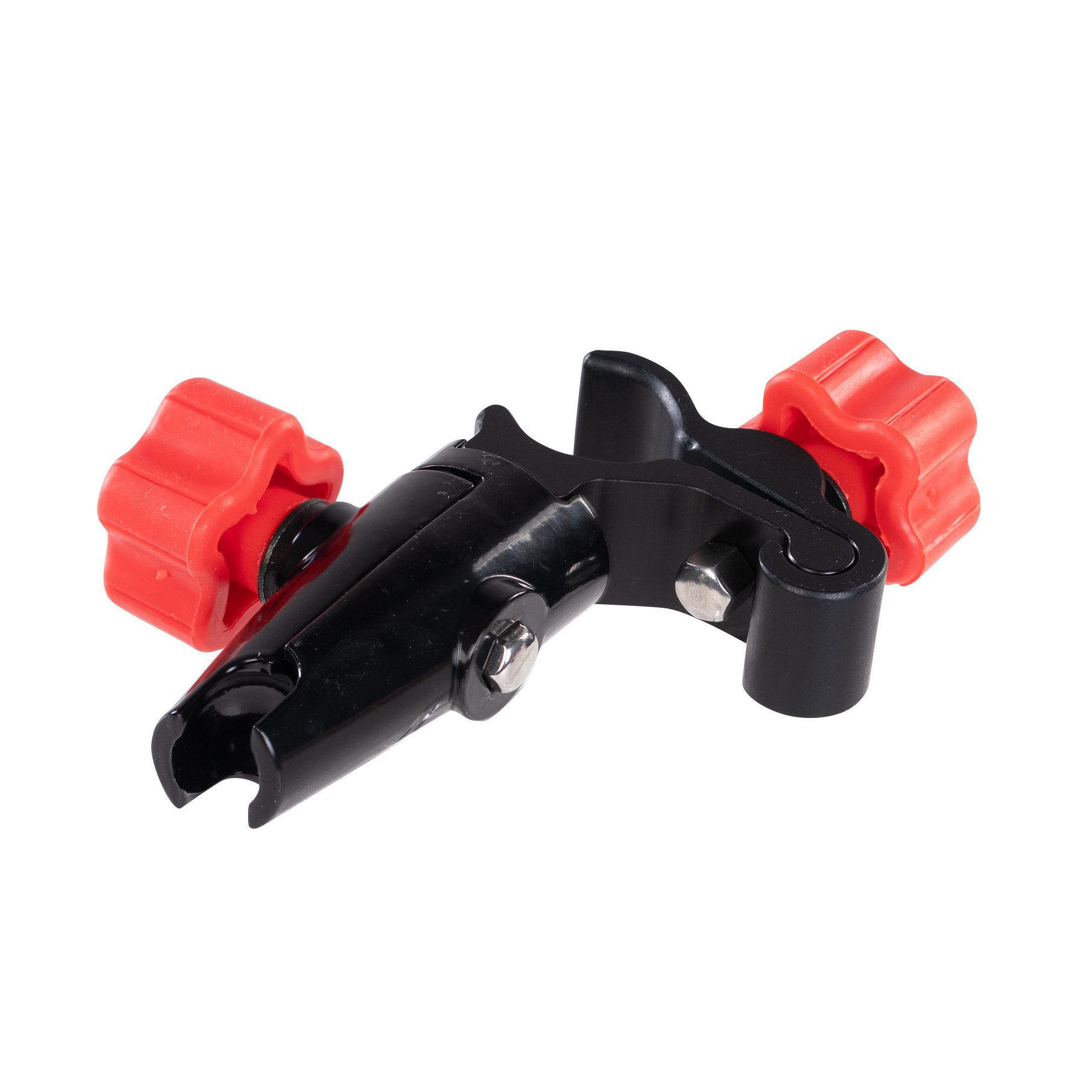

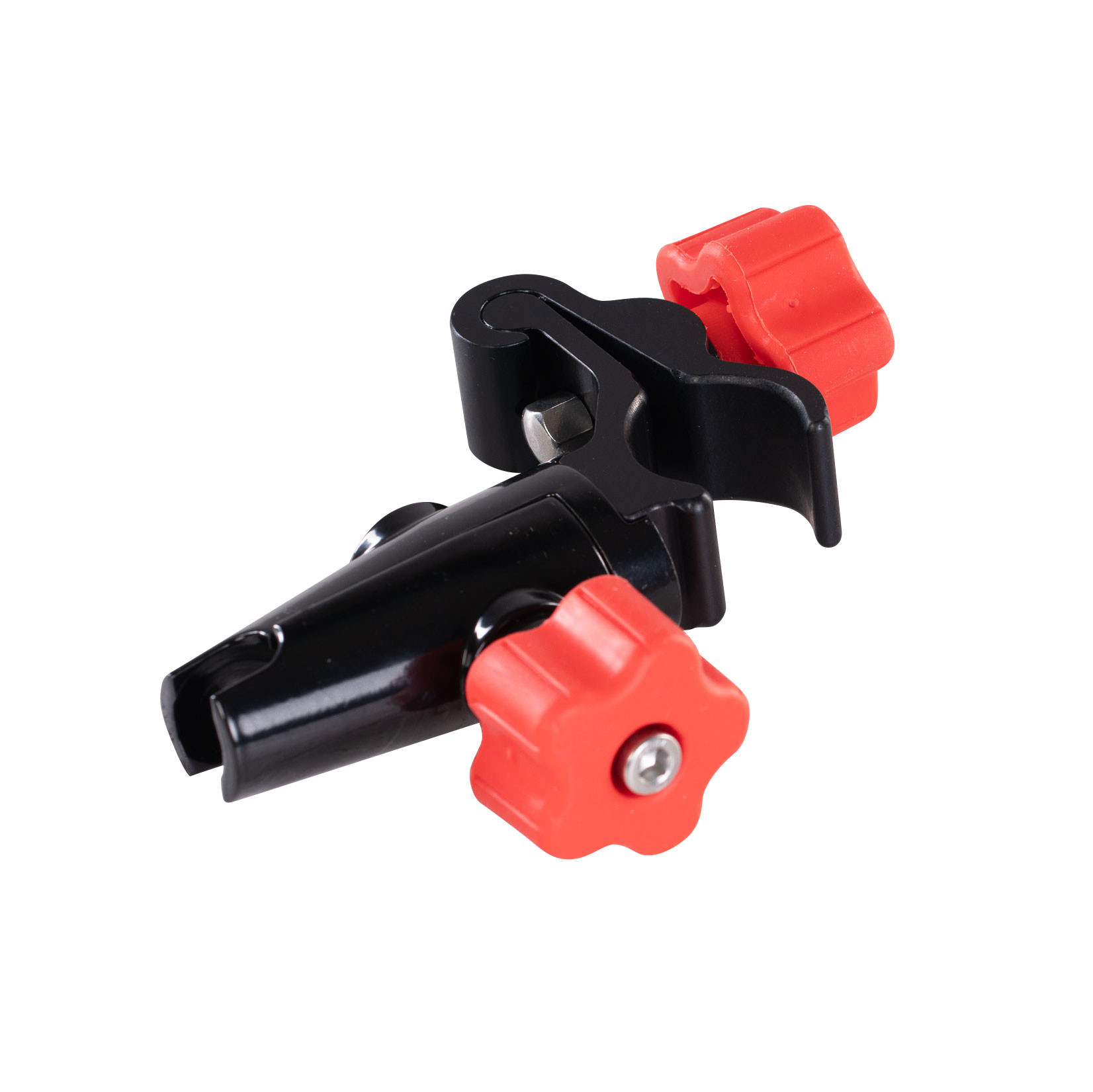

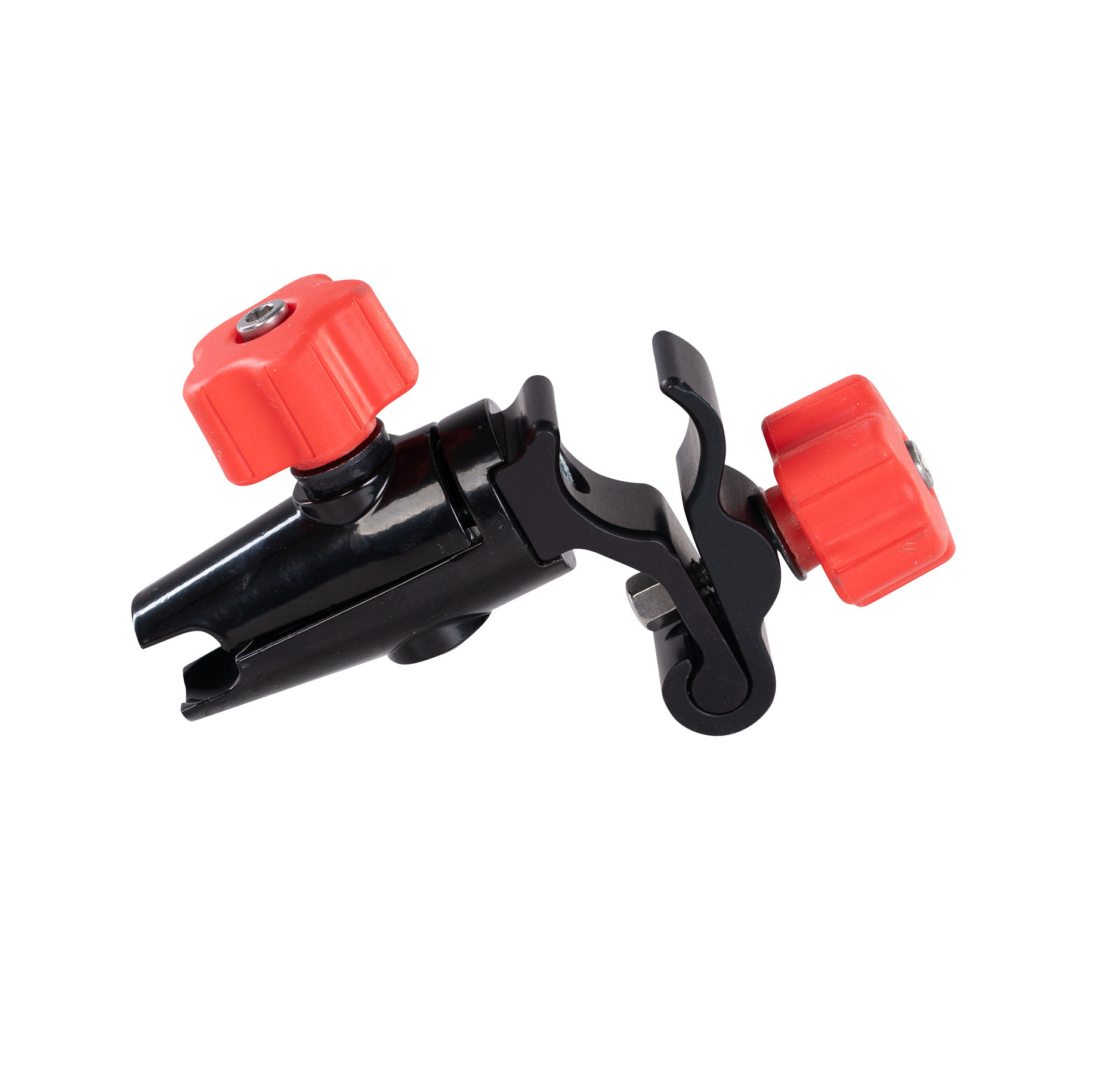

The base holder, with double C-clamp, enables perfect clamping pressure distribution for all carbon rods.
