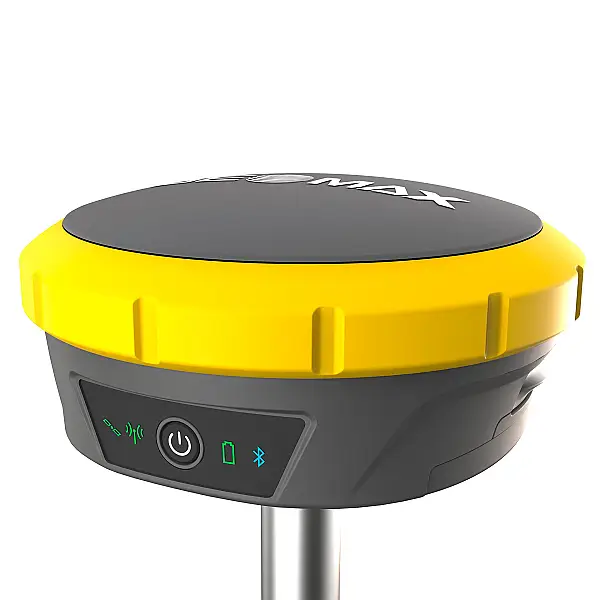

GEOMAX Zenith55 LTE-UHF-IMU

Professional-grade performance, practical value

Top Features

  • Calibration-free tilt compensation
  • 600+ channels, multi-constellation
  • fully integrated into the Geomax product environment
  • Robust design (IP68)

Variants

Variant

Technical Data

GNSS Tracking GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, SBAS
Channels 600+, multi-constellation
Tilt compensation calibration-free IMU
Interfaces and connection 4G LTE, UHF, Bluetooth, WLAN, USB, TNC, microSD, SIM, Lemo
Working time RTK: 11 h, Static:12.5 h
Working temperature -40°C to +65°C
Accuracy RTK Hz 10 mm + 1 ppm, V 20 mm + 1 ppm
Accuracy RTK - tiltmode additional Hz uncertainty 2 cm up to 30° inclination
Protection class IP68
Dimensions Height 75 mm, Ø 167 mm
Weight without batteries 1.14 kg
Product Number (PID) 29537000

Highlights at a Glance

  • Impact protection: can withstand tipping over from a height of 2 m onto hard surfaces.
  • Antenna can be used as a base or rover
  • Protection class: IP68 protection against dust and water
  • Two internal batteries: can be replaced during operation, Li-Ion 3.4 Ah / 7.2 V
  • GPS, Glonass, Galileo, BeiDou, QZSS, NavIC, SBAS satellite tracking

Description

The Zenith55 is a professional-grade GNSS smart antenna that combines advanced features with practical value. It offers efficient workflows that generate a strong return on investment for construction and surveying professionals. Integrated into the GeoMax product environment, the Zenith55 works seamlessly with GeoMax robotic total stations, field controllers and the X-PAD field software. This makes it more than just a GNSS receiver – it’s a comprehensive solution that ensures dependable precision and boosts productivity.

Scope of Delivery

Antenna Zenith55
2 batteries
charging cradle with power supply
USB-serial cable
UHF antenna
quick guide
case
