LEICA DISTO D5 Set
Strong in Outdoor Areas
Top Features
-
Target viewfinder with 4x zoom for perfect aiming
-
360° tilt sensor
-
200 meter range
-
for indoor and outdoor use
-
Gesture control for triggering the measurement
Variants
Variant
Technical Data
| Range/tolerance | 0.05 to 200 m ± 1.0 mm |
|---|---|
| Power supply | rechargeable Li-ion battery |
| Data interface | Bluetooth ® 5 |
| Weight | 238 g |
| Display | 2.4", 320x240 pxs |
| Dimensions | 144 x 60 x 24 mm |
| Tilt sensor | 360° ± 0.2° |
| Protection class | IP54 |
| Special feature | Gesture control |
| Product Number (PID) | 16733000 |
Highlights at a Glance
-
The built-in Pointfinder camera ensures that the target can be found in the crosshairs on the crystal clear display with IPS technology, even when the laser point is no longer visible.
-
The touchless triggering of the measurement by briefly interrupting the laser beam with the hand avoids moving the Leica DISTO™ and guarantees highly precise measurements, especially at small targets or long distances.
-
With just a few clicks the measurement result can be sent via Bluetooth from the Leica DISTO™ to the DISTO™ Plan App, for creating and measuring floor plans and sketches.
-
Various measurement functions, such as Smart Horizontal Mode for measuring over obstacles, height tracking, profile and angle measurements, ensure that any measurement task can be solved.
Description
The Leica DISTO™ D5 is particularly suitable for distance measurements in outdoor areas. Thanks to the digital Pointfinder, the high functionality and the compatibility with the Leica DISTO™ Plan app, every measuring situation is solved quickly and efficiently. The results can be easily documented to support a target-oriented and error-free digital workflow. The Leica DISTO™ D5 package consists of: Leica DISTO D5 laser distance meter, pouch, hand loop, USB cable, as well as additional Leica FTA 360 adapter, Leica tripod TRI 75, power supply with 4 plugs. All packed in a practical metaBOX compatible case.

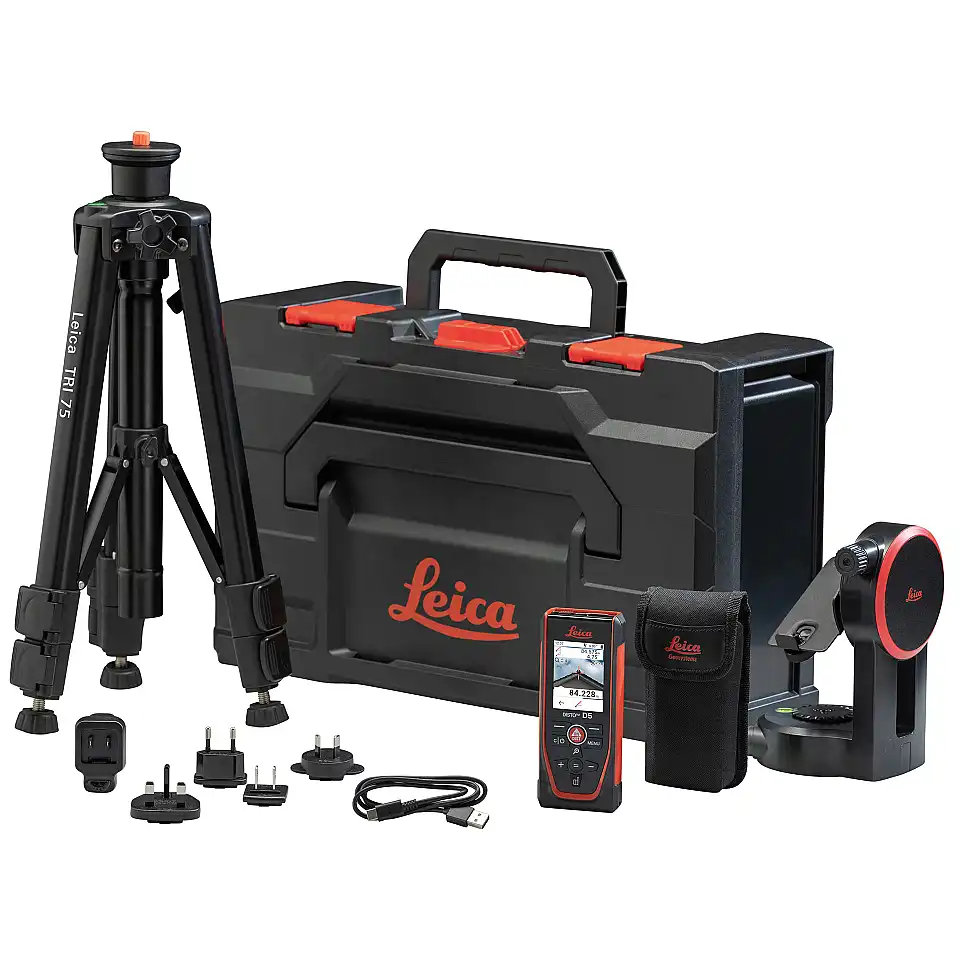

Scope of Delivery
Leica DISTO D5 laser distance meter
Pouch
Hand strap
USB cable
Leica FTA 360 adapter
Leica tripod TRI 75
power supply with 4 plugs
metaBOX
