LEICA DISTO X6
Robust and Versatile
Top Features
-
Target viewfinder with 4x zoom for perfect aiming
-
360° tilt sensor
-
250 meter range
-
for indoor and outdoor use
-
Gesture control for triggering the measurement
-
Touch Display
Variants
Variant
Technical Data
| Range/tolerance | 0.05 to 250 m ± 1.0 mm |
|---|---|
| Power supply | rechargeable Li-ion battery |
| Data interface | Bluetooth ® 5 |
| Weight | 230 g |
| Display | 2.8", 320x240 pxs, color touch-display |

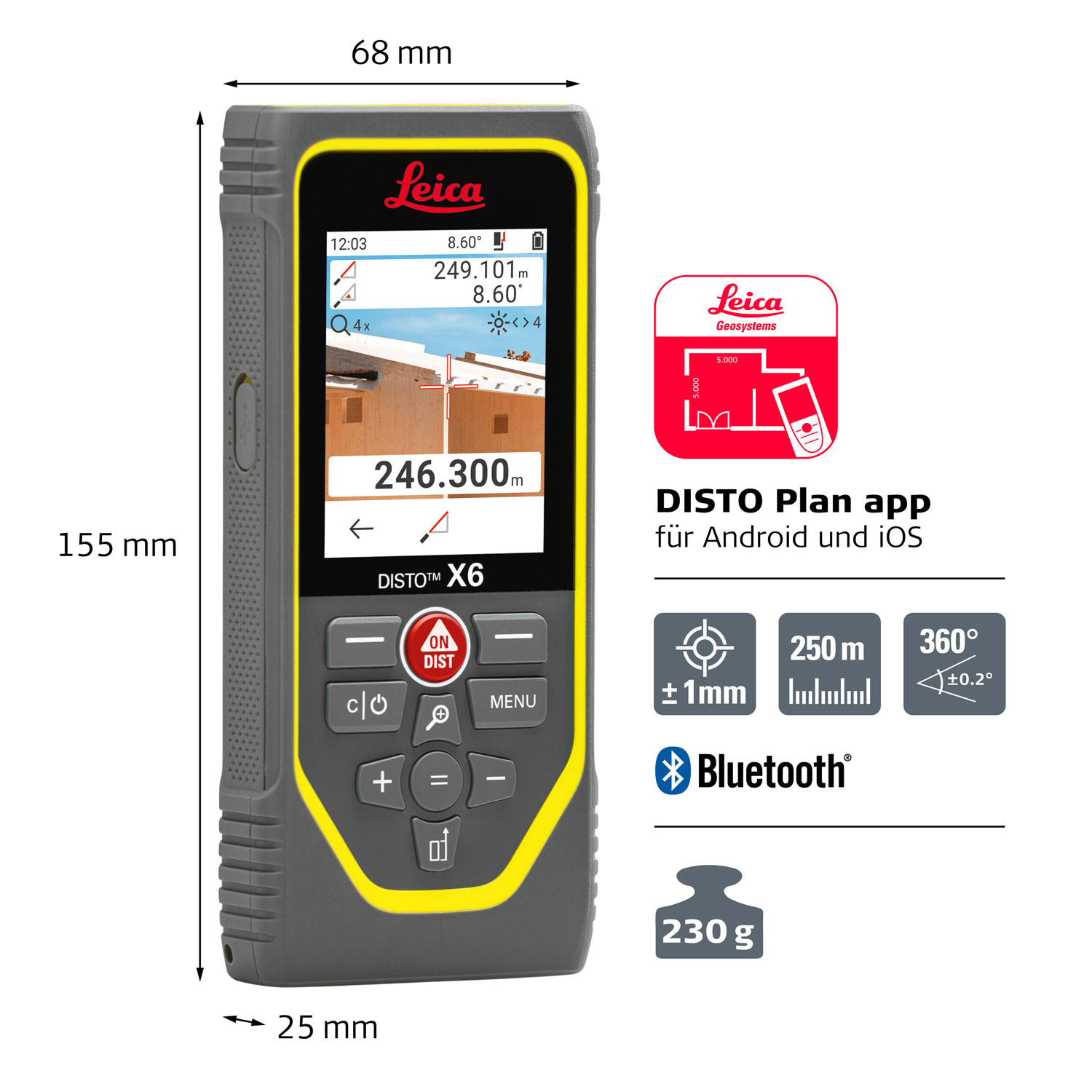

| Dimensions | 155 x 68 x 25 mm |
| Tilt sensor | 360° ± 0.2° |
| Protection class | IP65 |
| Special feature | Gesture control |
| Product Number (PID) | 16736000 |

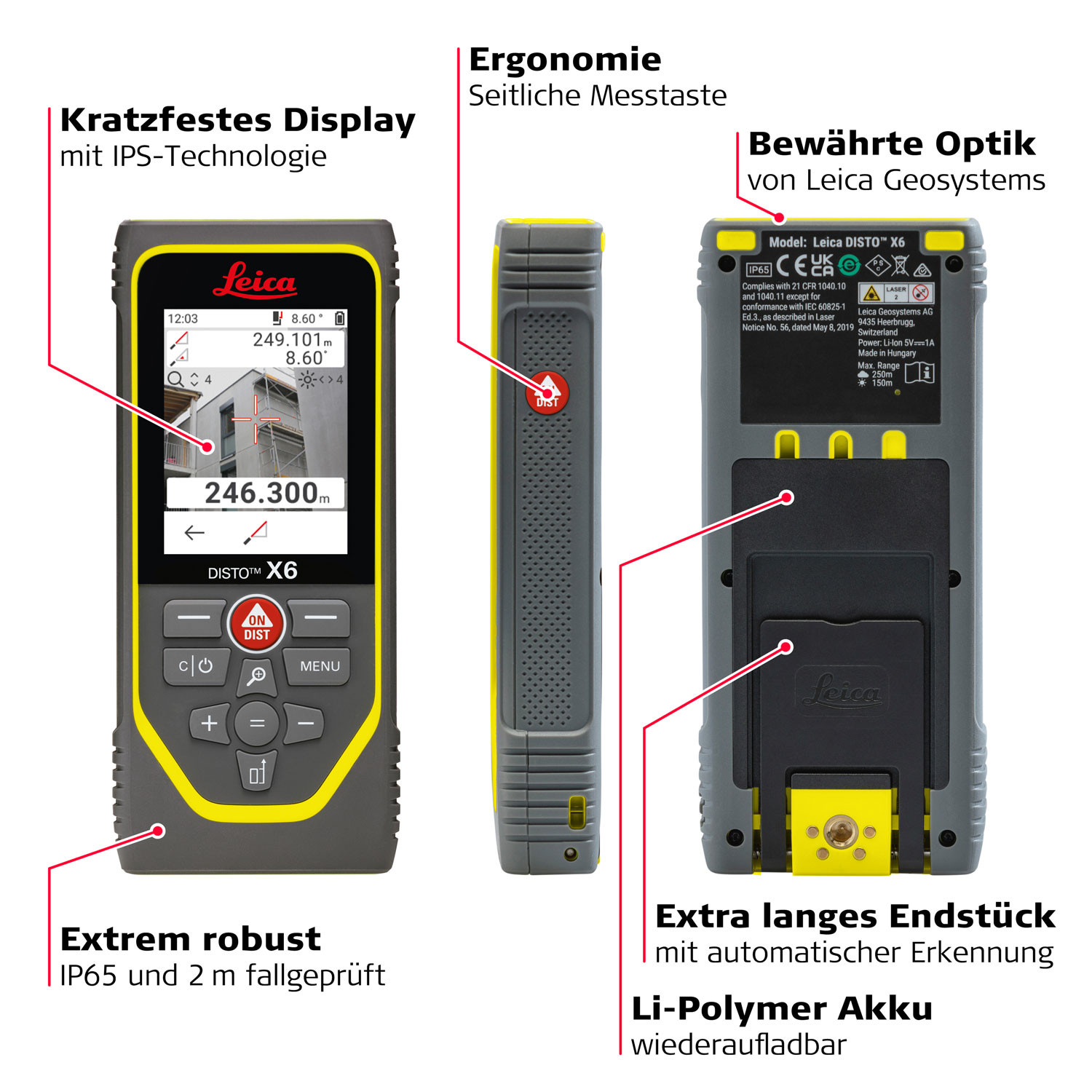

Highlights at a Glance
-

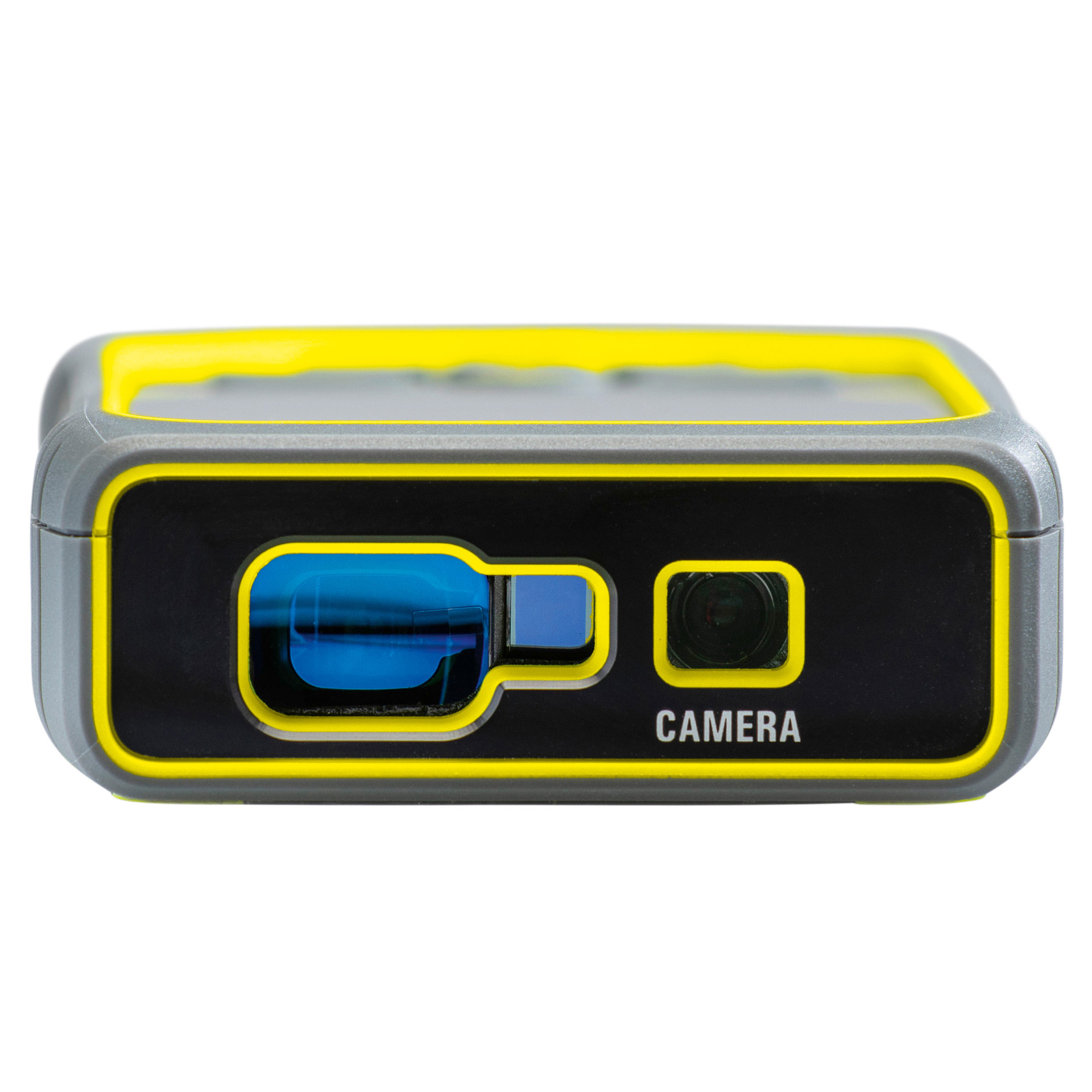

The built-in Pointfinder camera ensures that the target can be found in the crosshairs on the crystal clear display with IPS technology, even when the laser point is no longer visible.
-

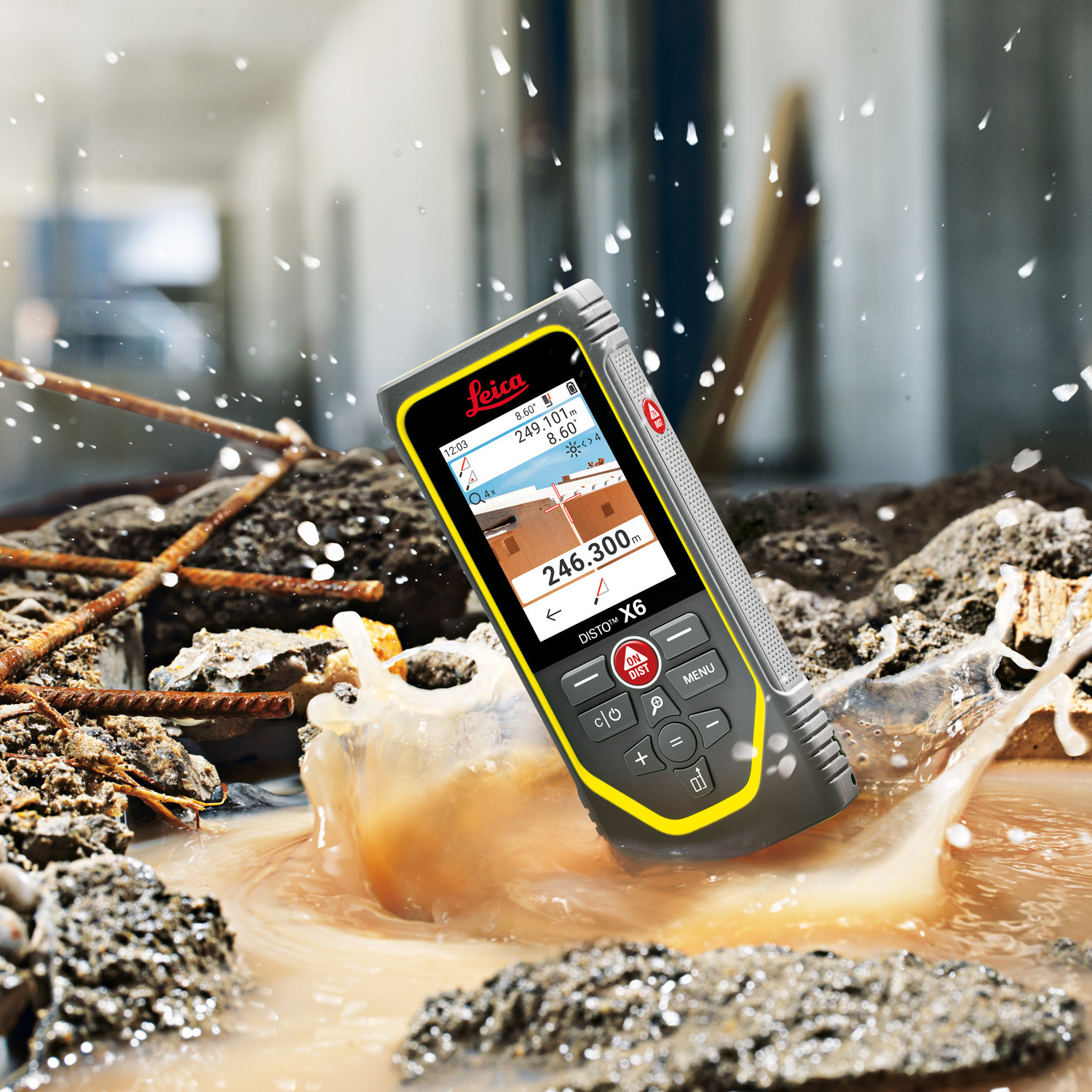

The extremely robust Leica DISTO™ X6 has been drop tested at 2 m and has IP65 rated protection from dust and water jets.
-
The Leica DISTO™ X6 is equipped with a well-lit, 2.8 inch touchscreen which means it is quick and easy to operate.
-
The extra-large memory allows multiple measurement reports to be created on the Leica DISTO™ X6, simplifying documentation.
-
The Leica DISTO™ X6 can be extended with the Leica DST 360-X tripod adapter to get a solid measuring station, which is used to collect 2D and 3D data that can be further processed in the DISTO™ Plan app or CAD software.
Description

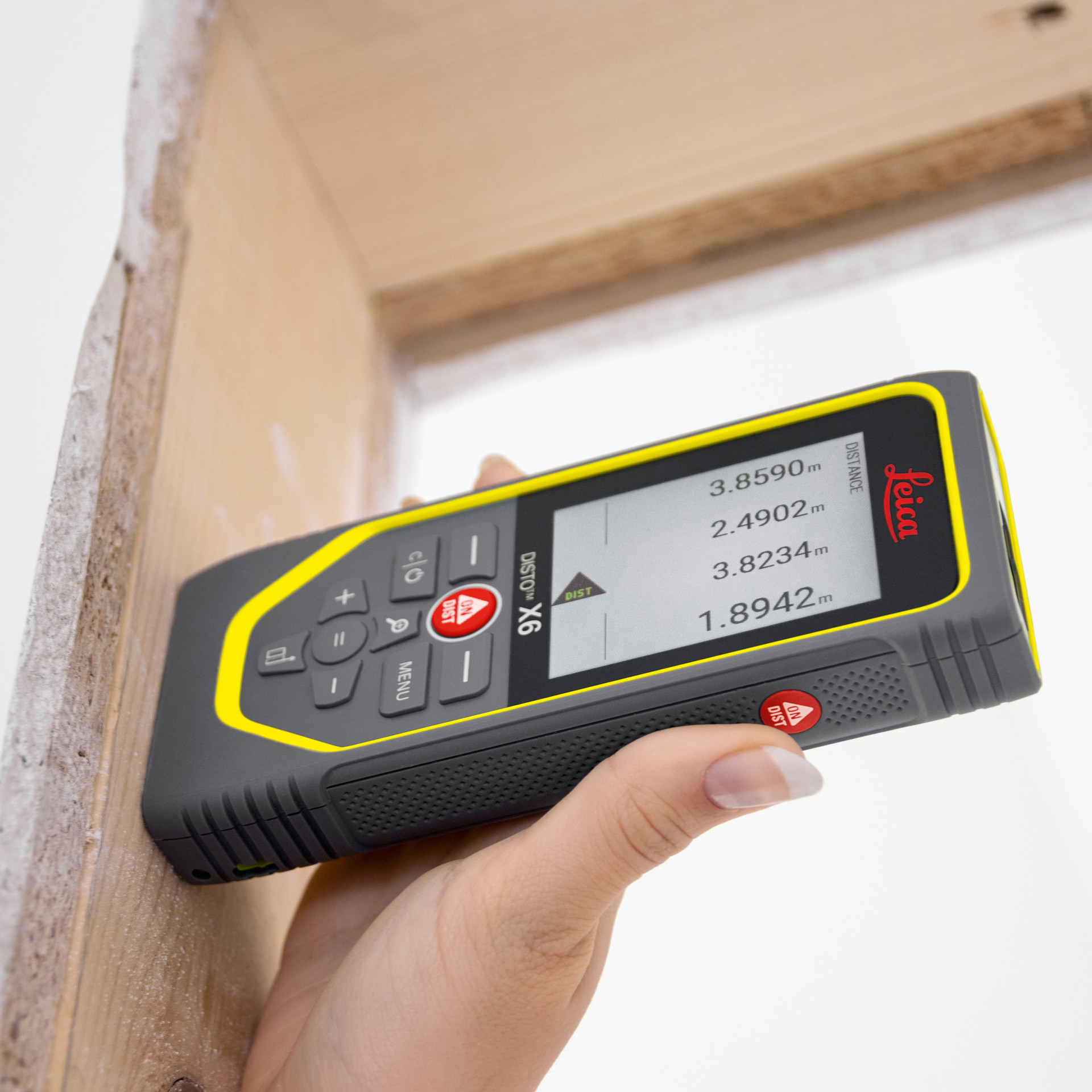

The Leica DISTO™ X6 with its extremely robust housing, IP65 protection class and scratch-resistant display glass is particularly suitable for rough construction site use. The perfect combination of digital Pointfinder, ergonomic operation with touchscreen and additional measuring button on the side, as well as high functionality, guarantees that every measuring task can be completed quickly and efficiently. The results can then be sent and further processed in the DISTO™ Plan app.
Scope of Delivery
Leica DISTO X6 laser distance meter
Pouch
Hand strap
USB cable
