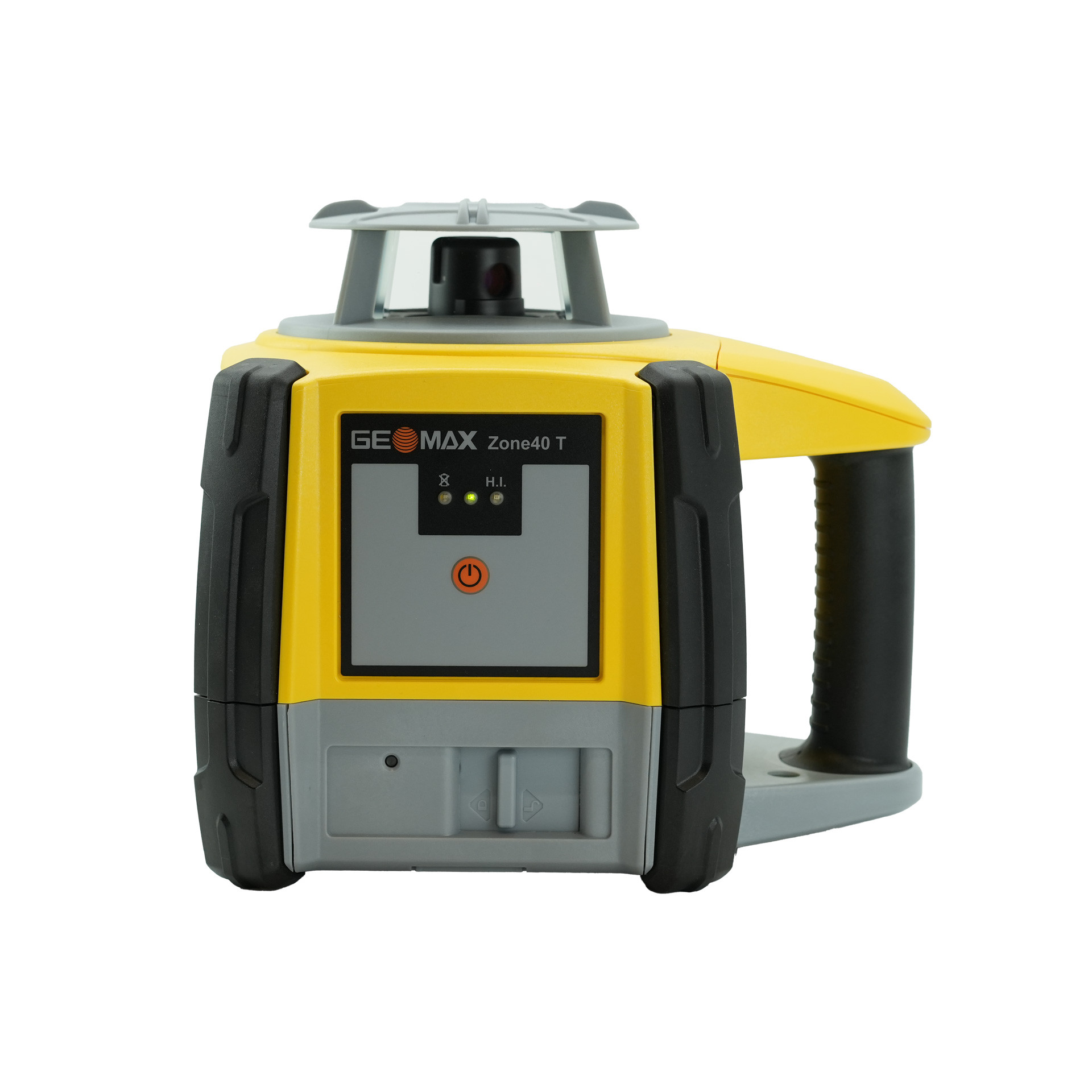

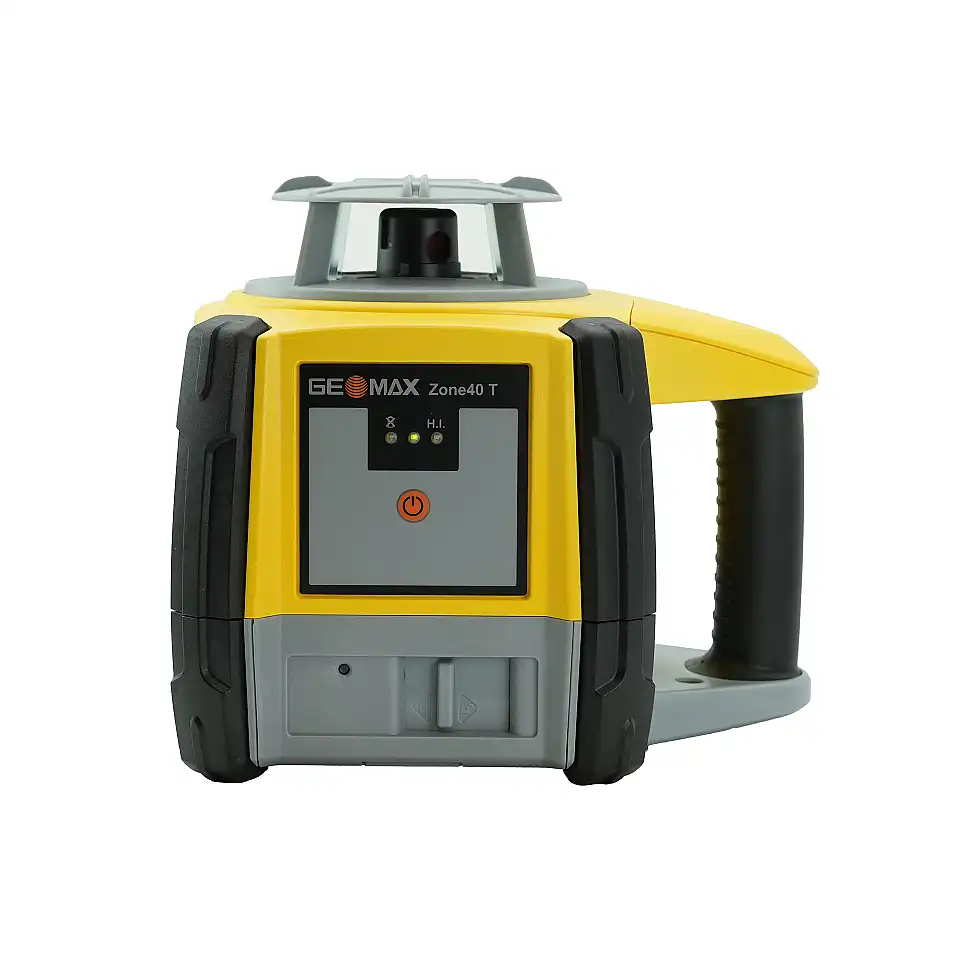

GEOMAX Zone40 T horizontal laser
Real one-button operation - even for long distances
Top Features
-
Laser class 1
-
Real one-button operation
-
High accuracy ± 1.5 mm @ 30 m
-
Extremely large working range Ø 1100 m
-
Protection class IP67
Variants
Execution
Technical Data
| Tolerance | ± 0.5 mm per 10 m |
|---|---|
| Working area with receiver | Ø 1100 m |
| Rotation speed | 600 rpm |
| Laser diode | visible 635 nm (red), class 1 |
| Self-levelling range | ± 5° |
| Temperature range | -20 °C to +50 °C |
| Power supply | Lithium-ion (Li-ion pack rechargeable) |
| Operating time | > 40 Hours |
| Dimensions | 240 x 215 x 215 mm |
| Weight with battery | 3400 g |
| Protection class | IP67 |
| Tilt warning | Yes |
| Product Number (PID) | 27126000 |
Highlights at a Glance
-

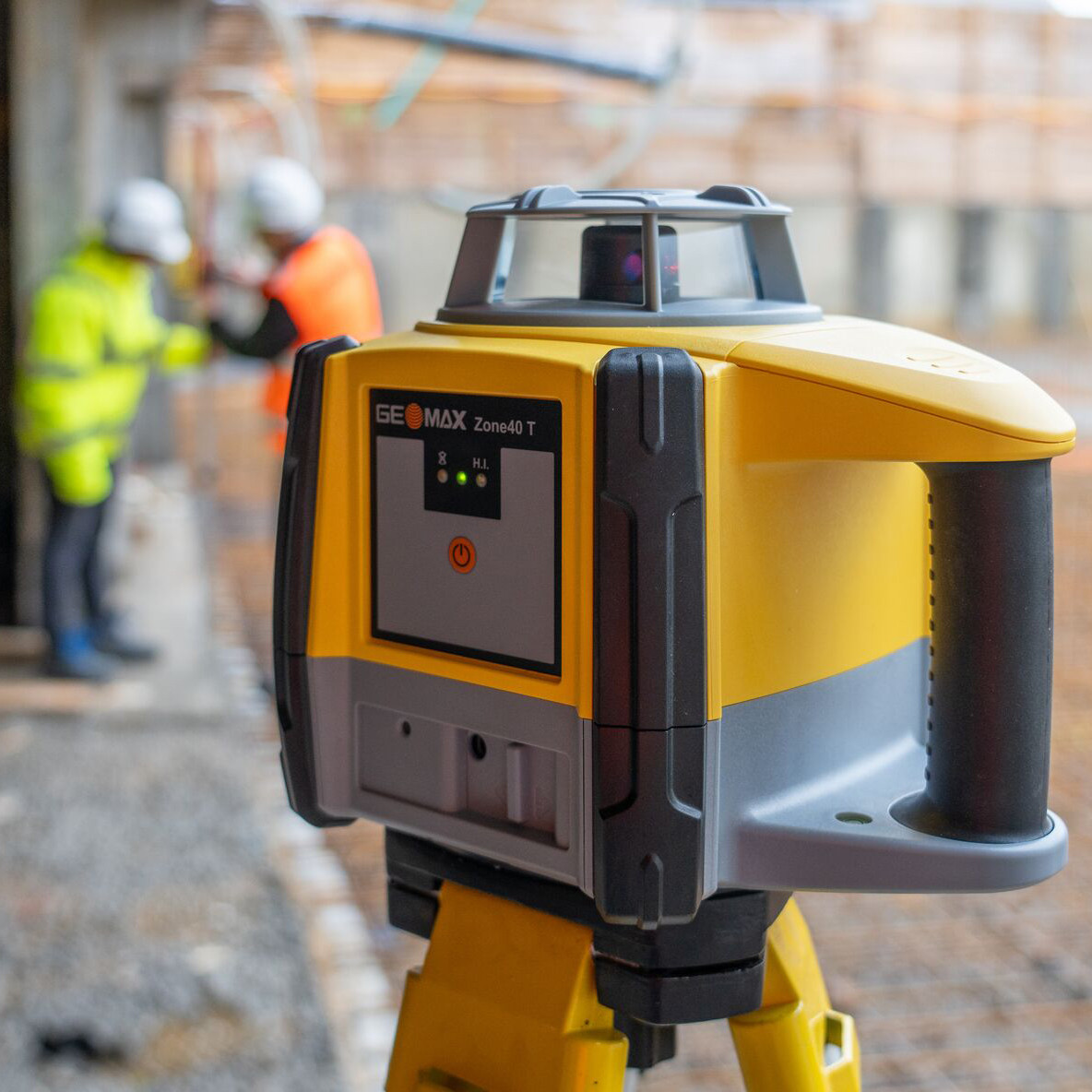

The Zone40 T is perfect for levelling applications in outdoor areas such as pouring concrete slabs or formwork.
-
The powerful rotary lasers from GeoMax Zone offer the right construction tools for all trades and applications. Whether you are new to the industry or an experienced professional with complicated applications, GeoMax rotating lasers are always ready to go.
Description
The Geomax Zone40 T single-button laser offers the precision, range and durability of Geomax premium models. The rotating head is fully sealed to keep the laser working in the harshest conditions and contributes to the device's excellent IP67 environmental rating.
With a single control button, the Zone40 T is the easiest zone laser to use. Simply press the on/off switch and the laser automatically levels itself to provide an even horizontal beam for each user. A series of LEDs provide the user with important information such as battery status and height alarm.
Scope of Delivery
GeoMax Zone40 T
Transport case
Remote control
Li-Ion battery with charger
Manual on CD
Quickstart Guide
Safety instructions
