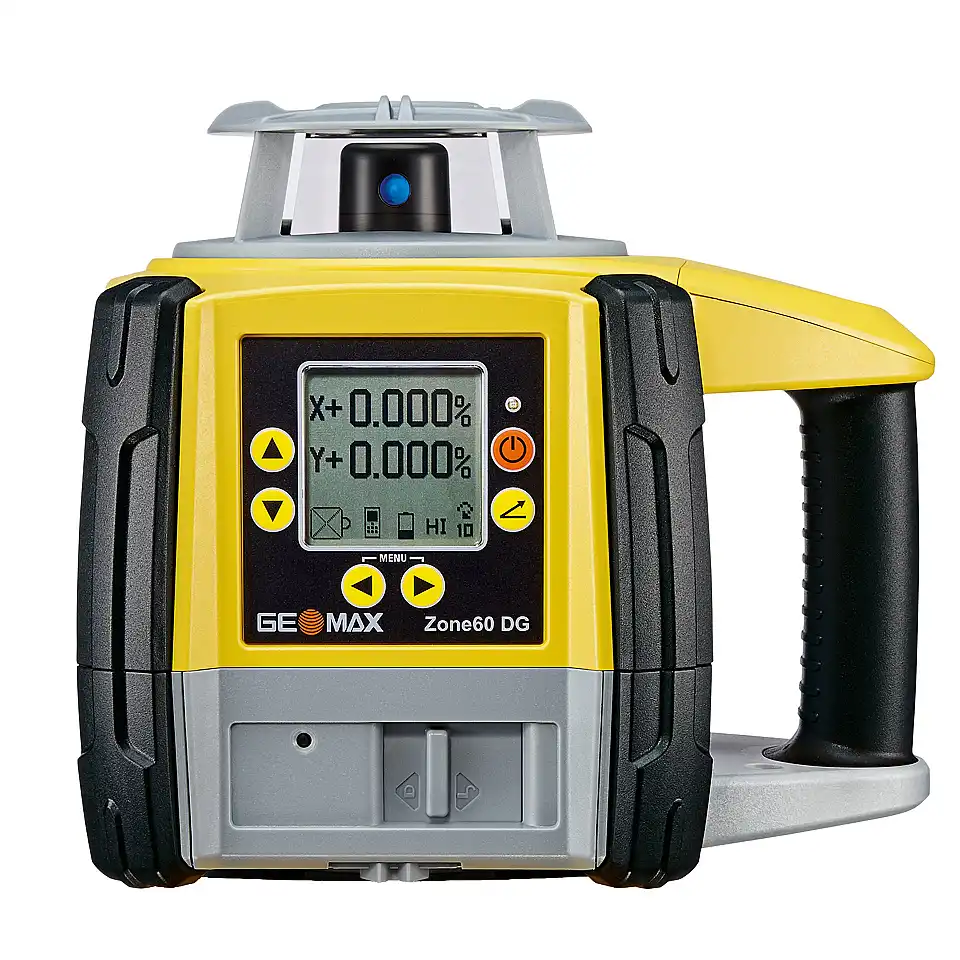

GEOMAX Zone60 DG digital max inclination laser
Professional, fully automatic tilt laser in both axes
Top Features
-
Fast automatic levelling
-
Laser class 1
-
Can be tilted up to ± 15 % in 2 axes
-
Digital display of the tilt also on the remote control
Variants
Variant
Technical Data
| Working area with receiver | Ø 900 m |
|---|---|
| Operating time | > 40 Hours |
| Weight | 3400 g |
| Laser diode | visible 635 nm (red), class 1 |
| Dimensions | 240 x 215 x 215 mm |
| Protection class | IP67 |
| Self-levelling range | ± 6° |
| Power supply | 4 alkaline mono cells (D), lithium-ion (Li-ion pack rechargeable) |
| Temperature range | -20 °C to +50 °C |
| Tolerance | ± 0.5 mm per 10 m |
| Product Number (PID) | 27117000 |
Highlights at a Glance
-
The GeoMax Zone Series rotating lasers are robust (IP67), versatile (900 metre working range) and offer exceptional value for money.
-
The Zone60 DG is a fully automatic 2-axis grade laser (DG = Dual Grade) with digital grade up to 15 % for any construction site.
-
With the ZRC60 remote control you have full control up to 300 m.
-
The display makes it very easy to adjust inclinations in two axes, horizontal and vertical.
-
Best working area: outdoors.
Description
The GeoMax Zone60 DG is a fully automatic dual grade laser (DG = Dual Grade) with a digital inclination of up to 15 %. The self-explanatory user interface makes it very easy to make tilt adjustments in both axes, horizontally and vertically. The Zone60 DG is predestined for outdoor applications such as road construction, levelling work, work with inclinations (in one or two axes) as well as scaffolding work, formwork work or levelling. The high protection class (IP67) and robust design enable use even under the toughest conditions. The ZRD105 digital laser receiver supplied supplements and increases the performance and range.
Further compact information:
Scope of Delivery
GeoMax Zone60 DG
Receiver ZRD105
Transport case
Remote control
Li-Ion battery with charger
Manual on CD
Quick start guide
Safety instructions
