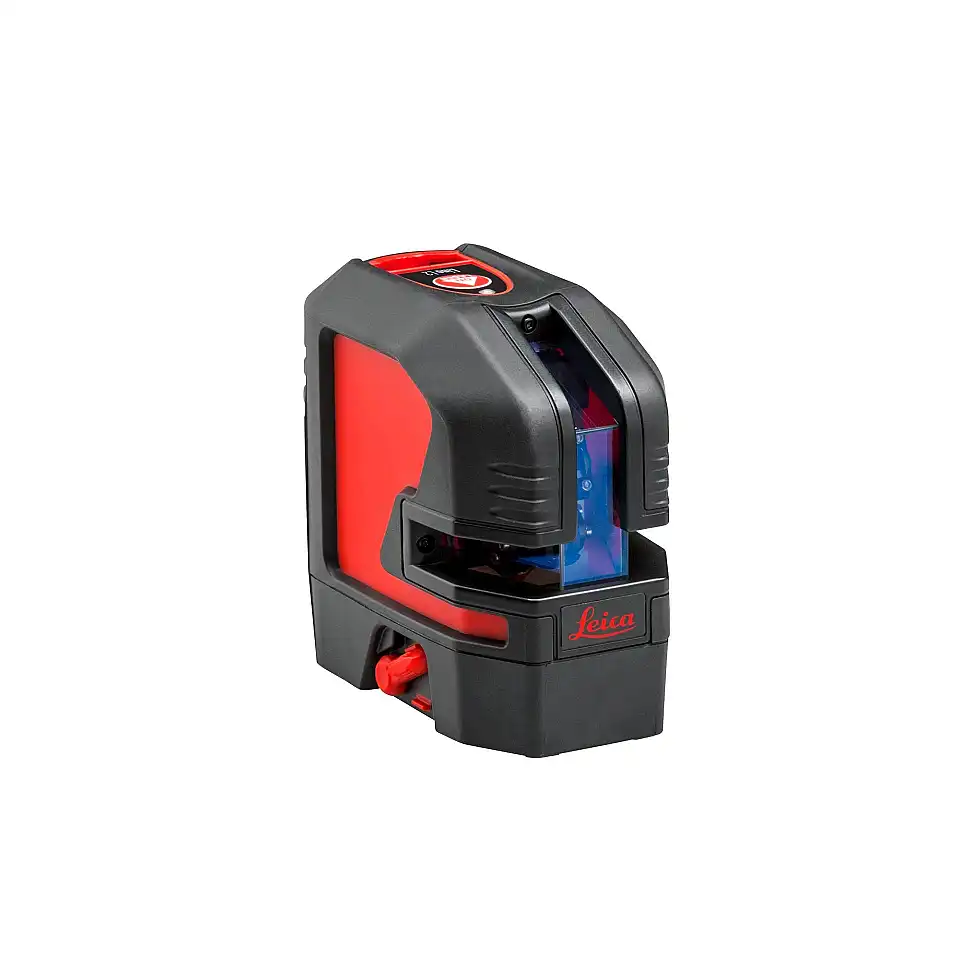

LEICA LINO L2

Projects accurately, quickly and easily ideal for interior work

Top Features

  • Very precise laser lines
  • Self-levelling range ± 4
  • Exact 90° angle

Variants

Variant

Technical Data

Battery Li-Ion or 3 x AA
Accuracy ± 0.3 mm/m
Weight 530 g
Laser colour red
Laser class 2
Laser lines vertical + horizontal
Dimensions 110 x 60 x 100 mm
Reach up to 25
Range with receiver up to 80 m
Protection class IP54
Self-levelling range ± 4°
Tripod connection 1/4'' (5/8'')
Product Number (PID) 16724000

Highlights at a Glance

  • The LINO L2 projects exact lines for easy and fast work in interior finishing.
  • This way you always have your hands free for work.
  • The LINO L2 projects red laser beams in laser class 2.

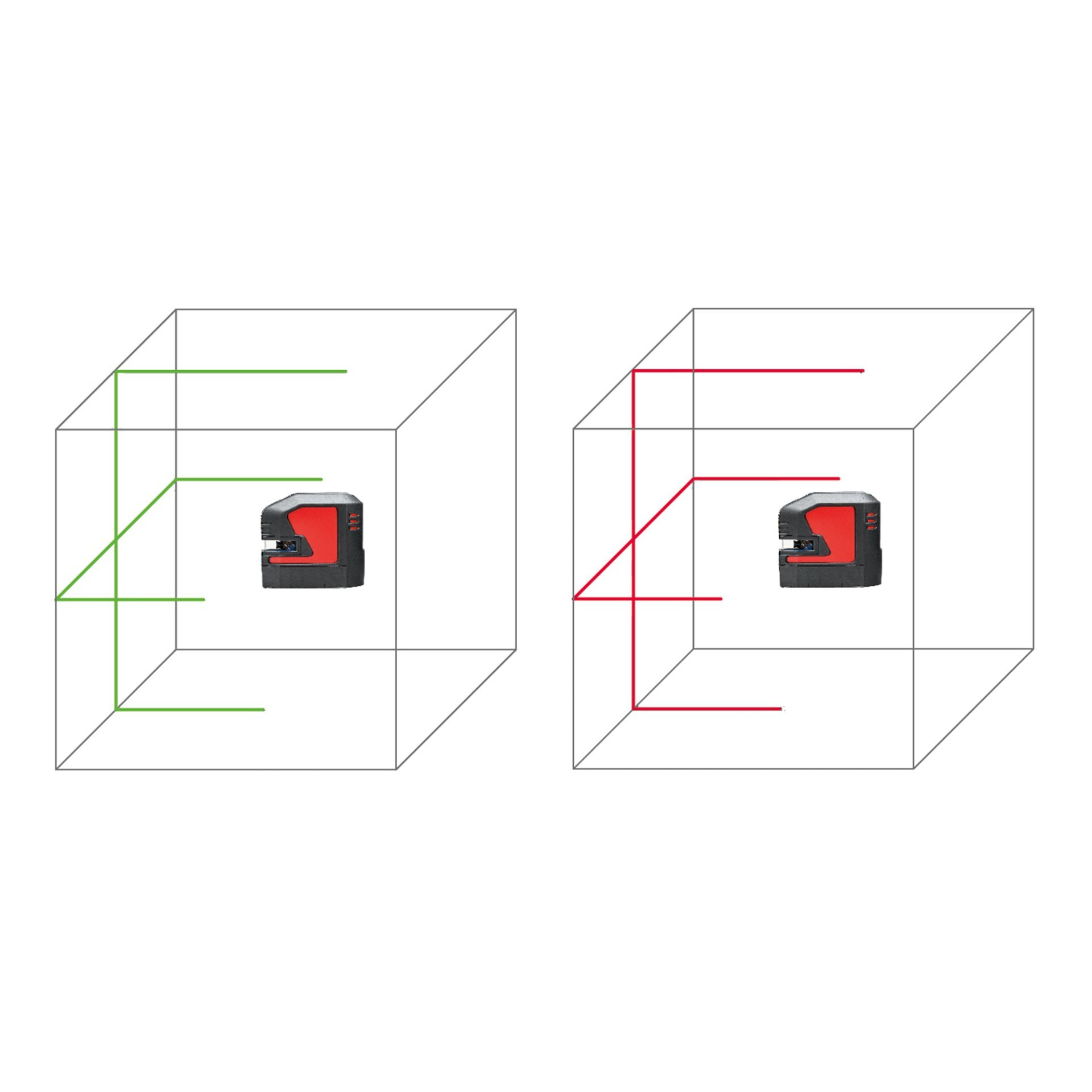

  • Whether horizontal, vertical or crossed, the lines are perfectly balanced everywhere on the wall.
  • Minor inaccuracies of up to ± 4° when setting up are compensated for automatically.
  • With the optional Lino RGR200 receiver, a range of up to 80 metres is possible.
  • With triple power supply concept: power supply with Li-Ion battery (included), or included mains adapter or alkaline batteries.

Description

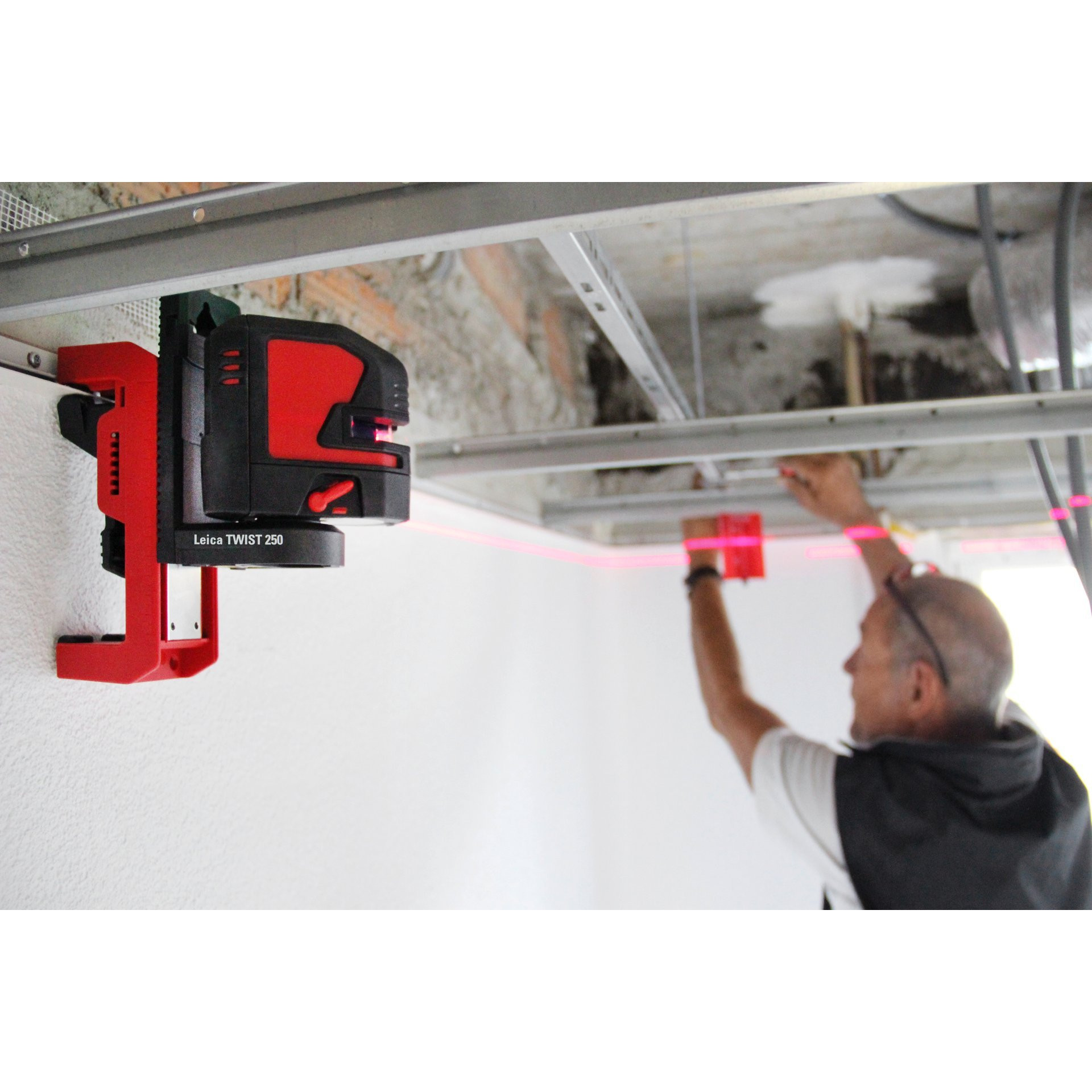

The Leica LINO L2 is a self-levelling cross line laser that automatically corrects the alignment of lines within ± 4° when set up. The L2 projects accurately, quickly or easily and is ideal for interior work. The integrated magnet allows the L2 to be attached to the Twist 250 magnetic adapter included in the delivery and attached to magnetic components. The intelligent triple power supply concept makes the Leica LINO L2 universally applicable.

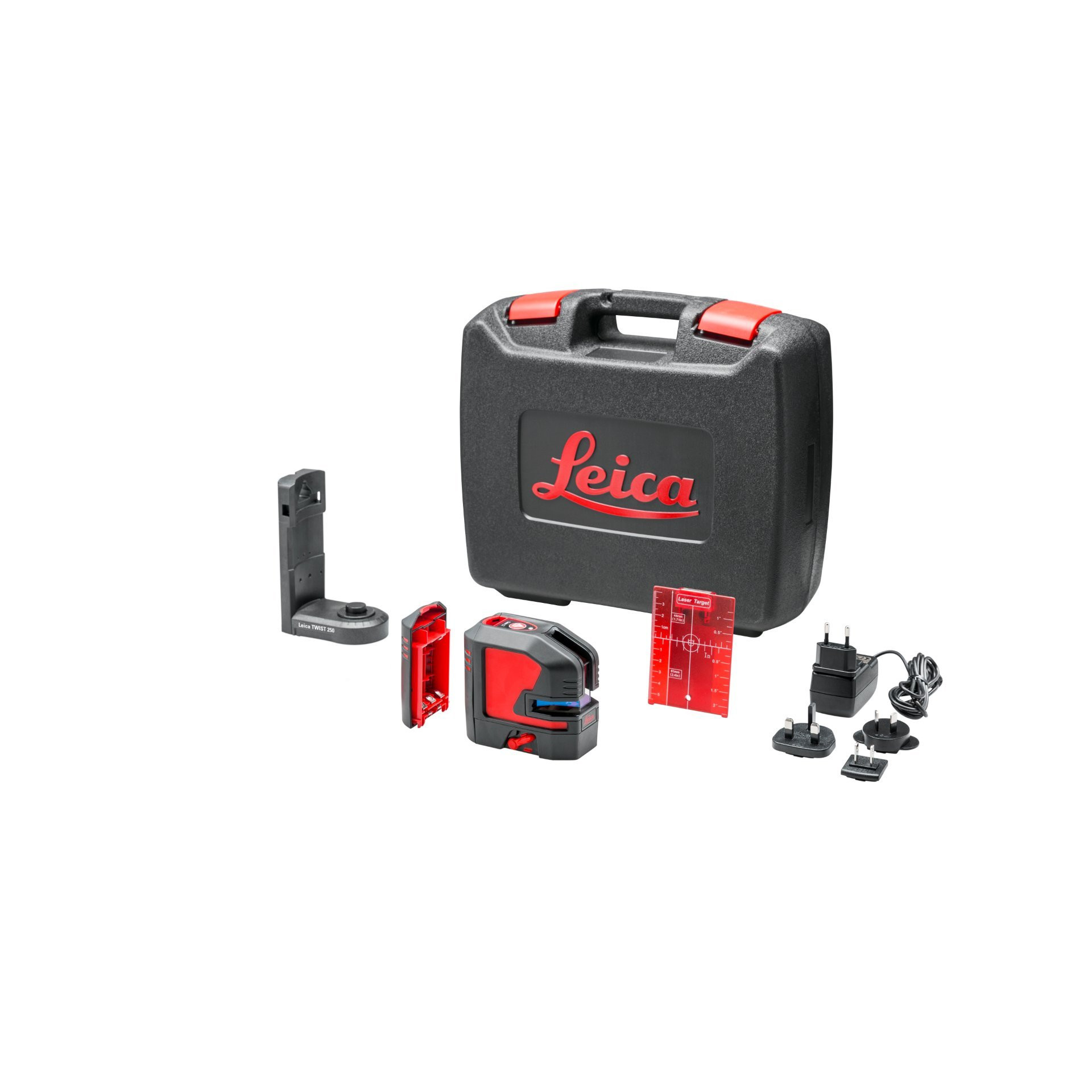

Scope of Delivery

Leica LINO Lino L2-1
Adapter Twist 250
Li-Ion battery
Charger
Target board
Suitcase
